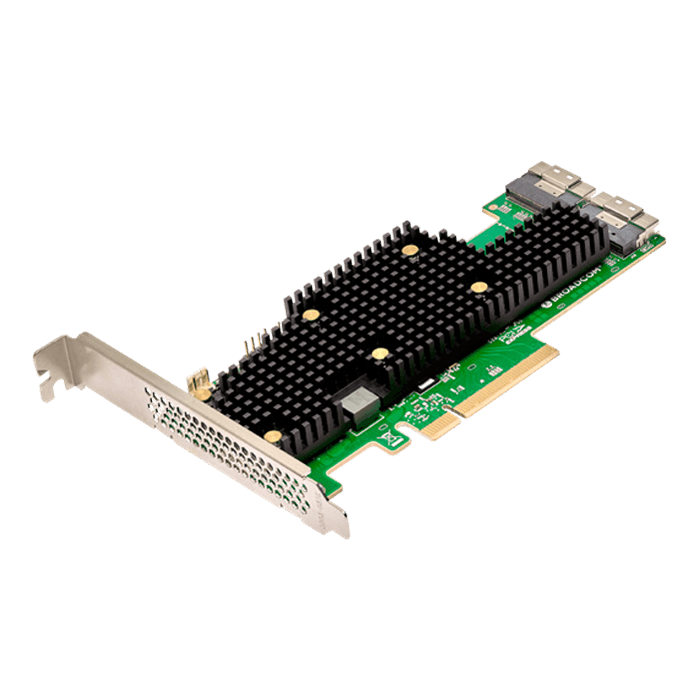

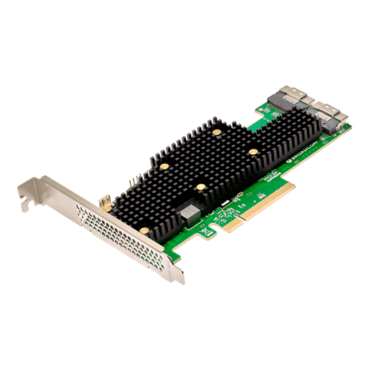

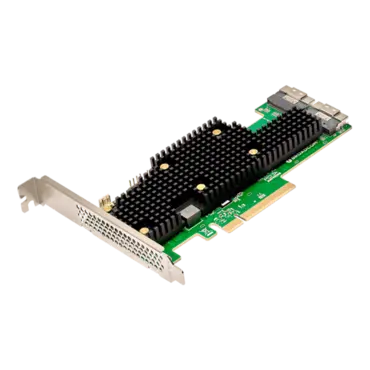

eHBA 9600-16i, Tri-mode SATA/SAS/PCIe (NVMe) 24Gb/s, 16-Port, PCIe 4.0 x8, Host Bus Adapter
- SKU: 15783563
- Manufacturer: Broadcom
- MPN: 05-50111-00
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$771.59
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connect up to 240 SAS/SATA devices or 32 NVMe devices
- Hardware Secure Boot and SPDM Attestation support
- SMART monitoring
- Drive temperature monitoring
- SafeStore key management for attached SEDs
- Universal Bay Management (UBM) Ready
| Adapter Type | eHBA |
| Ports | 16 internal |
|
Storage Controller |
SAS4016 IOC |
|
PCIe Host Interface |
x8, Gen 4.0 |
|
Storage Interface |
Gen 4.0 PCIe (NVMe), 24Gb/s SAS, 6Gb/s SATA |
| RAID Levels | — |
|
Max SAS/ SATA PDs |
240 |
|
Max NVMe PDs |
32 |
| Connectors | 2 ×8 SFF-8654 |
| Form Factor | LP-MD2 |
| Dimensions | 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) |
|
Typical Power |
15W |
|
Operating Conditions |
150 LFM at 55°C |
|
Energy Backup |
— |
| Security | HW Secure Boot and Attestation |
| Driver | Unified MPI3 Driver |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. |
|
Ordering Information |
|
| Single Pack | 05-50111-00 |
| CVPM05 | — |
