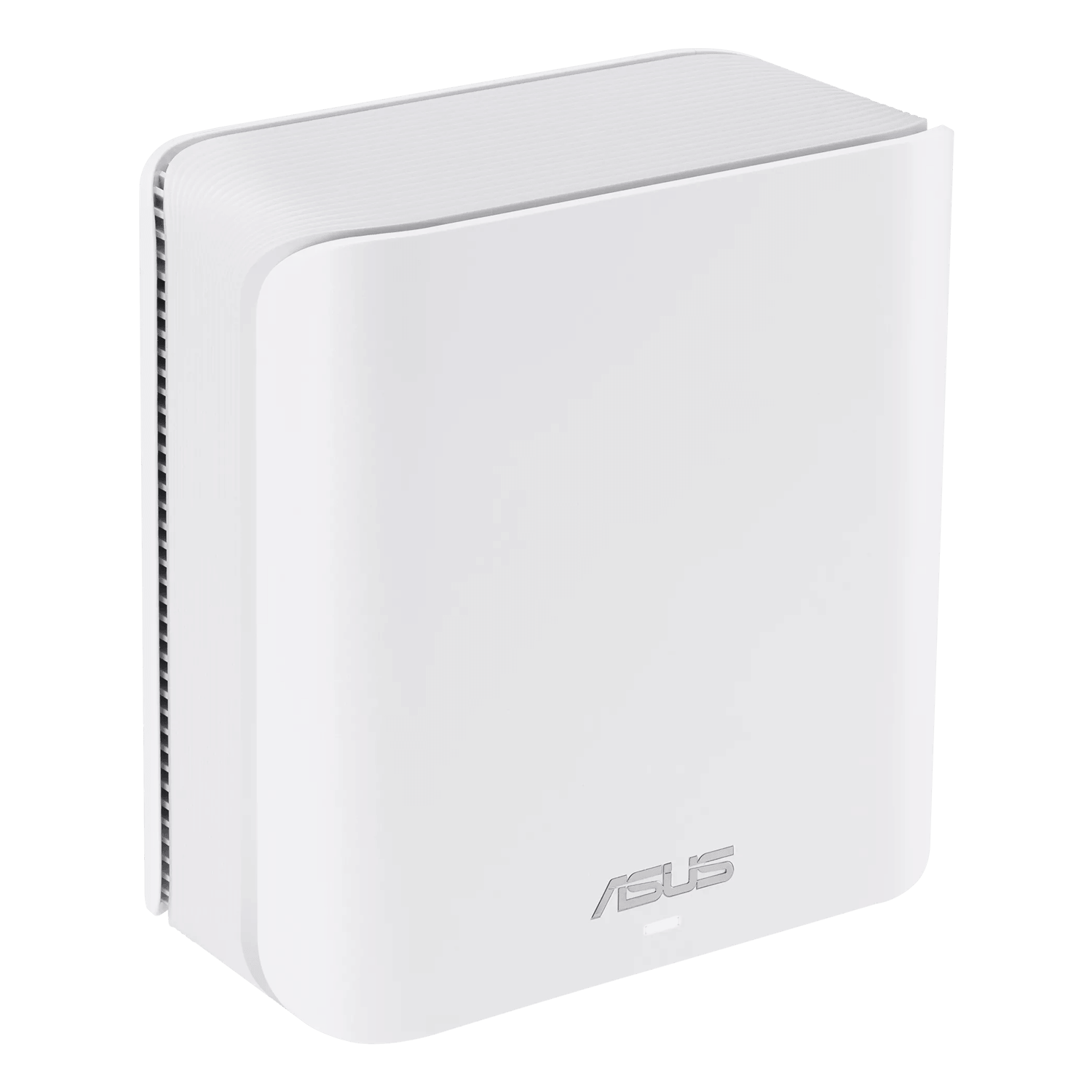

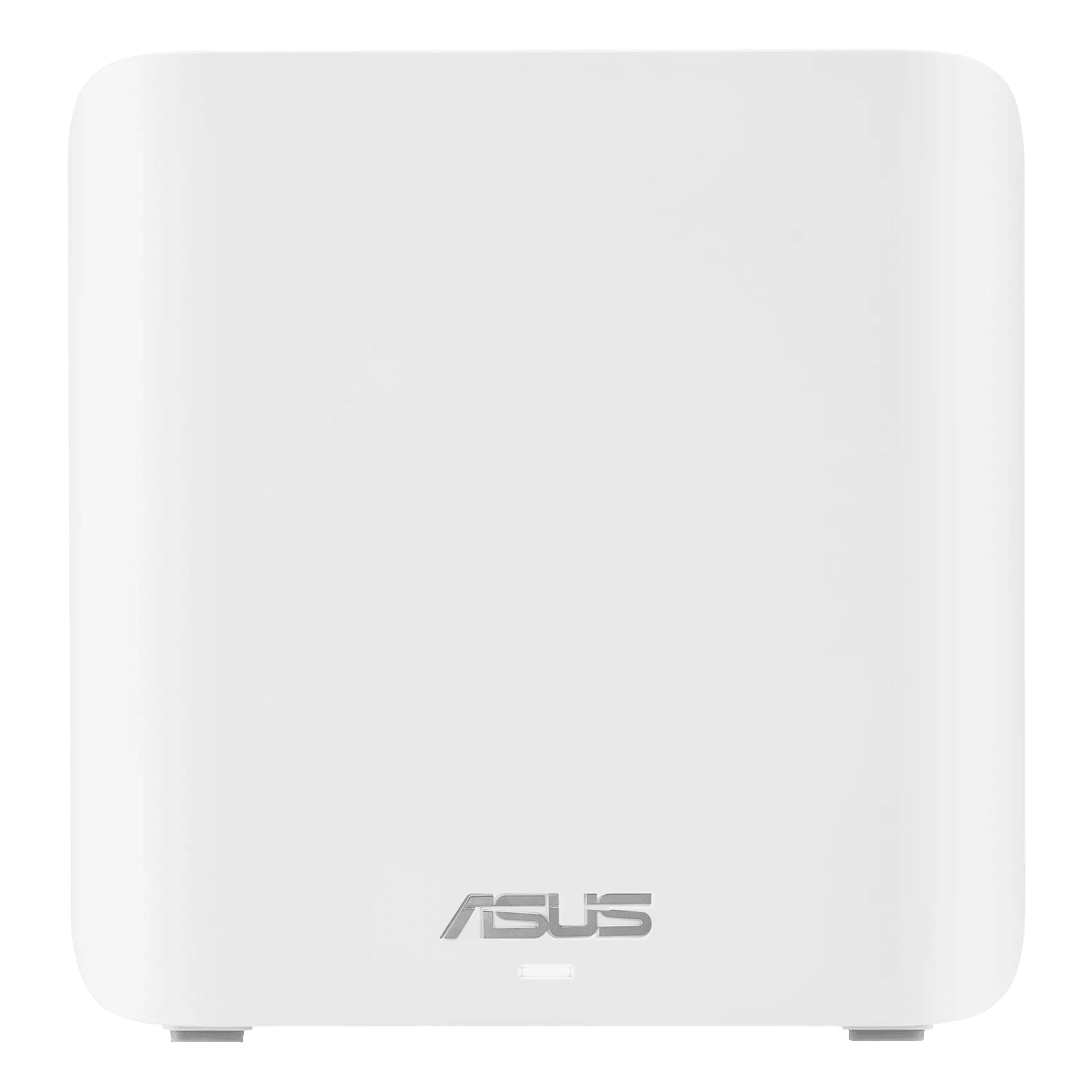

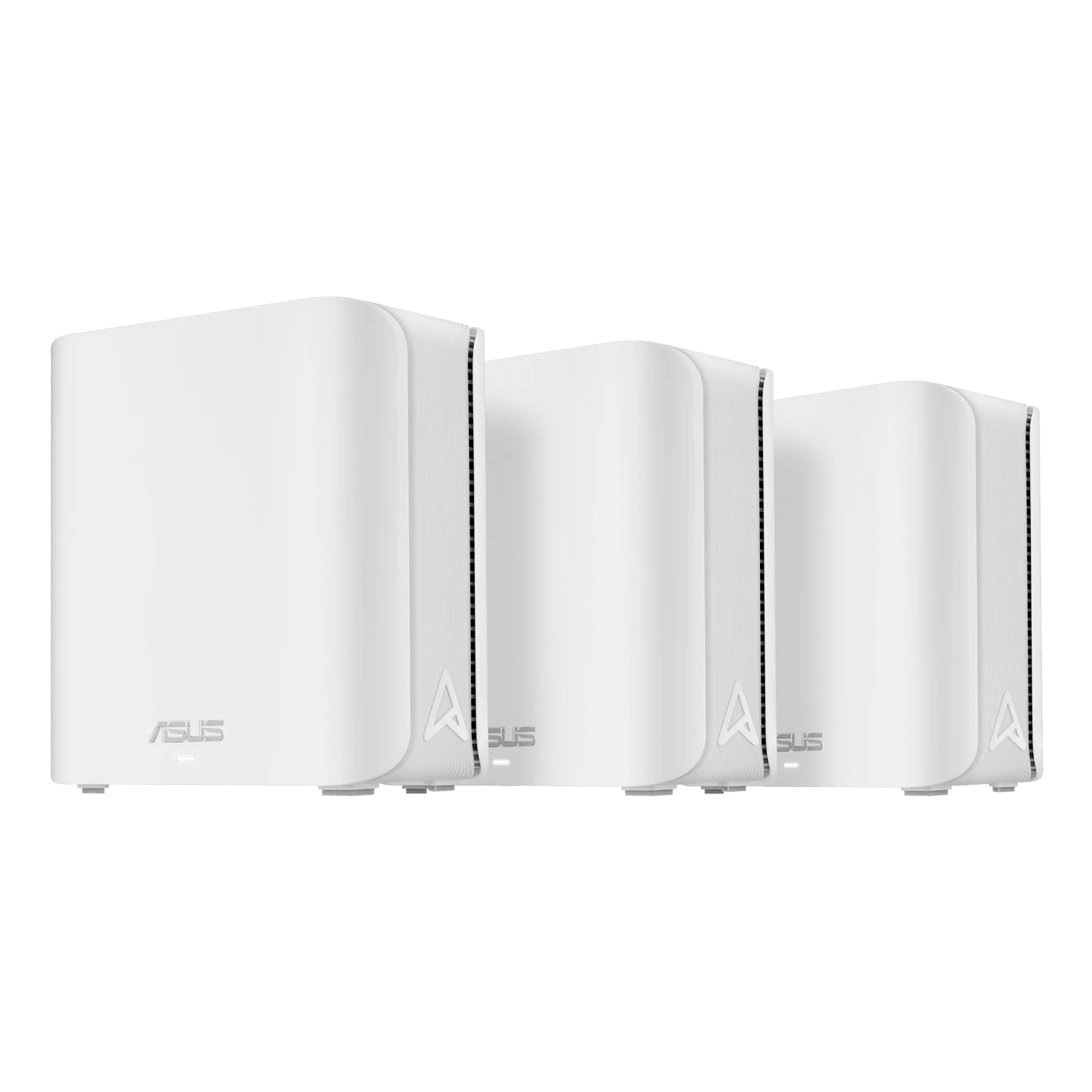

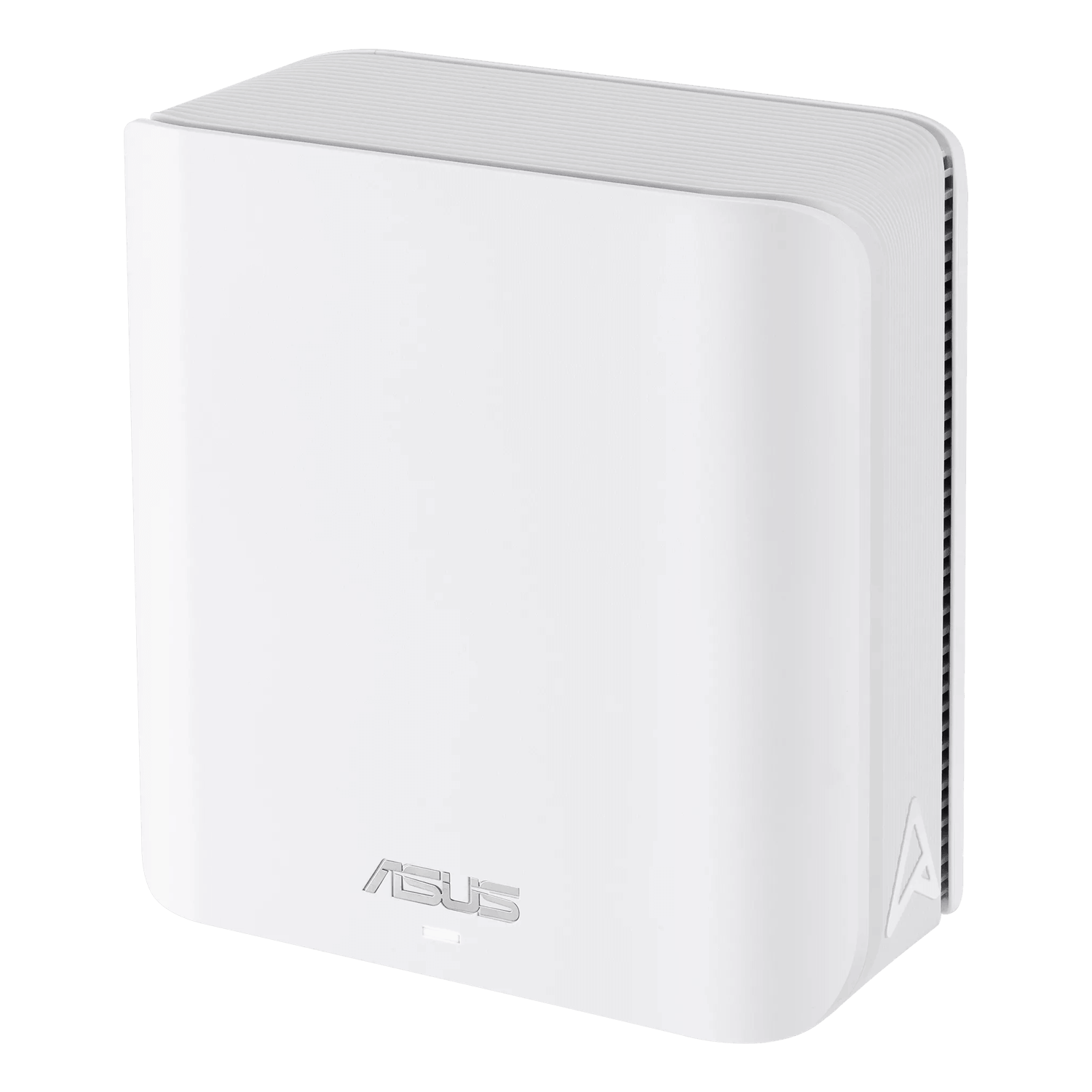

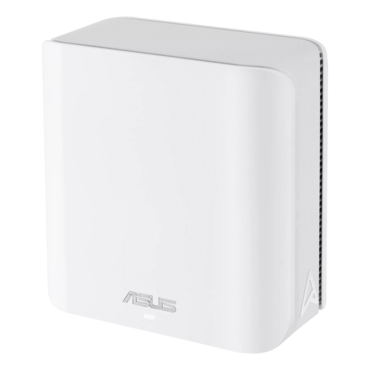

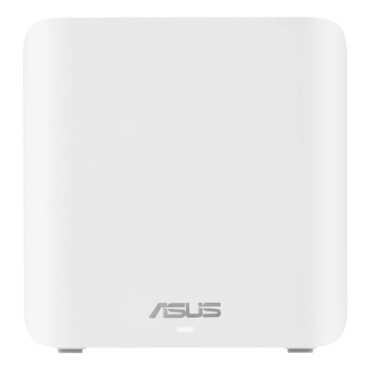

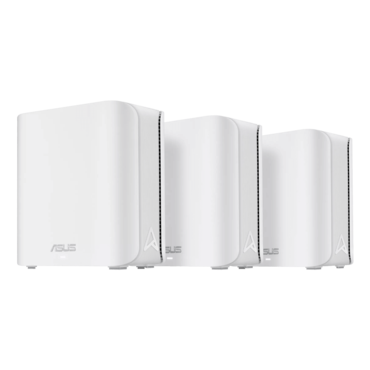

ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router
ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router
ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router
ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router
ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router

ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router

  • SKU: 19909479
  • Manufacturer: ASUS
  • MPN: BD5(W-3-PK)
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$225.40
$7.27/mo* with bread pay
Quantity:
ZenWiFi BD5(W-3-PK), IEEE 802.11be, Dual-Band 2.4 / 5 Ghz, 688 / 4323 Mbps, 2xRJ45, Retail Wireless Router

ASUS ZenWiFi BD5(W-3-PK). The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BD5 raises the bar for whole-home mesh with WiFi 7 and next-gen AiMesh technology. It delivers blazing-fast dual-band speeds up to 5 Gbps and unleashes superior WiFi performance. Along with ultra-high-speed dual 2.5 Gigabit auto-detect ports and a suite of advanced network and security technologies, this mesh WiFi system is ready to future-proof your smart home network today.

  • Dual-band WiFi 7 speeds up to 5000 Mbps with MLO and 4K-QAM
  • ASUS AiMesh technology boosts coverage up to 6800 sq. ft. (3-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home WiFi
  • Four internal antennas and four high-power front-end modules eliminate WiFi dead zones
  • 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
  • IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
  • Dual 2.5G Ethernet ports with auto detection
  • Quad-core 1.5 GHz CPU and robust cooling
Model ASUS ZenWiFi BD5
Model Name BD5(W-3-PK)
BD5(W-2-PK)
BD5(W-1-PK)
Network Standard IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment BE5000 ultimate BE performance : 688+4323 Mbps
WiFi Data Rate WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Antenna Internal antennas x 4
Transmit / Receive 5GHz 2x2
2.4GHz 2x2
Processor 1.5GHz quad-core processor
Memory RAM 512MB , Flash 128MB
Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/240 MHz bandwidth (The availability of 240 MHz depends on the country)
Operating Frequency 5 GHz
2.4 GHz
Operating Mode Access Point Mode
AiMesh Node Mode
Wireless Router Mode

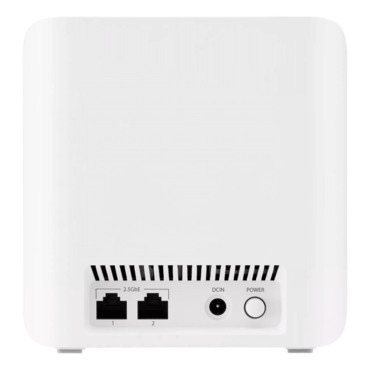

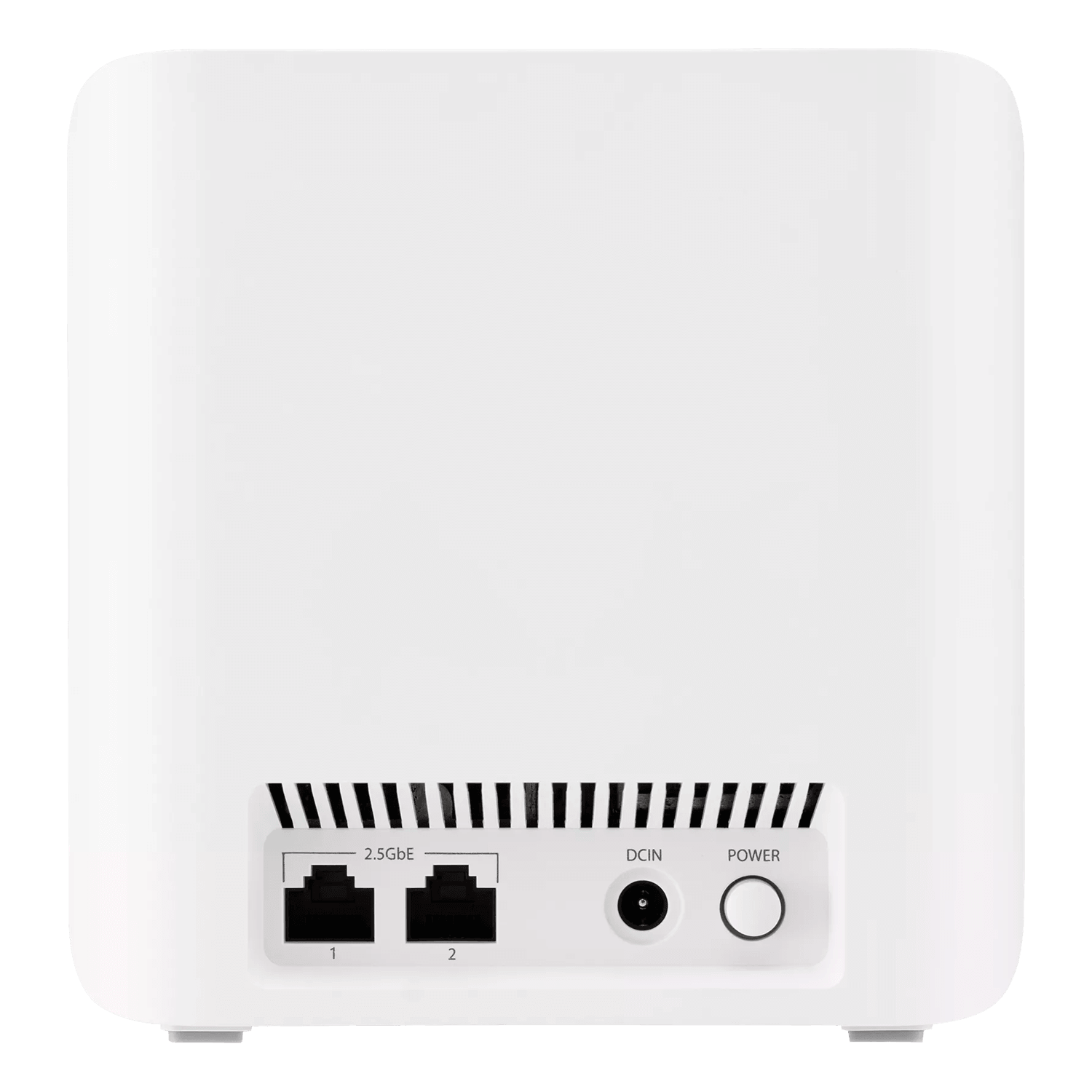

I/O Ports 2.5G x 2 (WAN/LAN auto detecting)
Buttons WPS button, Reset button, Power switch
LED Indicator Power x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max 1.5A current
Package Content ZenWiFi BD5
RJ45 cable
Power adapter
Warranty card
Quick start guide
Product Dimensions 140 x 70 x 140 mm
Remark Content may vary in different regions and packages.
AiMesh AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control "Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule
Router APP APP: ASUS Router APP
Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network
Security AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall
AiProtection AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking
VPN Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Traffic Control Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, Traditional QoS, Traffic Monitor, Traffic Analyzer, • Website History
WAN Port Forwarding, Port Triggering, DMZ, DDNS
LAN DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)
Wireless MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
Administration Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
Smart Home Support Google Assistant
