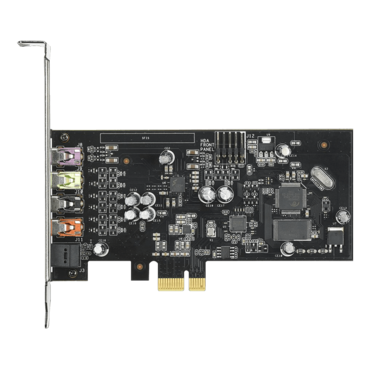

Xonar SE, 5.1 Channels, 24-bit / 192KHz, 116 dB SNR, PCIe Sound Card

Quantity:
  • SKU: 12353363
  • Manufacturer: ASUS
  • MPN: XONAR SE
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$42.55
Quantity:
  • 192kHz/24-bit, 5.1-channel playback and 300ohm headphone amp for enhanced bass and clear, detailed sound
  • Hi-fidelity, immersive sound with a 116dB signal-to-noise ratio (SNR)
  • Xonar Audio Center software provides a user-friendly experience via an inviting and intuitive interface
  • Exclusive Hyper Grounding Technology ensures effective noise-blocking, and reduced audio distortion and cross-over interference
Audio Interface PCI Express
Audio Performance Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
116 dB
Input Signal-to-Noise Ratio (A-Weighted) :
110 dB
Output THD+N at 1kHz (Front-out) :
0.00251 %(-92 dB)
Input THD+N at 1kHz :
0.00251 %(-92 dB)
Frequency Response (-3dB, 24bit/192KHz input) :
10 Hz to 87 KHz
Output/Input Full-Scale Voltage :
Headphone output : 2 Vrms (5.65 Vp-p)
Chipset Audio Processor :C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)
Digital-to-analog Converter(DAC) Realtek S1220A (120dB SNR, Max. 192KHz/24bit)
Sample Rate and Resolution Analog Playback Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO 2.2 Driver Support :
44.1K/48K/96K/192KHz @ 16bit/24bit
Connectivity Analog Output
3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/Mic-in)
Digital
1 x S/PDIF out (1 x Optical (Toslink))
Special Features Smart Volume Normalizer™
Xear 3D™ Virtual Speaker Shifter
Xear Surround™
Magic Voice™
Operating System Windows® 10
Windows® 8.1
Windows® 7
Accessories Low-profile bracket x 1
Driver CD x 1
Quick start guide x 1
