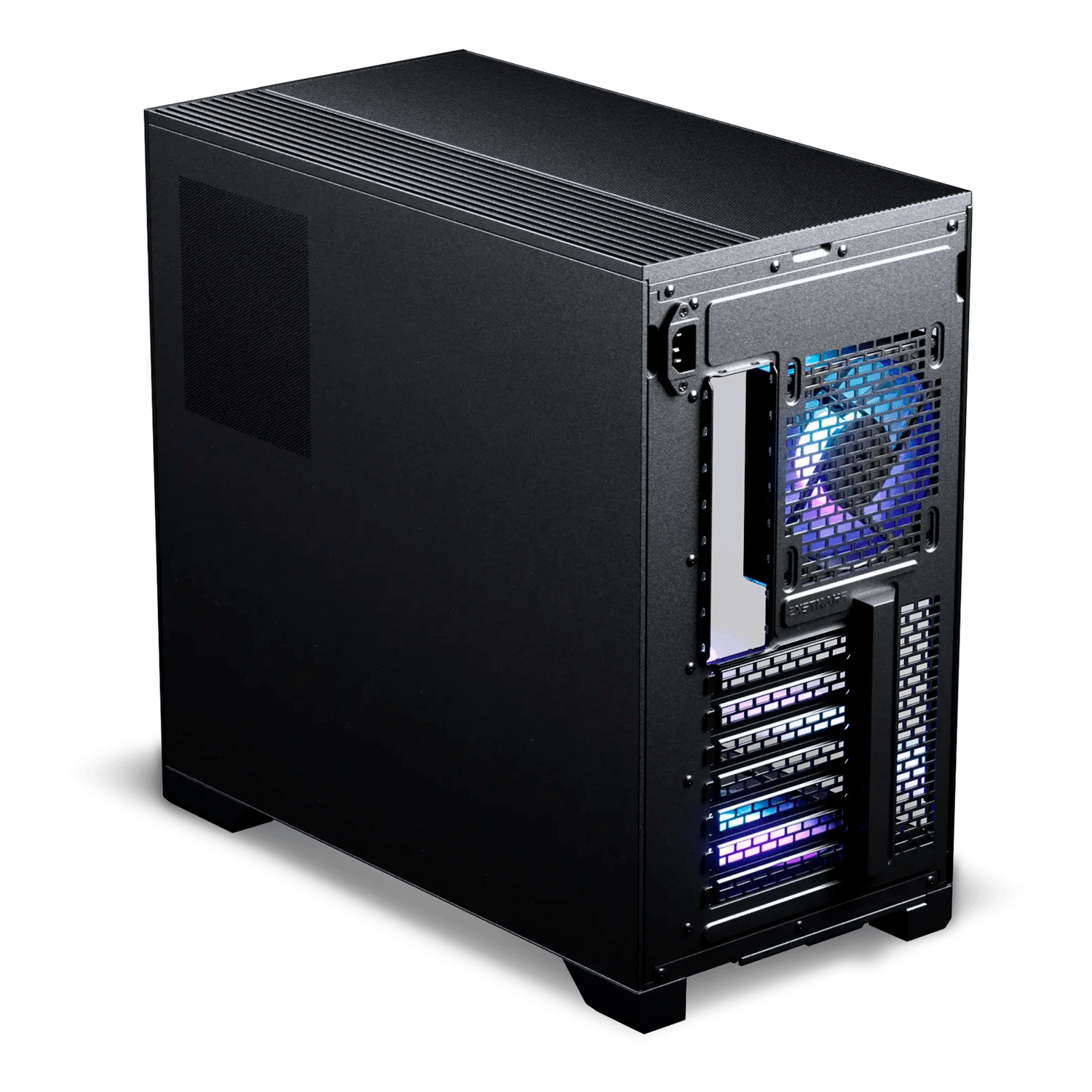

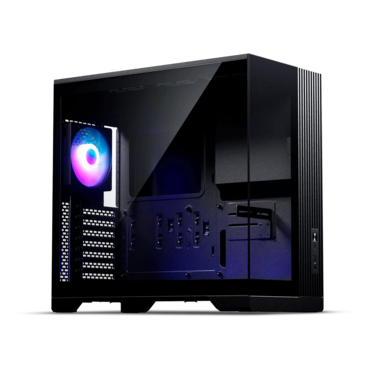

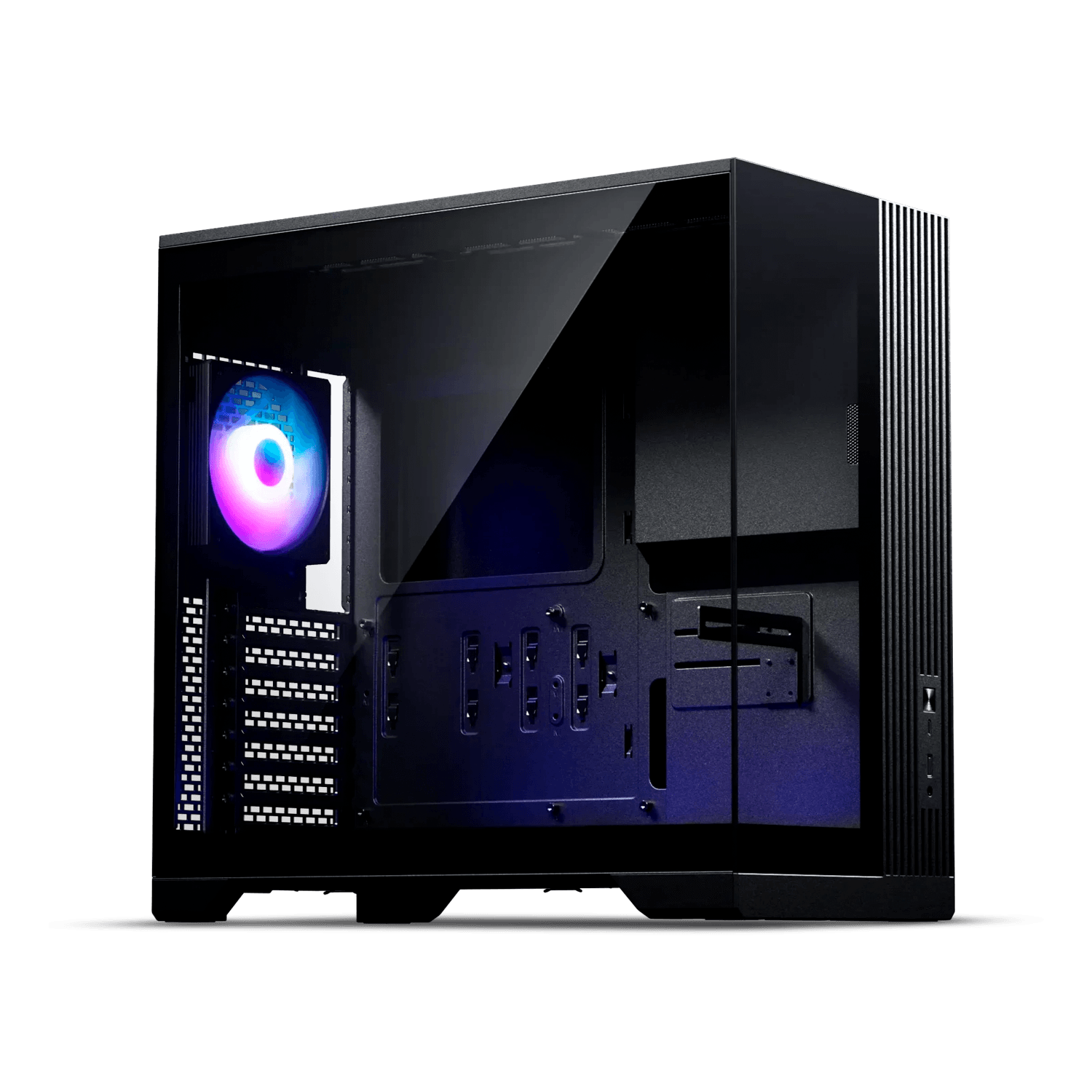

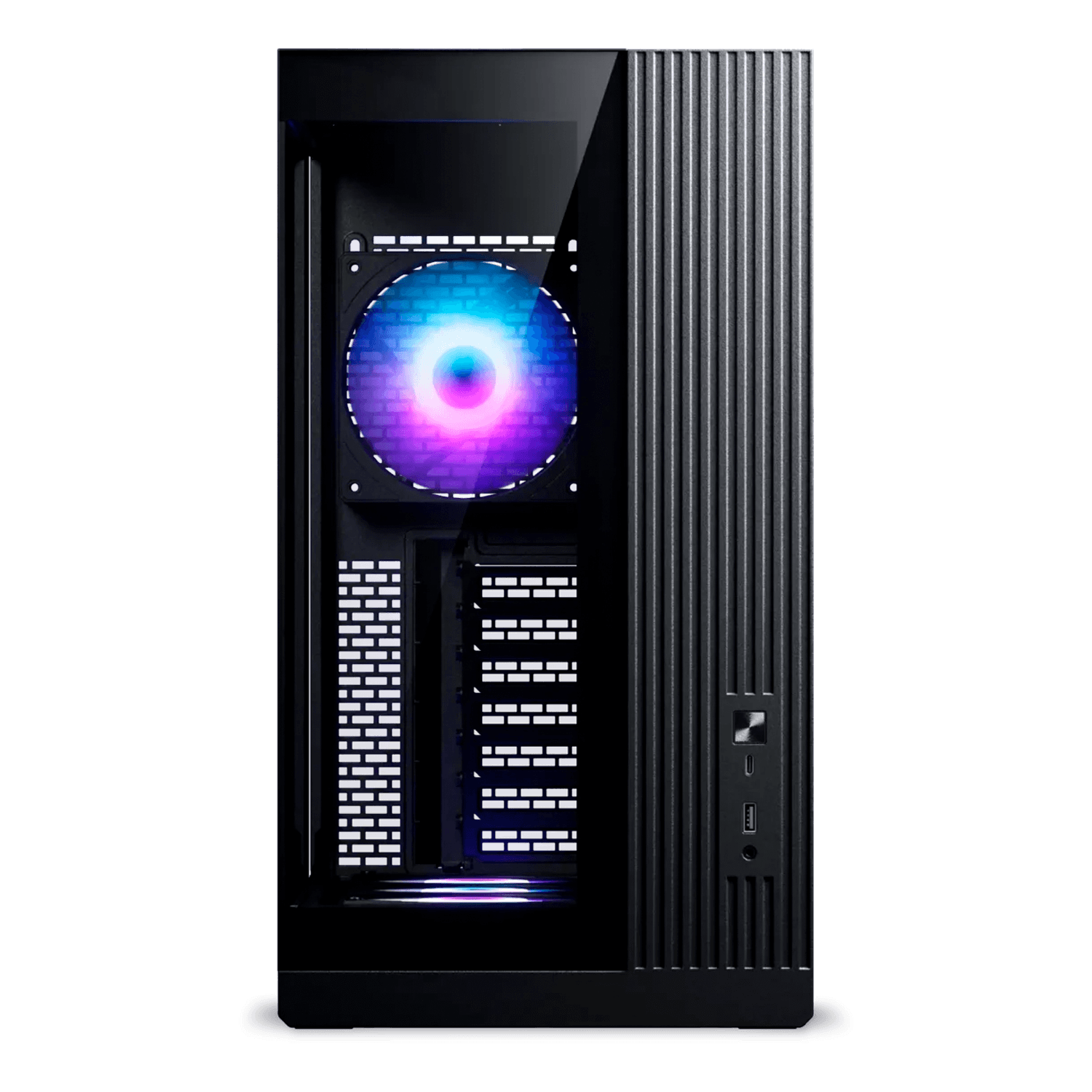

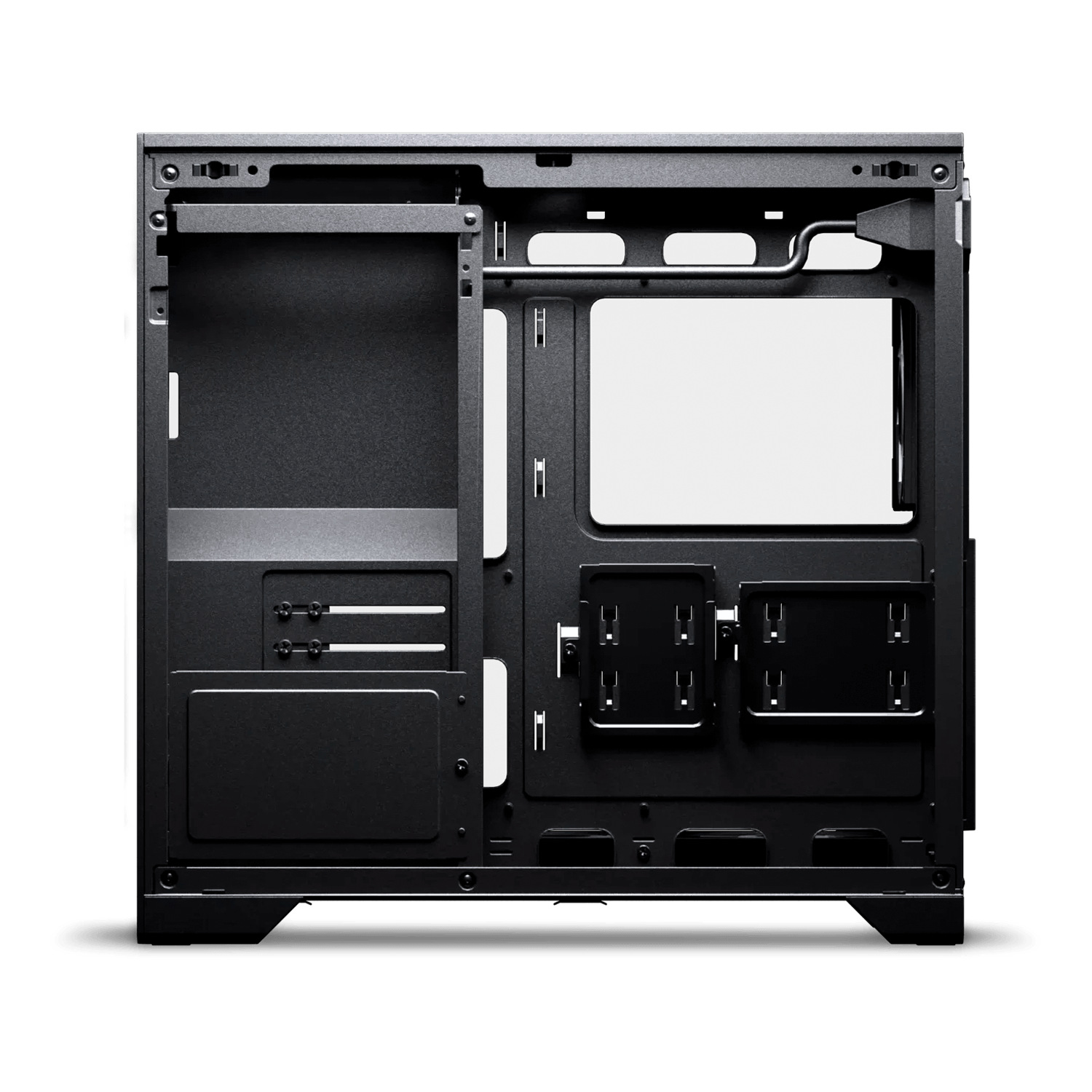

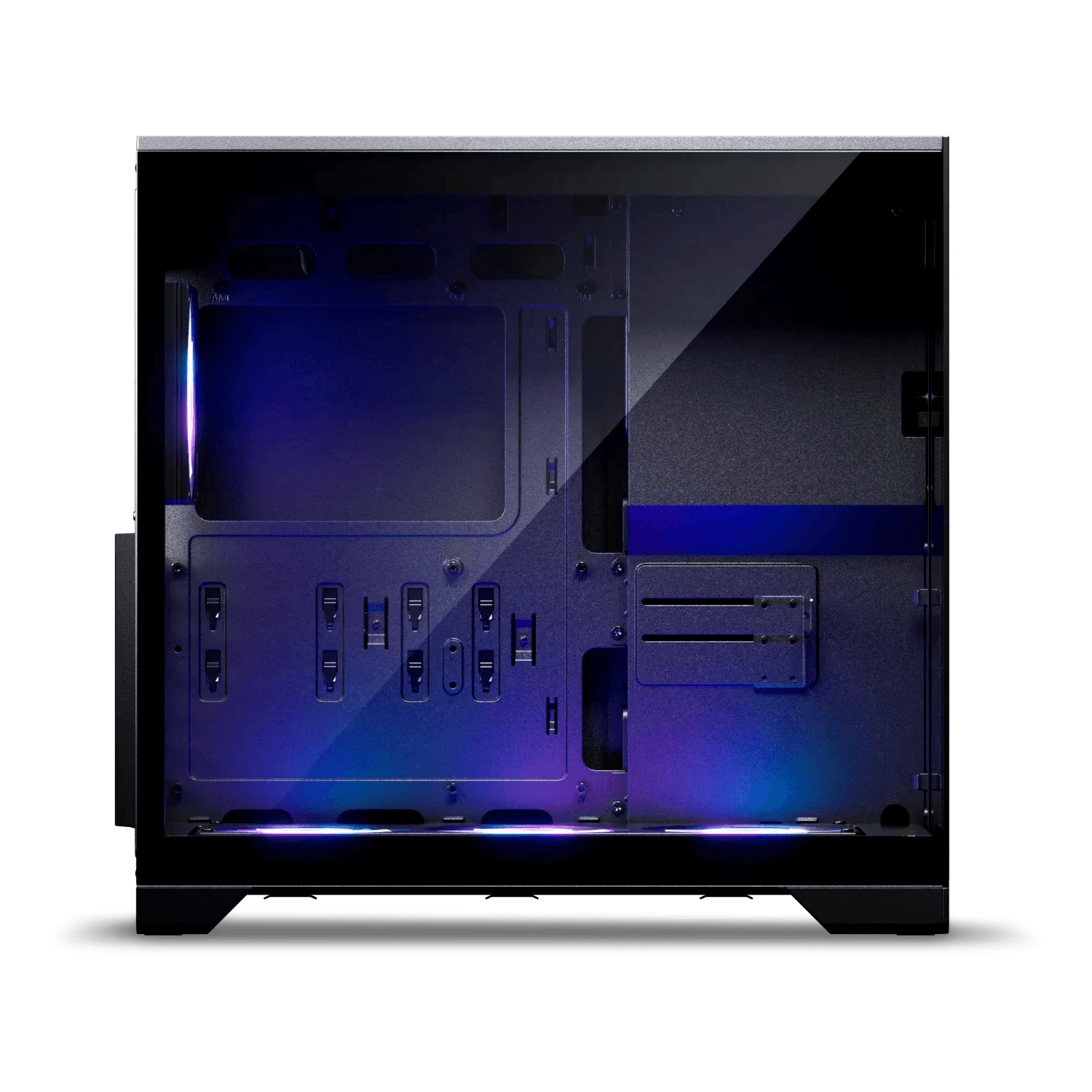

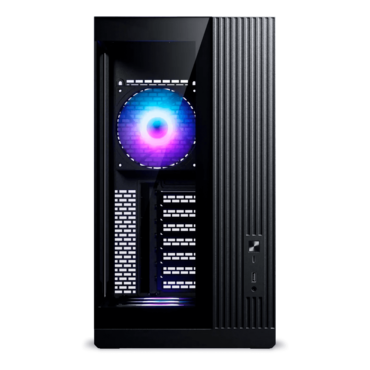

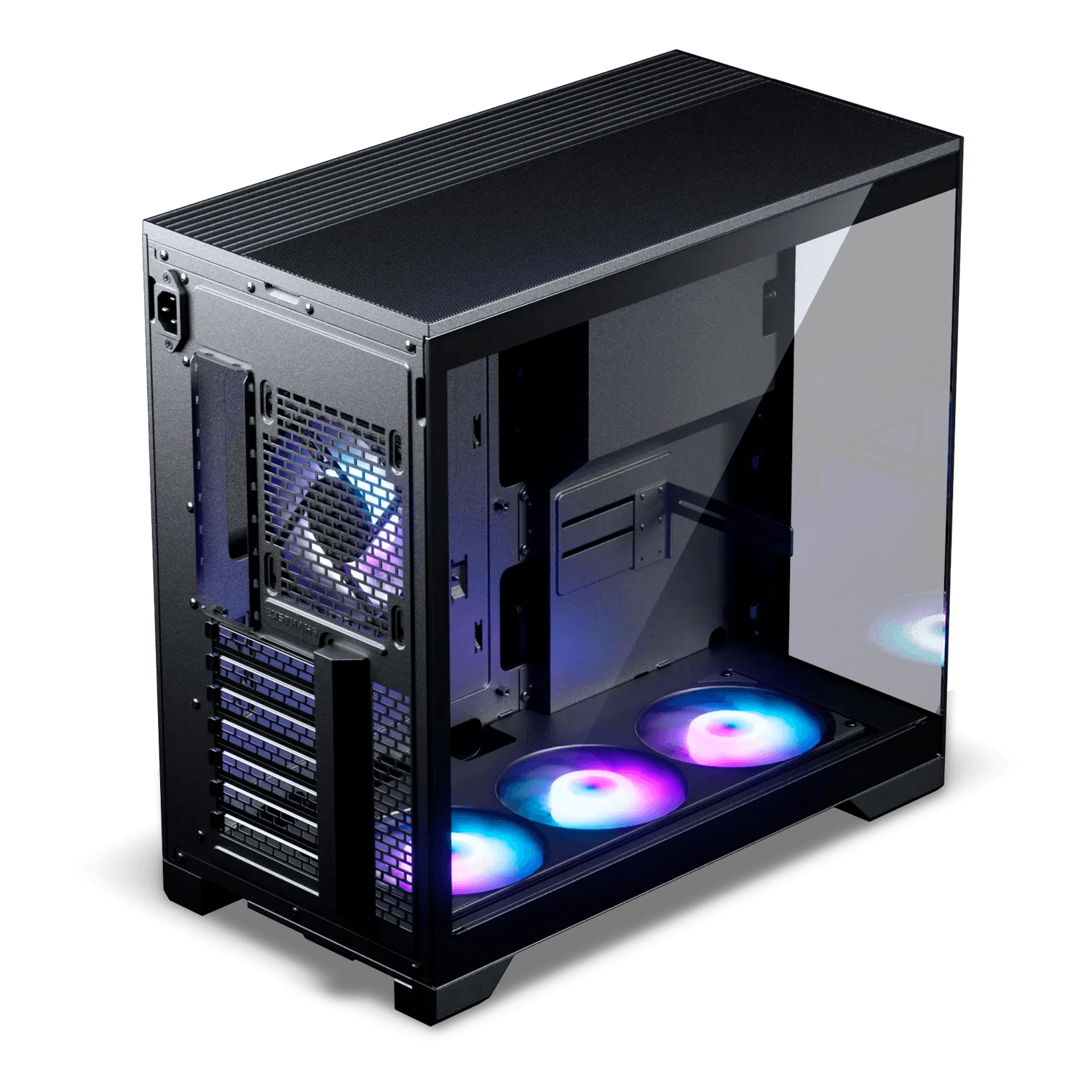

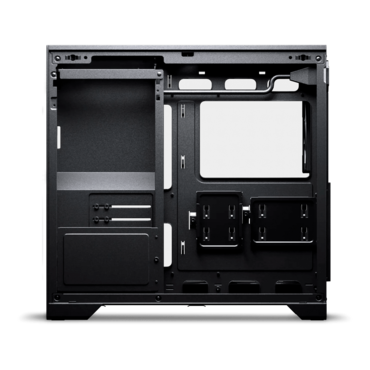

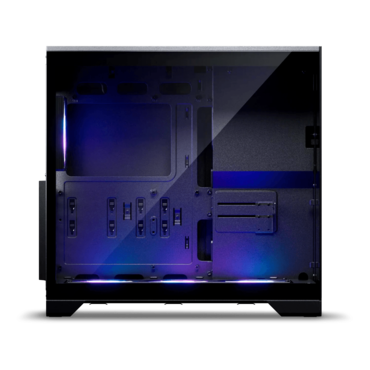

XT V5, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 20246564
- Manufacturer: PHANTEKS
- MPN: PH-XT525V_DBK01
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
| General | |
| Model No. | PH-XT525V_DBK01 |
| UPC Code | 886523304692 |
| Case Dimensions | 452 x 235 x 430 mm | 17.79 x 9.25 x 16.93 in |
| From Factor | Mid-Tower |
| Mainboard Support | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 7 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2 + 1x 3.5″ HDD |
| Internal 3.5″ Positions | 1 + 2x 2.5″ SSD |
| Front I/O |
1x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Fans 120 | 140 | |
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | – | – |
| Side | – | – |
| Rear | 1 | – |
| Bottom | 3 | – |
| Radiator 120 | 140 | |
| Top | Max. 360 | – |
| Front | – | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler | Height: 175 mm | 6.89 in |
| GPU | Length: 430 mm | 16.93 in |
| GPU | Width: 175 mm | 6.89 in |
| Power Supply | 250 mm | 9.84 in |
| Top 360 Radiator |
Length x Width 410 x 122 | 16.14 x 4.80 in |
| Extra | |
| Net Weight | 7.05 kg | 15.54 lbs |
| Gross Weight | 8.36 kg | 18.43 lbs |
| Warranty | 5 Years Limited Learn more |
| Scope of Delivery |
1x XT V5 chassis 1x S25-120 D-RGB fan Pre-installed 1x S25-360 D-RGB fan Pre-installed 1x Storage bracket Pre-installed 1x SSD bracket Pre-installed |
| Accessory Box | 10x Zip ties 1x Stand-off removal tool |
| Screws |
17x Mainboard | SSD screws 5x Power supply screws 4x HDD screws 2x thumbscrews 1x Mainboard stand-off |
