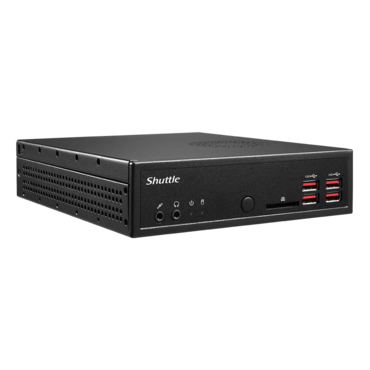

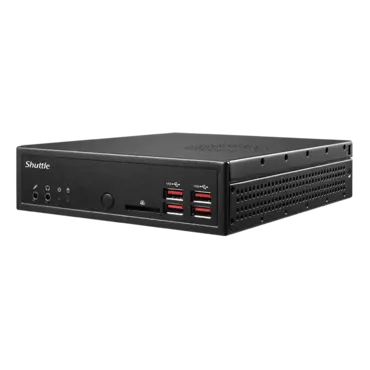

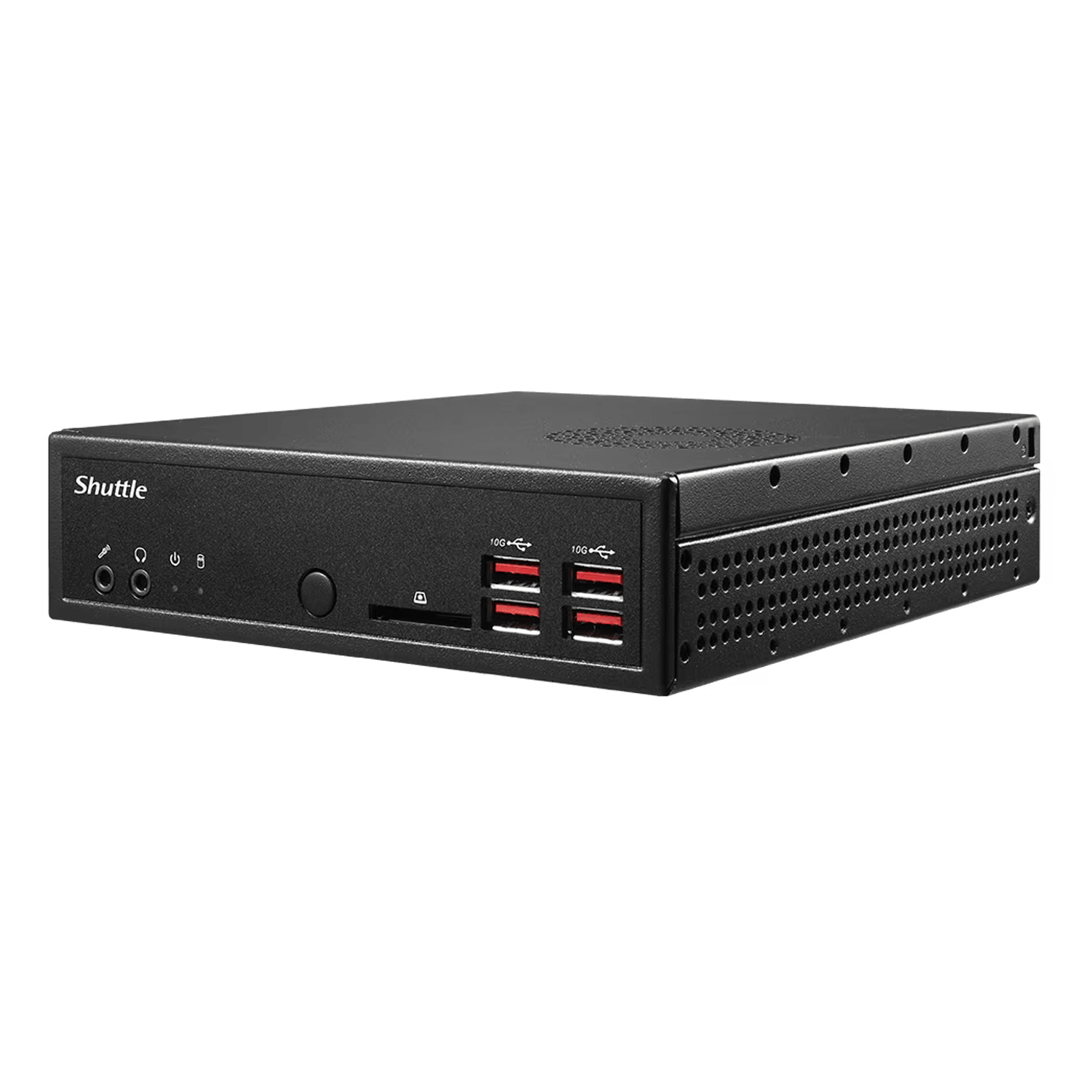

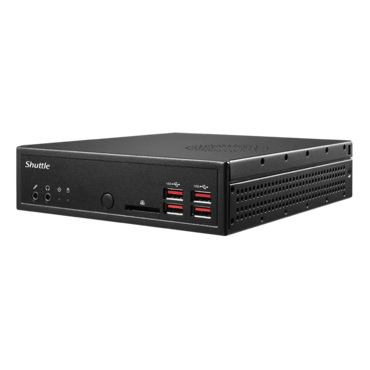

XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone

XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone

  • SKU: 19933369
  • Manufacturer: SHUTTLE
  • MPN: DH32UE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$559.99
Quantity:
XPC Slim DH32UE, Intel® Pentium® Gold 7505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
The DH32UE quad HDMI computer seamlessly integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U," supporting up to four Ultra HD displays at 60 Hz via HDMI 2.0b. Encased in a slim metal chassis with a VESA mount, it offers versatile connectivity and reliable operation in up to 50°C temperatures. This makes it an excellent choice for vertical applications like Digital Signage, Kiosks, Surveillance, Control Rooms, Gambling Machines, Healthcare, and Industry.
  • Processor: Intel Pentium Gold 7505
  • Memory: Up to 64 GB of DDR4
  • Storage: 2x M.2 slots (1× M.2-2280, 1× M.2-2230), 1× NVMe, 1× SATA 2.5", card reader

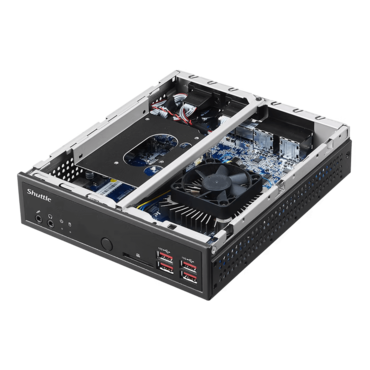

  • Chassis: Semi-rugged chassis made of metal, compact format 7.5"(L) × 6.5"(W) × 1.7"(H)
PROCESSOR Intel Pentium Gold 7505 15W CPU
MEMORY 2 x 260 pin DDR4 3200 MHz SODIMM slots, Supports dual channel up to 64GB (32GB x 2)
VIDEO GRAPHICS Pentium: 48 EUs (Intel UHD)
VIDEO OUTPUT HDMI 2.0b x 4, Supports quad independent displays, Supports 4K Ultra HD Supports EDID Emulation Function
AUDIO Realtek ALC662/ALC897/ALC888S, 5.1 channel HD audio
ETHERNET Intel i210 x 2
100/1000 MB/s operation
Supports Teaming mode
Supports Wake on LAN function
Supports network boot by Preboot eXecuation Environment (PXE)
STORAGE INTERFACE SATA 6 GB/s

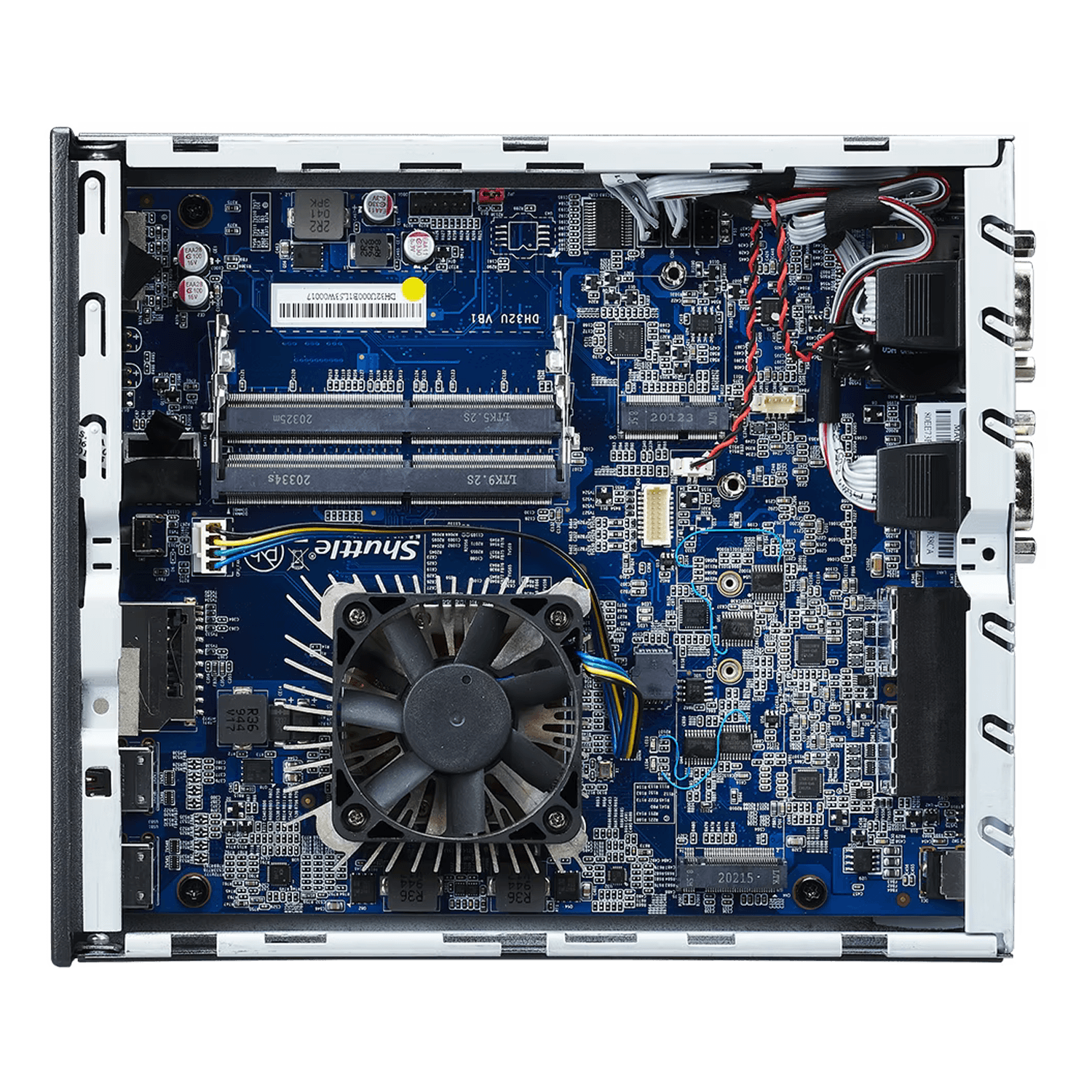

ONBOARD CONNECTORS

(1) 4 pin fan connector
(1) connector for CMOS battery
(1) SATA connector w/ power
(2) COM ports
(1) jumper for power on after power fail (hardware solution)
(1) VGA graphics output (for PVG01 accessory)
(1) USB header (1x4 pin; for WWN03 accessory)

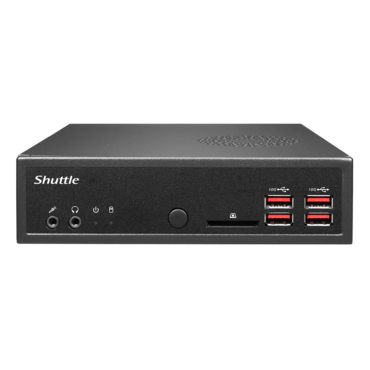

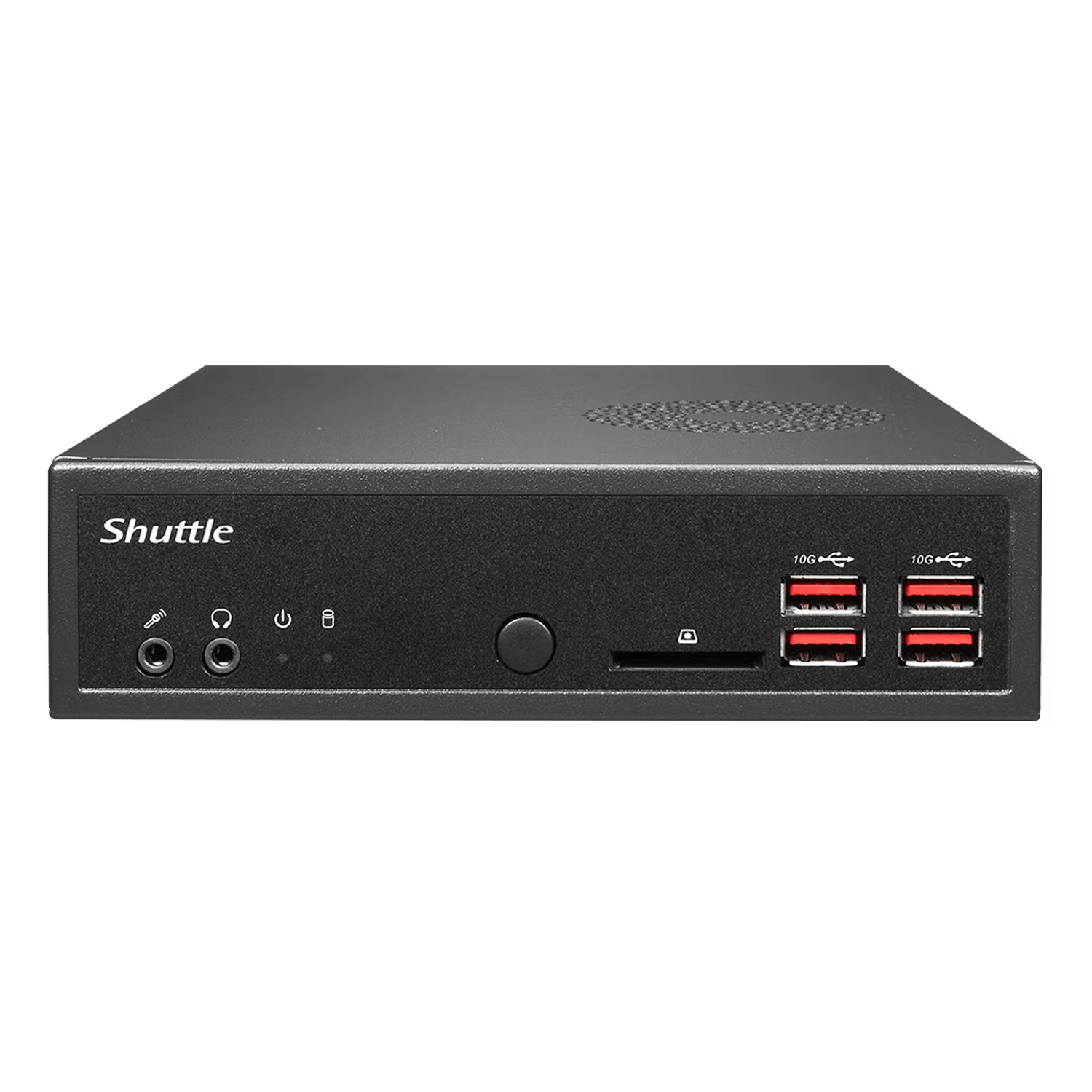

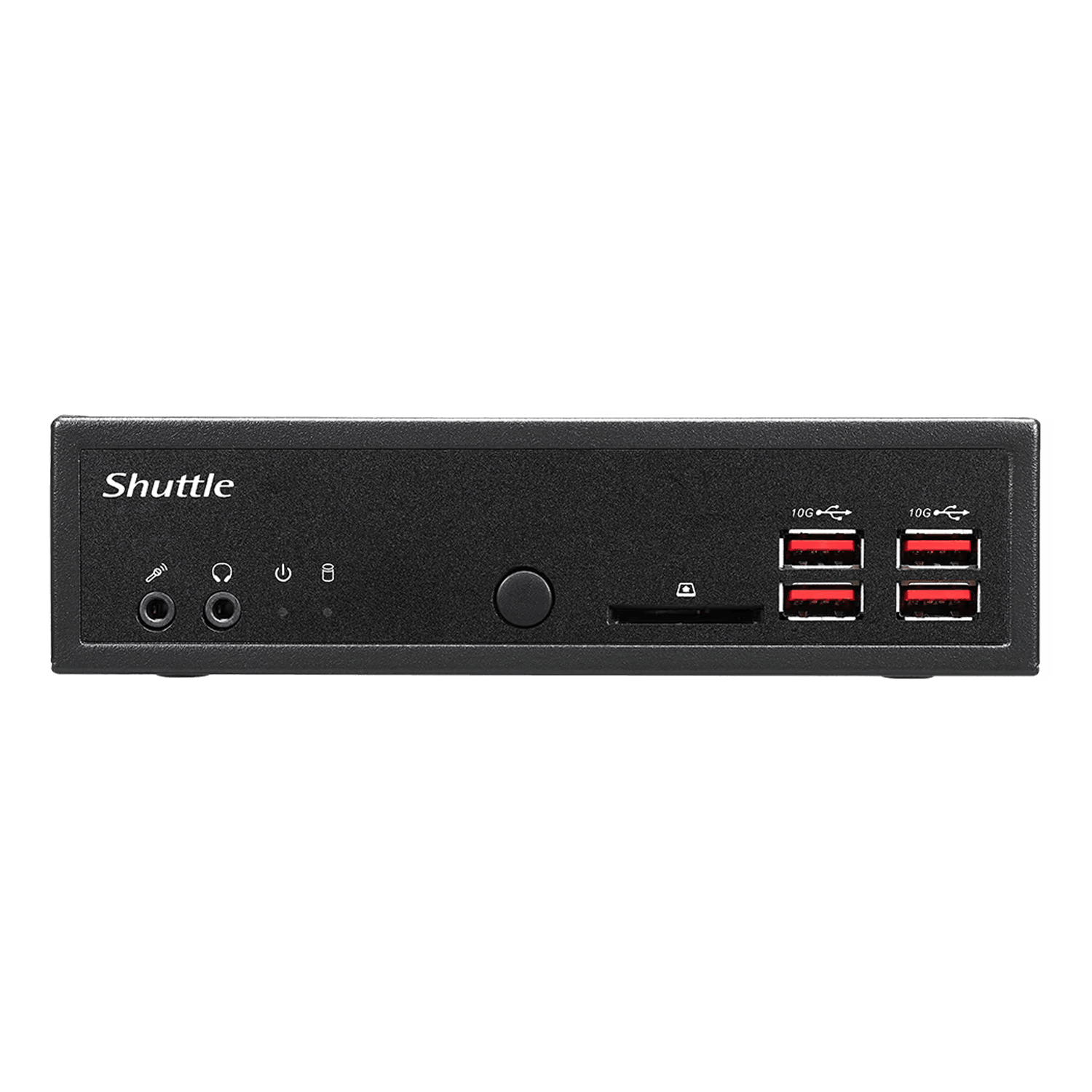

FRONT PANEL (1) Power Button
(1) Power LED
(1) HDD LED
(4) USB 3.2 Gen 2 (Type A)
(1) External microphone jack 1/8"
(1) External headphone jack 1/8"
(1) SD Card Reader

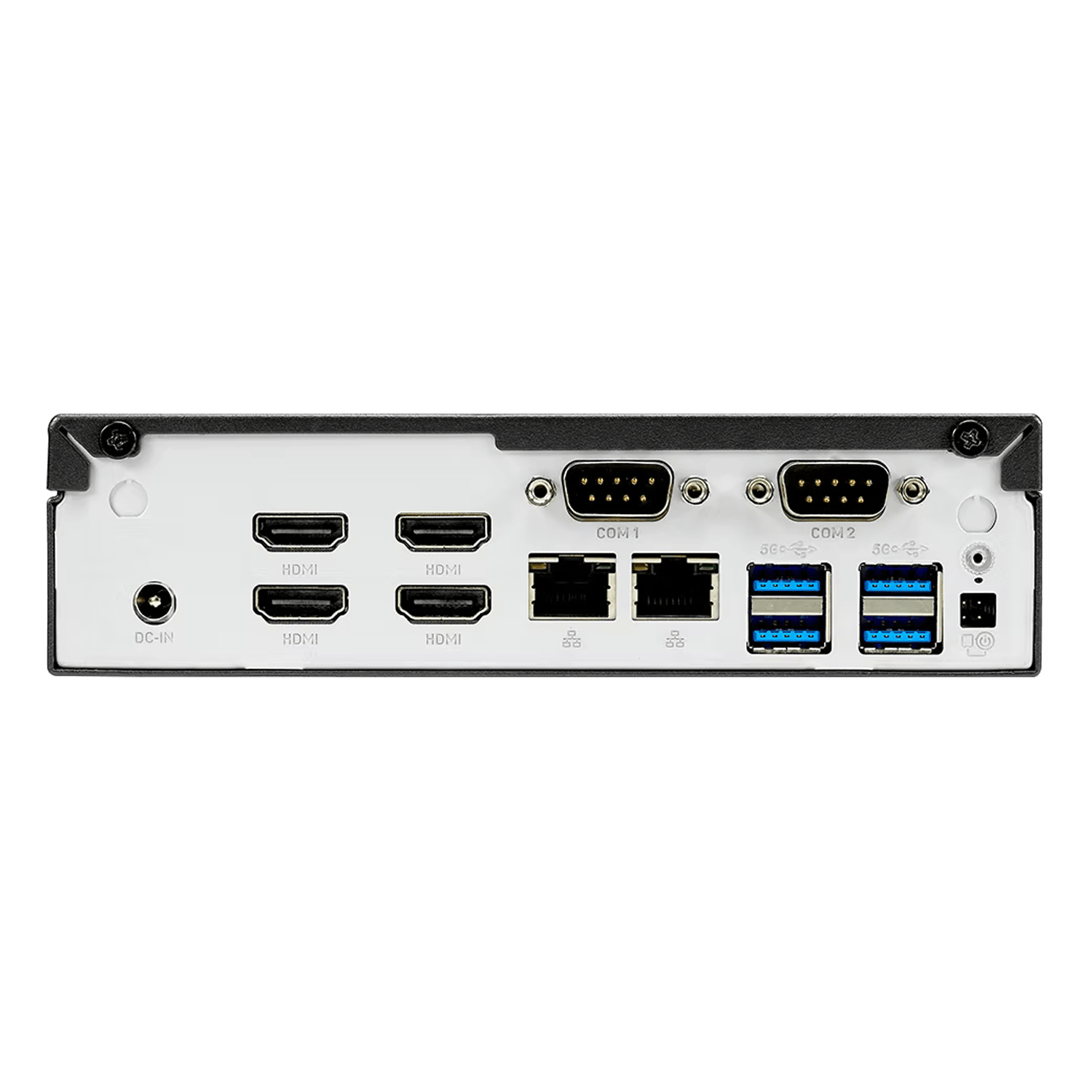

BACK PANEL (4) USB 3.2 Gen 1 (Type A)
(4) HDMI 2.0b
(1) RS232/RS422/RS485
(1) RS232
(2) RJ45
(1) Clear CMOS button
(2) Wireless Antenna holes
(2) Kensington Lock
(1) DC-in
(1) VGA connector PVG01 (optional)
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 7.5(L) x 6.5(W) x 1.7(H) inches
POWER Input: 100 - 240V AC, 50/60 Hz
Output: 19V 4.74A DC, max 90W
19V/90W power supply
ACCESSORIES Quick Guide
Screw package
SATA cable
Power cord
Driver DVD
VESA mount
VESA screw pack
PVG01 (optional VGA video output)
WWN03 (LTE adapter kit w/o LTE card)
Stand for vertical operation
EXPANSION SLOT (1) M2. MAX to 2280 Type M
(1) M.2 MAX to 2230 Type E
OS SUPPORT Windows 10 64 bit, Linux
