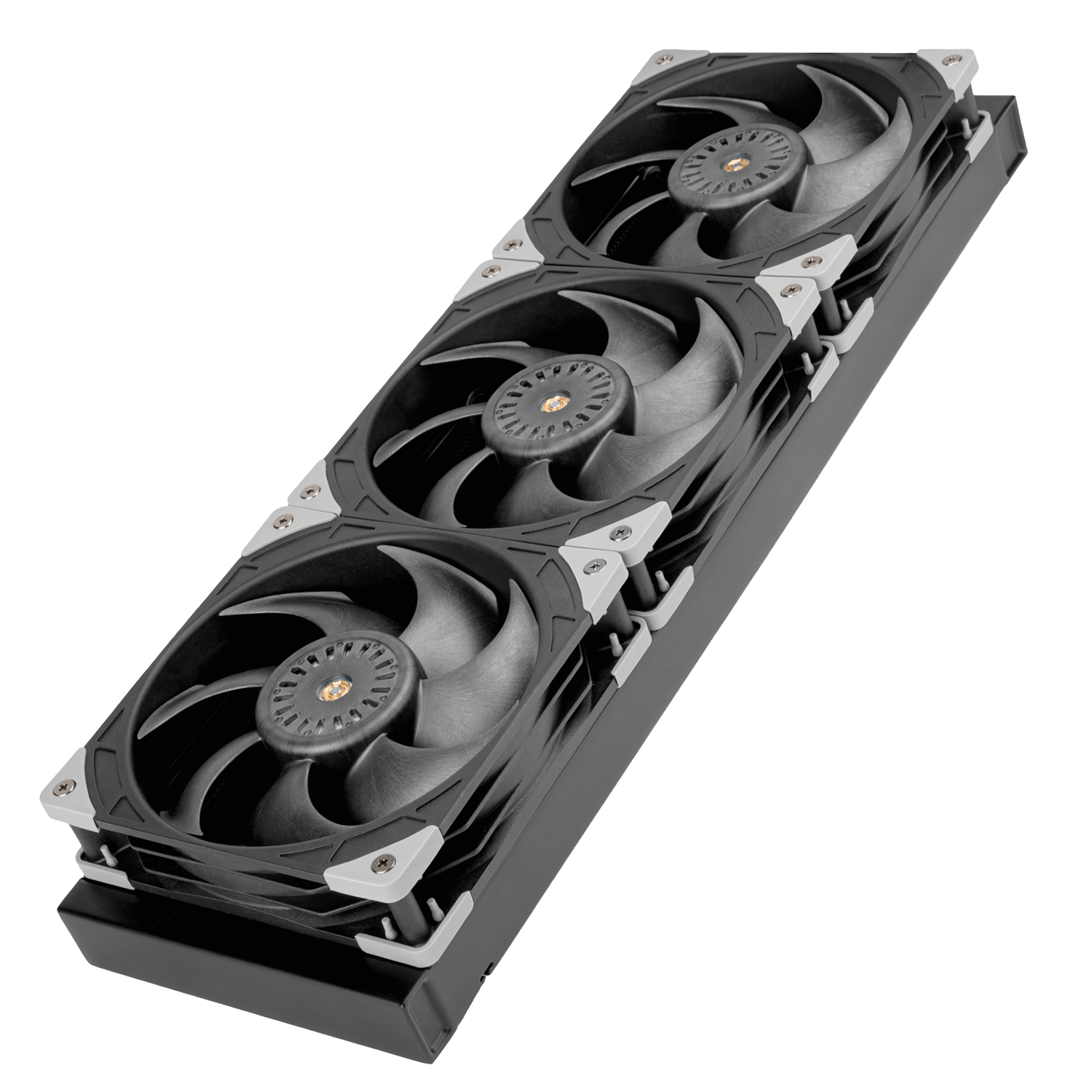

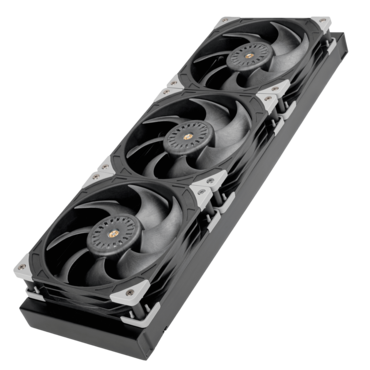

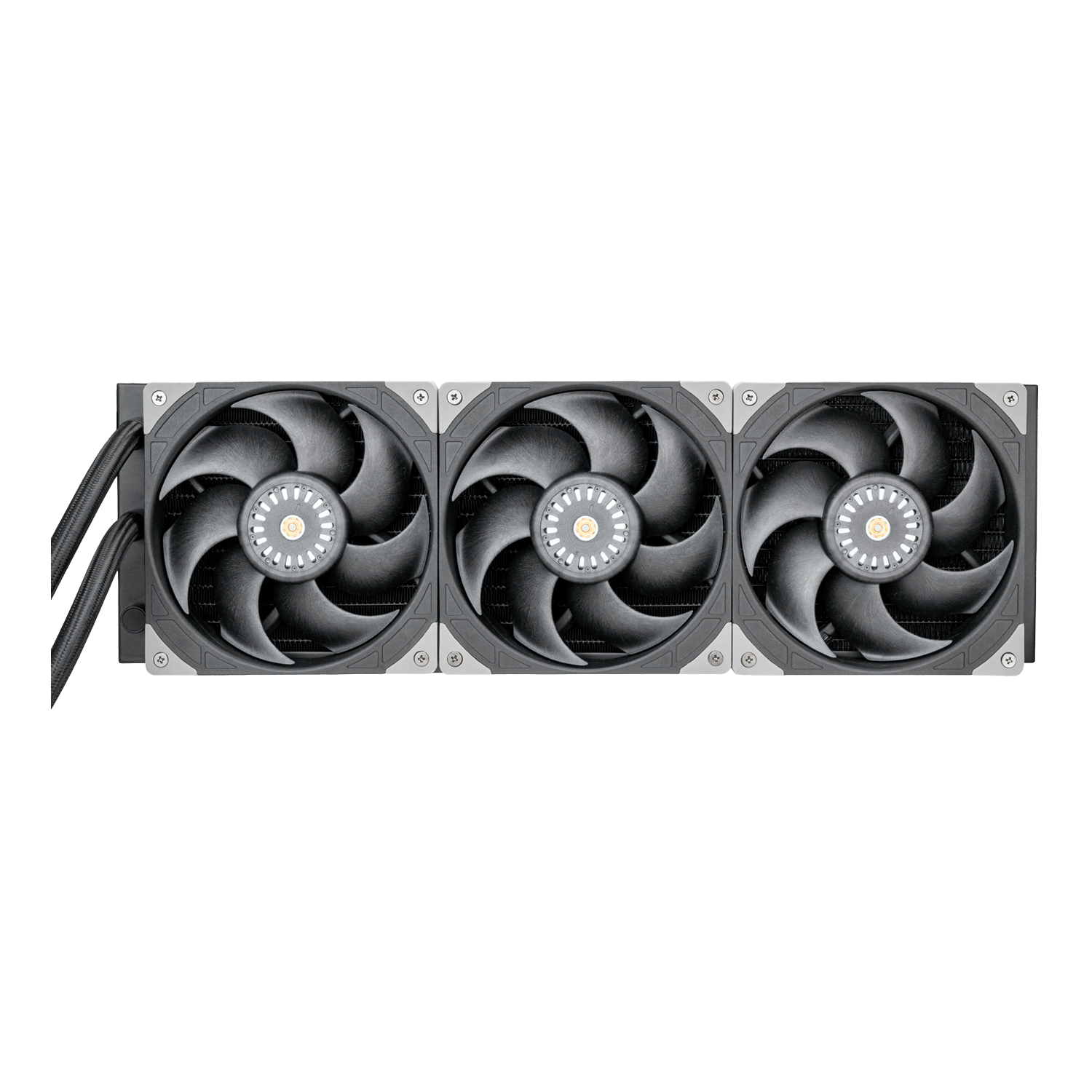

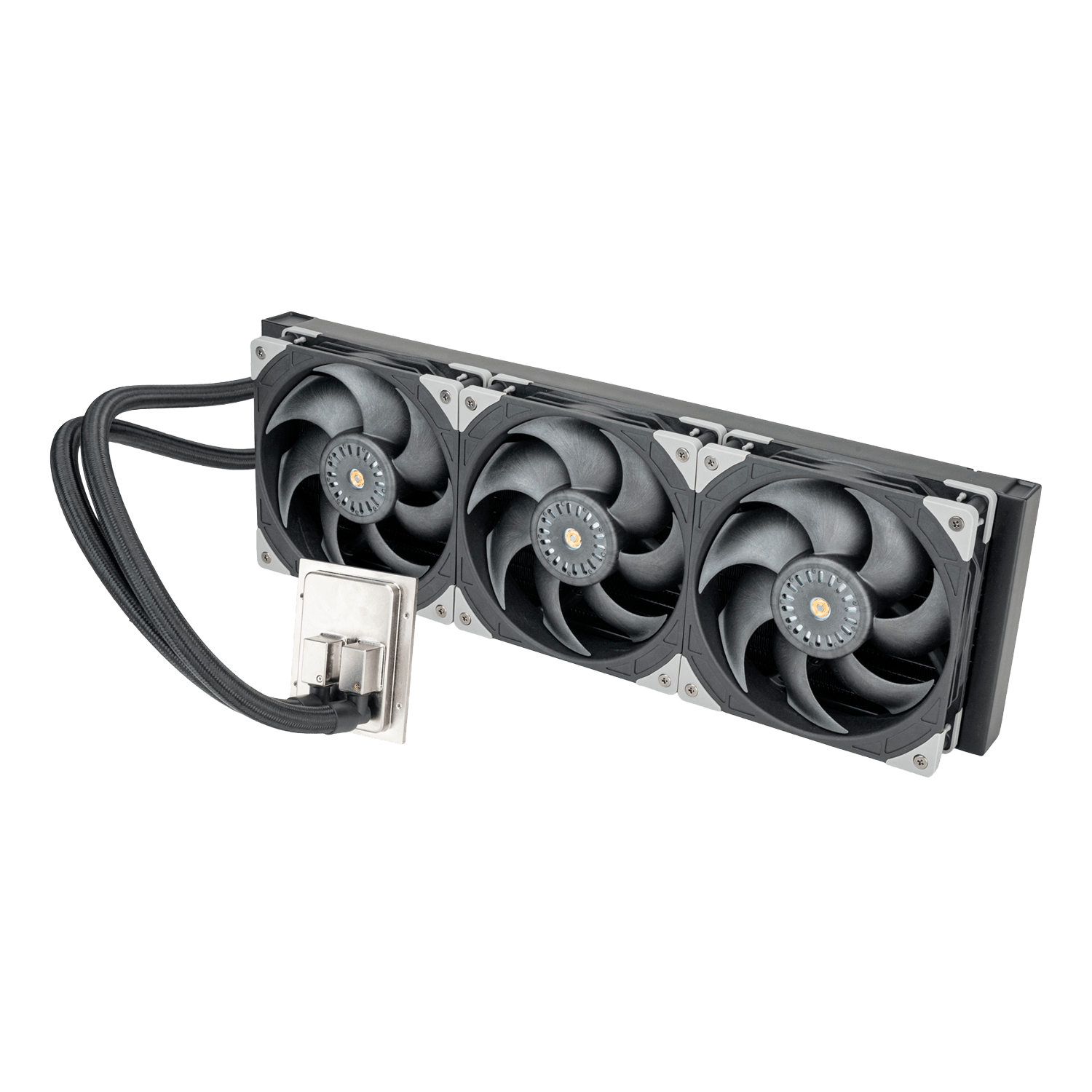

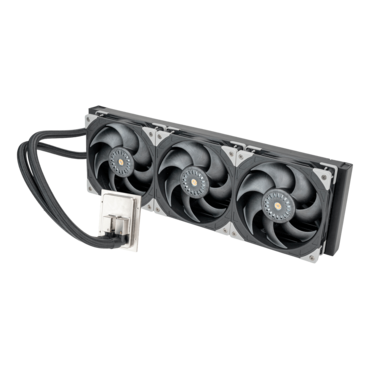

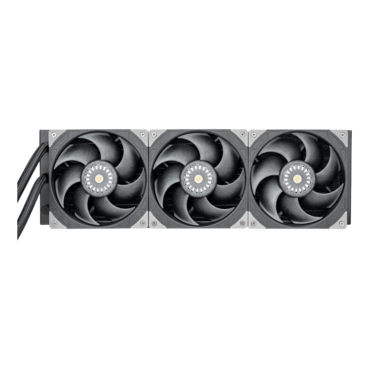

XE420, 420mm Radiator, Liquid Cooling System
- SKU: 20150188
- Manufacturer: SILVERSTONE
- MPN: XE420
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

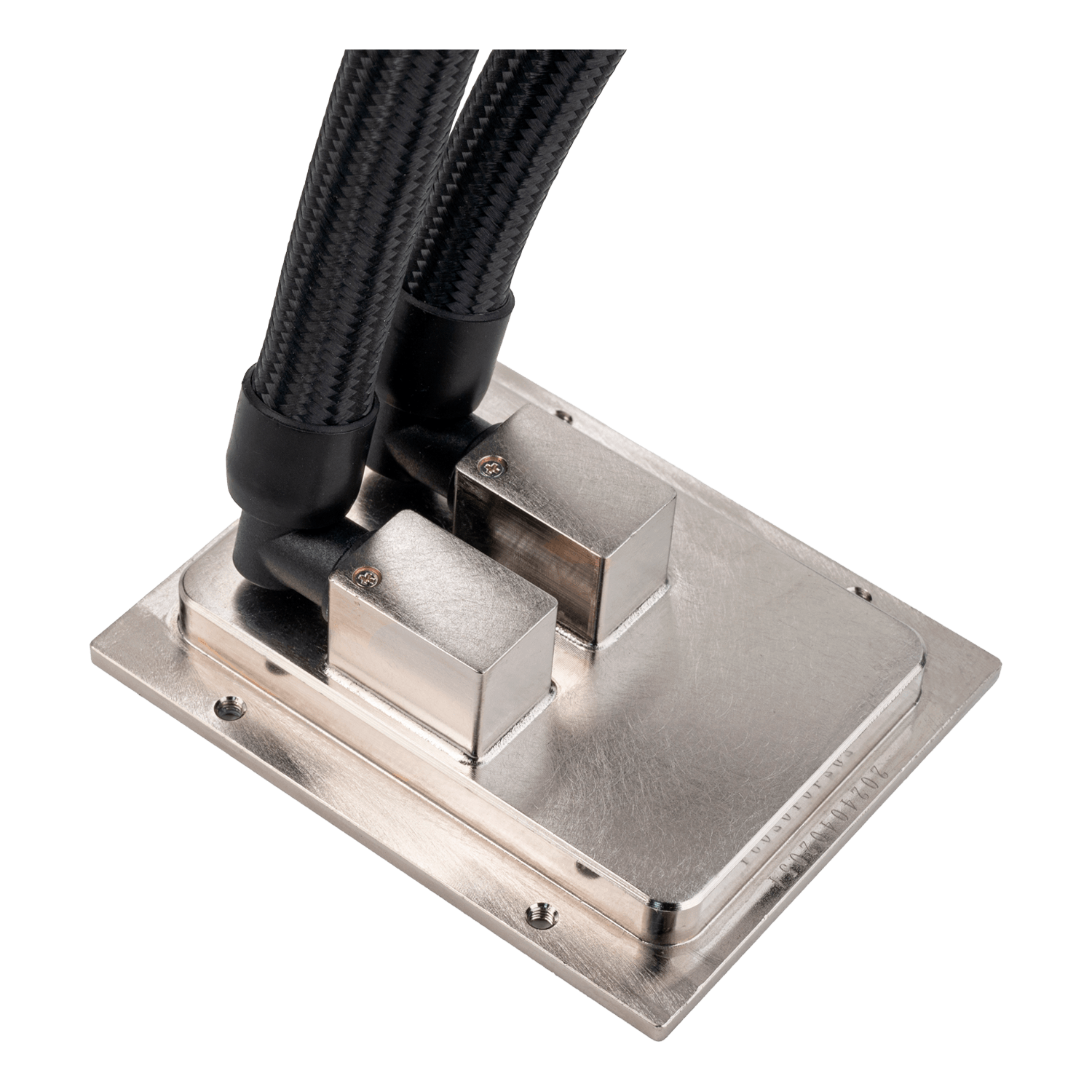

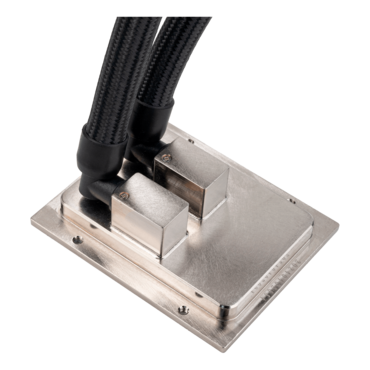

- Full copper nickel-plated cold plate
- Large micro-channel copper base plate
- Radiator integrated with pump-in-radiator technology
- Pump housing constructed with an aluminum alloy chamber for enhanced structural rigidity
- Three-phase, six-pole motor design
- 3 x 140mm radiator-optimized industrial cooling fans with Liquid Crystal Polymer (LCP) fan blades
- Closed-loop speed control design ensures stable RPM and consistent airflow at high speeds
| Model No. | SST-XE420 |
| Application |
Compatible with single-CPU socket motherboards *Optional mounting brackets are required for compatibility with specific CPU sockets. XAC-MK-SP5* XAC-MK-TR5* XAC-MK-4710* XAC-MK-4189* XAC-F70-C* |
| Water block | |
| Dimension | 68mm (W) × 26mm (H) × 83mm (D) |
| Material | Copper base |
| Pump | |
| Motor speed | Copper base |
| Rated Voltage | 12V |
| Rated Current | 0.4A |
| Connectors | 3 pin |
| Radiator | |
| Dimension | 140mm (W) × 28mm (H) × 456mm (D) |
| Material | Aluminum |
| Tube | |
| Length | 460mm |
| Material | Rubber |
| Fan | |
| Dimension | 140mm (W) × 34mm (H) × 140mm (D) |
| Speed | 800~2500rpm |
| Noise level | 38.8 dBA |
| Rated Voltage | 12V |
| Max airflow | 123.8 CFM |
| Max air pressure | 7.66 mm/H2O |
| Start Voltage | 7V |
| MTTF | 100,000 hours |
| Remark | *Please ensure the fan header supplying power to the pump provides a stable 12V output to guarantee cooling performance. It is recommended to disable the PWM/DC mode for this header in the motherboard BIOS, or set it to full speed. |
