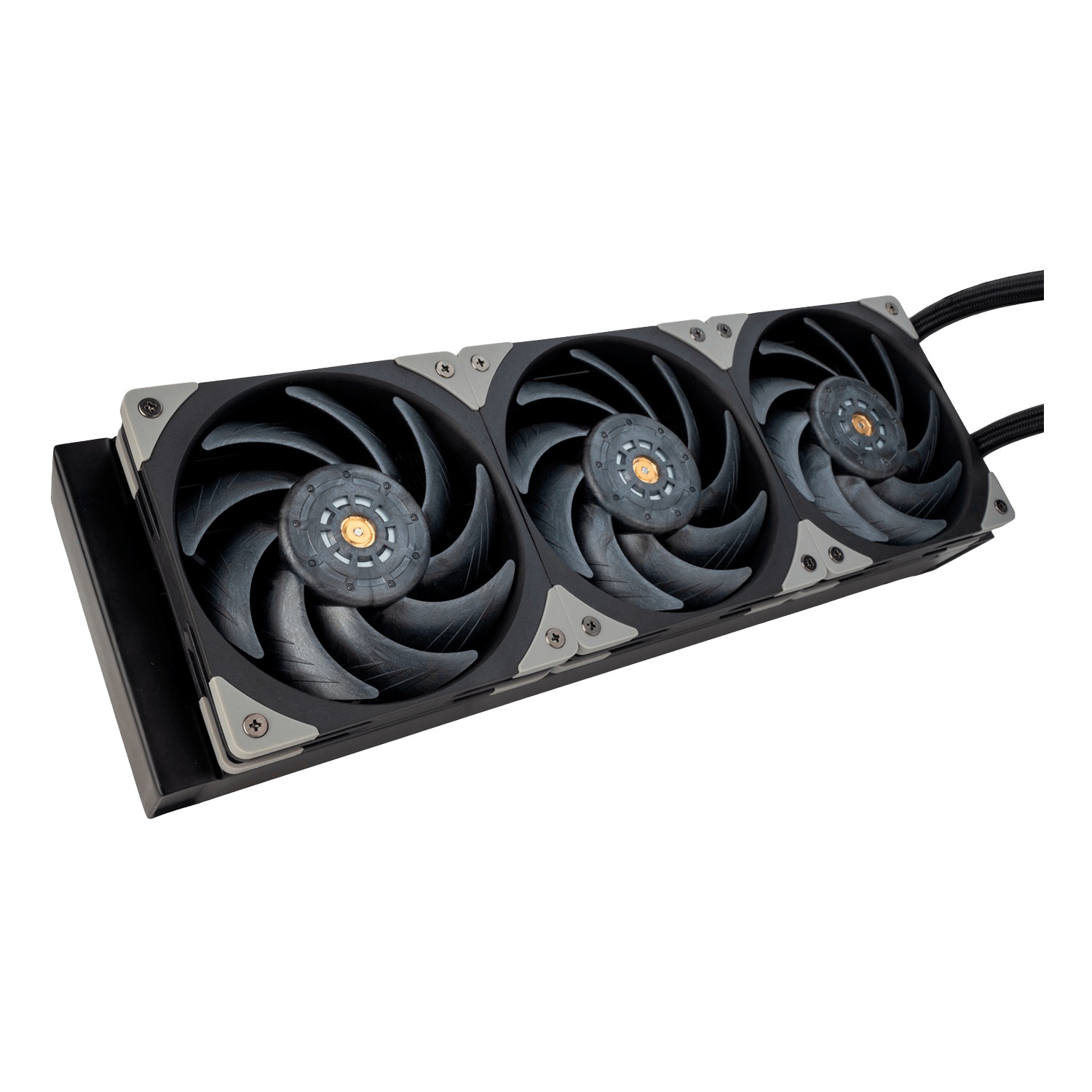

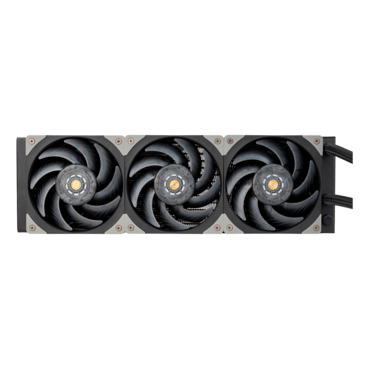

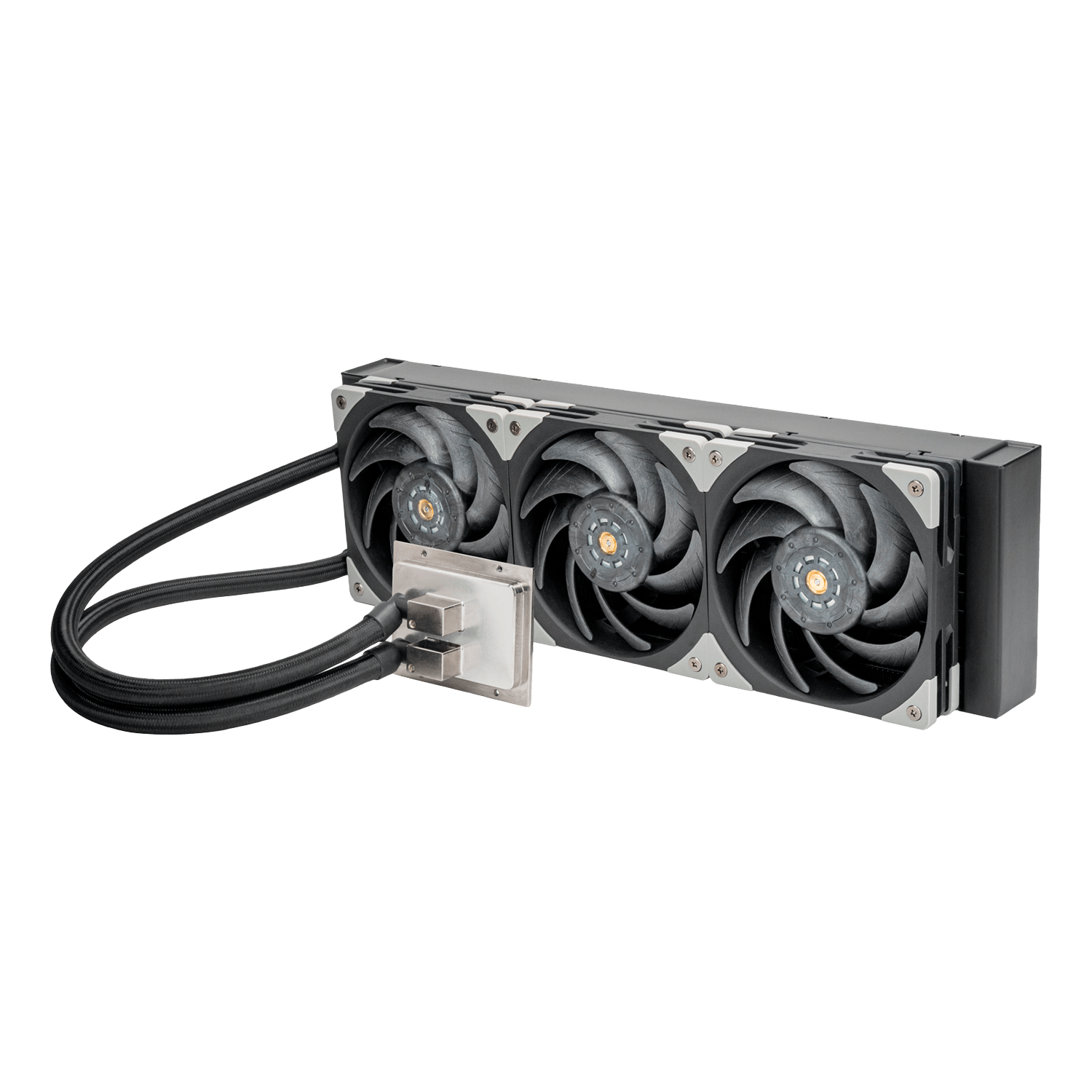

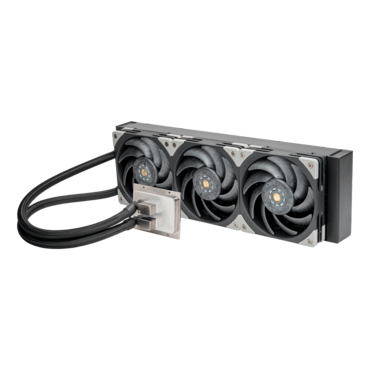

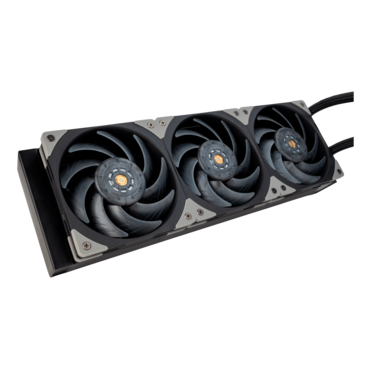

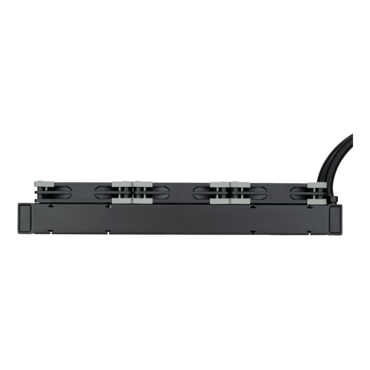

XE360PD, 360mm Radiator, Liquid Cooling System
- SKU: 19928424
- Manufacturer: SILVERSTONE
- MPN: XE360PD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

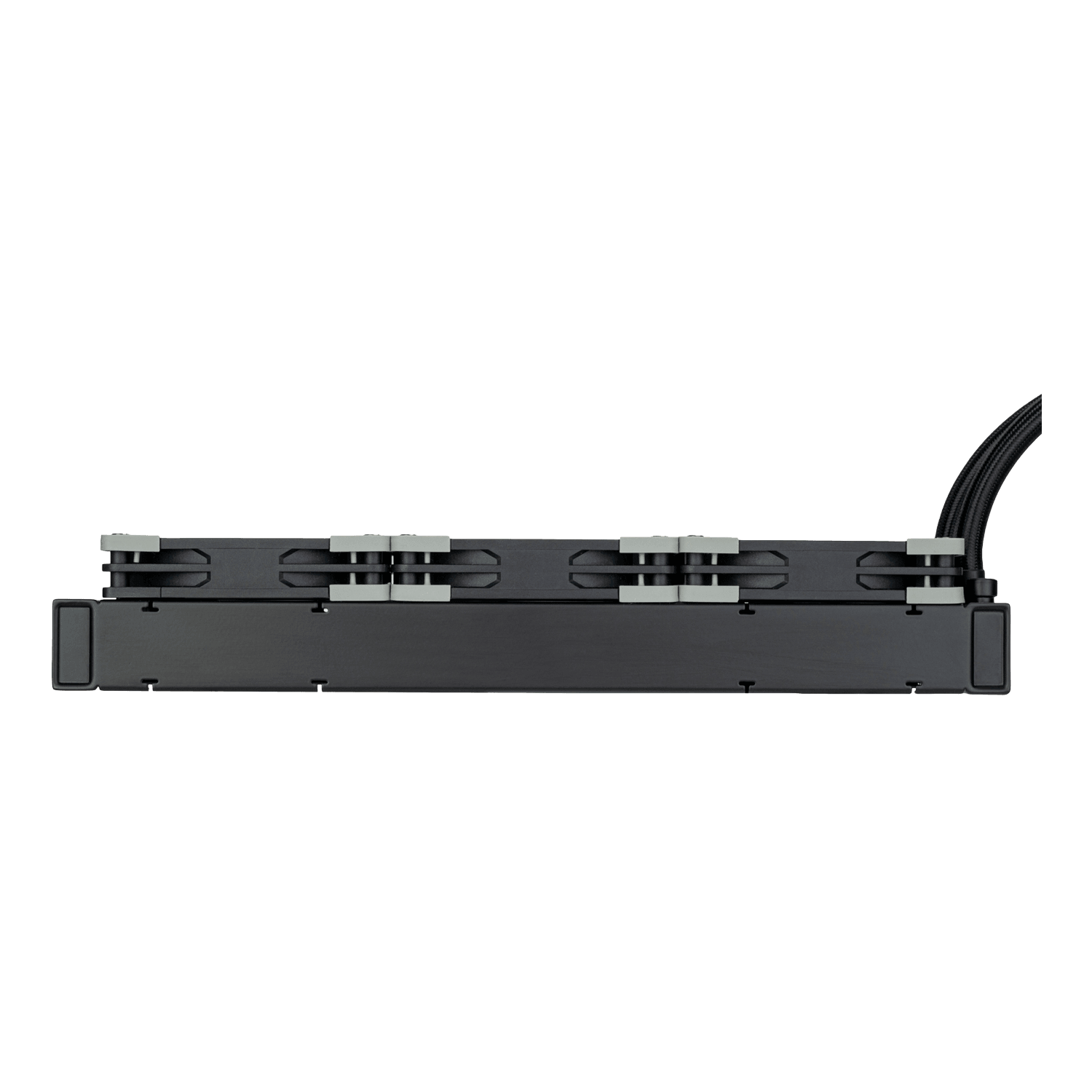

- 38mm radiator thickness
- Dual aluminum alloy cavity pump integrated within the radiator

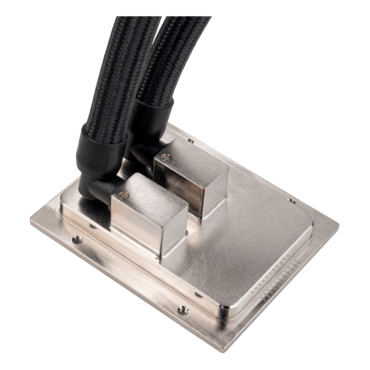

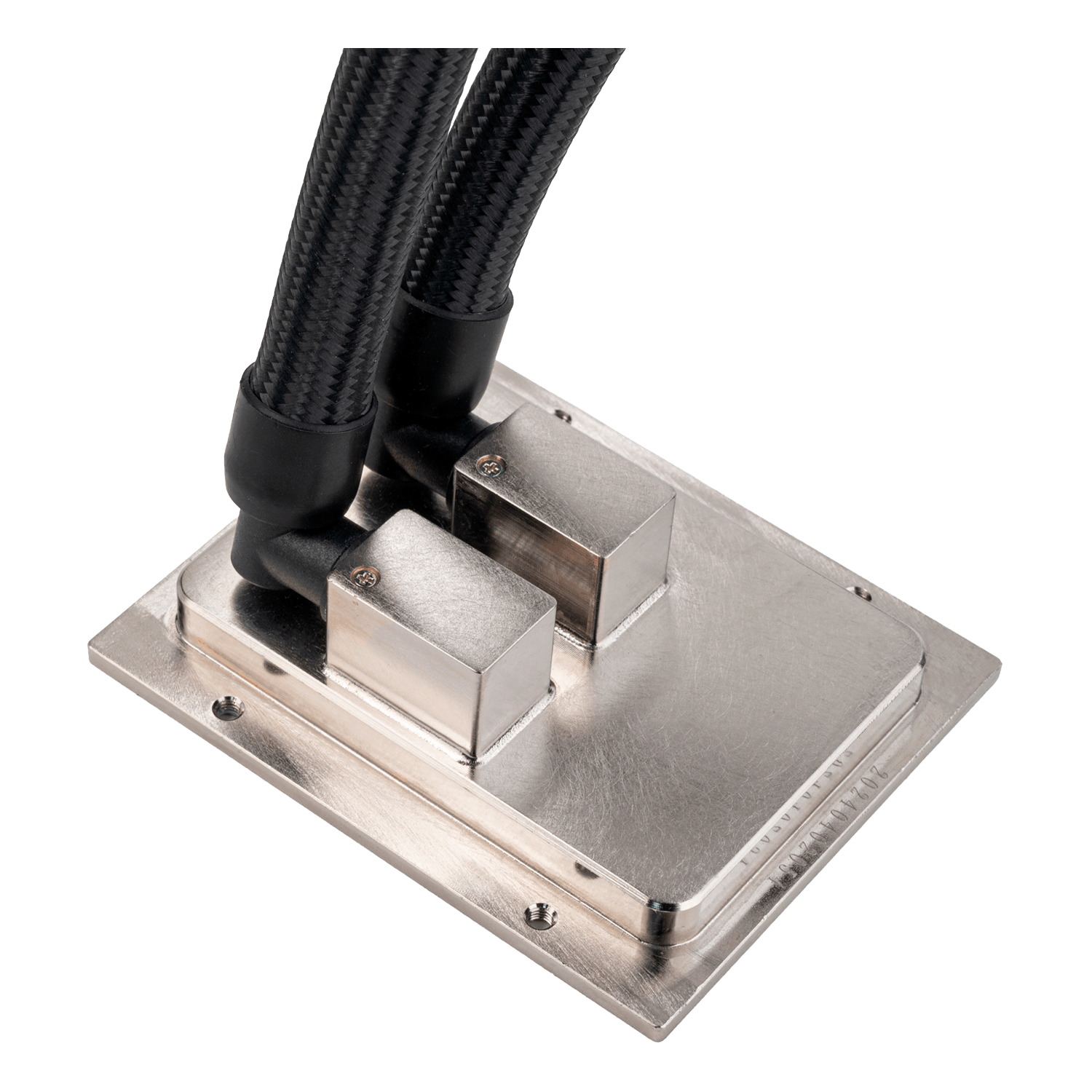

- Nickel-plated copper water blocks with large-sized micro-channel copper base plate

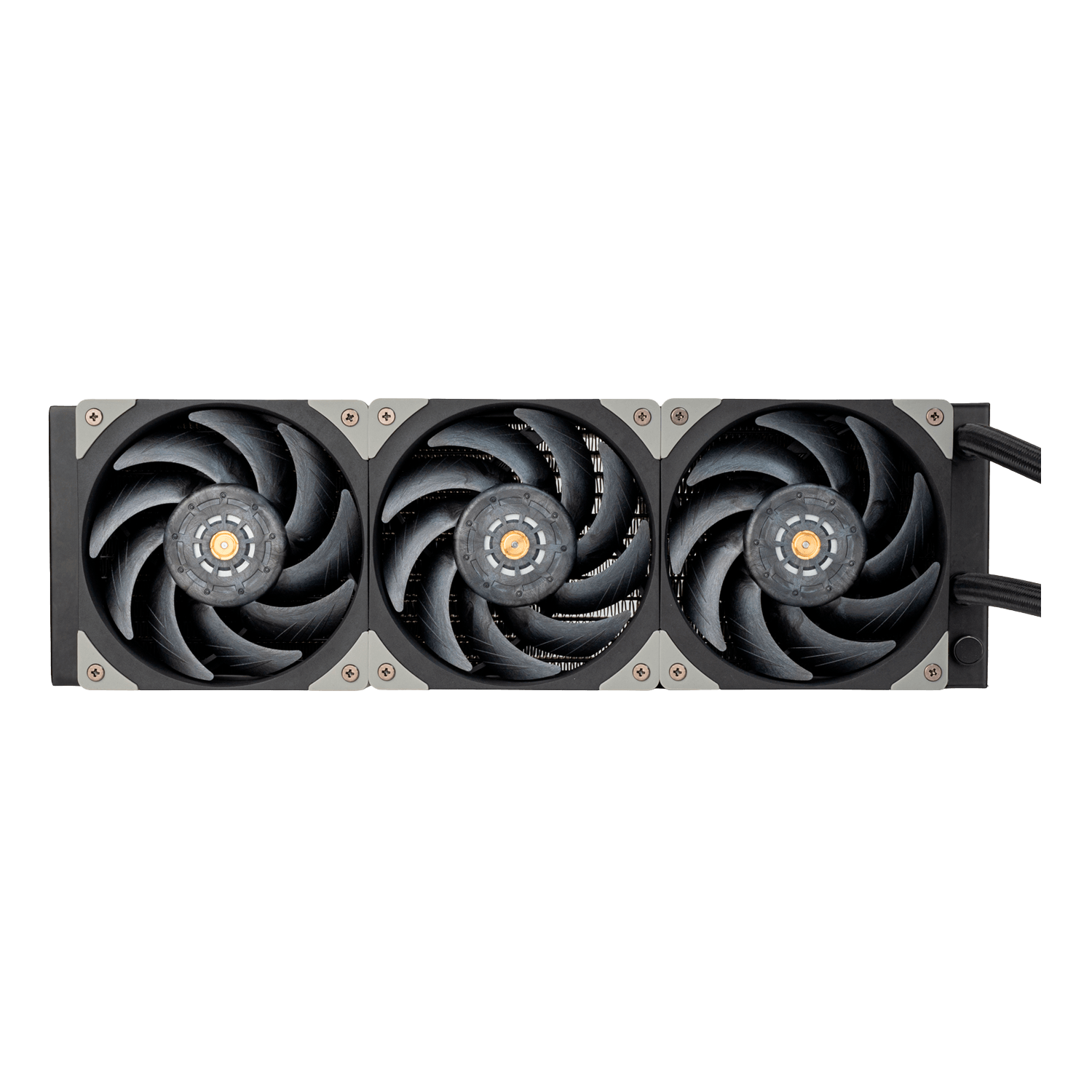

- 3 x 120mm radiator-optimized industrial cooling fans with Liquid Crystal Polymer (LCP) fan blades
- Three phase, six pole motor design
| Model No. | SST-XE360PD |
| Application |
Compatible with single-CPU socket motherboards *Optional mounting brackets are required for compatibility with specific CPU sockets. XAC-MK-SP5* XAC-MK-TR5* XAC-MK-4710* XAC-MK-4189* XAC-F70-C* |
| Water block | |
| Dimension | 68mm (W) x 26mm (H) x 83mm (D) 2.68" (W) x 1.02" (H) x 3.26" (D) |
| Material | Copper base |
| Pump | |
| Motor speed | 4000 RPM |
| Rated Voltage | 12V |
| Rated Current | 0.4A |
| Connectors | 3 pin |
| Radiator | |
| Dimension | 120mm (W) x 38mm (H) x 400mm (D) 4.72" (W) x 1.49" (H) x 15.7" (D) |
| Material | Aluminum |
| Tube | |
| Length | 450mm |
| Material | Rubber |
| Fan | |
| Dimension | 120mm (W) x 27mm (H) x 120mm (D) 4.72" (W) x 1.06" (H) x 4.72" (D) |
| Speed | 800 ~ 3,000 RPM |
| Noise level | 39.6 dBA |
| Rated Voltage | 12V |
| Max airflow | 95.1 CFM |
| Max air pressure | 5.2mmH2O |
| Connector | 4 pin PWM |
| Bearing | Dual ball bearing |
| Remark | *Please ensure the fan header supplying power to the pump provides a stable 12V output to guarantee cooling performance. It is recommended to disable the PWM/DC mode for this header in the motherboard BIOS, or set it to full speed. |
