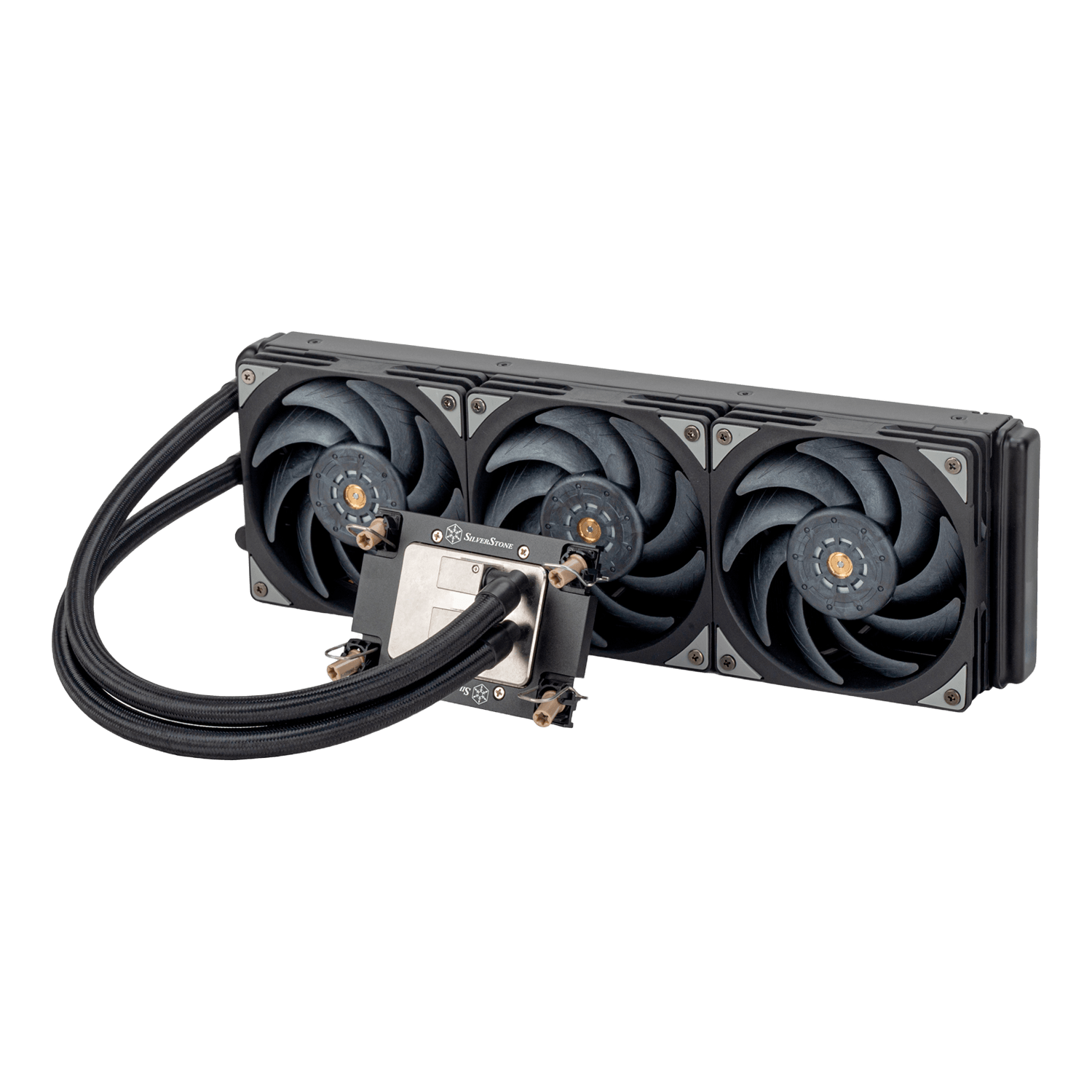

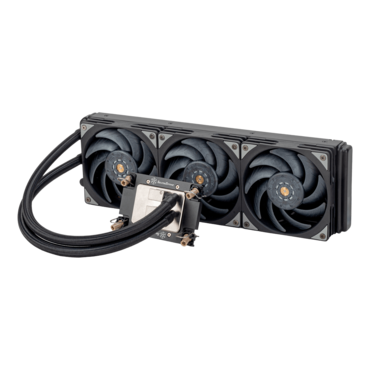

XE360-4677-V2, 360mm Radiator, Liquid Cooling System
- SKU: 20385630
- Manufacturer: SILVERSTONE
- MPN: XE360-4677-V2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

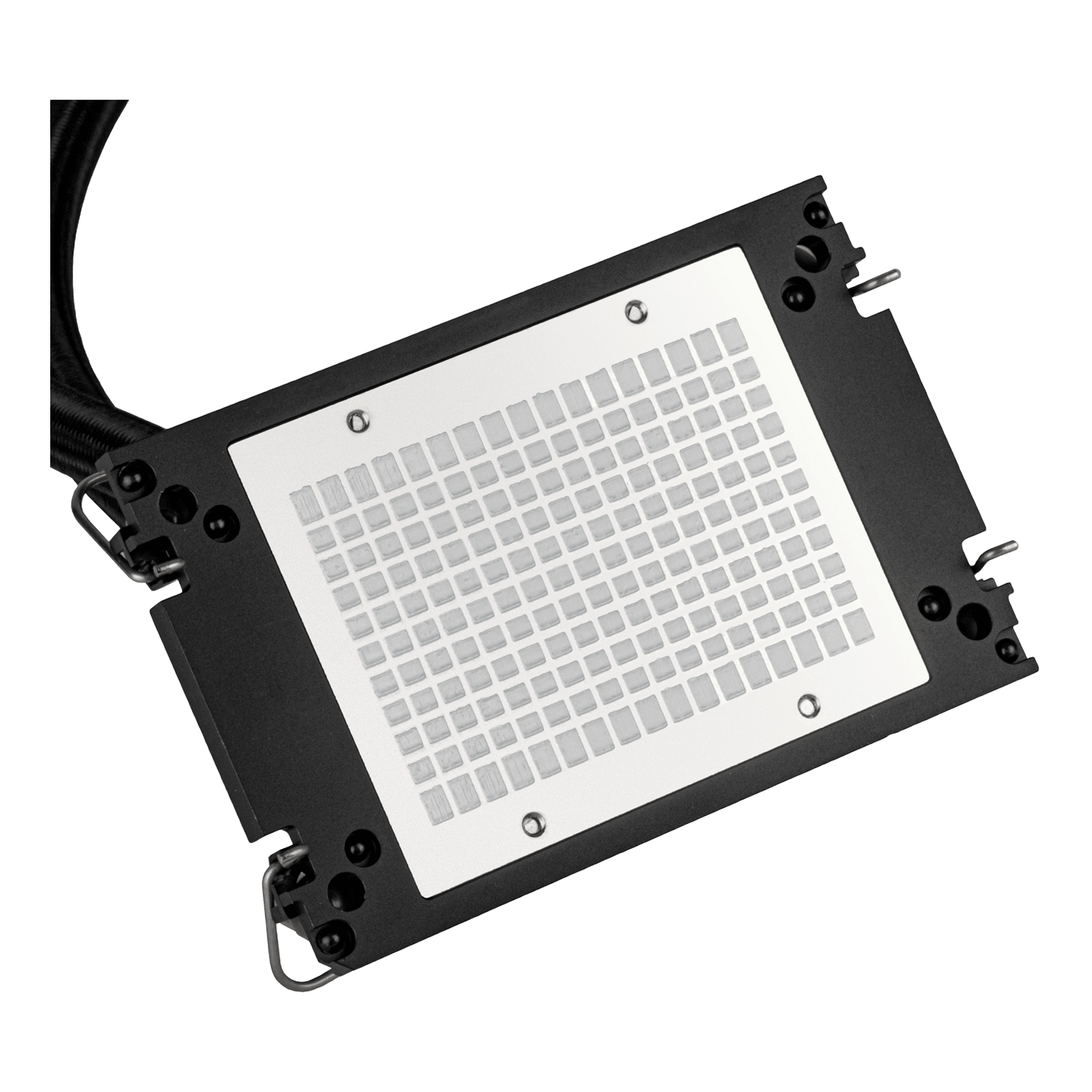

- Nickel plated copper water block with large-sized micro-channel copper base plate
- Water pump integrated within the radiator

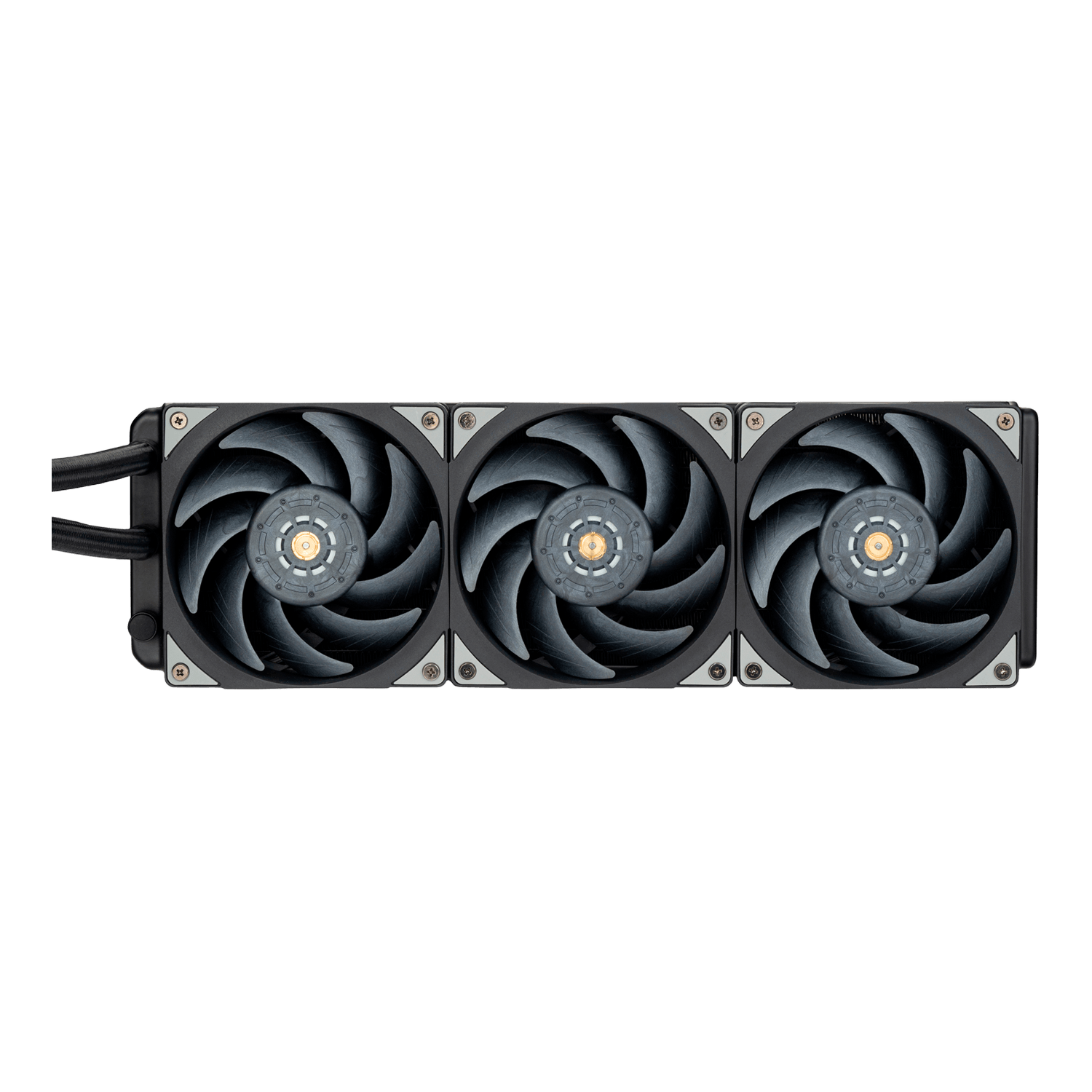

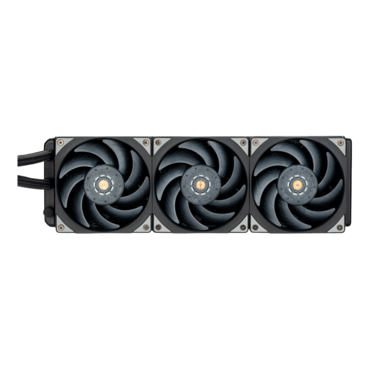

- Includes 3 × FHL120 120mm high-performance industrial fans with Liquid Crystal Polymer (LCP) blades
- Aluminum alloy cavity pump strengthens the overall structure
- Three phase, six pole motor design
| Model No. | XE360-4677-V2 |
| Application | Intel LGA 4677/ LGA 4710 |
| Water block |
Dimension : 78mm (W) x 25mm (H) x 118mm (D) 3.07" (W) × 0.98" (H) × 4.65" (D) Material : Copper base with aluminum body |
| Pump |
Motor speed : 4,000 ±10% RPM Rated Voltage : 12V Rated Current : 0.38A Connectors : 3 pin |

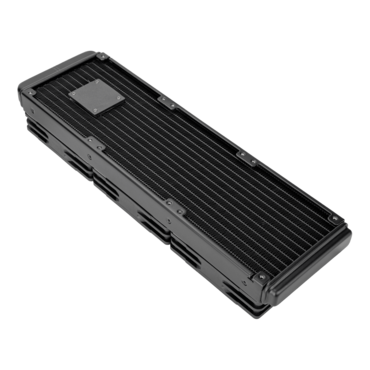

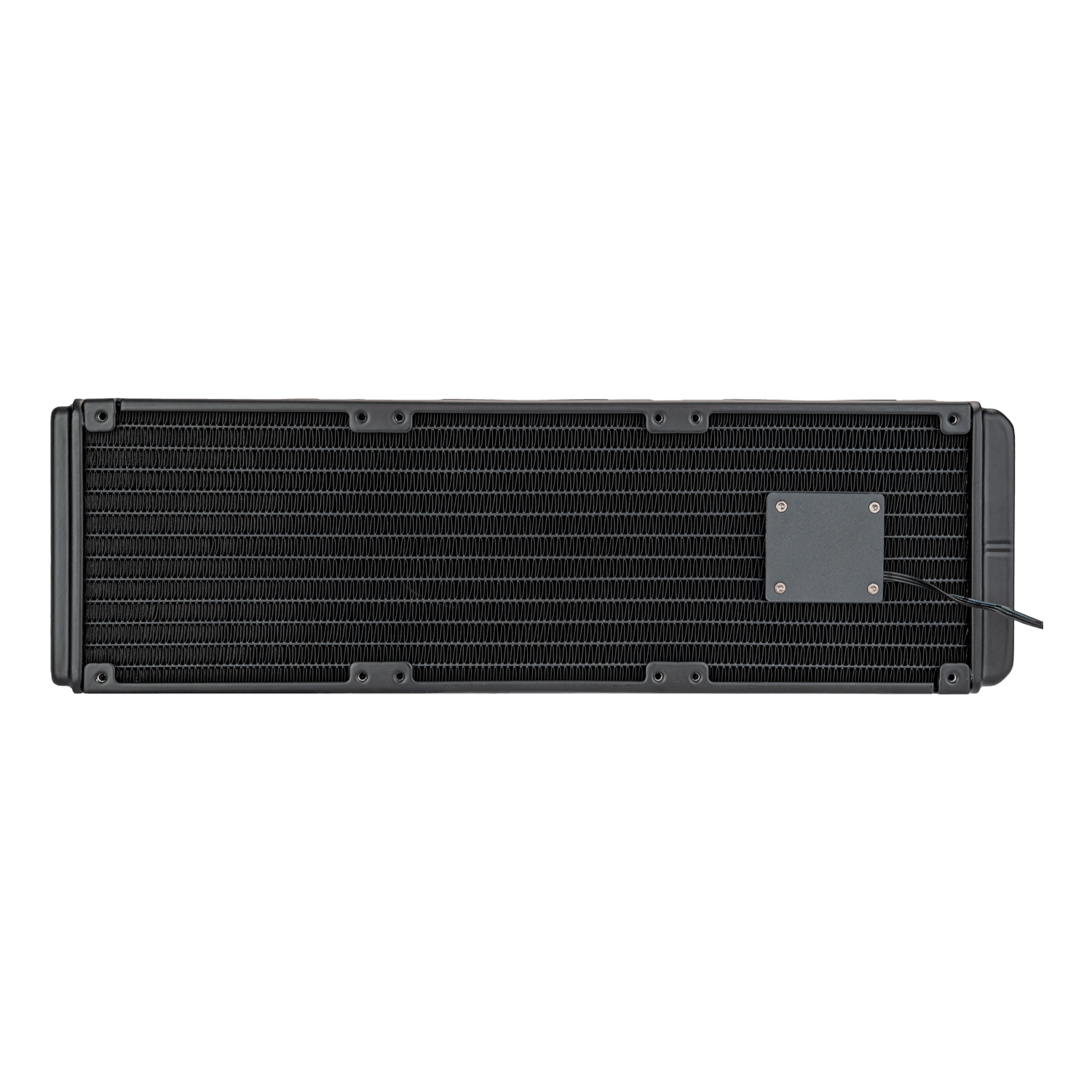

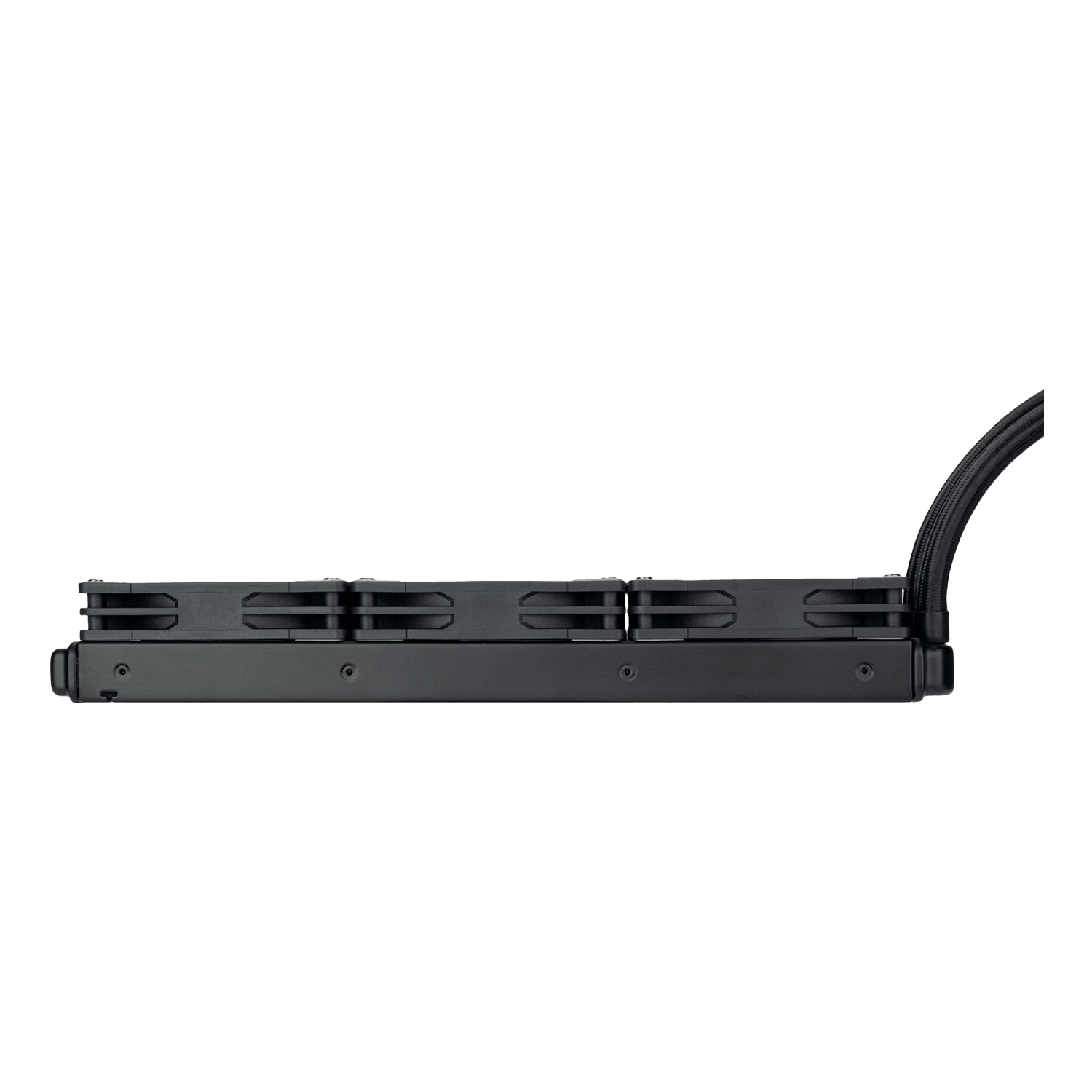

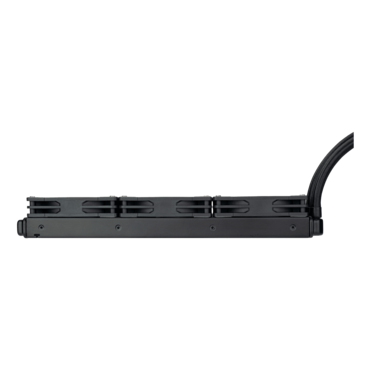

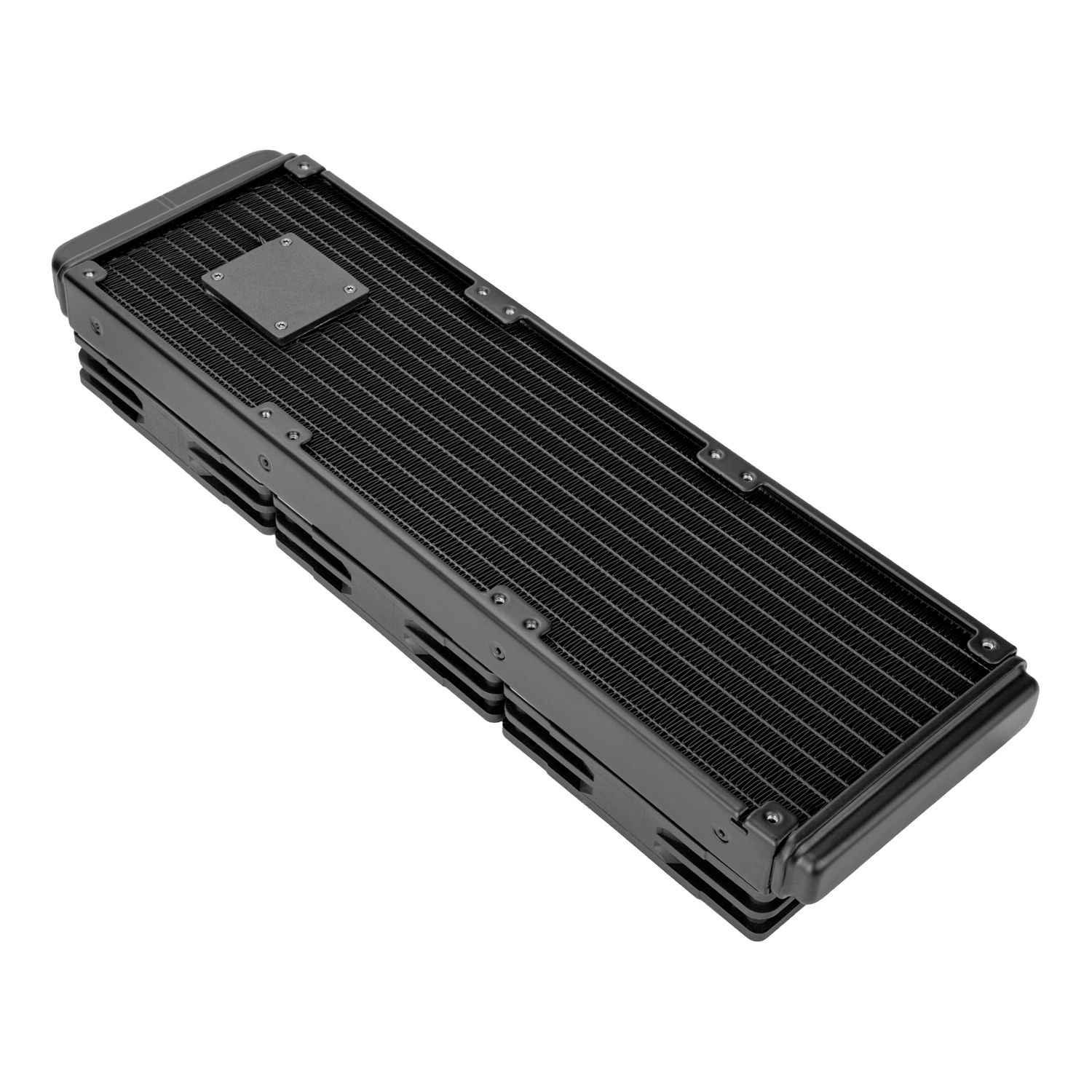

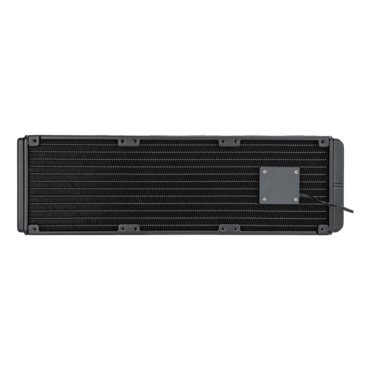

| Radiator |
Dimension : 120mm (W) x 28mm (H) x 394mm (D) 4.72" (W) x 1.1" (H) x 15.5" (D) Material : Aluminum |
| Tube |
Length : 460mm Material : Rubber |
| Fan |
Dimension : 120mm (W) x 26mm (H) x 120mm (D) Speed : 800 ~ 3,000 RPM Noise level : 39.6 dBA Rated Voltage : 12V Max airflow : 95.1 CFM Max air pressure : 5.2mmH2O Connector : 4 pin PWM |
