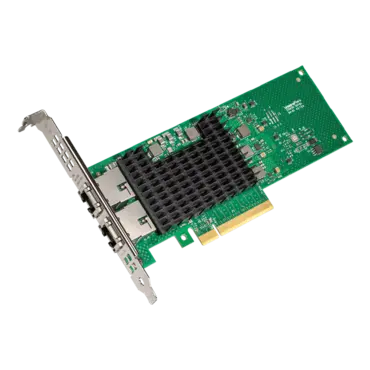

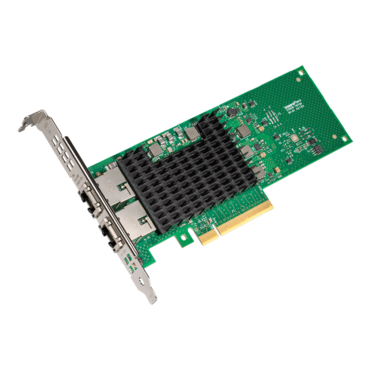

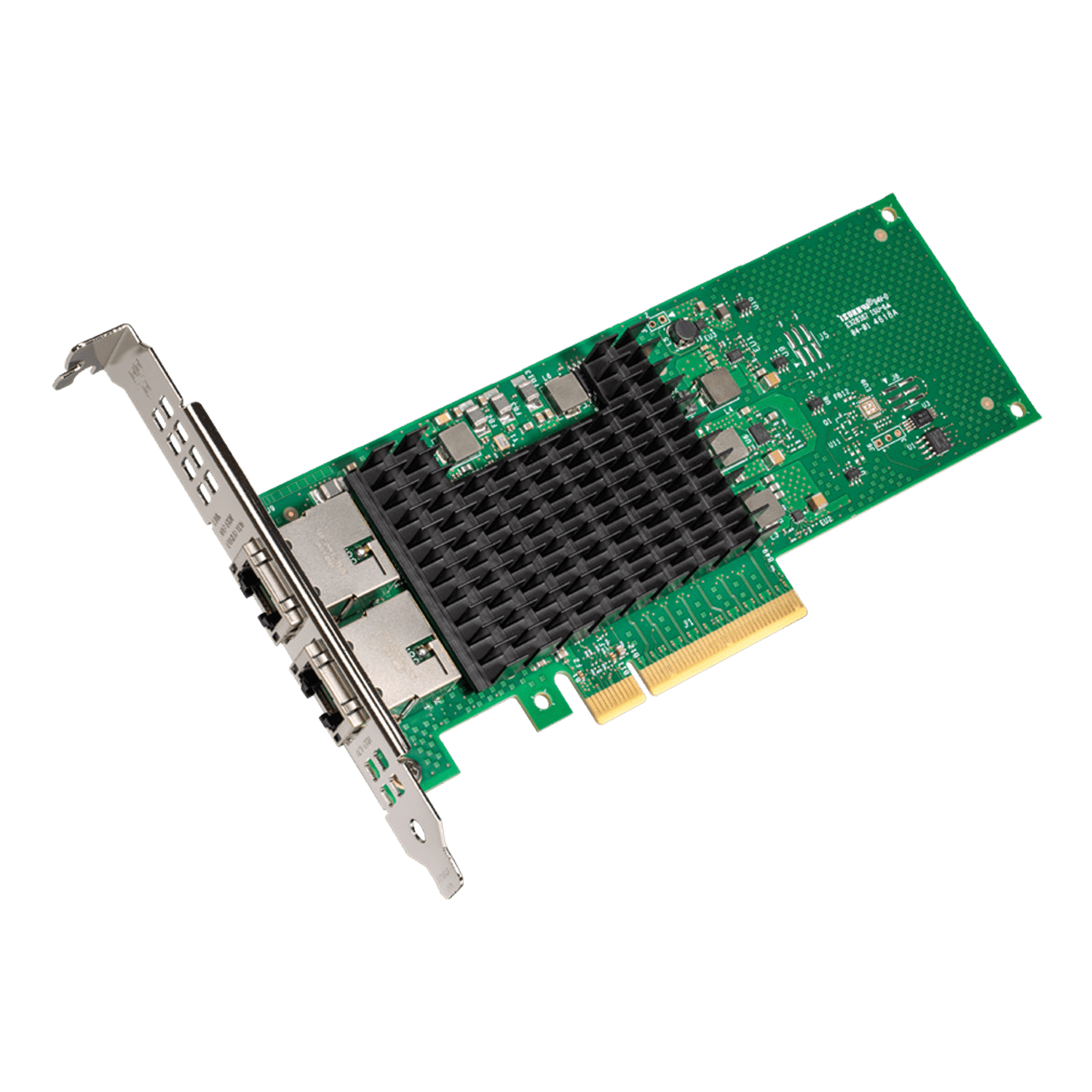

X710-T2L, 10 Gbps, 2xRJ45, PCIe Network Adapter
- SKU: 12985721
- Manufacturer: INTEL
- MPN: X710T2L
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Simplify technology transitions with the Intel® Ethernet Network Adapter X710-T2L. Autonegotiation between port speeds provides maximum flexibility in dual 10GBASE-T configurations. These low-power adapters also support Energy Efficient Ethernet to efficiently reduce power consumption during periods of low data activity. The X710-T2L are part of the Intel® Ethernet 700 Series, the foundation for server connectivity; providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
- Interoperability - Multiple speeds and media types for broad compatibility backed by extensive testing and validation.
- Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel® Xeon® processors.
- Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.
The Intel® Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open-source drivers.
- Energy Efficient Ethernet (EEE) / IEEE 802.3az enabled
- Backward compatible with multi-speed support for 5/2.5/1GbE, 10GBASE-T, and 100BASE-TX
- PCI Express (PCIe) 3.0 x8
- FCC Class B for EMI
- Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN-GPE with Network Service Headers (NSH)
- Intel® Ethernet Flow Director for hardware-based application traffic steering
- Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
- Data Plane Development Kit (DPDK) optimized for efficient packet processing
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- I/O virtualization innovations for maximum performance in a virtualized server
| Essentials | |
|---|---|
| Product Collection | 700 Series Network Adapters (up to 25GbE) |
| Marketing Status | Launched |
| Launch Date | Q3'19 |
| Vertical Segment | Server |
| Cable Medium | Copper |
| Cabling Type | RJ45 Category 6 | Category 6A | Category 5e up to 100m |
| Bracket Height | Low Profile and Full Height |
| Networking Specifications | |
| Port Configuration | Dual |
| Data Rate Per Port | 10GbE/5GbE/2.5GbE/1GbE/100Mb |
| Intel® Virtualization Technology for Connectivity (VT-c) | Yes |
| Speed & Slot Width | 8.0 GT/s | x 8 Lane |
| Controller | Intel® Ethernet Controller X710-AT2 |
| Package Specifications | |
| System Interface Type | PCIe 3.0 (8.0 GT/s) |
| Intel® Virtualization Technology for Connectivity | |
| On-chip QoS and Traffic Management | Yes |
| Flexible Port Partitioning | Yes |
| Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Advanced Technologies | |
| iWARP/RDMA | No |
| Intel® Data Direct I/O Technology | Yes |
| Intelligent Offloads | Yes |
| Storage Over Ethernet | iSCSI | NFS |
