Home › Components › Core Components › Motherboards › Server and Workstation Motherboards

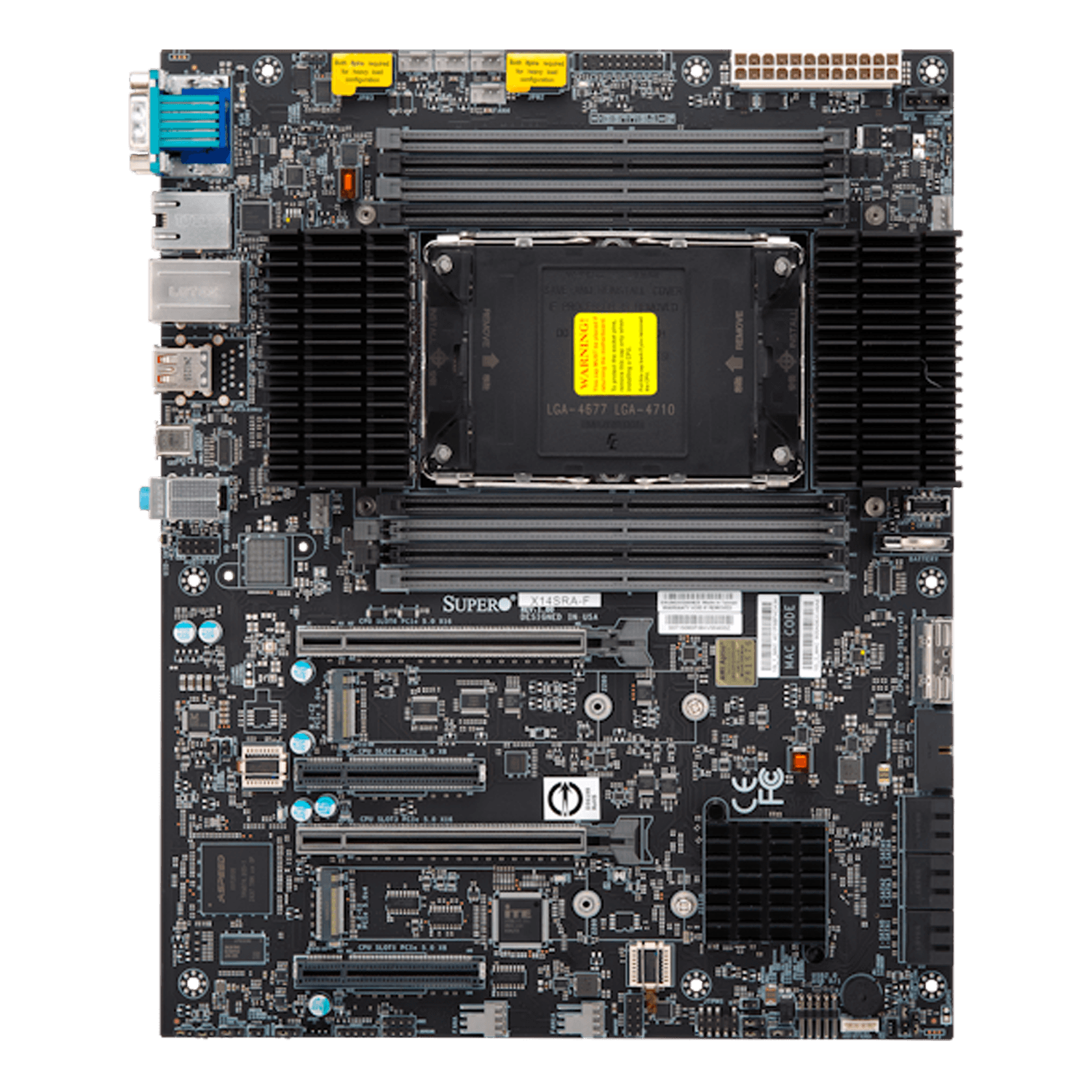

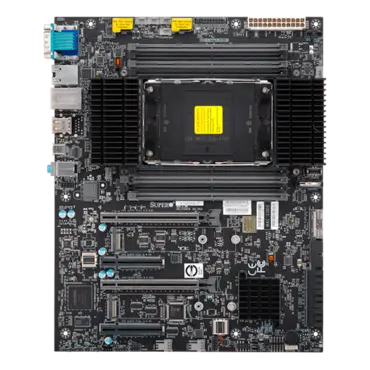

X14SRA-F, Intel® W890 Chipset, LGA 4710-2, ATX Motherboard

  • SKU: 20490092
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X14SRA-F-O
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$888.72
$28.67/mo* with bread pay
Quantity:
  • Intel® Xeon® 600 Processor for Workstation, Single Socket E2 (LGA 4710-2), Up to 86 Cores, Up to 350W TDP
  • Intel® W890
  • Up to 1TB of DDR5 ECC RDIMM, 6400 MT/s (1DPC) or 5200 MT/s (2DPC)
  • Up to 2TB DDR5 ECC 3DS RDIMM, 6400 MT/s (1DPC) or 5200 MT/s (2DPC)
  • Up to 256GB of DDR5 ECC MRDIMM, 8000MT/s (1DPC)
  • 2 PCIe 5.0 x16 Slots with Metal Armor Protection
  • 2 PCIe 5.0 x8 Slots, Open Rear
  • 2 M.2 Slots (2 PCIe 5.0 x4 from CPU; Support 2280/22110), M-Key
  • 1 MCIO Connector to Support 2 U.2 Ports (PCIe 5.0 x4 from CPU) via cable for NVMe 2.5" SSD drives, Intel® Virtual RAID (VROC) 0 &1 (VROC Key Is Required)
  • 1 1Gb Intel® I210AT LAN Port, IPMI share LAN
  • 1 1Gb Intel® I219LM LAN Port, Intel® VPro® Feature
  • 1 on board TPM2.0 (can not support TPM 1.2)
  • Overclocking supported on CPU and memory
  • OpenBMC
Product SKUs
MBD-X14SRA-F
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.384cm)
Processor
CPU
  • Single E2 (LGA 4710-2)
  • Intel® Xeon® 600 Processor for Workstation
Core Count
  • Up to 86C
Note
  • Supports up to 350W TDP CPUs
System Memory
Memory
  • Slot Count: 8 DIMM Slots/4 Channels
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 3DS RDIMM
  • Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 3DS RDIMM
  • Max Memory (1DPC): Up to 256GB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM
DIMM Sizes
  • RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • 3DS RDIMM:256GB
  • MRDIMM:32GB, 64GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® W890
SATA
  • 6 SATA (6Gbps) ; RAID 0/1/5/10 support
IPMI
  • ASPEED AST2600 BMC
Network Controller
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
  • Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port(s) (Intel® I210-AT) (IPMI shared on LAN port 1)
  • 1 RJ45 1 GbE LAN port(s) (Intel® PHY I219LM LAN controller)
USB
  • 1 USB 3.2 Gen2x2 Type-C port(s) (Rear)
  • 4 USB 3.2 Gen2x1 Type-A port(s) (Rear)
  • 1 USB 3.2 Gen2x2 Type-C port(s) (Header)
  • 2 USB 3.2 Gen1 Type-A port(s) (Header)
  • 1 USB 2 Type-A port(s) (Header)
Video
  • 1 VGA port(s) (Rear)
Serial
  • 1 COM port(s)
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM 2.0 Header
  • 1 TPM 2.0 onboard
Expansion Slots
PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x8 slots , Open rear
  • 2 PCIe 5.0 x16 slots , metal armor protection, support 2 triple/dual/single-width GPU cards
  • 2 PCIe 5.0 x4 (in x8) via MCIO Connector slots , Supports 2 U.2 ports via MCIO cable for 2.5" NVMe SSD drives (hot-plug/BPN not supported); supports Intel® VROC 0 &1 (VROC key is required)
M2
  • 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.9
  • Riser card auto-detection support
Management
Software
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • SAA (limited support)
  • SuperO Booster
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • Power button override mechanism
  • Wake-on-LAN
  • S4/S5
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+5V,+5V standby,3.3V standby,CPU,Memory,Vcore,Vmem
LED
  • BMC Heartbeat LED
  • CPU/system overheat LED
  • Fan failed LED
  • HDD activity LED
  • LAN activity LED
  • M.2 LED
  • Power/suspend-state indicator LED
  • UID/remote UID LED
Temperature
  • CPU temperature
  • GPU temperature
  • Memory temperature
  • NVMe temperature
  • PCH temperature
  • Peripheral temperature
  • System temperature
Fan
  • 7x 4-pin fan headers (up to 7 fans)
  • Fan speed control
  • Triple Cooling Zones
Other Features
  • Chassis intrusion detection
  • CPU thermal trip support
  • Platform Environment Control Interface (PECI)/(TSI)
  • Power supply monitoring
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C to 60°C (°F to °F )
  • Non-operating Temperature: -40°C to 85°C (°F to °F)
  • Operating Relative Humidity: 10% to 85%
  • Non-operating Relative Humidity: 5% to 95%
