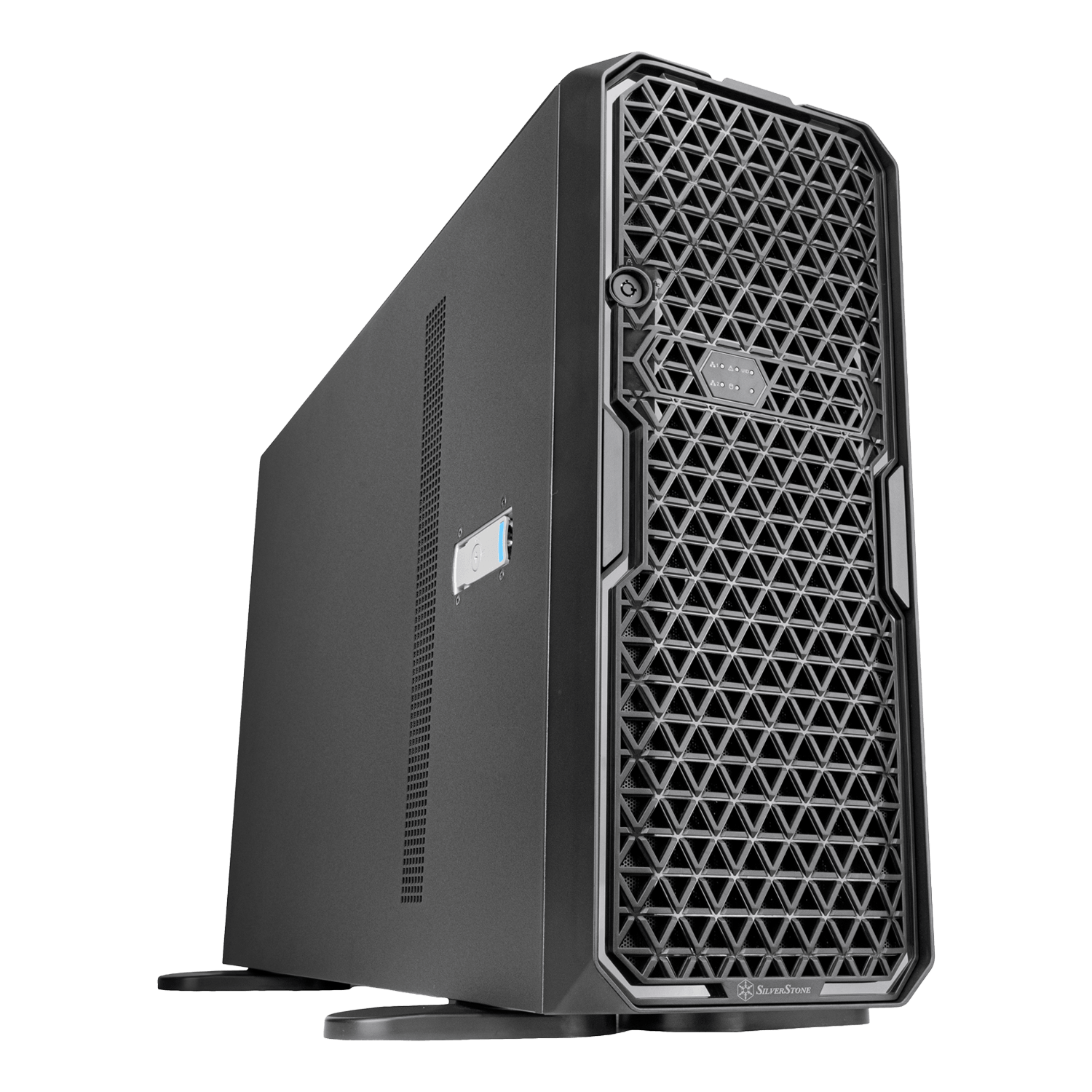

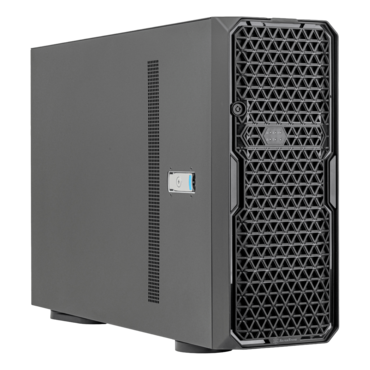

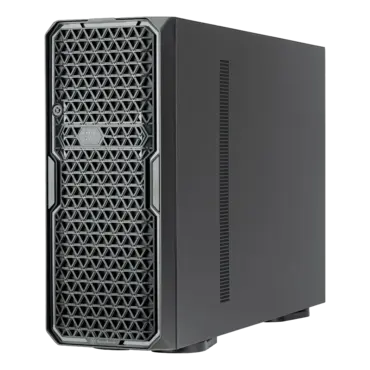

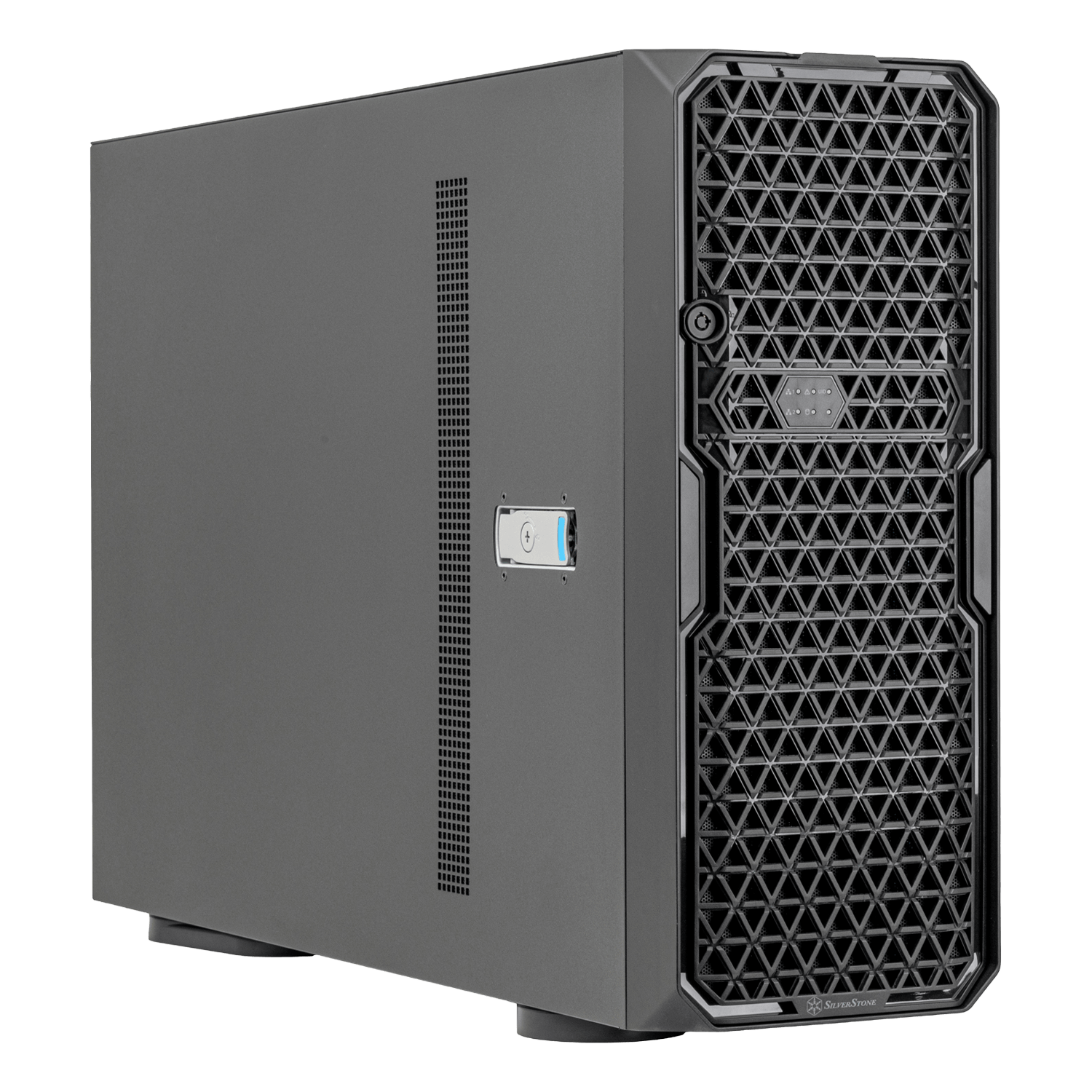

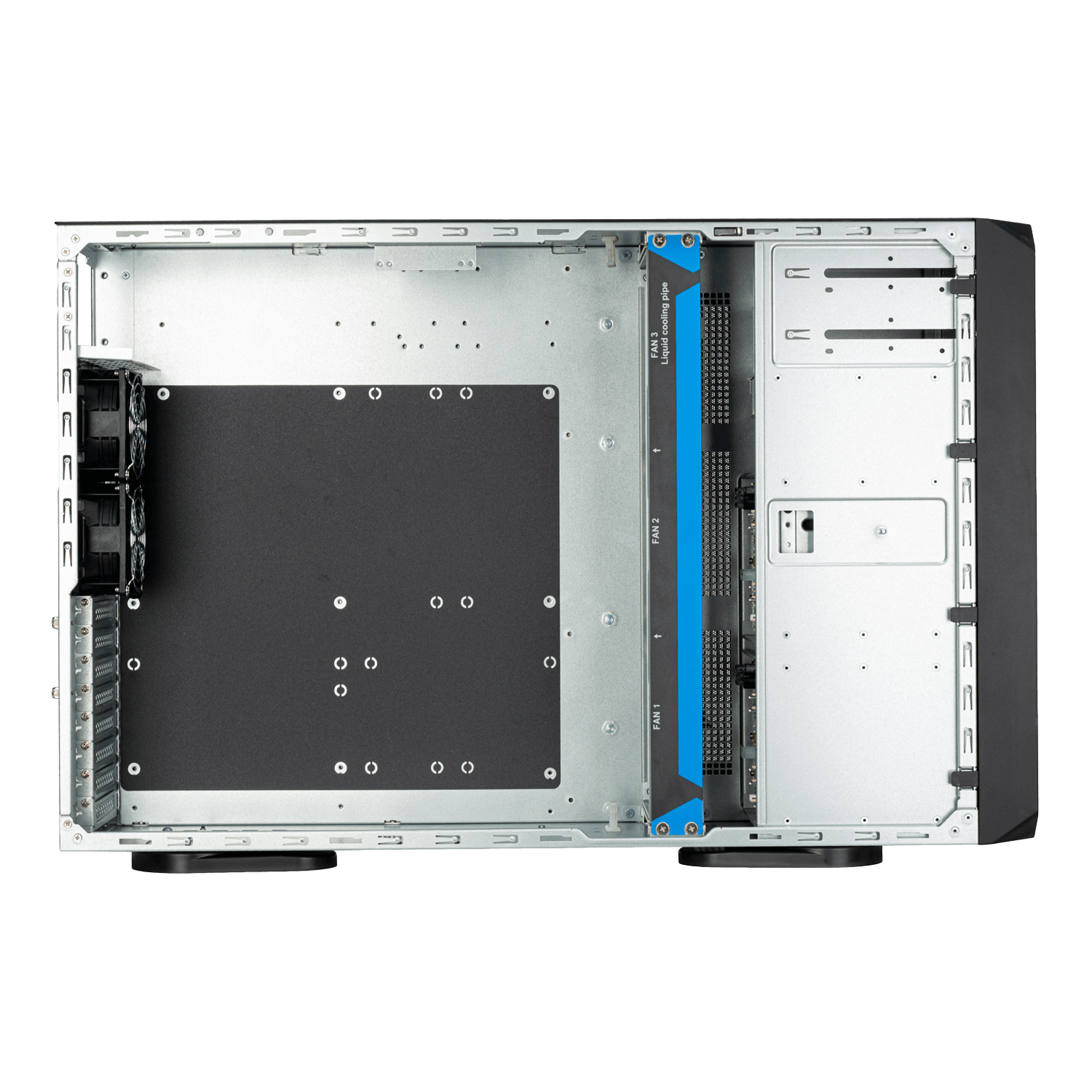

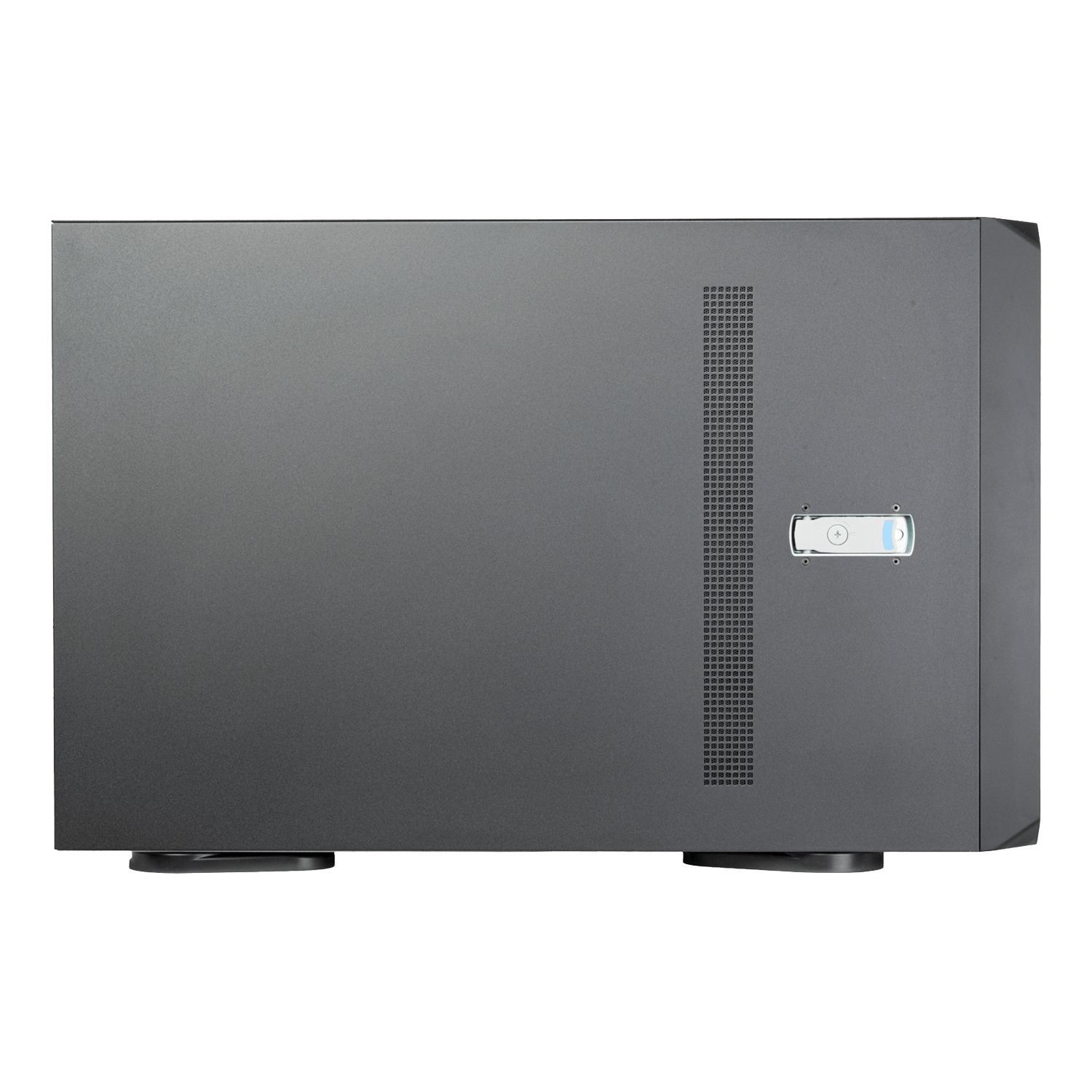

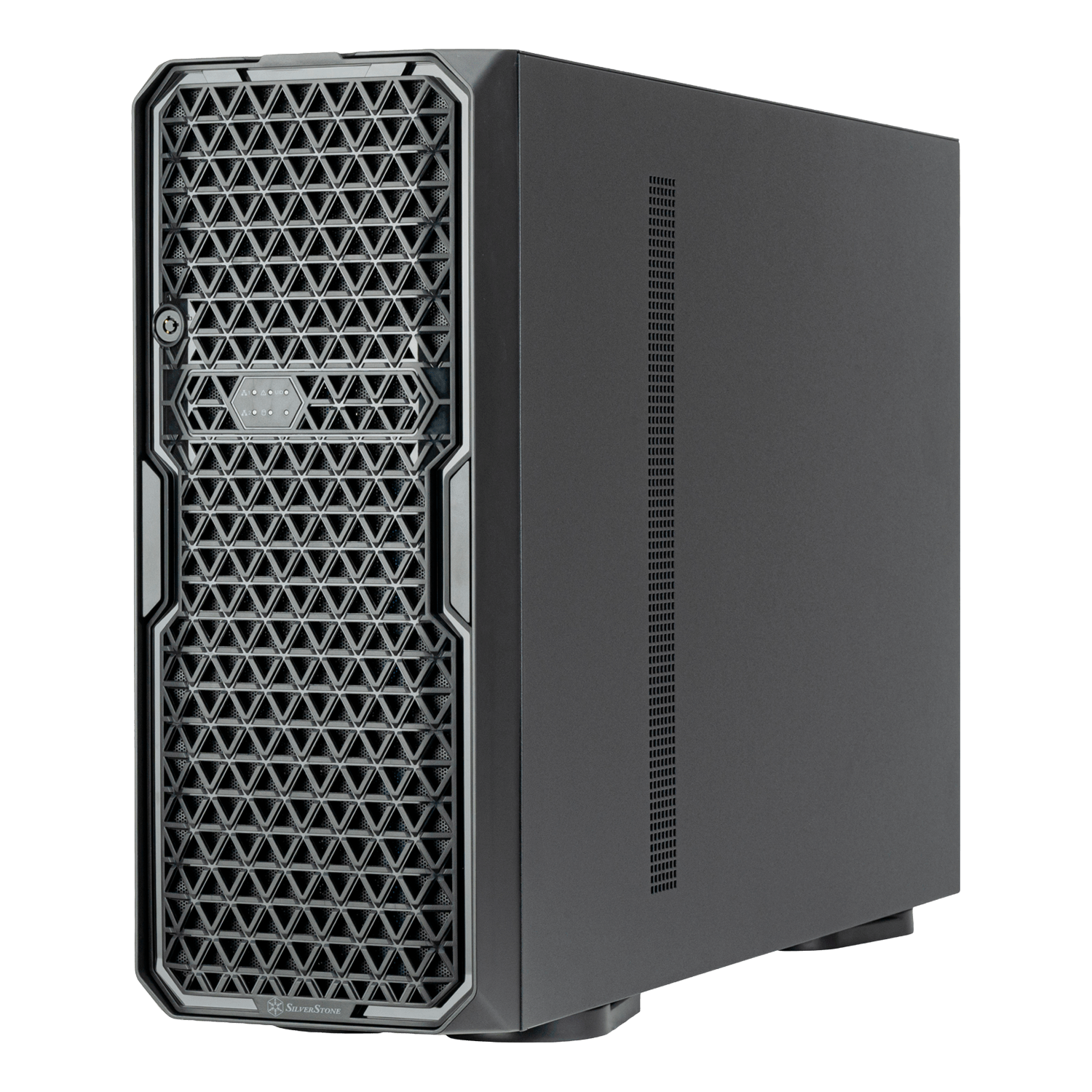

WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis
WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis

WS380-E, 2x 5.25", 8x 3.5"/2.5" External Bays, No PSU, E-ATX / SSI-EEB, Black, Full Tower Chassis

  • SKU: 19878132
  • Manufacturer: SILVERSTONE
  • MPN: WS380-E
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$839.50
Quantity:

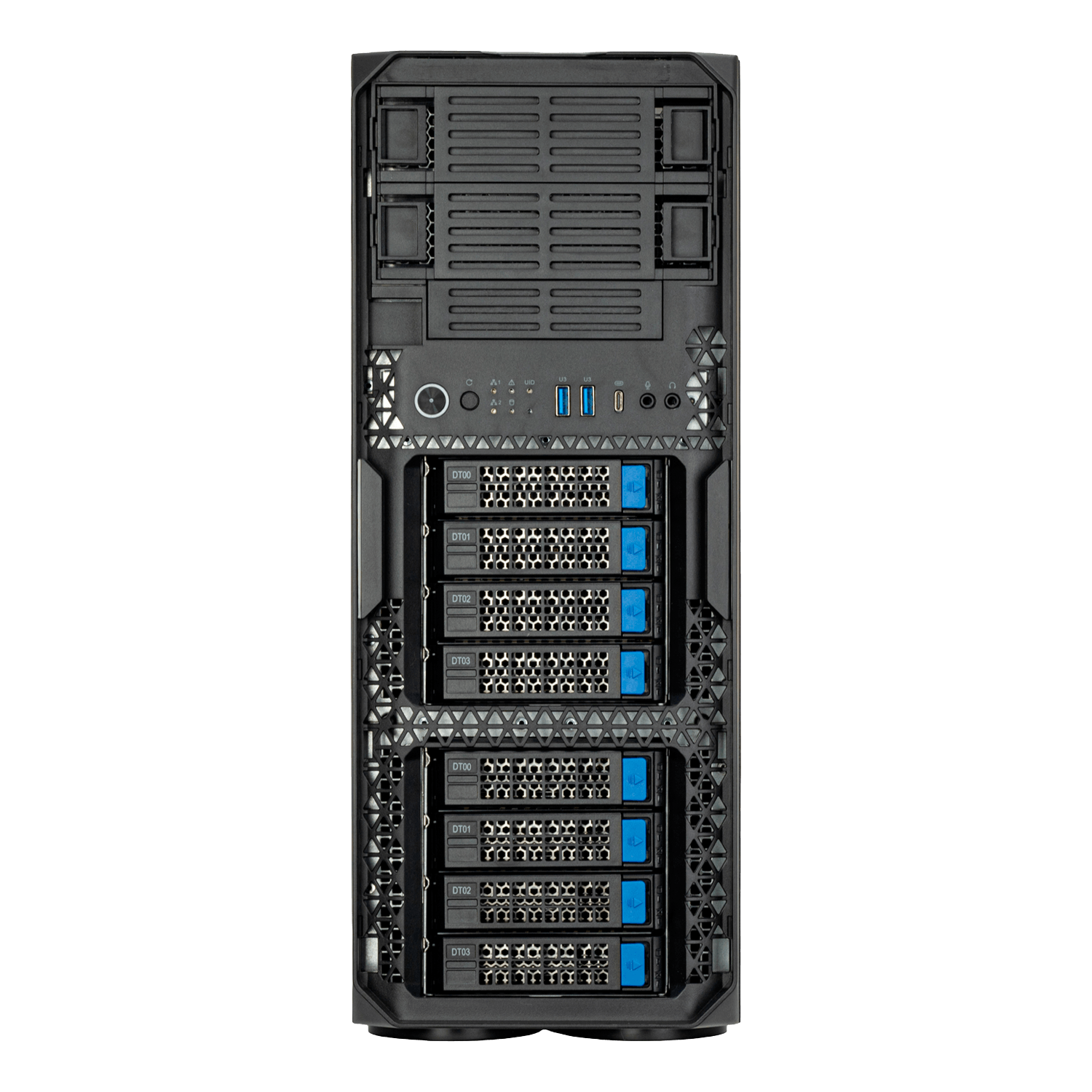

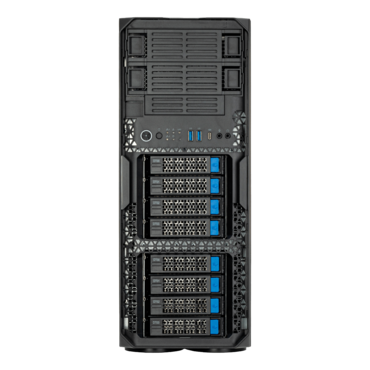

  • Supports 8 x 2.5"/3.5" SAS/SATA SSD/HDD hot-swappable drive trays.
  • Backplane supports 8-port SAS/SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO.
  • Supports up to E-ATX and SSI-EEB motherboard.
  • Supports ATX (PS2) and 2U redundant PSU.
  • Supports 360mm radiators.
  • Supports 2 x 5.25" and 1 x 3.5" drive bays.
  • Supports interface cards up to 370mm

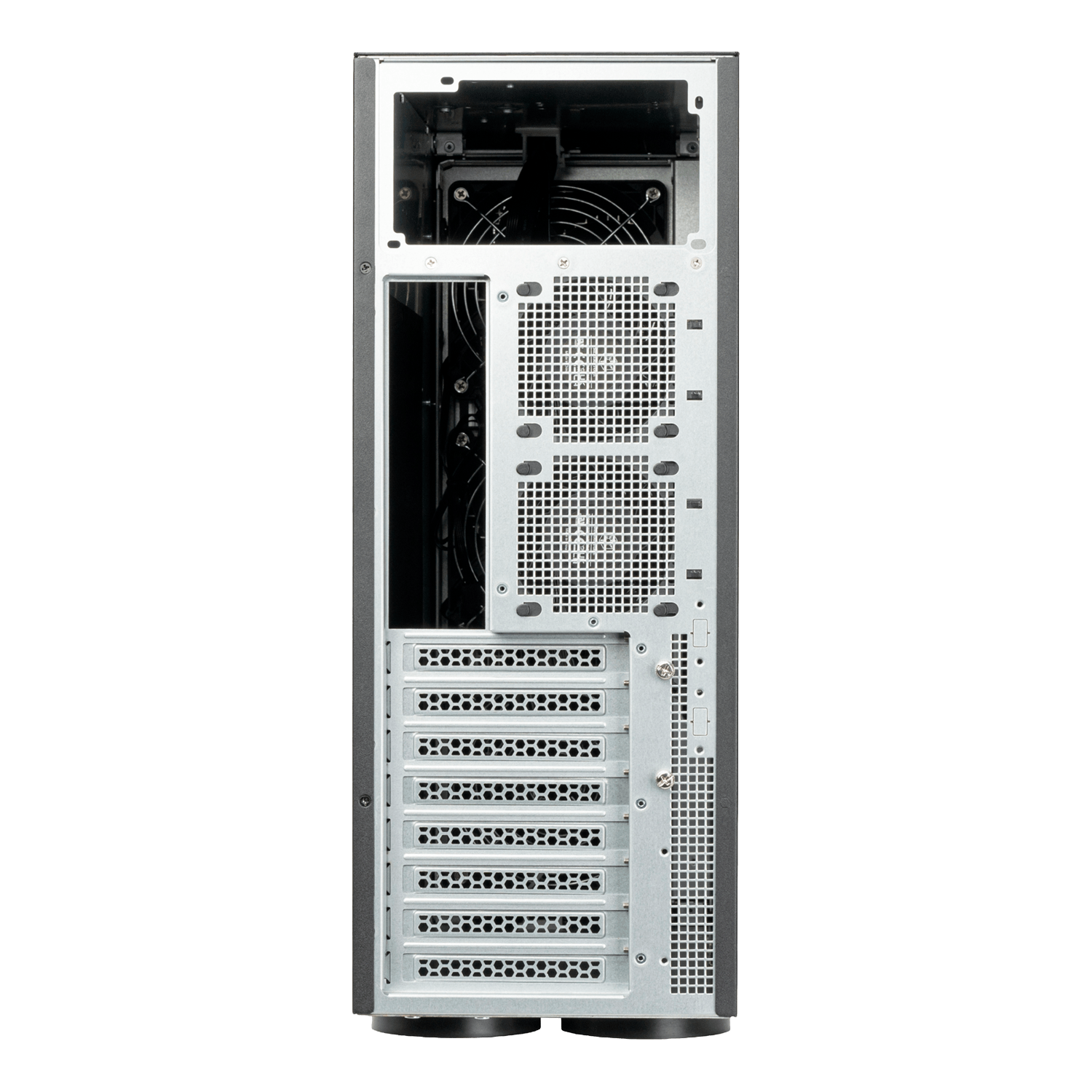

  • Multi-GPU support with 8 PCI expansion slots.

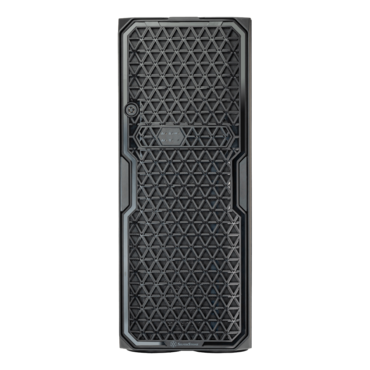

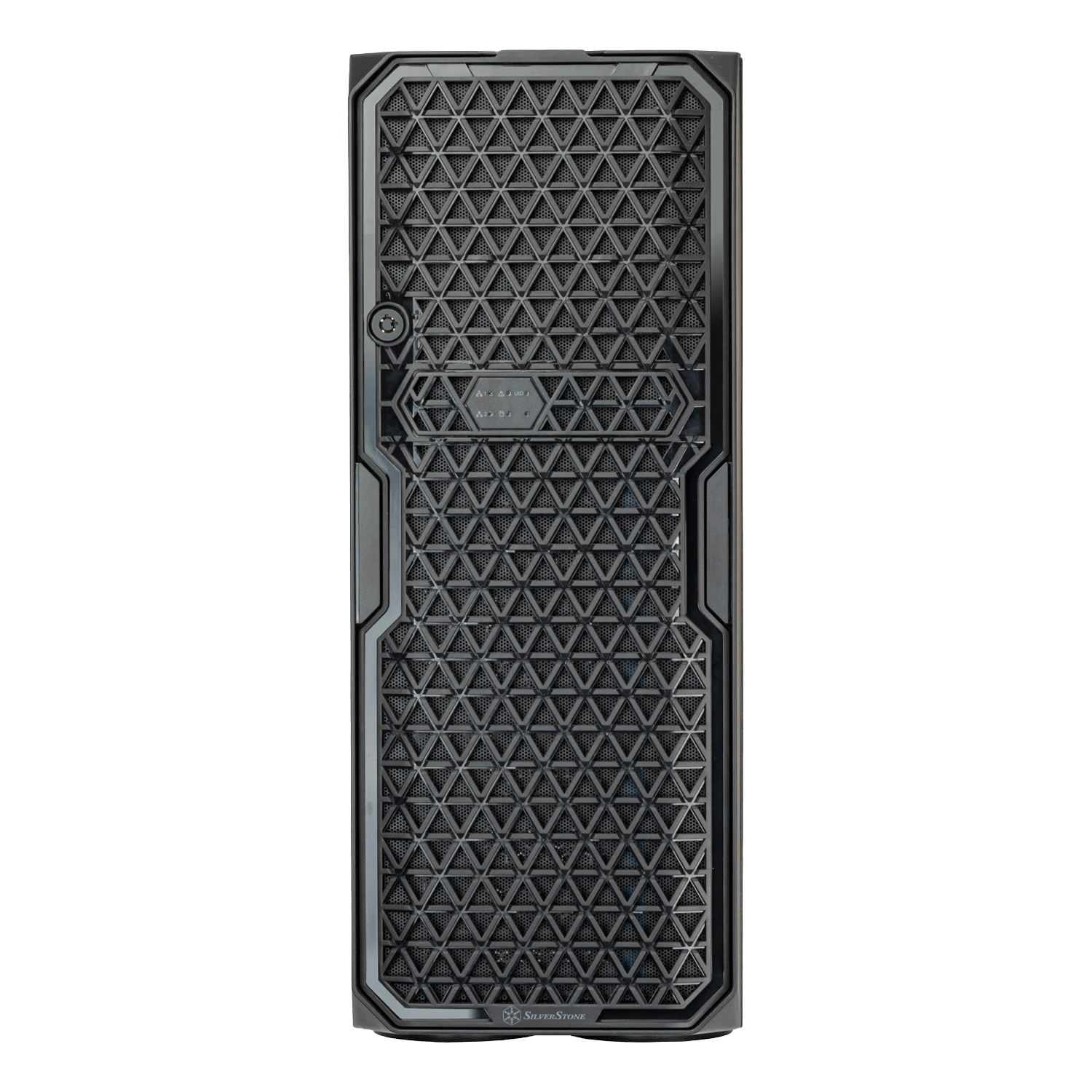

  • Front door panel with lock design for additional security.
  • Front I/O ports: 1 x USB Type-C, 2 x USB 3.0
Model No. SST-WS380-E
Material Plastic front panel, Galvanized steel body
Main metal thickness 1.0~1.2mm
Motherboard SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
HDD backplane backplane
8 ports SAS / SATA to Mini-SAS HD SFF-8643 x 2 with SGPIO
power connector
4-Pin peripheral x 2
interface
SAS-1 / SAS-2 / SAS-3
SATA-1 / SATA-2 / SATA-3
Drive bay External
2.5” / 3.5” SAS / SATA external hot-swapping x 8
5.25" x 2
3.5" x 1
Cooling system Rear
80mm x 2 (8038 x 2 black fans included)
Internal
120mm x 3 (12025 x 3 black fans included)
Radiator support Internal
120mm / 240mm / 360mm
Limitation of CPU cooler w/ GPU holder: 134mm
w/o GPU holder: 145mm
Expansion slot 8
Limitation of expansion card Length
370mm
Width
150mm
Power supply PS2 (ATX) / 2U Redundant
Front buttons Power On / Off, system reset
Front I/O port USB Type-C x 1
USB 3.0 x 2
SPK x 1
MIC x1
LED Indicators Chassis
Power LED x 1: Green
HDD Access x 1: White
LAN LED x 2: Green
UID x 1:White
Sys Error : Red
HDD Tray
HDD Power LED : Green
HDD Access : Blue blinking
Dimension 453mm (H) x 175mm (W) x 683mm (D)
17.83" (H) × 6.89" (W) × 26.89" (D)
Net weight 16.62 kg
Extra * The internal USB 3 Type-C cable is 800mm in length. If you plan to connect external storage devices, please avoid using excessively long external cables to prevent potential speed reduction.
