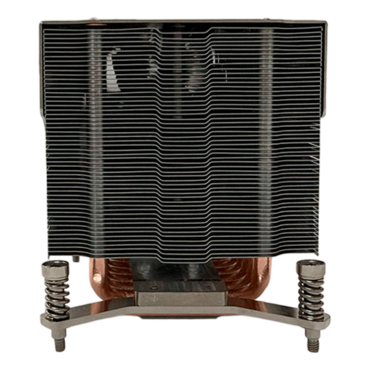

W23, 105mm Height, 400W TDP, Copper/Aluminum CPU Cooler
- SKU: 19280473
- Manufacturer: DYNATRON
- MPN: W23
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$55.10
W23, 105mm Height, 400W TDP, Copper/Aluminum CPU Cooler
The Dynatron W23 CPU cooler is designed for W23
The Dynatron W23 CPU cooler is designed for W23
| CPU Support | AmpereOne |
| CPU Socket | LGA5964 |
| Screw Type | M4 |
| Installation Torque | 12-14 lb-in |
| Solution | 3U Server and up |
| Dimensions | 126.8 x 93.5 x 105 mm |
| Weight | TBD |
| Material | Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins |
| Thermal Material |
Shin-Etsu X23-8079-2 (or equivalent) Pre-Printed Tflex HD7.5 (or equivalent) Pre-Applied |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed |
At Duty Cycle 0~20%: 2400 ± 200 RPM At Duty Cycle 50%: 4800 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Air Flow |
At Duty Cycle 0~20%: 32.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Noise Level |
At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.4 dBA |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
