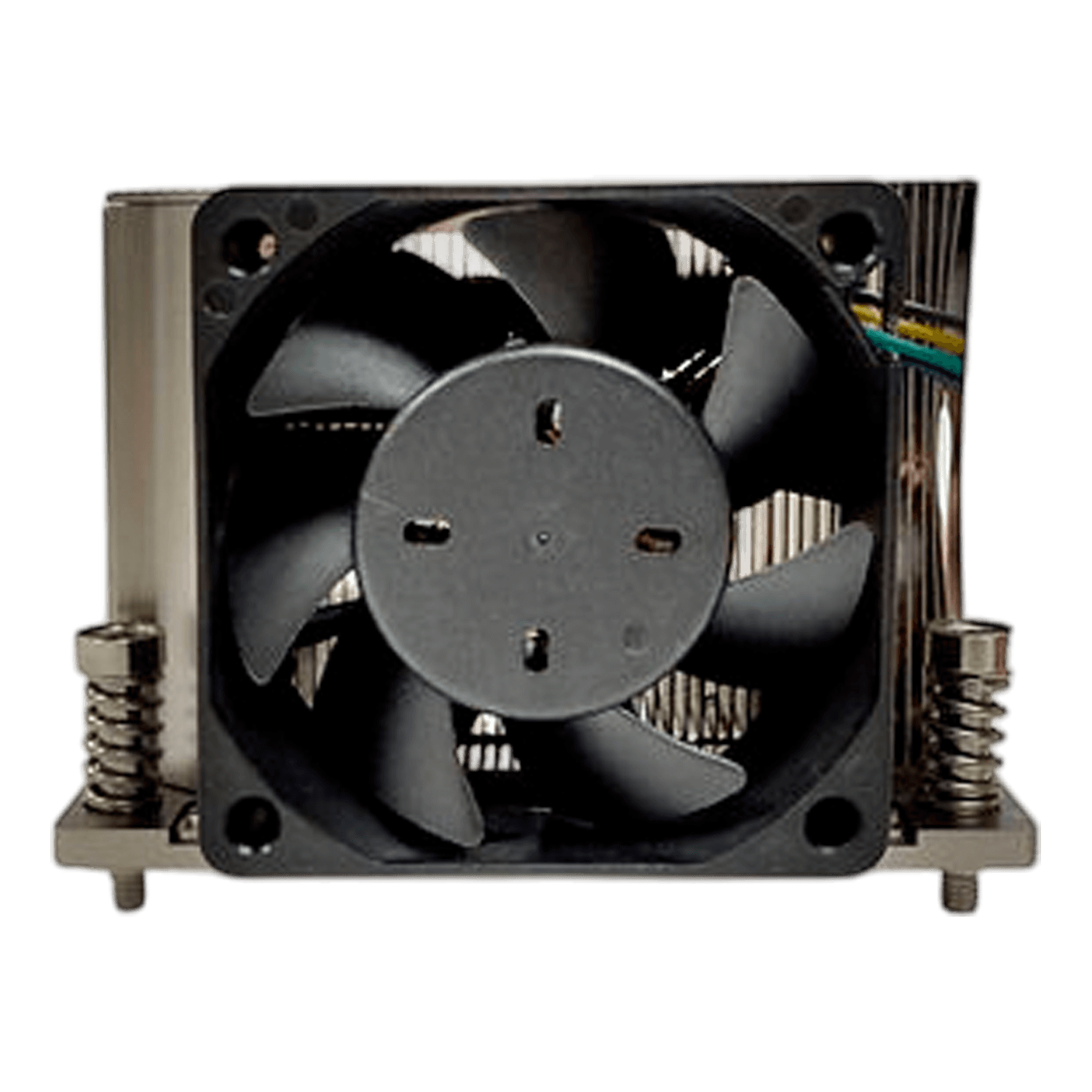

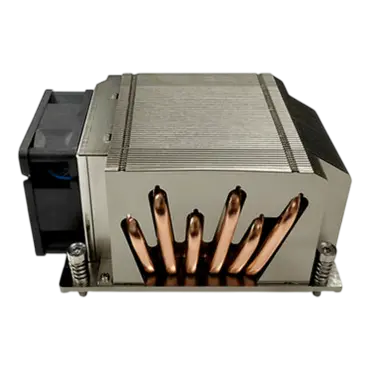

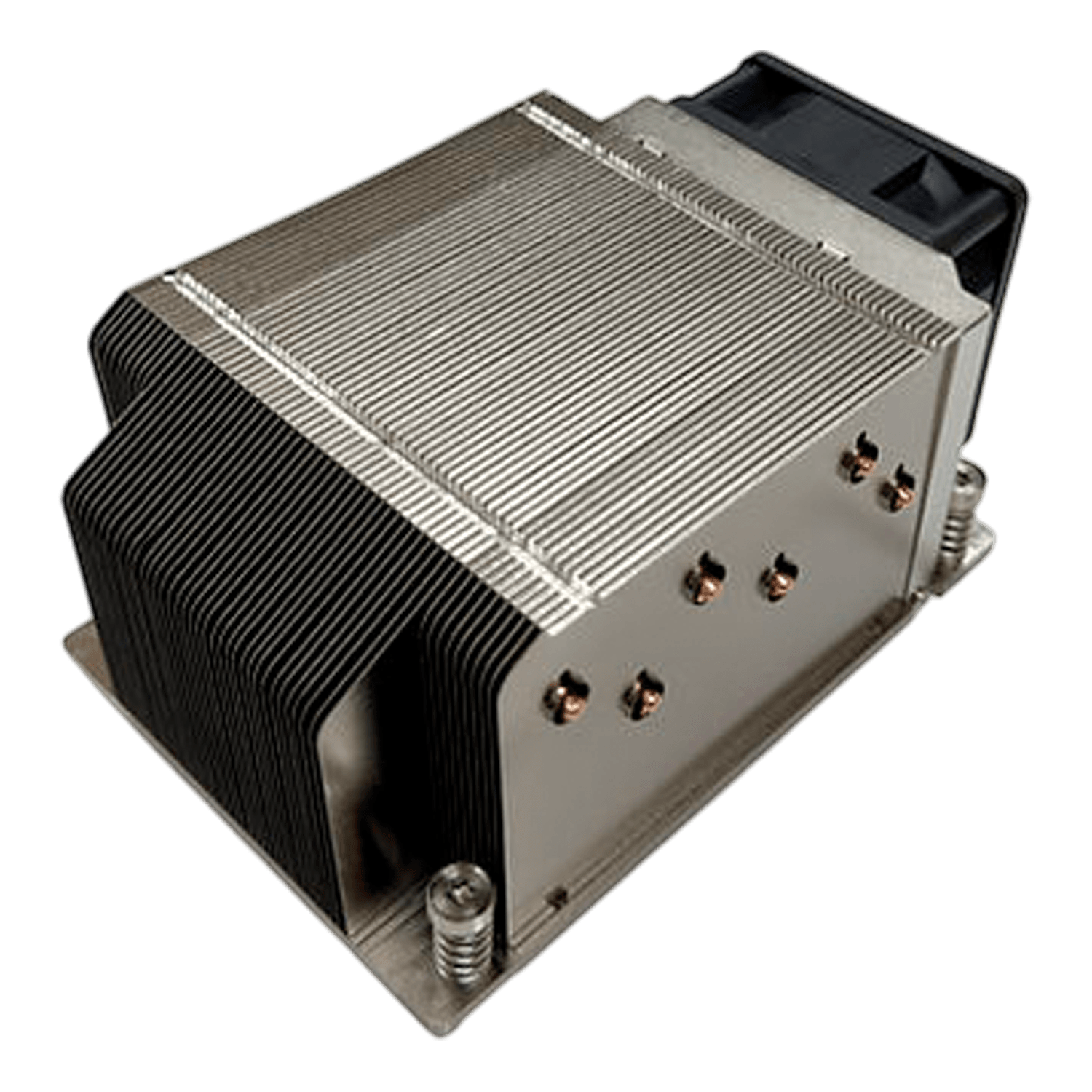

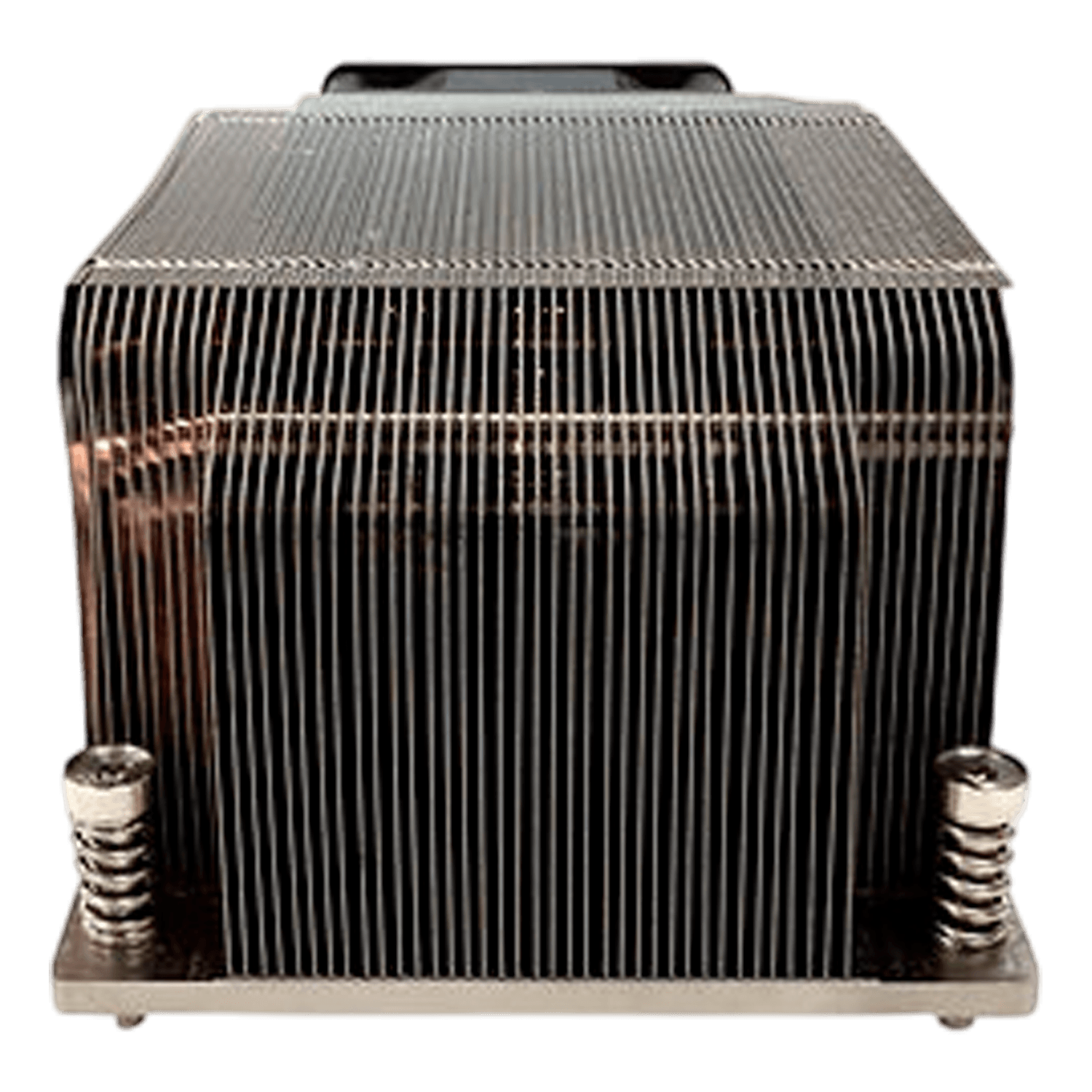

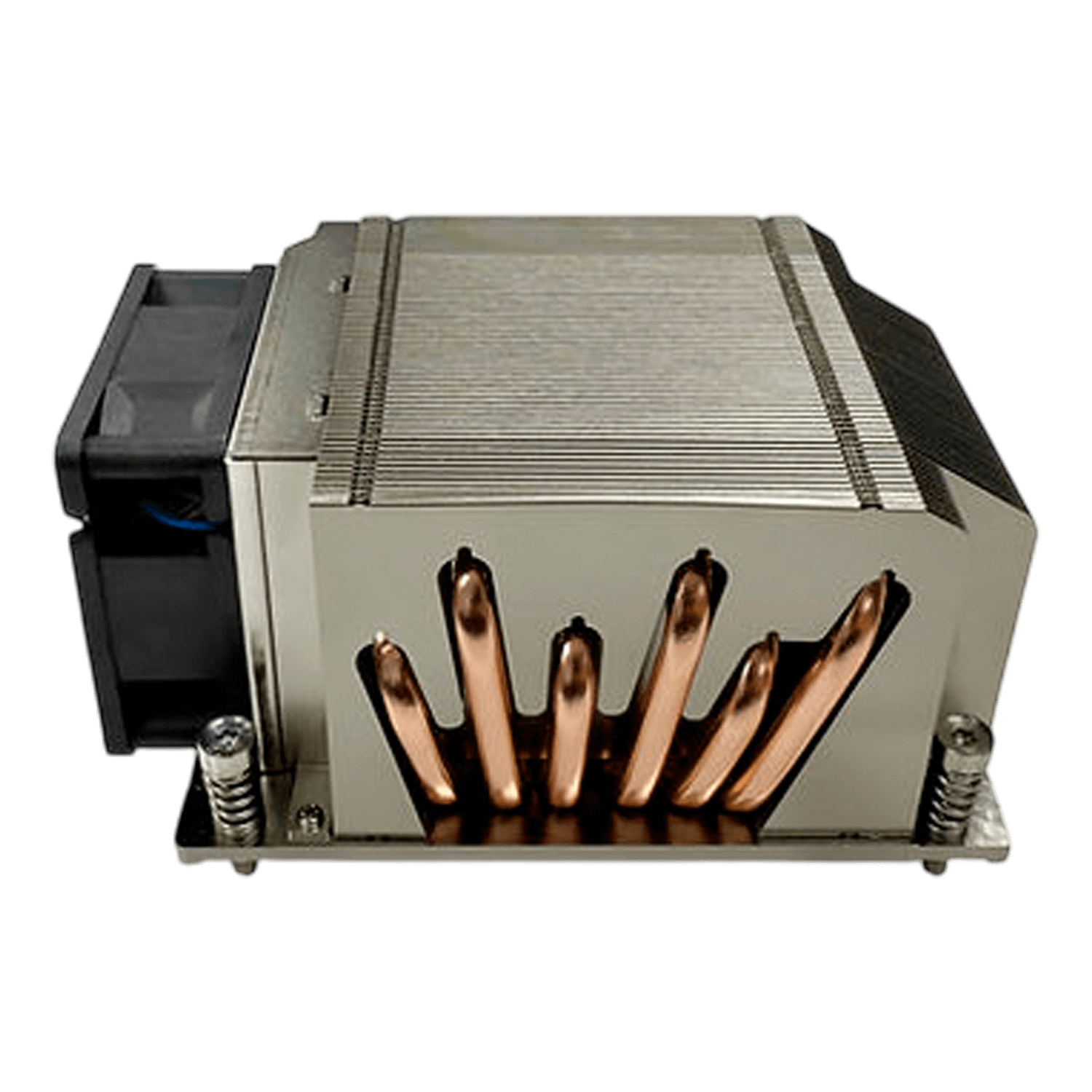

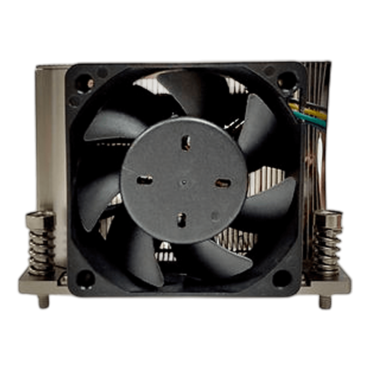

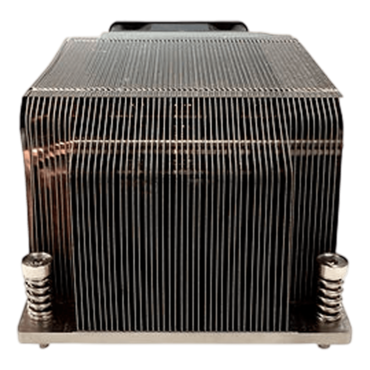

W21, 70.5mm Height, 400W TDP, Copper/Aluminum CPU Cooler
- SKU: 19280401
- Manufacturer: DYNATRON
- MPN: W21
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$51.70
| CPU Support | AmpereOne |
| CPU Socket | LGA5964 |
| Screw Type | M4 |
| Installation Torque | 12-14lb-in |
| Solution | 2U Server and up |
| Dimensions | 144.1 X 93.0 X 70.6 mm |
| Weight | 744g |
| Material | Aluminum + Copper Heatsink Base + Heatpipe + Aluminum Fins |
| Thermal Material | Shin-Etsu X23-8079-2 (or equivalent) Pre-Printed Tflex HD7.5 (or equivalent) Pre-Applied |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed | At Duty Cycle 0~20%: 2300 ± 10% RPM At Duty Cycle 50%: 5400 ± 10% RPM At Duty Cycle 100%: 11000 ± 10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| Air Flow | At Duty Cycle 0~20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level | At Duty Cycle 0~20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
