UX500, 158mm Height, 260W TDP, Copper/Aluminum CPU Cooler
- SKU: 19278513
- Manufacturer: THERMALTAKE
- MPN: CL-P150-AL12BL-A
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$37.47
UX500, 158mm Height, 260W TDP, Copper/Aluminum CPU Cooler

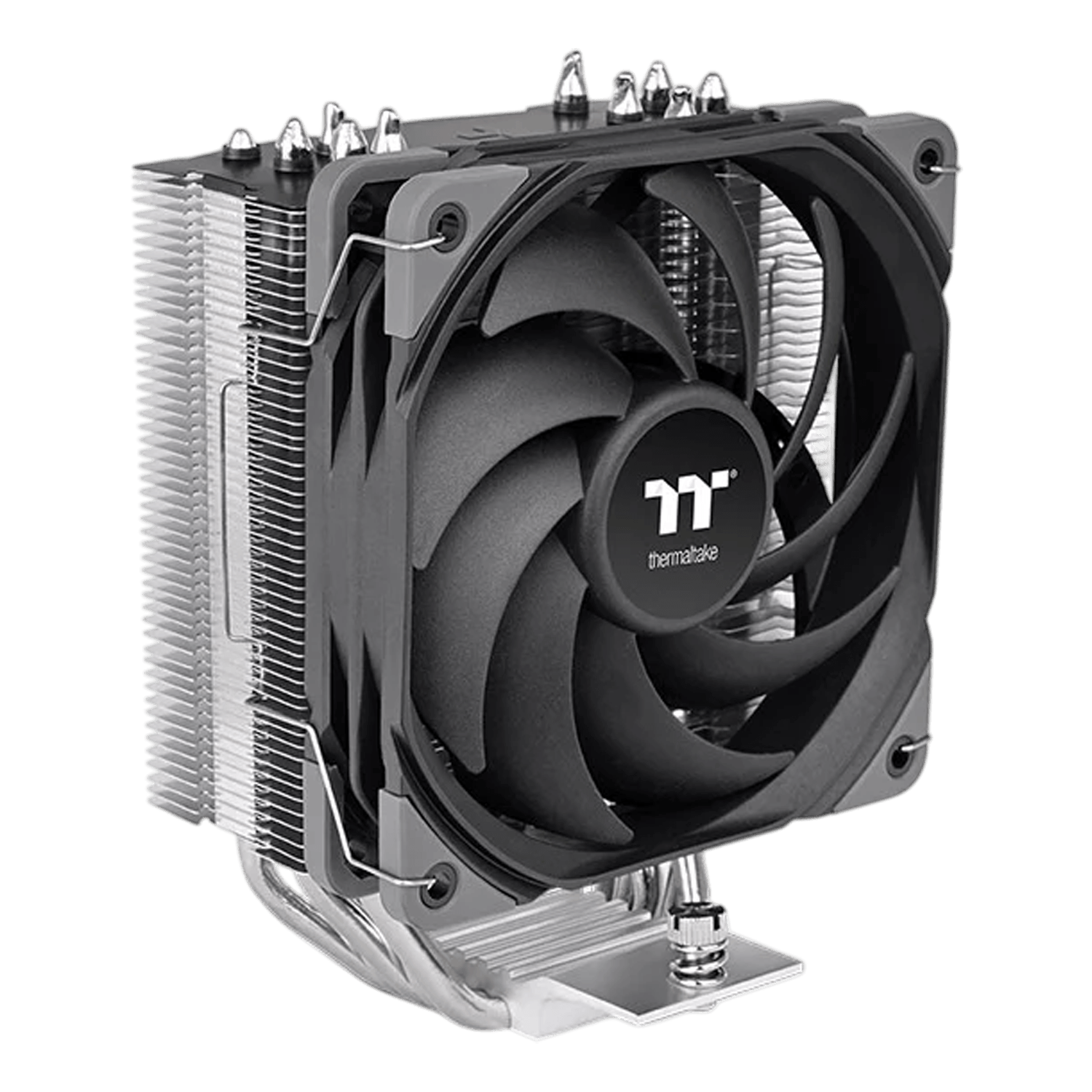

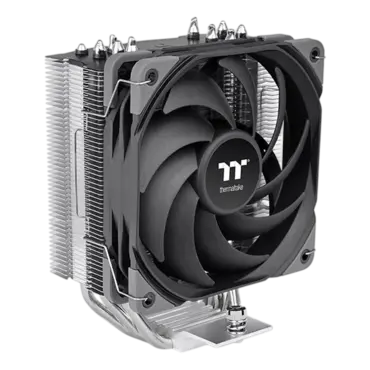

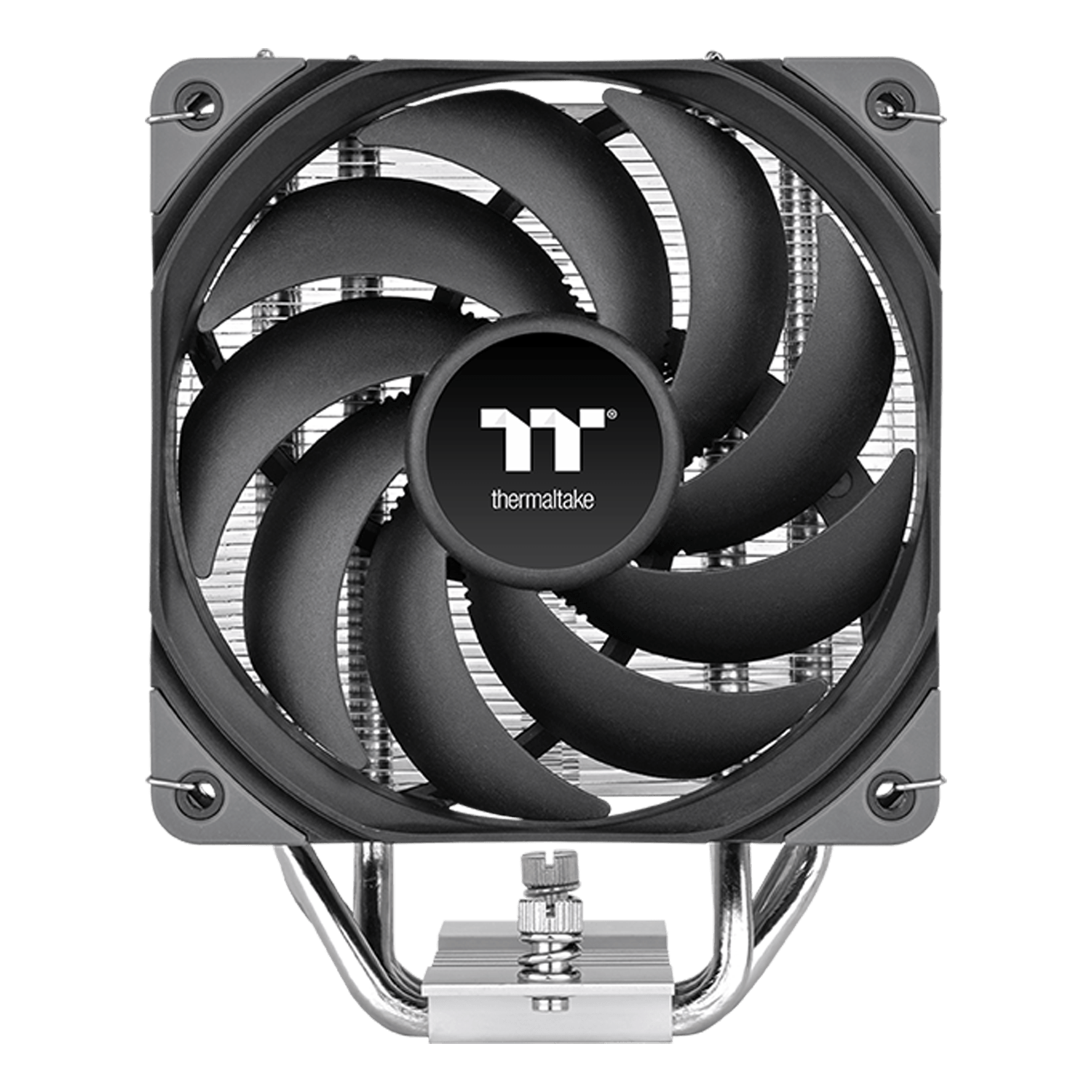

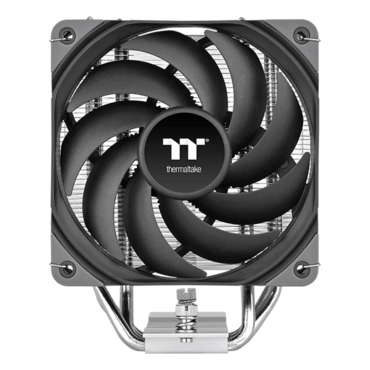

The UX500 is a single-tower, single-fan CPU cooler designed with five Ø6mm U-shaped copper heat pipes and a 120mm high-airflow fan, delivering a cooling capacity of 260W TDP. Its hydraulic bearing enhances durability and ensures long-lasting performance. Additionally, the UX500 supports mainstream Intel and AMD sockets for broad compatibility.
| P/N | CL-P150-AL12BL-A |
| Compatibility | Intel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 (CPU Socket) |
| Heatsink Dimensions | 125 x 92 x 158 mm (L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |

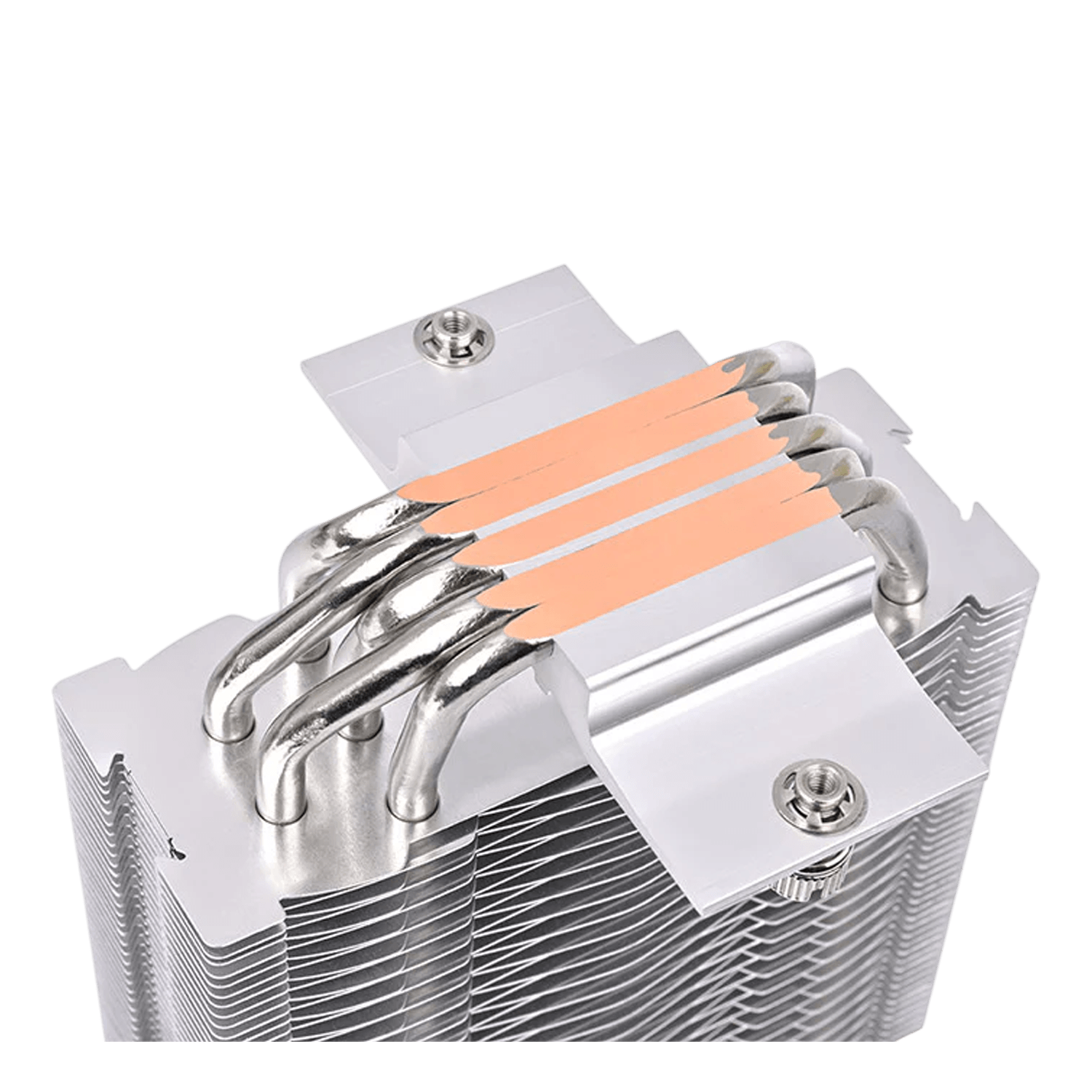

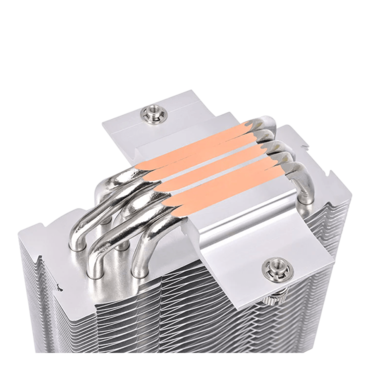

| Heatpipe | Φ6mm x 5 pcs |
| Fan Dimensions | 120 x 120 x 25 mm ( L x W x H) |
| Fan Quantity | 1 |
| Fan Speed | PWM 700~1800 RPM |
| Started Voltage | 6.0 V |
| Rated Voltage | 12 V |
| Rated Current | 0.4 A |
| Power Input | 3.0 W |
| Air Flow | 62.72 CFM |
| Static Pressure | 1.47 mm-H2O |
| Noise | 25.0 dBA |
| Life Expectation | 30,000 hours |
| Pin Connect | 2510 - 4Pin |
| Cooling Power | 260 W |
