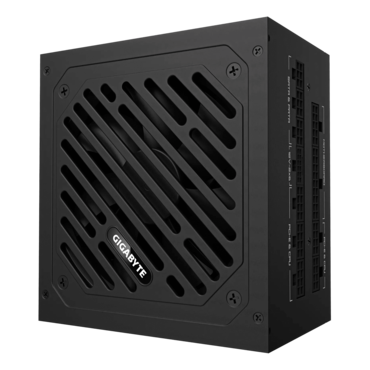

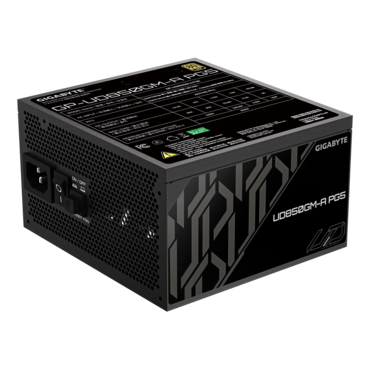

UD850GM-A PG5, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 18453954
- Manufacturer: GIGABYTE
- MPN: GP-UD850GM-A PG5
- Availability: TEMPORARILY OUT OF STOCK
Price
$110.45
- Ultra Durable
- 100% Japanese capacitors
- Enhanced thermal solution
- 120mm smart Hydraulic Bearing(HYB) fan with smart fan switch
- OVP/OPP/SCP/UVP/OCP/OTP protection
- ATX 3.1 and PCIe Gen 5.0 ready
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)

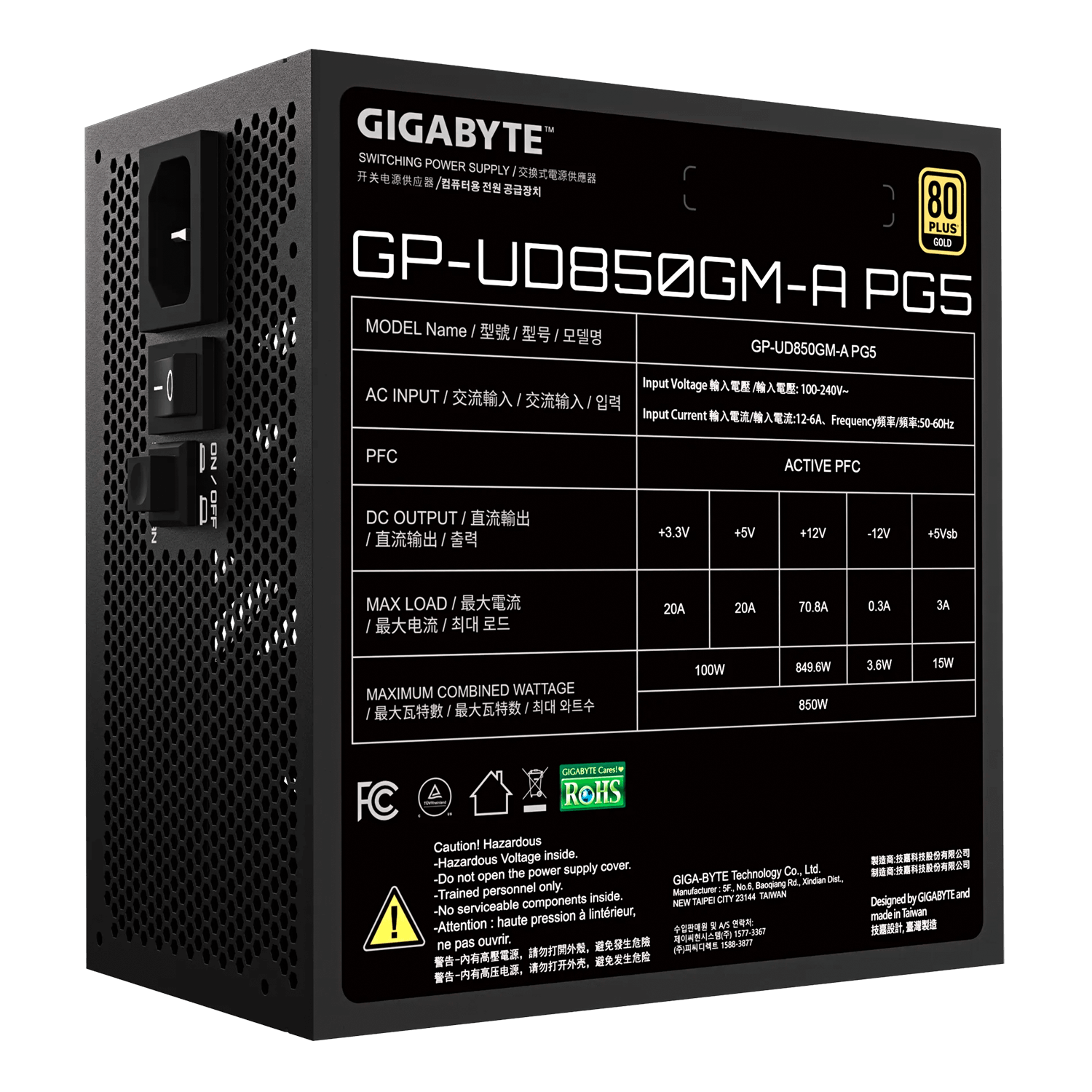

| Model | GP-UD850GM-A PG5 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

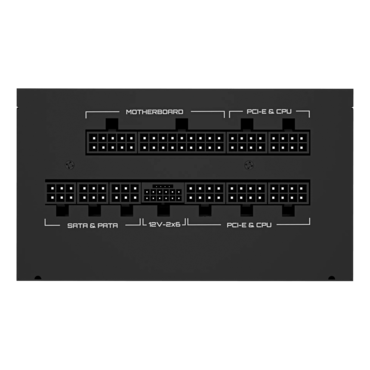

| Connectors |
ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-E 16 Pin x 1: 700mm*1 PCI-E 6+2 Pin x 6 : 650mm+100mm*3 SATA x 8 : 600mm+150mm+150mm+150mm*2 SATA x 2 + 4 Pin Peripheral x 2 : 600mm+150mm+150mm+150mm*1 |
