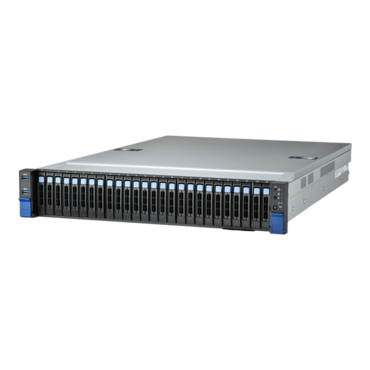

| System |
Form Factor |
2U Rackmount |
| Chassis Model |
TS70A |
| Dimension (D x W x H) |
27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm) |

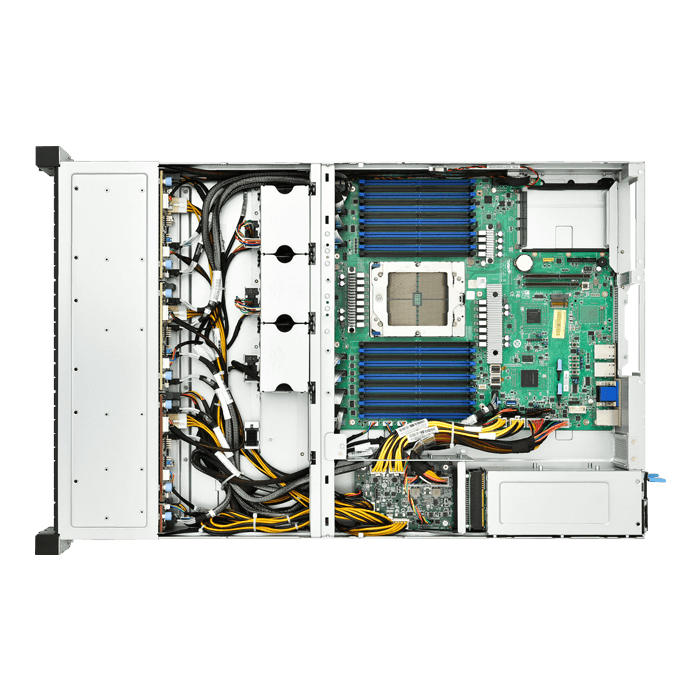

| Motherboard Name |
S8056GM2NE-2T |
| Board Dimension |
Prop. 14.18" x 12.16" (360.2 x 308.8mm) |

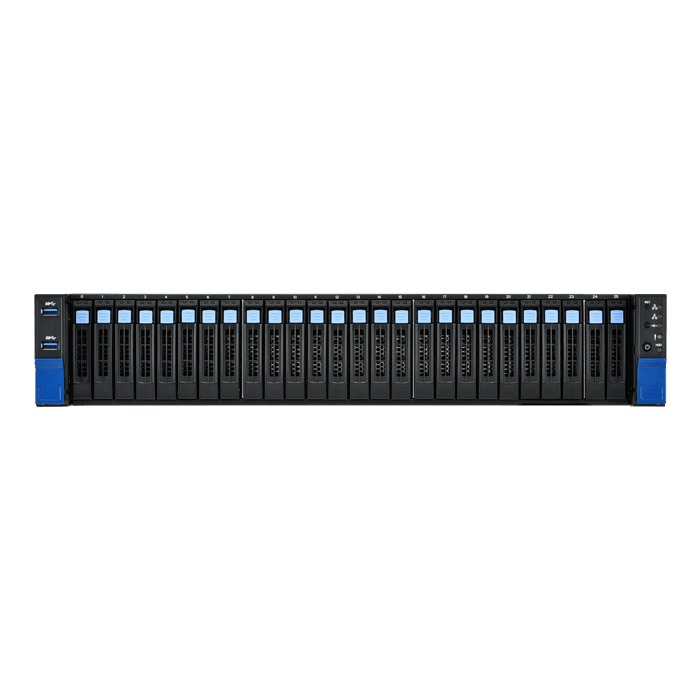

| Front Panel |
Buttons |
(1) ID / (1) PWR w/ LED / (1) RST |
| LEDs |
(1) HDD / (1) ID / (2) LAN / (1) System Event |
| I/O Ports |
(2) USB 3.2 Gen.1 ports |

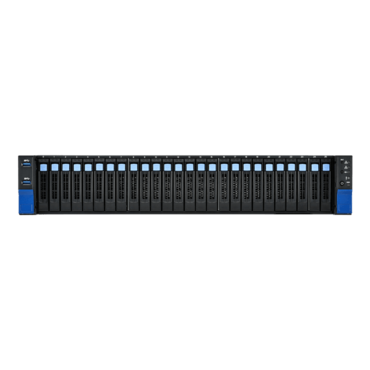

| External Drive Bay |
Q'ty / Type |
(26) 2.5" Hot-Swap NVMe |
| Front Drive Bay Interface |
(26) NVMe U.2 |
| Front HDD Backplane Support |
NVMe |
| System Cooling Configuration |
FAN |
(3) hot-swap 8056 fans |
| Redundancy |
Yes |
| Power Supply |
Type |
CRPS |
| Input Range |
AC 100-127V/13A / AC 200-240V/9.5A |
| Frequency |
50-60 Hz |
| Output Watts |
1,000 Watts (100-127V AC input) / 1,600 Watts (200-240V AC input) |
| Efficiency |
80 plus Platinum |
| Redundancy |
1+1 |
| Processor |
Q'ty / Socket Type |
(1) AMD Socket SP5 |
| Supported CPU Series |
(1) AMD EPYC™ 9004 Series Processor |
| Thermal Design Power Wattage |
Max up to 400W* (cTDP) |

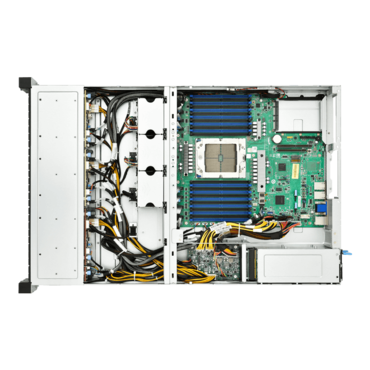

| Memory |
Supported DIMM Qty |
(24) DIMM slots |
| DIMM Type / Speed |
RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC |
| Capacity |
Up to 3,072GB RDIMM/3DS RDIMM DDR5 4800/4400/4000 memory |
| Memory channel |
12 Channels per CPU |
| Memory voltage |
1.1V |

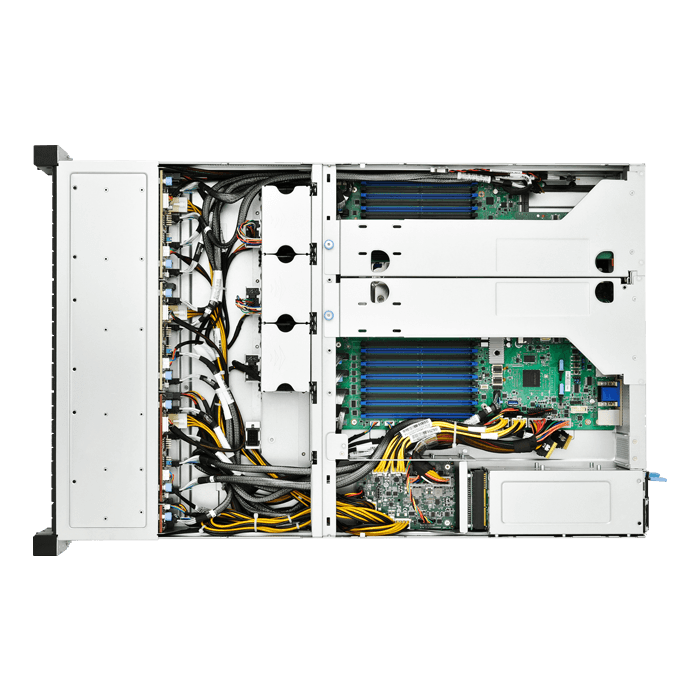

| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x8 slot |
| Pre-installed TYAN Riser Card (PCIe Gen.5) |
(1) M7136T70-R24-2F riser card for for (2) FH/HL PCIe 5.0 x16 slots / (1) M7136T70-L28-1F riser card for for (1) FH/HL PCIe 5.0 x8 slot |
| Others |
(1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot |
| LAN |
Q'ty / Port |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Intel X710-AT2 |
| PHY |
Realtek RTL8211F |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.4 interface) |
| Connector (U.2) |
(2) P2305-4E storage mezz. for (8) NVMe ports / (9) SFF-TA-1016 (MCIO 8x) for (18) front NVMe |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |

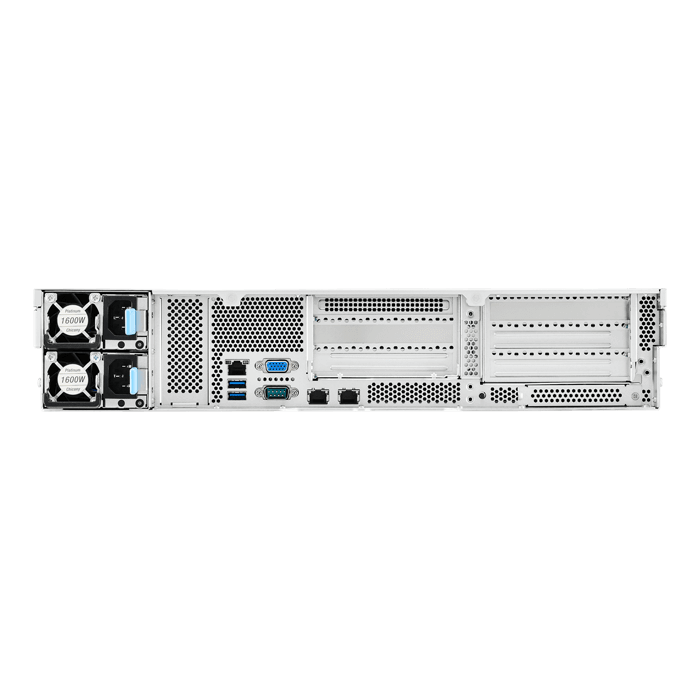

| I/O Ports |
USB |
(1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (2) USB3.2 Gen.1 ports (@ front) / (2) USB3.2 Gen.1 ports (@ rear) |
| COM |
(1) DB-9 COM port |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(2) 10 GbE ports + (1) dedicated GbE for IPMI |
| Button |
ID Button / Power Button / Reset Button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 64MB |
| Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| CB/LVD |
Yes |
| VCCI |
Class A |
| C-Tick |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity 90 |
90%, non-condensing at 35° C |
| Package Contains |
Barebone |
(1) TS70A-B8056 Barebone |
| Manual |
(1) Quick Installation Guide |
| RoHS |
RoHS 6/6 Compliant |
Yes |
