| System |

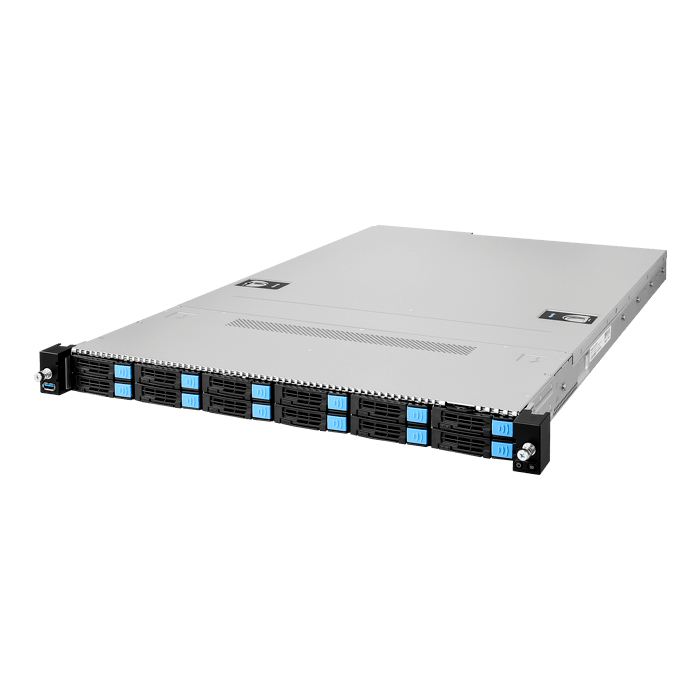

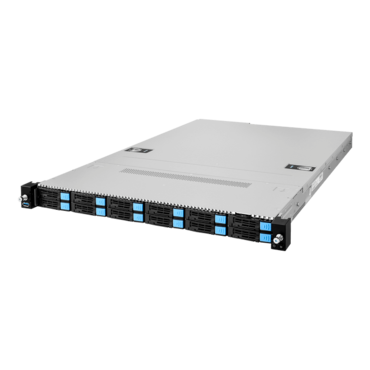

Form Factor |
1U Rackmount |
| Chassis Model |
GC73A |
| Dimension (D x W x H) |
28.74" x 17.26" x 1.72" (730 x 438.5 x 43.6mm) |

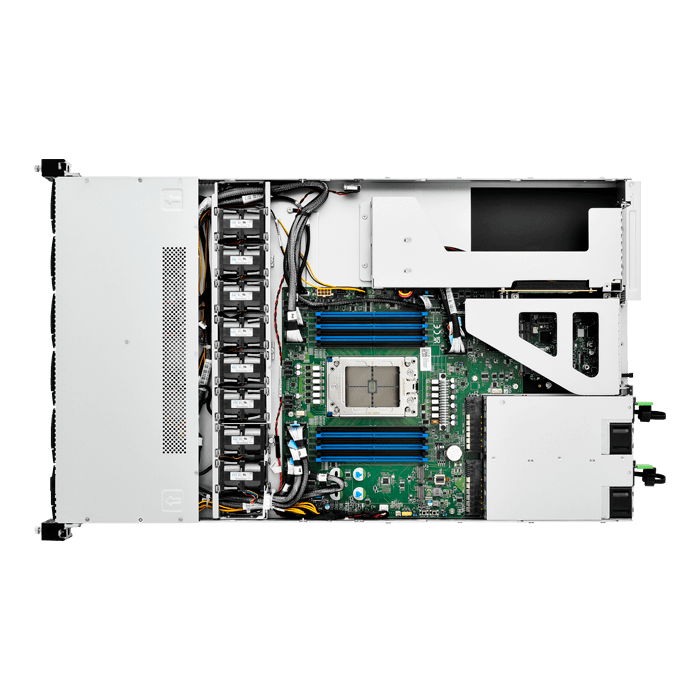

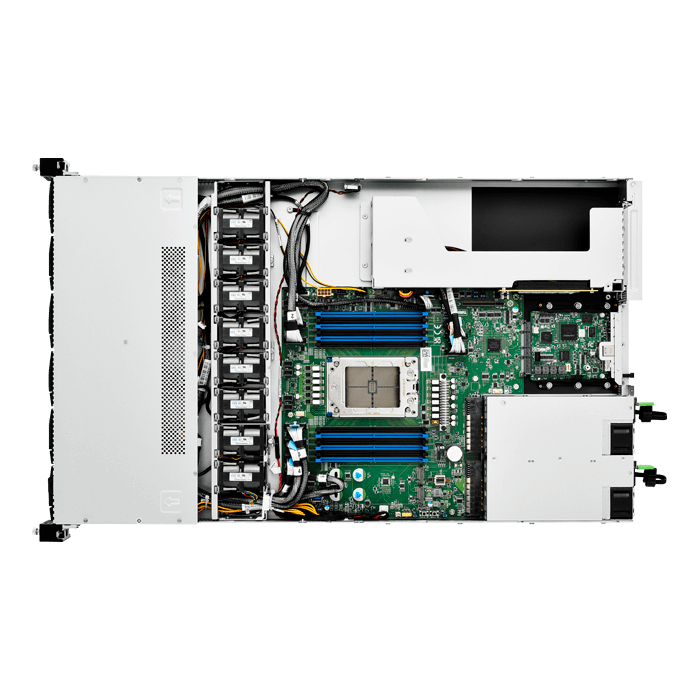

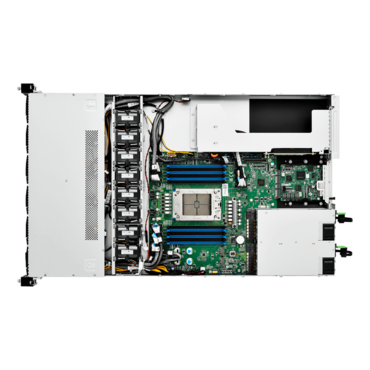

| Motherboard Name |
S8046GM |
| Gross Weight |
26.75 kg (58.97 lbs) |
| Net weight |
13.75 kg (30.31 lbs) |
| Board Dimension |
Prop. 12.30" x 11.75" (312.5 x 298.5mm) |

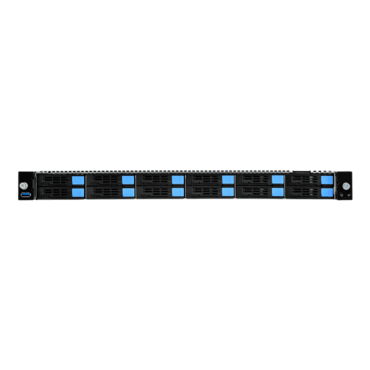

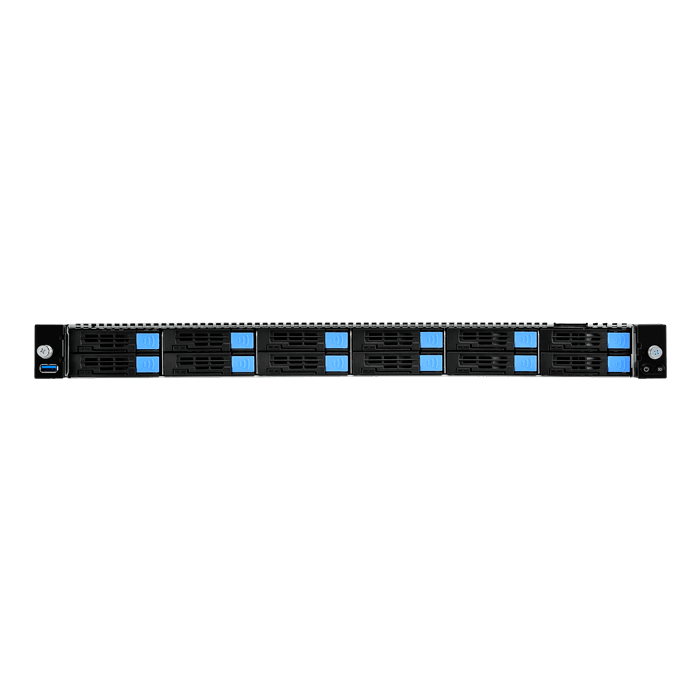

| Front Panel |
Buttons |
(1) PWR w/ LED / (1) ID w/ LED |
| LEDs |
(1) ID / (1) PWR |
| I/O Ports |
(1) USB 3.2 Gen.1 port |
| External Drive Bay |
Q'ty / Type |
(12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s |
| Front Drive Bay Interface |
(12) NVMe with (4) SATA 6Gb/s ports |
| Front HDD Backplane Support |
NVMe / SATA 6Gb/s |
| System Cooling Configuration |
FAN |
(8) 4056 fans |
| Air Duct |
(2) Tailored Air Duct |
| Power Supply |
Type |
CRPS |
| Input Range |
AC 100-127V/12A / AC 200-240V/8.5A |
| Frequency |
50/60 Hz |
| Output Watts |
1,300 Watts |
| Efficiency |
80 plus Titanium |
| Redundancy |
1+1 |
| Processor |
Q'ty / Socket Type |
(1) AMD Socket SP6 |
| Supported CPU Series |
(1) AMD EPYC™ 8004 Series Processor |
| Thermal Design Power Wattage |
Max up to 225W (TDP) |
| Memory |
Supported DIMM Qty |
(12) DIMM slots |
| DIMM Type / Speed |
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) - 4th Gen. / RDIMM DDR5 3600 MHz (2DPC) |
| Capacity |
Up to 1,152GB RDIMM DDR5 4800/3600 memory |
| Memory channel |
6 Channels per CPU |
| Memory voltage |
1.1V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.5 x16 slot / (1) PCIe Gen.5 x16 from (2) MCIO x8 |
| Pre-installed TYAN Riser Card (PCIe Gen.5) |
(1) M8046G73-L16-1F riser for (1) FH/HL PCIe Gen.5 x 16 slot / (1) CEM Riser for (1) FH/FL PCIe Gen.5 x 16 slot |
| Others |
(1) DC-SCM slot |
| Physical Dimension Abbreviation |
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) / FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm) |
| LAN |
PHY |
Realtek RTL8211F |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.3 interface) |
| Connector (U.2) |
(6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe |

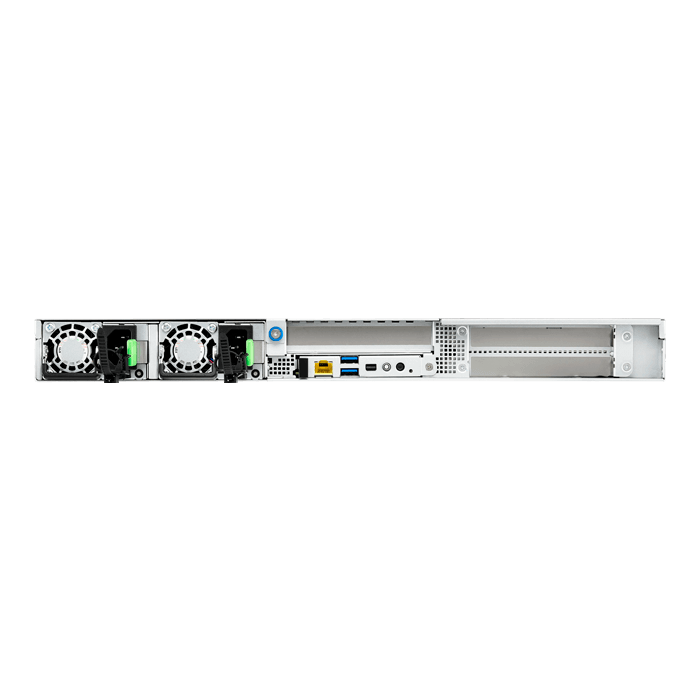

| I/O Ports |
USB |
(1) USB2.0 port (@ rear) / (1) USB3.2 Gen.1 port (@ front) / (1) USB3.2 Gen.1 port (@ rear) |
| RJ-45 |
(1) GbE port dedicated for IPMI |
| Button |
ID Button / Power Button / Reset Button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU & memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 (on DCSCM module) |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 64MB |
| Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| RCM |
Yes |
| VCCI |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Package Contains |
Barebone |
(1) GC73A-B8046 Barebone |
| Manual |
(1) Quick Installation Guide |
