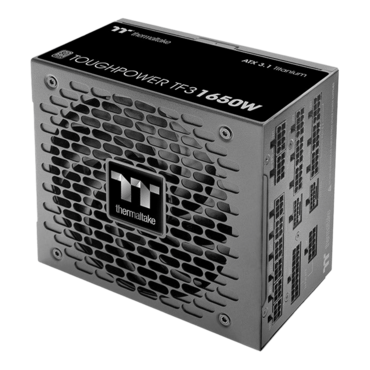

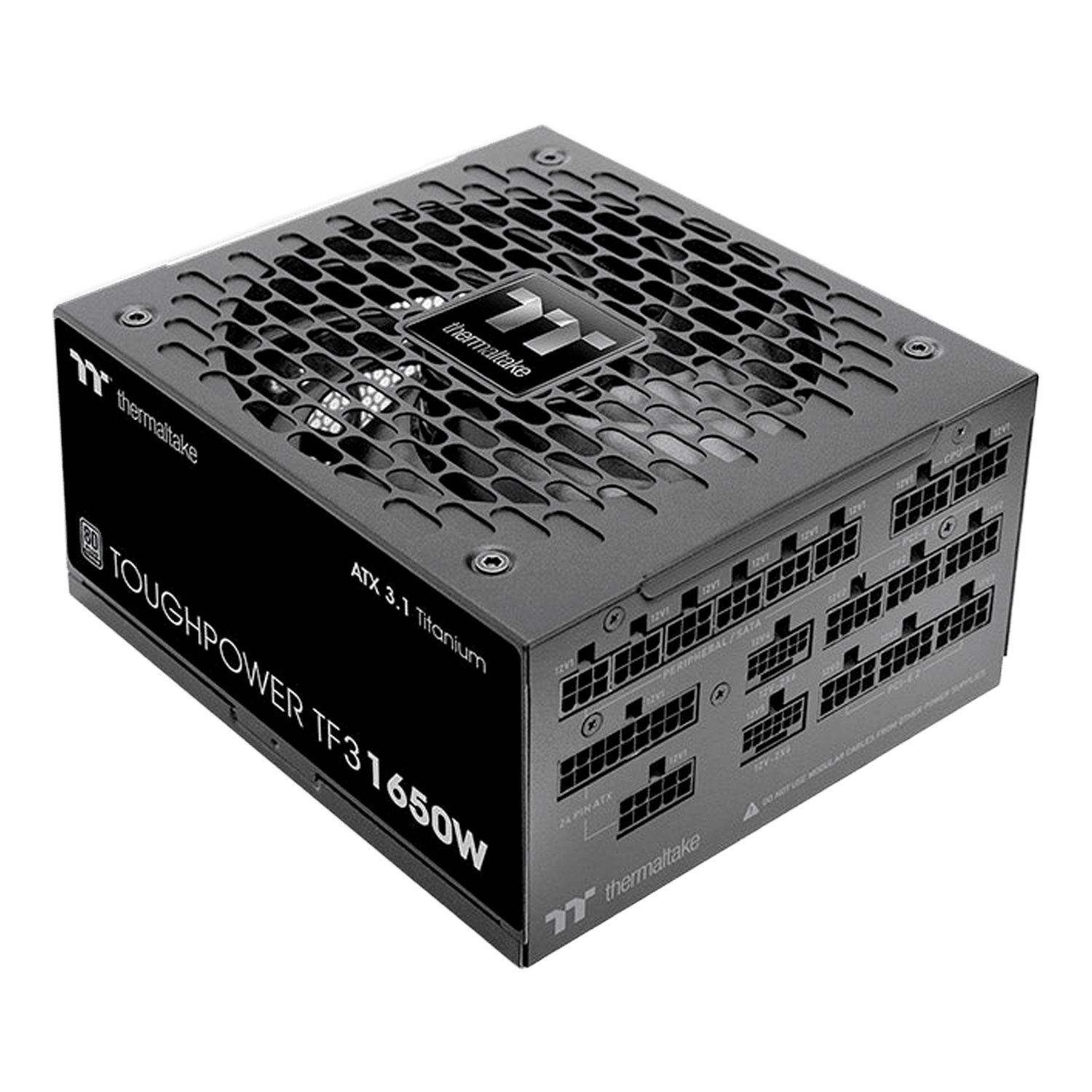

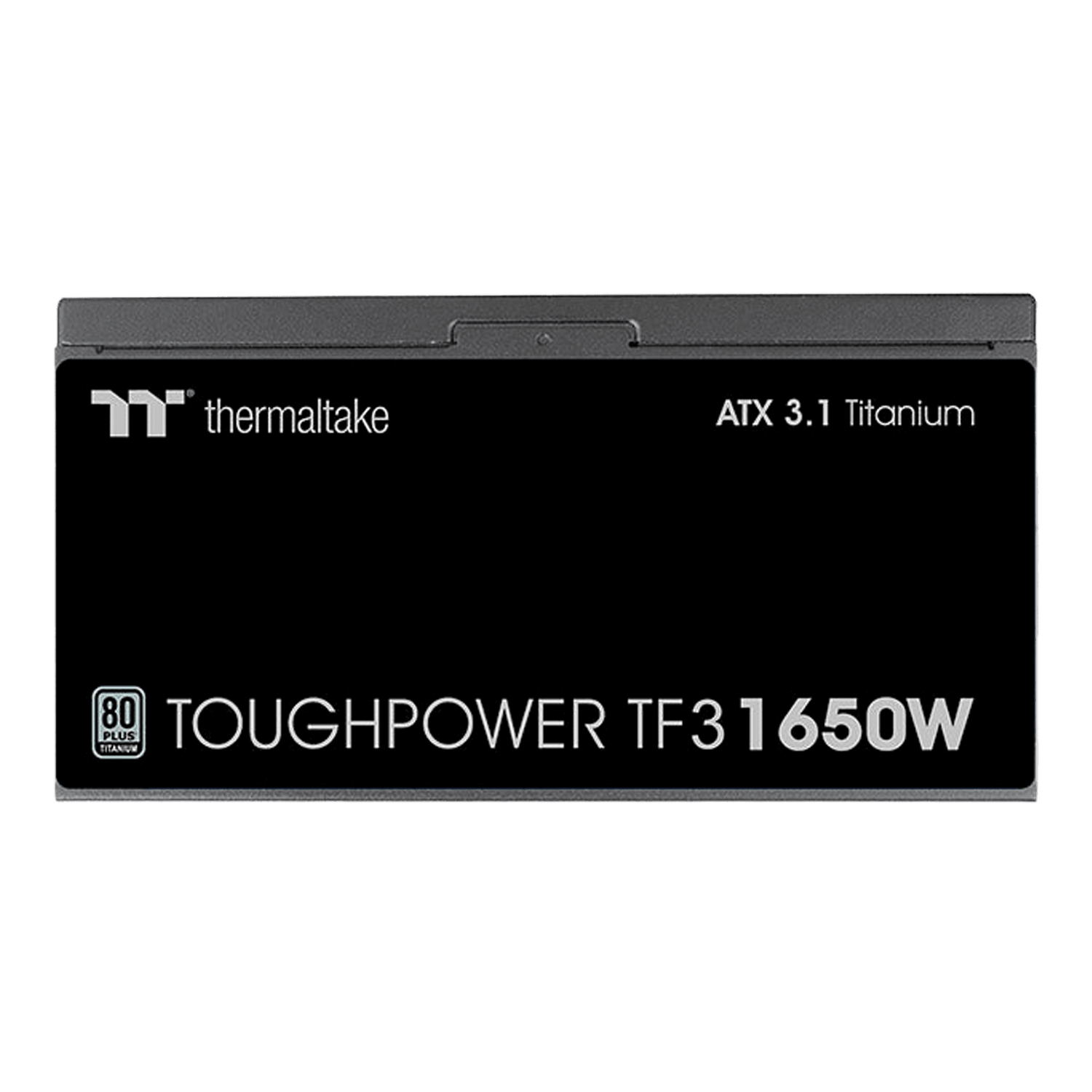

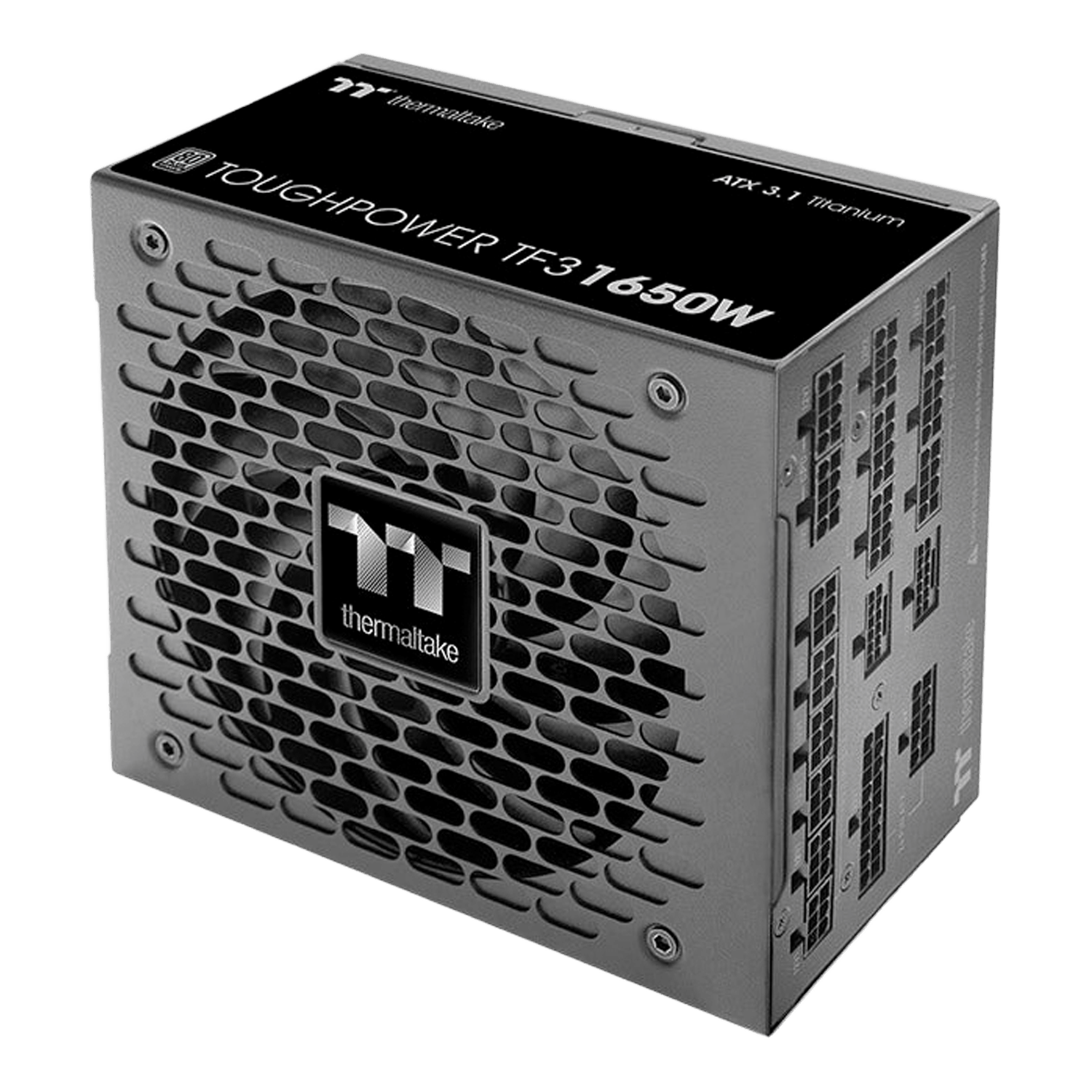

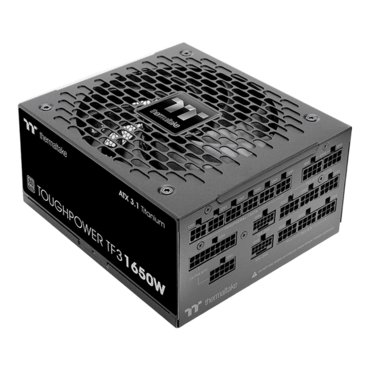

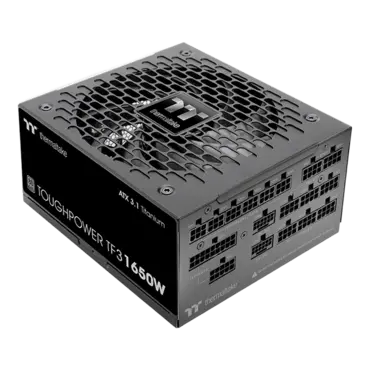

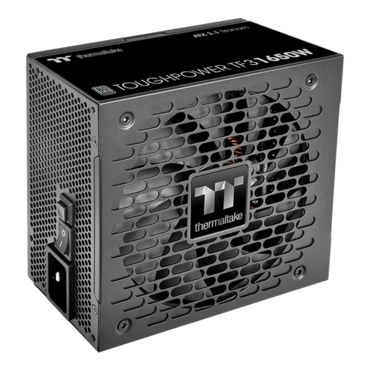

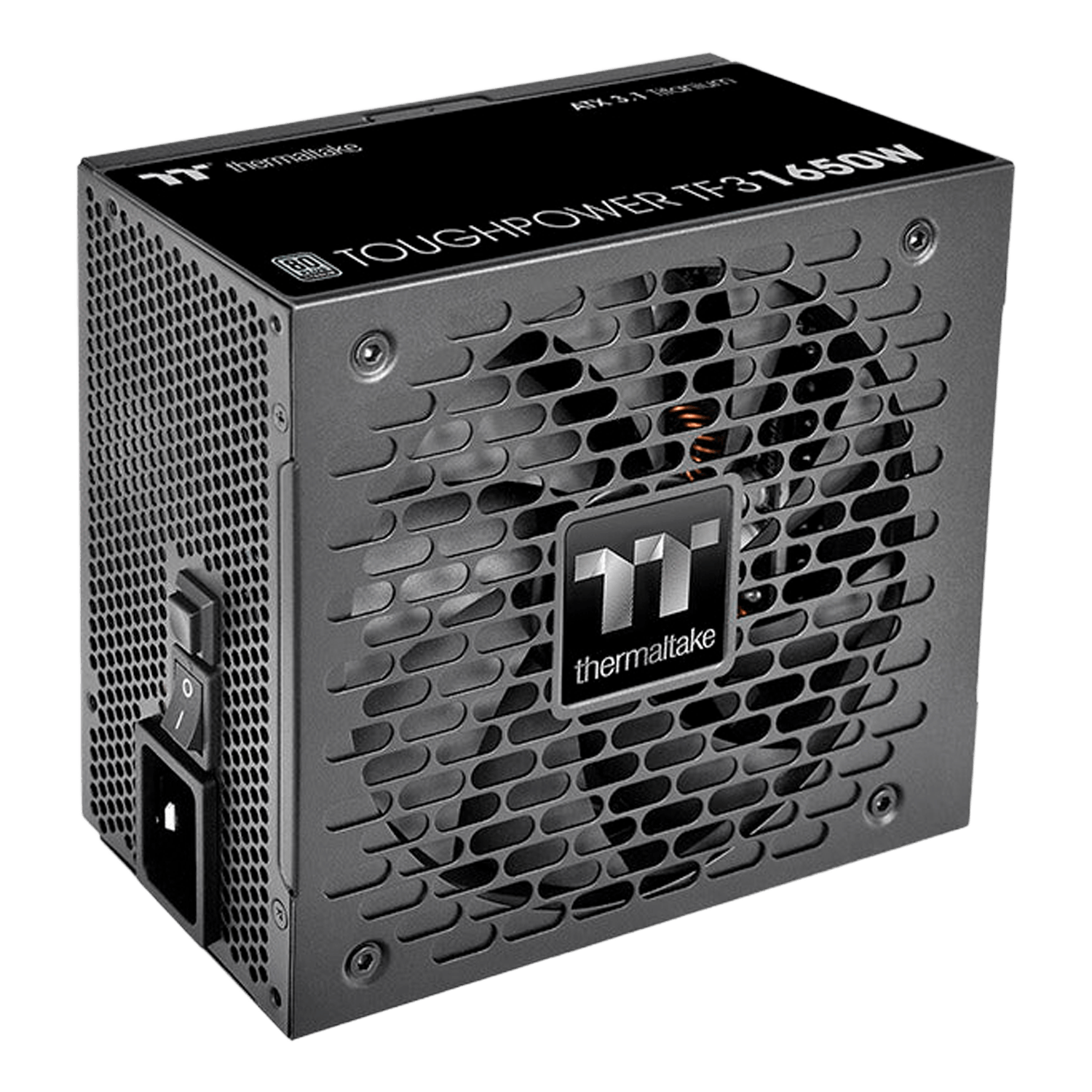

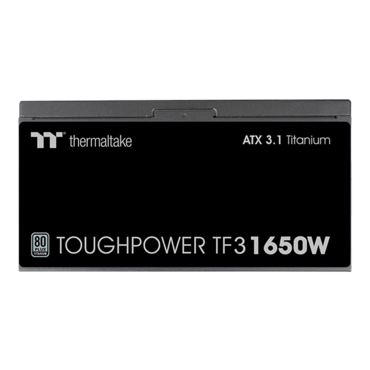

Toughpower TF3 1650W, 80 PLUS Titanium 1650W, Fully Modular, ATX Power Supply
- SKU: 19866108
- Manufacturer: THERMALTAKE
- MPN: PS-TPD-1650FNFATU-1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Toughpower TF3 1650W, 80 PLUS Titanium 1650W, Fully Modular, ATX Power Supply
The Toughpower TF3 1650W is ATX 3.1 compatible, 80 PLUS Titanium certified, and supports native PCIe Gen 5.1
(12+4pin) for next-gen GPU power. Delivers 1650W continuous output at 50°C.

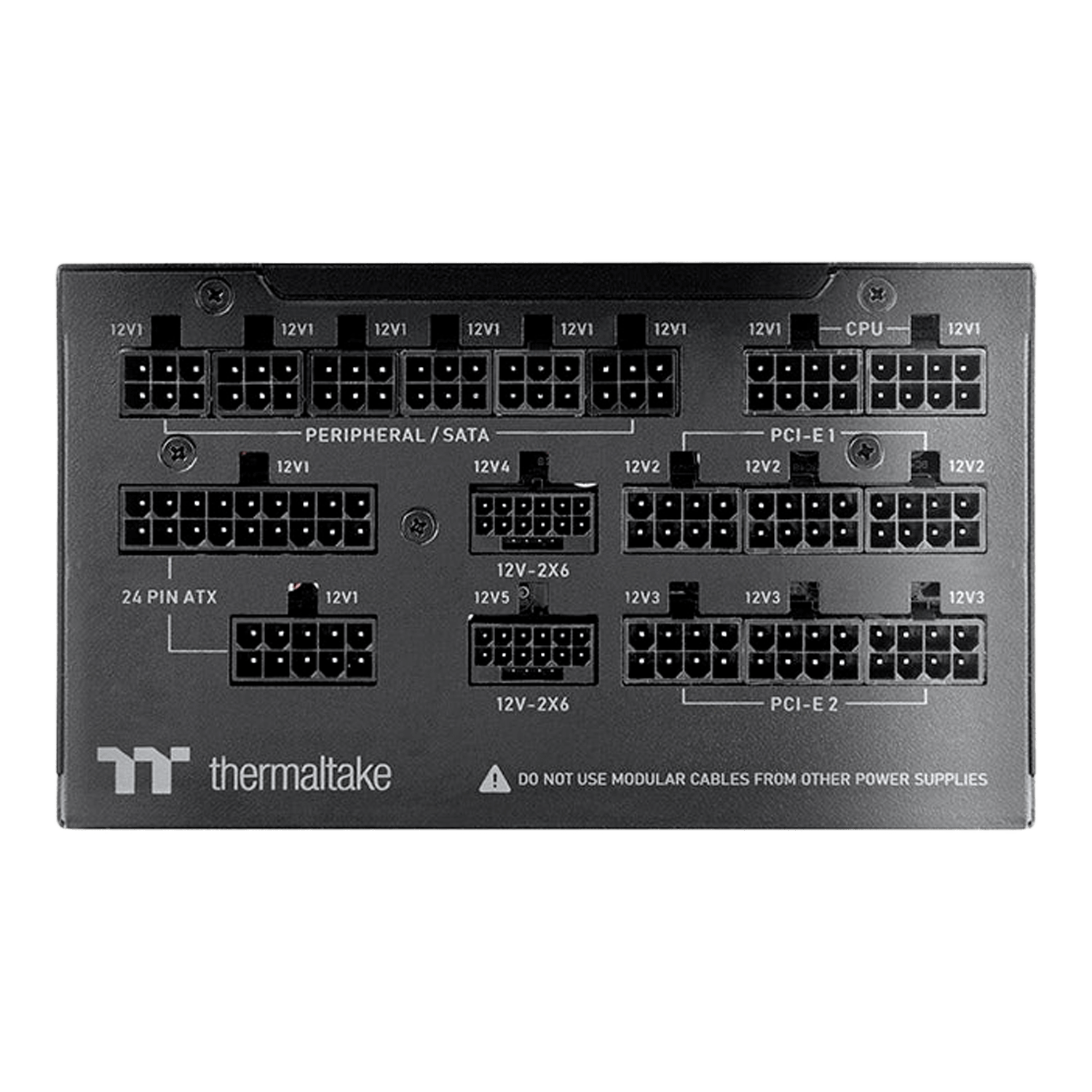

It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 14cm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.
It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 14cm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.
| P/N | PS-TPD-1650FNFATU-1 |
| Watts | 1650W |
| Max Output Capacity | 1650W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x165mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10 - 20A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | 0°C to +50°C |
| Operating Humidity | 10% to 90% |
| Storage Temperture | -40°C to +85°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Titanium at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/ cTUVus/BSMI/CCC/BIS/S-mark/EAC |
| PCI-E 6+2PIN | 9 |
| PCI-E 12+4PIN | 2 (600W) |
