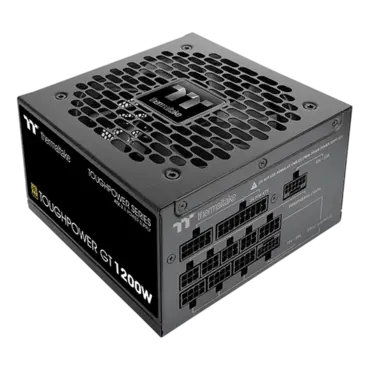

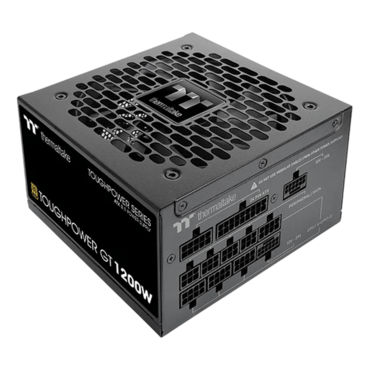

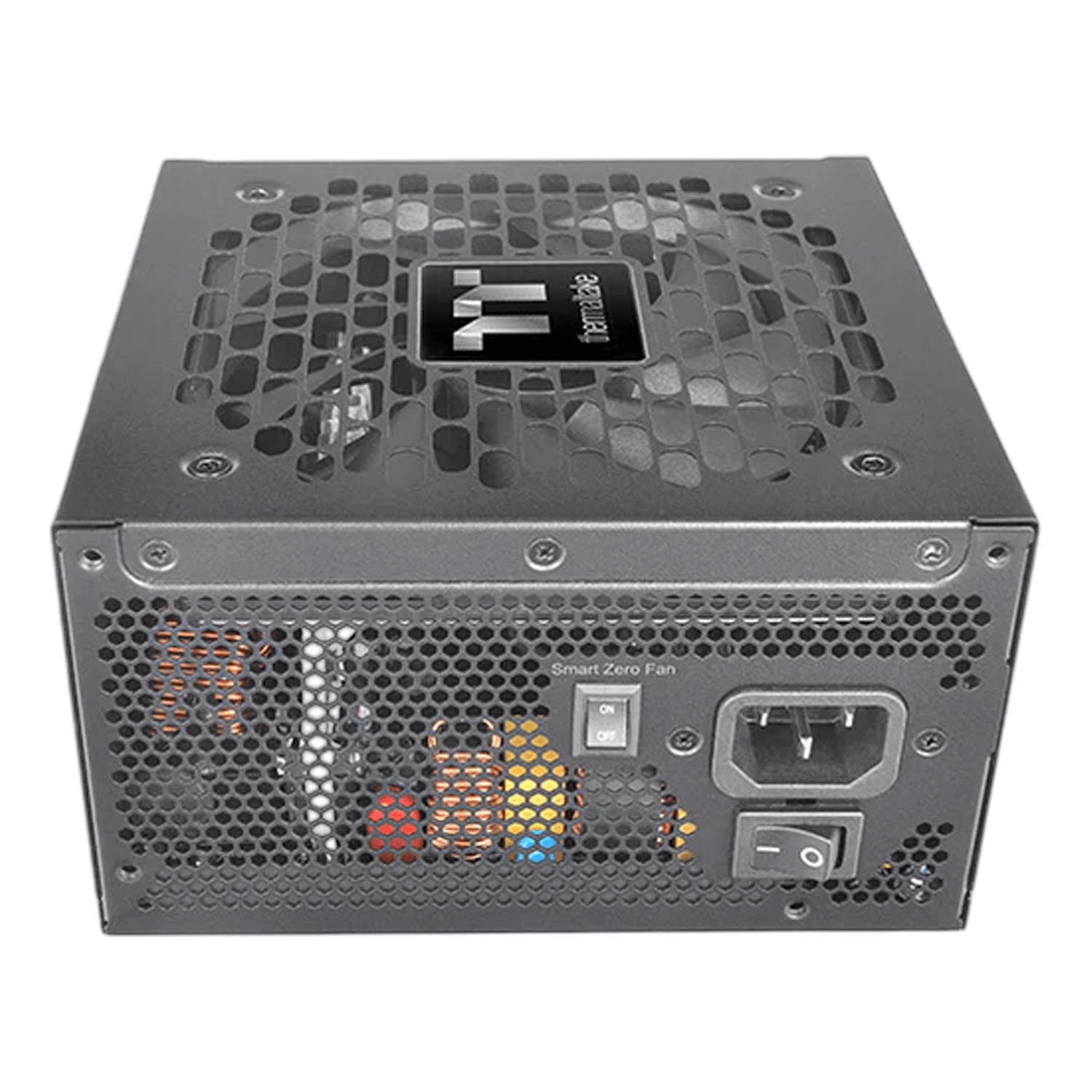

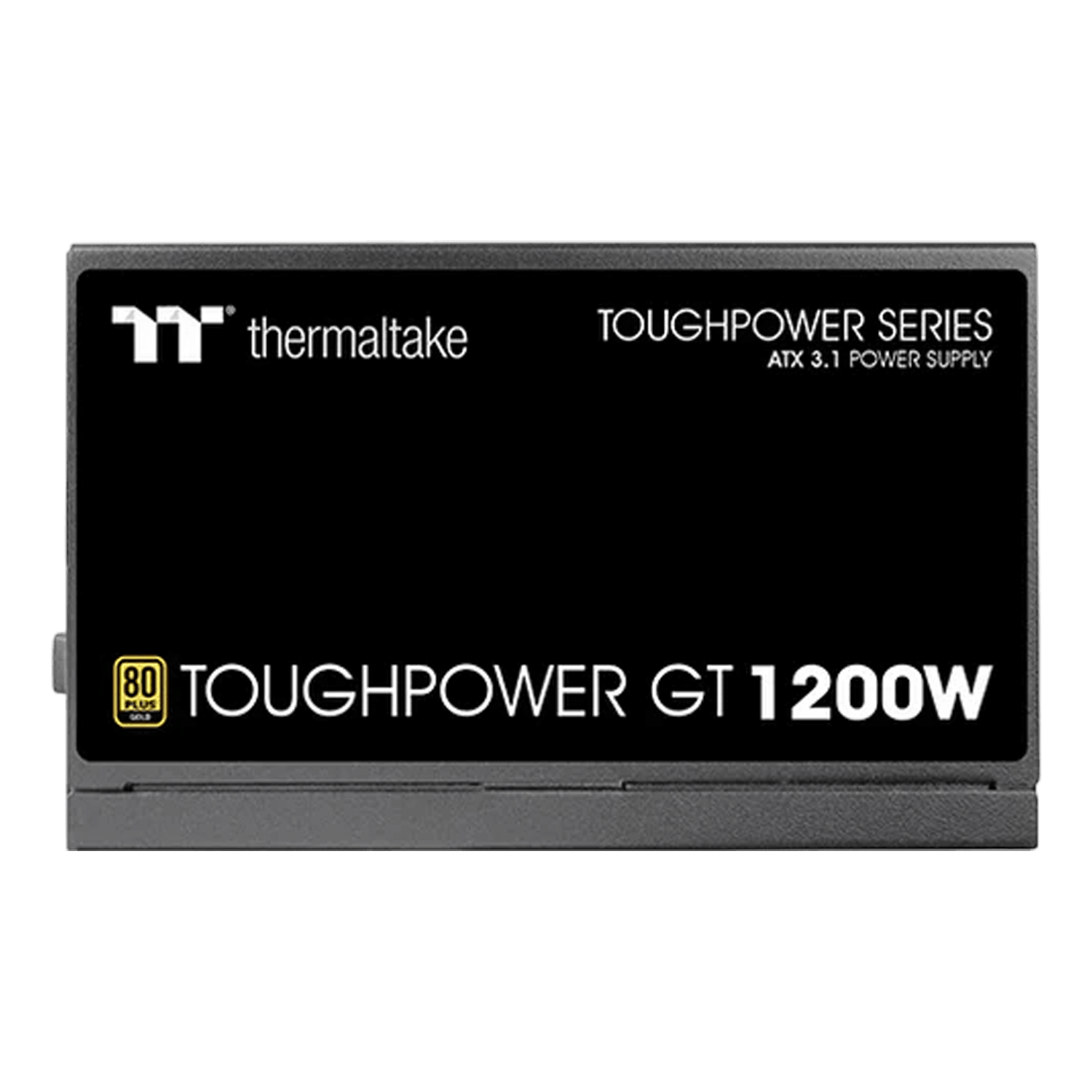

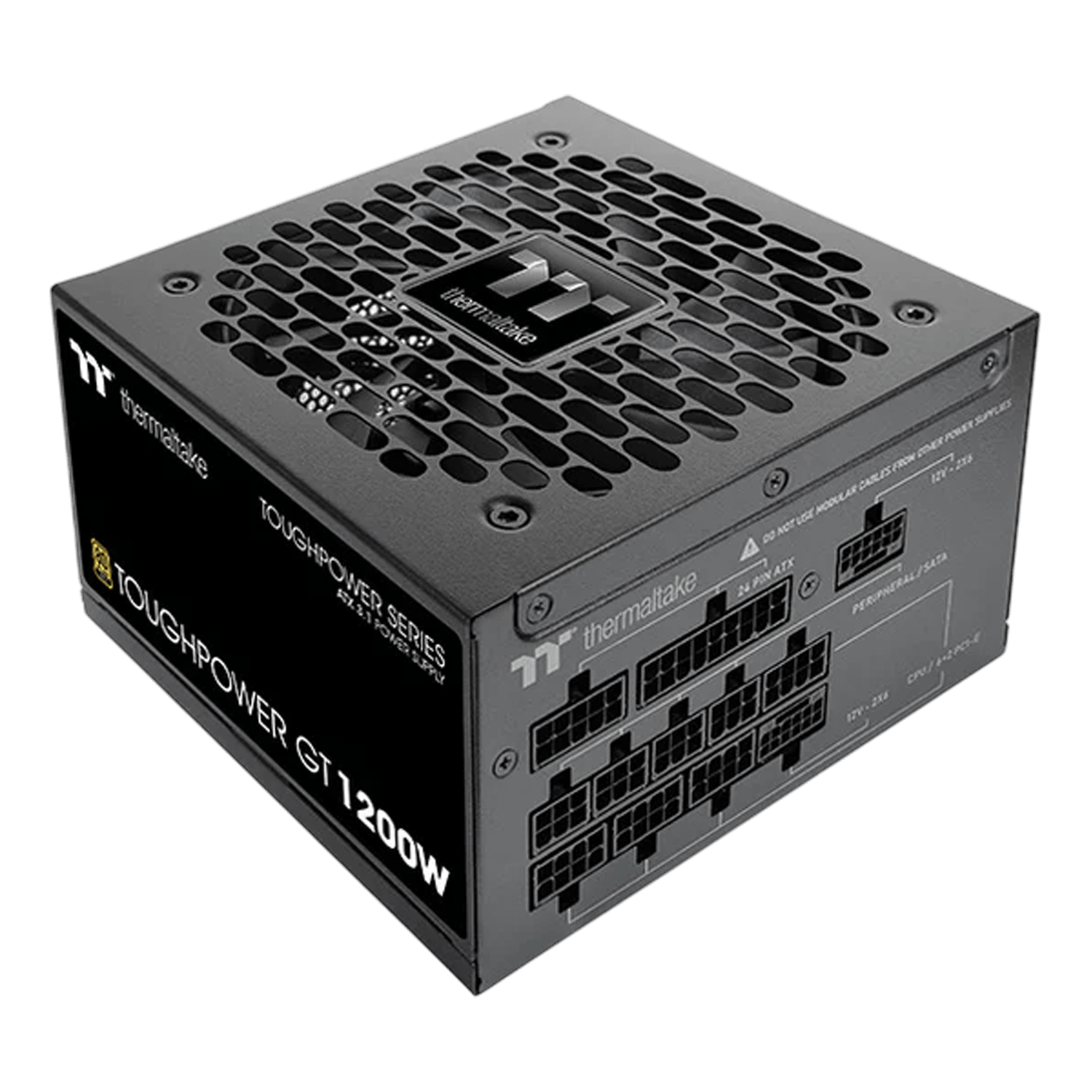

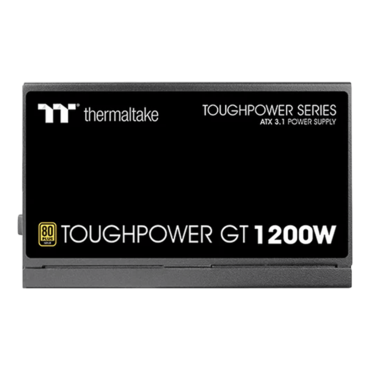

Toughpower GT, 80 PLUS Gold 1200W, Fully Modular, ATX Power Supply
- SKU: 19325590
- Manufacturer: THERMALTAKE
- MPN: PS-TPT-1200FNFAGU-3
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$195.81
Toughpower GT, 80 PLUS Gold 1200W, Fully Modular, ATX Power Supply
The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.
| P/N | PS-TPT-1200FNFAGU-3 |
| Model | TPD-1200AH2FXG-3 |
| Wattage | 1200W |
| Max Output Capacity | 1200W |
| Color | Black |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| PFC | Active PFC |
| Power Good Signal | 100–250 msec |
| Hold Up Time | > 17 msec at 80% load |
| Input Current | 15–10A |
| Input Frequency Range | 50Hz–60Hz |
| Input Voltage | 100–240V~ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meets 80 PLUS® Gold at 115Vac input |
| MTBF | 100,000 hours minimum |
| Safety Approval | CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK, EAC |
| PCI-E 6+2 Pin | 5 |
| PCI-E 12+4 Pin | 1 |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
