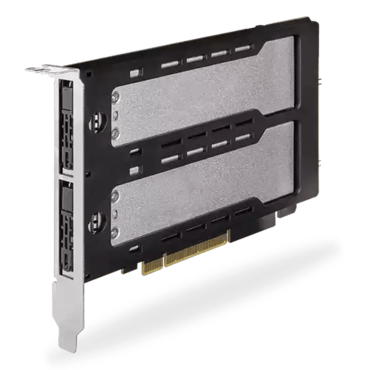

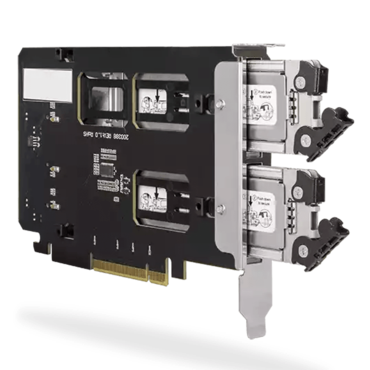

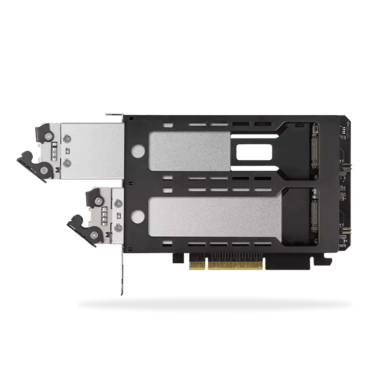

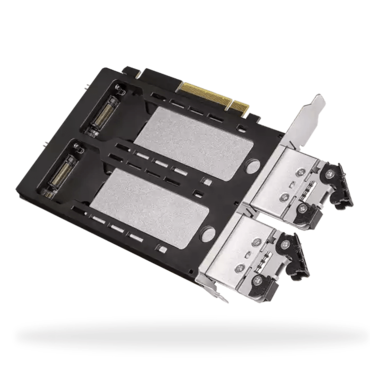

ToughArmor MB842MP-B, 2 Bay Removable M.2 NVMe SSD Mobile Rack for PCI Express Slot (PCIe Bifurcation required)
- SKU: 16063899
- Manufacturer: ICY DOCK
- MPN: MB842MP-B
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110)
- Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
- Installs to a single-width full-height PCIe express slot

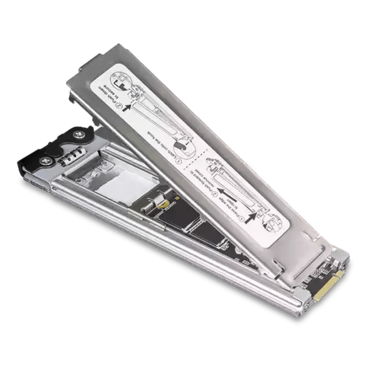

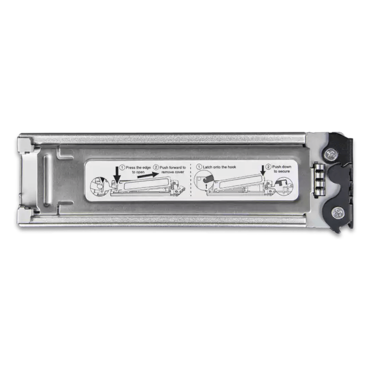

- Removable drive tray with tool-less drive installation for easy drive maintenance
- Eagle-hook lock system keeps the drive secured in the enclosure
- EMI- Grounding – protects the hard drive from electrical damage
- Active-Power Technology (APT) – saves power by shutting the device when no drive is installed
- PCIe interface provides power and data transfer to reduce cable clutter
- The included thermal pad conducts heat from the drive to the metal drive tray
- Optional HDD activity signal output lets you transfer the drive activity signal to the computer case
- Industry-leading 5-year limited warranty against all defects
- Complimentary support from a professionally trained US-based technical support agent
| Model Number: | MB842MP-B |
| Color: | Black & Silver |
| Support Drive Size: | 2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) |
| Compatible Drive Type: | M.2 PCIe 3.0/4.0 NVMe SSD |
| Number of Drives: | 2 |
| Support Drive Length: | 30mm – 110mm |
| Drive Bay: | 1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (Motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface: | PCIe 3.0/4.0 x8 |
| Power Input: | Via PCIe |
| Transfer Rate: | Up to 64Gbps (Depending on dirve Speed) |
| Support SSD Capacity: | No Limitation |
| Drive Cooling: | Metal heat dispersion with passive cooling |
| Structure / Material: | Metal with partial ABS plastic |
| Product Dimension (L x W x H) : | 171 x 120.8 x 21.6 mm |
| Product Net Weight: | 232.5g |
| Package GrossWeight: | 336.8g |
| Drive Activity LED Indication: | Drive power: solid green; HDD access: flashing green |
| Package contents: | Device, User Manual, Screw, Thermal Pads |
| Connector Insertion Rate: | 5,000 |
| Humidity: | 5%~65% RH |
| Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
| Compliance: | CE, RoHS, REACH |
| Warranty: | 5 years limited warranty |
