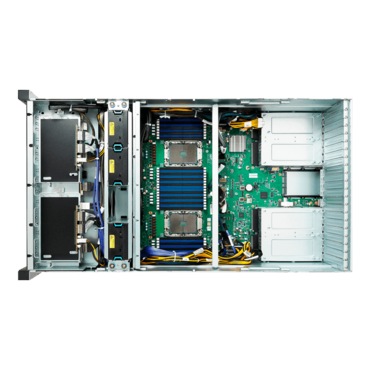

| System |
Form Factor |
4U Rackmount |
| Chassis Model |
FT83 |
| Dimension (D x W x H) |
32.68" x 17.26" x 6.9" (830 x 438.4 x 176mm) |
| Motherboard Name |
S7129GMRE-HE # |
| Motherboard Notification |
# The motherboard not sold separately |
| Gross Weight |
46 kg (101.4 lbs) |
| Net weight |
39.3 kg (86.6 lbs) |

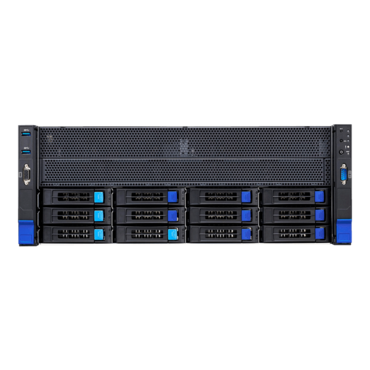

| Front Panel |
Buttons |
(1) UID / (1) PWR w/ LED / (1) RST |
| LEDs |
(1) HDD / (1) ID / (1) System Event / (2) LAN activity |
| I/O Ports |
(2) USB 3.0 ports / (1) COM Port / (1) VGA port |
| External Drive Bay |
Q'ty / Type |
(12) 3.5"/2.5" Hot-Swap HDD/SSDs w/ (4) NVMe |
| Front Drive Bay Interface |
(12) SATA 6Gb/s with (4) NVMe ports |
| Front HDD Backplane Support |
SAS 12Gb/s /SATA 6Gb/s /NVMe |
| System Cooling Configuration |
FAN |
(8) hot-swappable 8cm fans |
| Power Supply |
Type |
RPSU |
| Input Range |
AC 100-127V/12A / AC 200-240V/10A |
| Frequency |
50/60 Hz |
| Output Watts |
3,000 Watts (100-127Vac input) / 6,000 Watts (200-240Vac input) |
| Efficiency |
80 plus Titanium |
| Redundancy |
3+1 |
| Processor |
Q'ty / Socket Type |
(2) LGA4189 |
| Supported CPU Series |
3rd Gen. Intel Xeon Scalable Processor |
| Thermal Design Power Wattage |
Max up to 270W (TDP) |
| System Bus |
Up to 11.2/10.4 GT/s with Intel Ultra Path Interconnect (UPI) support |
| Chipset |
PCH |
Intel C621A |

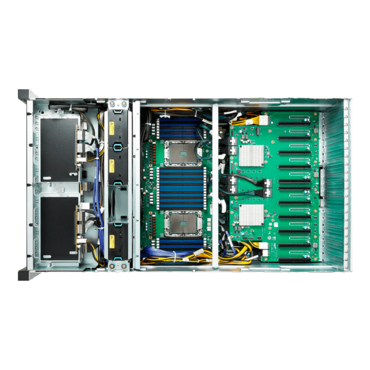

| Switch IC |
(2) PLX PEX88096 |
| CPU-GPU Link Topology |
Dual-root |
All GPU connected to CPUs evenly |
| Memory |
Supported DIMM Qty |
(16)+(16) DIMM slots |
| DIMM Type / Speed |
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 |
| Capacity |
Up to 4,096GB RDIMM/ 8,192GB LRDIMM/ 8,192GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
| Memory channel |
8 Channels per CPU / 2 DIMM slots per Channel |
| Memory voltage |
1.2V |
| Expansion Slots |
PCIe |
(3) PCIe Gen.4 x16 slots (FH/HL) / (10) PCIe Gen.4 x16 slots (FH/10.5"L/DW ) |
| Pre-installed TYAN Riser Card (PCIe Gen.4) |
(2) M7129F83A-L16 riser card for (2) PCIe Gen.4 x16 slots (left) |
| Others |
(1) PCIe Gen.4 x16 OCP 3.0 slot for mezz. w/ pull tab |
| Physical Dimension Abbreviation |
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) |
| LAN |
Q'ty / Port |
(1) GbE dedicated for IPMI |
| PHY |
Realtek RTL8211E |
| Storage SATA |
Connector |
(3) SFF-8643 for (12) front SATA drives |
| Controller |
Intel C621A |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(1) 2280 (by PCIe 3.0 x4) M.2 slot on MB / (1) 2280 (by PCIe 4.0 x1) M.2 slot on PCIe I/O board |
| Connector (U.2) |
(2) SFF-8654 for (4) NVMe ports |
| Notification |
Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |

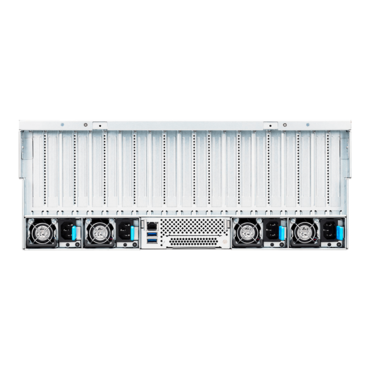

| I/O Ports |
USB |
(2) USB3.0 ports (@ front) / (2) USB3.0 ports (@ rear) (from M7129F83A-RIO) |
| COM |
(1) DB-9 COM port |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(1) GbE port dedicated for IPMI (from M7129F83A-RIO) |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| Temperature |
Monitors temperature for CPU & memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| Note |
Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| CB/LVD |
Yes |
| VCCI |
Yes |
| C-Tick |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Package Contains |
Barebone |
(1) FT83A-B7129 Barebone |
| Manual |
(1) Quick Installation Guide |
