| Processor |
Q'ty / Socket Type |
(1) LGA1700 |
| Supported CPU Series |
Intel Core i9/i7/i5/i3 Processors / 12 Gen. |
| Thermal Design Power Wattage |
Max up to 125W (TDP) |
| Chipset |
PCH |
Intel Q670 |
| Memory |
Supported DIMM Qty |
(4) DIMM slots |
| DIMM Type / Speed |
DDR4 Unbuffered non-ECC UDIMM 3200 |
| Capacity |
Up to 128GB / *Follow latest Intel DDR4 Memory POR |
| Memory channel |
2 Channels per CPU |
| Memory voltage |
1.2V |
| Expansion Slots |
PCIe |
(2) PCIe Gen.3 x8 slots ( w/ x4 link) / (1) PCIe Gen.3 x16 slot |
| LAN |
Q'ty / Port |
(1) GbE + (1) 2.5GbE |
| Controller |
Intel I225V / Intel I219 (Intel AMT support) |
| Storage SATA |
Connector |
(2) SATA-DOM / (4) SATA |
| Controller |
Intel Q670 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe Gen.3 interface) |
| Graphic Display Port |
Connector type |
(3) Display ports |
| Resolution |
Up to 4096X2304 @60Hz |
| Chipset |
Intel Processor Graphics (pGFX) |

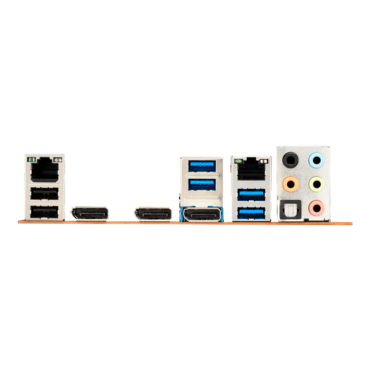

| Input /Output |
USB |
(1) USB2.0 header / (1) USB3.2 Gen.1 header / (2) USB2.0 ports / (4) USB3.2 Gen.1 ports |
| RJ-45 |
(1) GbE port + (1) 2.5GbE port |
| Front Panel |
(1) 2 x 5 header |
| Audio |
(1) 5 holes Audio Jack+SPDIF fiber connector |
| SATA |
(4) SATA-III connectors / (2) SATA-DOM connectors |
| Power |
(1) ATX 24-pin / (1) 2x4 Power input connector |
| Display port |
(3) Display ports |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| Interface |
SPI |
| System Monitoring |
Chipset |
NCT6796D-E |
| Fan |
Total (4) 4-pin headers |
| Temperature |
Monitors temperature for CPU & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| Others |
Watchdog timer support |
| Audio |
Chipset |
Realtek ALC888-VR |
| Feature |
7.1 ch |
| Connector |
(1) SPDIF OUT Connector |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Console Redirection / User Configurable FAN PWM Duty Cycle / ACPI sleeping states S0,S3,S5 |
| Physical Dimension |
Form Factor |
Micro ATX |
| Board Dimension |
9.6" x 9.6" (243.8 x 243.8mm) |
| Regulation |
FCC (SDoC) |
Class B |
| CE (DoC) |
Class B |
| RCM |
Class B |
| VCCI |
Class B |
| Operating Environment |
Operating Temp. |
0° C ~ 55° C (32° F~ 131° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |
(1) S5565 Motherboard |
| Manual |
(1) Quick Installation Guide |
| I/O Shield |
(1) I/O Shield |
| Cable SATA |
(2) SATA signal cables |
