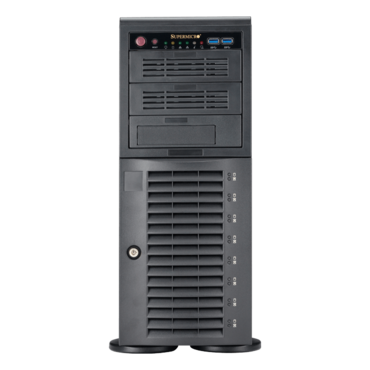

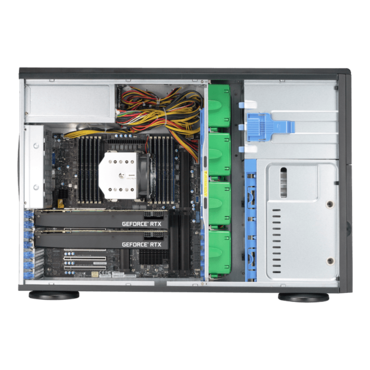

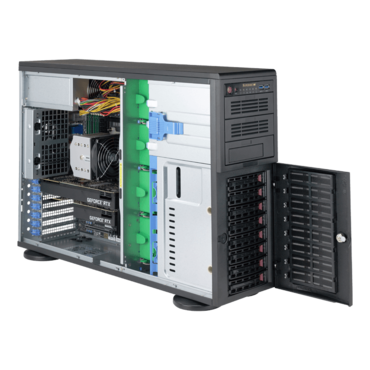

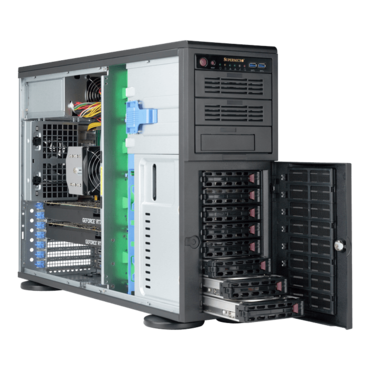

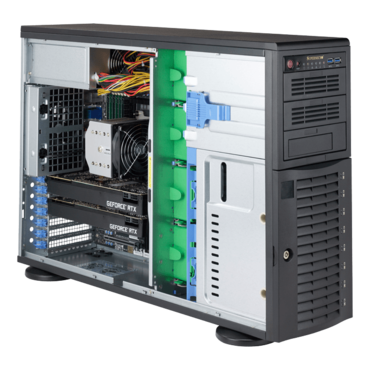

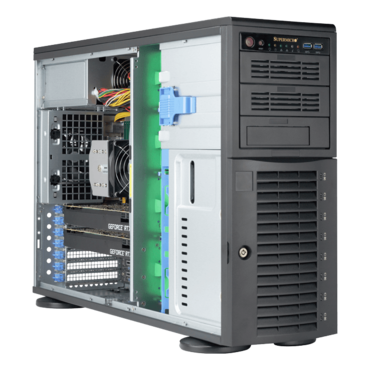

SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU
SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU

SuperWorkstation 5049A-T, 4U Tower, Intel® C621, 8x 3.5" SAS/SATA Hotswap, 4x M.2 NVMe, 12x DDR4, 1x 10GBase-T and 1x 1GbE LAN ports, 1200W PSU

  • SKU: 12905180
  • Manufacturer: SUPERMICRO
  • MPN: SYS-5049A-T
  • Availability: TEMPORARILY OUT OF STOCK
Price
$1,701.18
Quantity:
  1. Single Socket P (LGA 3647) support
    2nd Gen. Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
  2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM
  3. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
    (in x16) slots,
    M.2 Interface: 4 PCI-E 3.0 x4
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
  4. 1x 10GBase-T and 1x 1GbE LAN ports
  5. 7.1 HD Audio
  6. 8 Hot-swap 3.5" SAS3/SATA3 drive bays
    with SGPIO
  7. 1000/1200W Multi-output Power Supply
    Platinum Level Certified
Product SKUs
SuperWorkstation
  • SYS-5049A-T (Black)
Motherboard

Super X11SPA-TF
Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
  • Support CPU TDP up to 205W
Cores
  • Up to 28 Cores
Note BIOS version 3.0b or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Audio
  • 7.1 channel HD Audio by Realtek ALC888S
Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN port
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.1 Gen1 ports (4 rear, 2 headers)
  • 4 USB 3.1 Gen2 ports (1 rear Type A + 1 Rear Type C)
  • 2 USB 2.0 ports (2 headers, Type A)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 128M
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-743TS-1200BP-SQ
Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 3 PCI-E 3.0 x8 (in x16 slot)
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key
Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90o Rotatable]
  • 3x 5.25" drive bays
Backplane Supports 8 SATA3 or 8 SAS3 HDD
System Cooling
Fans
  • 2 Super quiet PWM chassis fans (support up to 4 fans)
  • 1 Super quiet rear fan with optimal fan speed control
Power Supply 1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output

1000W max

1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  • 20A / 20A / 83A / 0.3A / 3A
  • 20A / 20A / 99A / 0.3A / 3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

    5% to 95% (non-condensing)
