| Product SKUs |

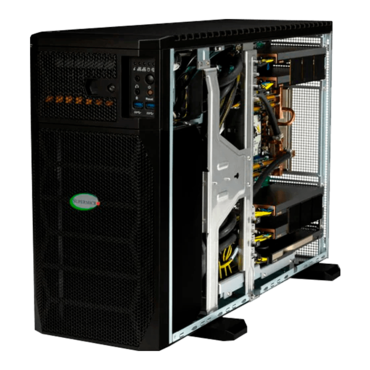

SuperServer SYS-751GE-TNRT-NV1 (Black Front & Black Body) |
| Motherboard |
Super X13DEG-QT |
| Processor |
| CPU |
- Dual Socket E (LGA-4677)
- 4th Gen Intel® Xeon® Scalable processors
|
| Core Count |
- 16C/32T; 30MB Cache per CPU
|
| System Memory |
| Memory |
- Memory Capacity: 16 DIMM slots
- 512GB: 16x 32 GB DRAM
- Memory Type: 4800MHz ECC DDR5 DRAM
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices |
| SATA |
- SATA3 (6Gbps); RAID 0/1/5/10 support
|
| Chipset |
|
| Network Connectivity |
- 2x 10GbE BaseT with Intel® X550-AT2
- 1x 1GbE BaseT with ASPEED AST2600
- 1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Input / Output |
| SATA |
- 2 SlimSAS port(s)
- 2 SuperDOM port(s)
|
| NVMe |
|
| LAN |
- 1 RJ45 1GbE (Dedicated IPMI port)
- 1 SFP28 25GbE
- 2 RJ45 10GbE
|
| USB |
- 2 USB 3.2 Gen1x2; port(s) (2 Front_USB)
- 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB)
- 3 USB 3.2 Gen1 port(s) (3 Rear_USB)
|
| Video |
|
| System BIOS |
| BIOS Type |
- AMI 32MB SPI Flash EEPROM
|
| Management |
| Software |
- IPMI 2.0
- KVM with dedicated LAN
- Super Diagnostics Offline
- SuperDoctor® 5
- Supermicro Update Manager (SUM)
- Supermicro Power Manager (SPM)
- Supermicro Server Manager (SSM)
- Redfish API
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
| Security |
| Hardware |
- Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
| Features |
- Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
|
| PC Health Monitoring |
| CPU |
- 8+4 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
|
| FAN |
- Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| Chassis |
| Form Factor |
|
| Model |
|
| Dimensions and Weight |
| Height |
|
| Width |
|
| Depth |
|
| Package |
- 25.8" (H) x 15.3" (W) x 37.6" (D)
|
| Weight |
- Net Weight: 88 lbs (44 kg)
- Gross Weight: 121 lbs (55 kg)
|
| Available Color |
|
| Front Panel |
| Buttons |
- Power On/Off button
- Reset button
|
| LEDs |
- HDD activity LED
- Information LED
- Network 1 activity LED
- Network 2 activity LED
- Power status LED
|
| Expansion Slots |
| PCI-Express (PCIe) |
- 7 PCIe 5.0 x16 FHFL slot(s)
|
| Note |
- 4 NVIDIA Liquid-cooled A100 with NVIDIA NVLink™, NVIDIA Connect-X6 Dx 25G Network adapter installed
|
| Drive Bays / Storage |
| Hot-swap |
- 8x 2.5" hot-swap NVMe/SATA drive bays (2 1.92TB NVMe Drives RAID 1 (OS), 4 1.92TB NVMe Drives (Data) installed)
|
| M.2 |
|
| System Cooling |
| Fans |
- 1 fan 8CM Fan(s)
- 2 fan 12CM Fan(s)
|
| Power Supply |
| 2200W Redundant Titanium Level power supplies |
| Certification |
Titanium Level |
| Operating Environment |
| Environmental Spec. |
-
Operating Temperature:
10°C ~ 25°C (50°F ~ 77°F)
-
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity:
8% to 90% (non-condensing)
-
Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
