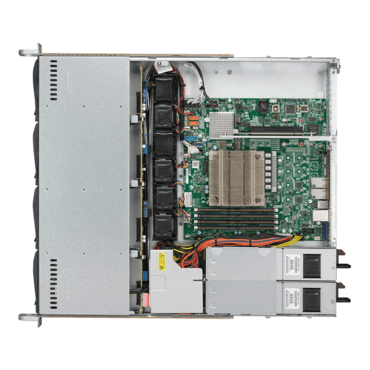

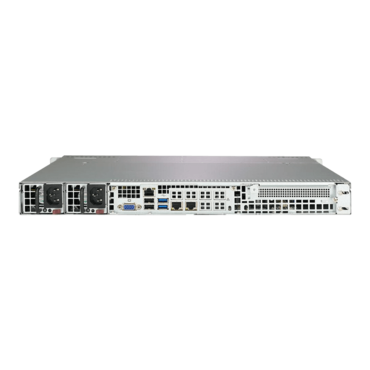

SuperServer 5019C-MR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, 2x GbLAN, 400W Rdt PSU

SuperServer 5019C-MR, 1U, Intel® C246, 4x 3.5" SATA Hotswap, 4x DDR4, 2x GbLAN, 400W Rdt PSU

SKU: 12592533
Manufacturer: SUPERMICRO
MPN: SYS-5019C-MR
Availability: TEMPORARILY OUT OF STOCK

Price

$1,341.63

SYS-5019C-MR	SuperServer 5019C-MR (Black)
Motherboard	Super X11SCM-F
Processor
CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores	8 cores, 16 threads
Note	BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series
System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset	Intel® C246 chipset
SATA	SATA3 (6Gbps) via Intel C246 controller RAID 0, 1, 5, 10 support
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with Intel® I210-AT
Video	ASPEED AST2500 BMC
Input / Output
SATA	6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
TPM	1 TPM 2.0 Header
System BIOS
BIOS Type	UEFI 256Mb
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Management
Software	Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5
Chassis
Form Factor	1U Rackmount
Model	CSE-813MFTQC-R407CB
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	19.85" (503mm)
Package	8.5" (H) x 23.4" (W) x 29.7" (D)
Weight	Gross Weight: 34 lbs (15.42 kg) Net Weight: 21 lbs (9.53 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 slot
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
Drive Bays
Hot-swap	4 Hot-swap 3.5" drive bays
System Cooling
Fans	4x 40x28mm PWM fans
AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power	400W
Dimension (W x H x L)	54.5 x 40 x 220 mm
Input	100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Level Certified
PC Health Monitoring
CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
