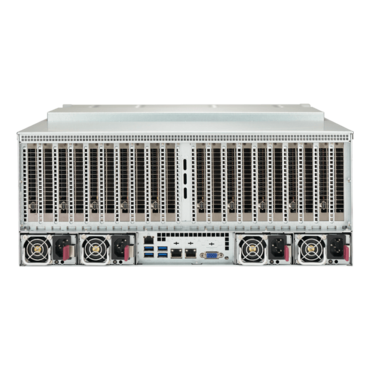

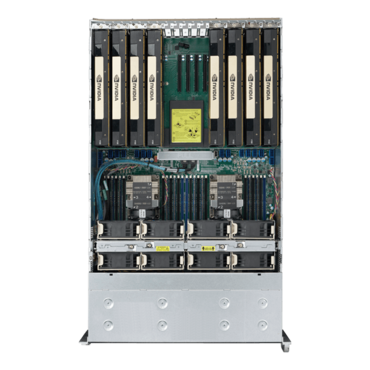

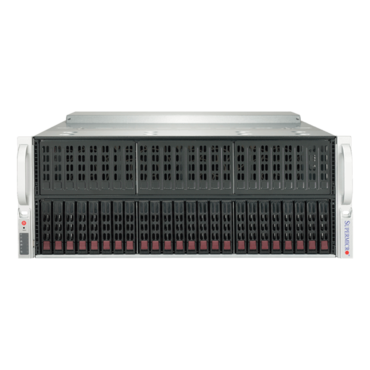

SuperServer 4029GP-TRT3, 4U, Intel® C622, 24x 2.5" SAS/SATA Hotswap, Dual 10Gb Ethernet, 2000W Rdt (2+2) PSU

SuperServer 4029GP-TRT3, 4U, Intel® C622, 24x 2.5" SAS/SATA Hotswap, Dual 10Gb Ethernet, 2000W Rdt (2+2) PSU

SKU: 12948675
Manufacturer: SUPERMICRO
MPN: SYS-4029GP-TRT3
Availability: TEMPORARILY OUT OF STOCK

Price

$6,728.99

- AI /Deep Learning
- Support up to 9 GPUs
- Single Root System, Cascade Mode
for maximum GPU peer to peer
communication

Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC
DDR4-2933MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM
11 PCI-E 3.0 x16 (FH, FL) slots,
1 PCI-E 3.0 x8 (FH, FL in x16 slot)
Up to 24 Hot-swap 2.5" drive bays
8x 2.5" SATA drives supported
with included H/W, 2x 2.5" NVMe
drives supported with included H/W
2x 10GBase-T LAN ports via Intel C622
8 Hot-swap 92mm RPM cooling fans
2000W (2+2) Redundant Power Supplies Titanium Level (96%+)

Product SKUs
SYS-4029GP-TRT3	SuperServer 4029GP-TRT3 (Black)
Motherboard	Super X11DPG-OT-CPU
Processor/Cache
CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
GPU Support	Please refer to: Compatible GPU list
System Memory
Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM Supports Intel® Optane™ DCPMM
Memory Type	2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset	Intel® C622 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers	Dual Port 10GbE from C622
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Input / Output
SATA	8 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 ports (rear)
Video	1 VGA Connector
COM Port	1 COM port (header)
System BIOS
BIOS Type	AMI 32Mb SPI Flash ROM
Management
Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmountable Rackmount Kit (MCP-290-00057-0N)
Model	CSE-418GTS-R4000BP2
Dimensions
Height	7.0" (178mm)
Width	17.2" (437mm)
Depth	29" (737mm)
Weight	Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg)
Available Colors	Black
Drive Bays / Storage
Hot-swap	Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively
M.2	1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110
Expansion Slots
PCI-Express	11 PCI-E 3.0 x16 (FH, FL) slots 1 PCI-E 3.0 x8 (FH, FL, in x16) slot
System Cooling
Fans	8x 92mm heavy duty counter-rotating fans
Power Supply	2000W Redundant Power Supplies with PMBus
Total Output Power	1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only)
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
