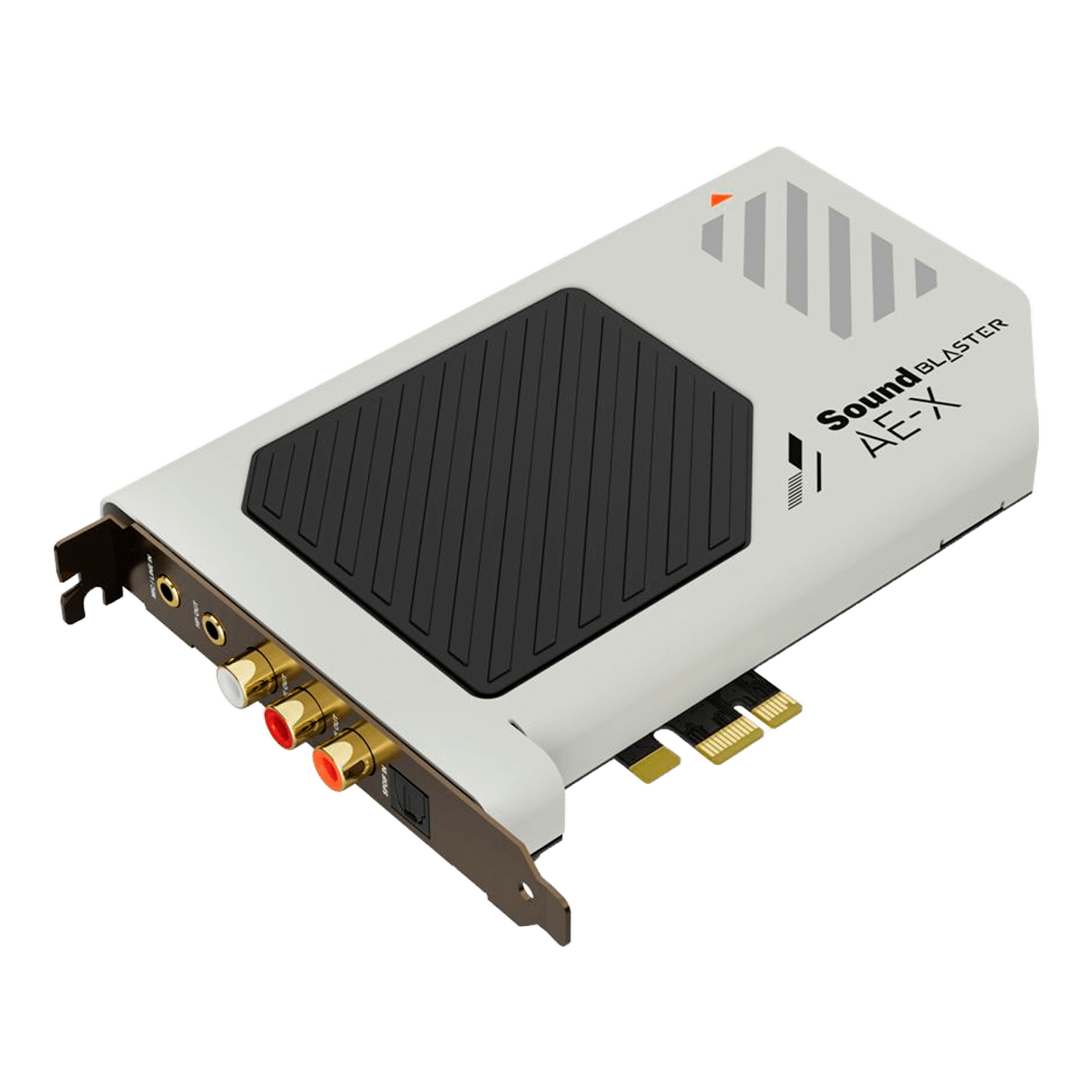

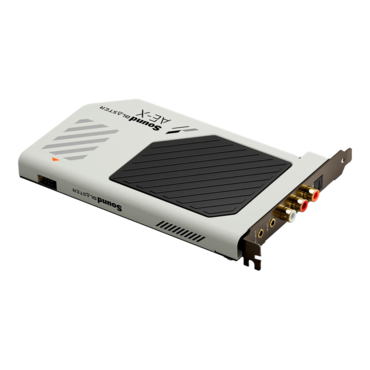

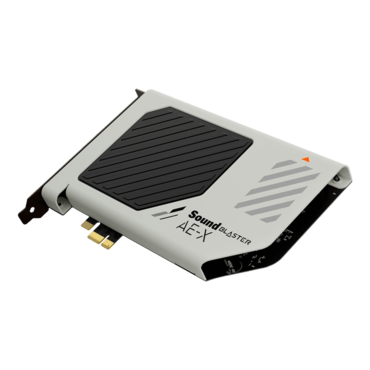

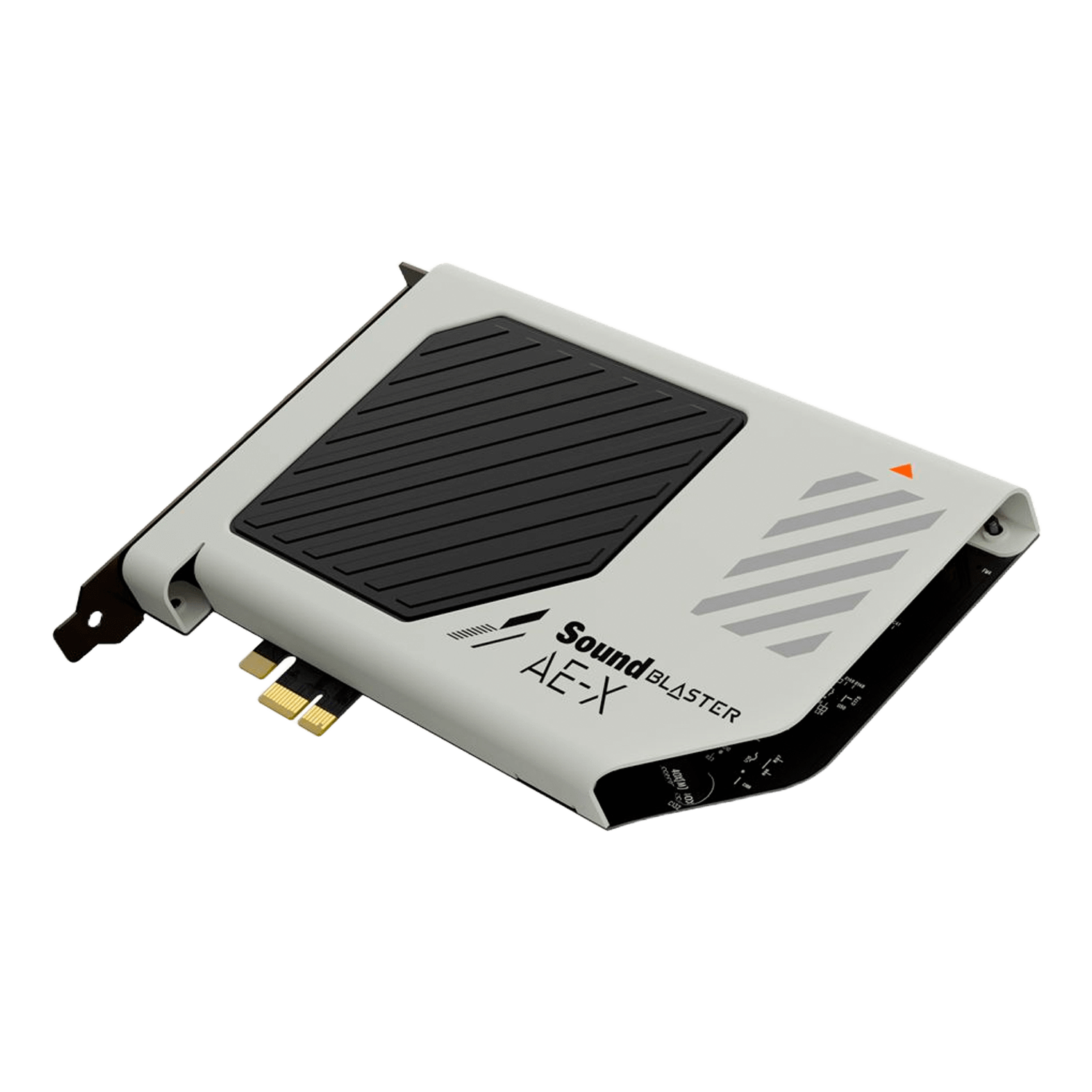

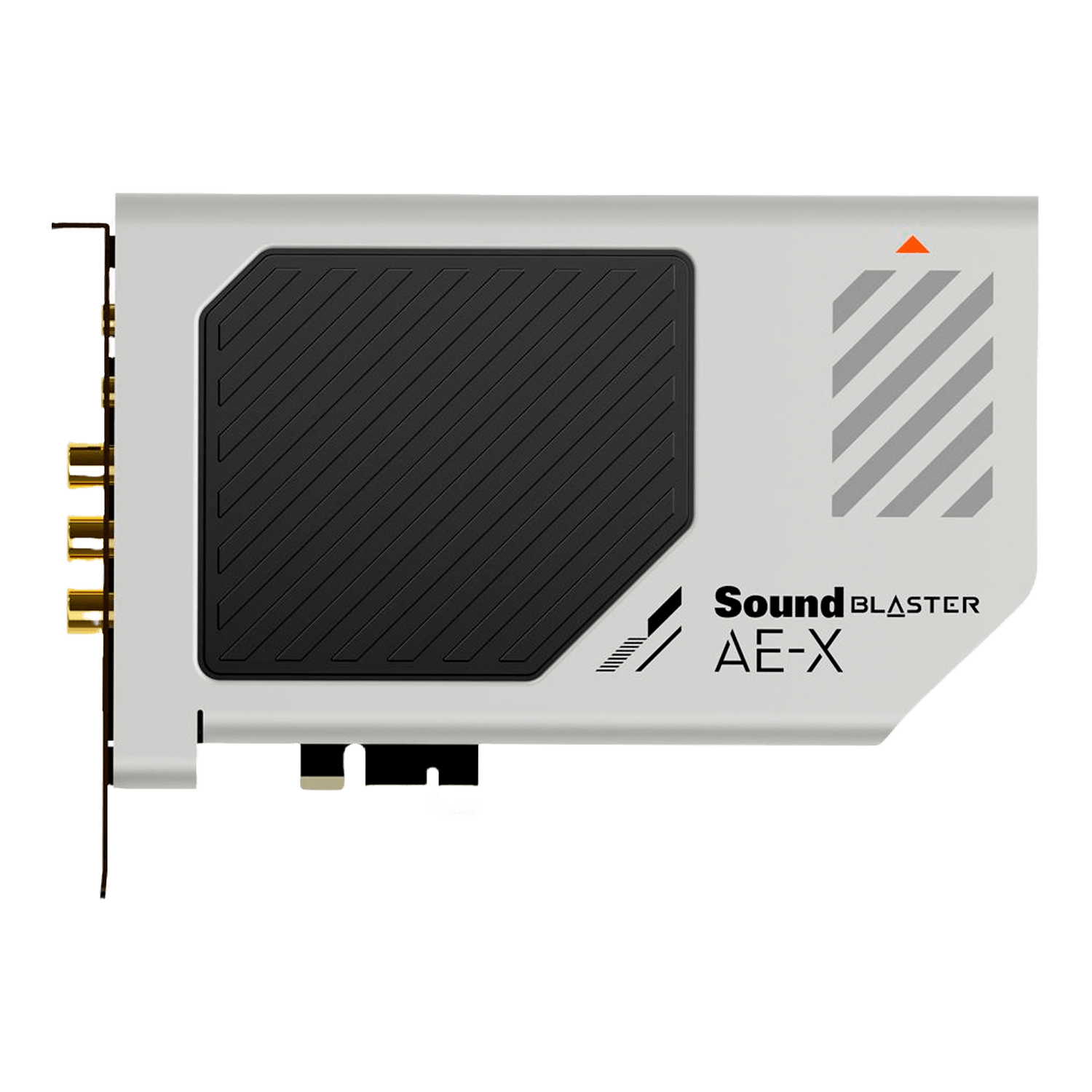

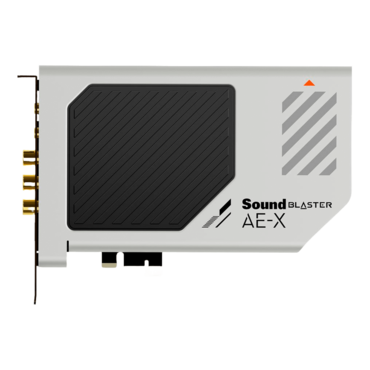

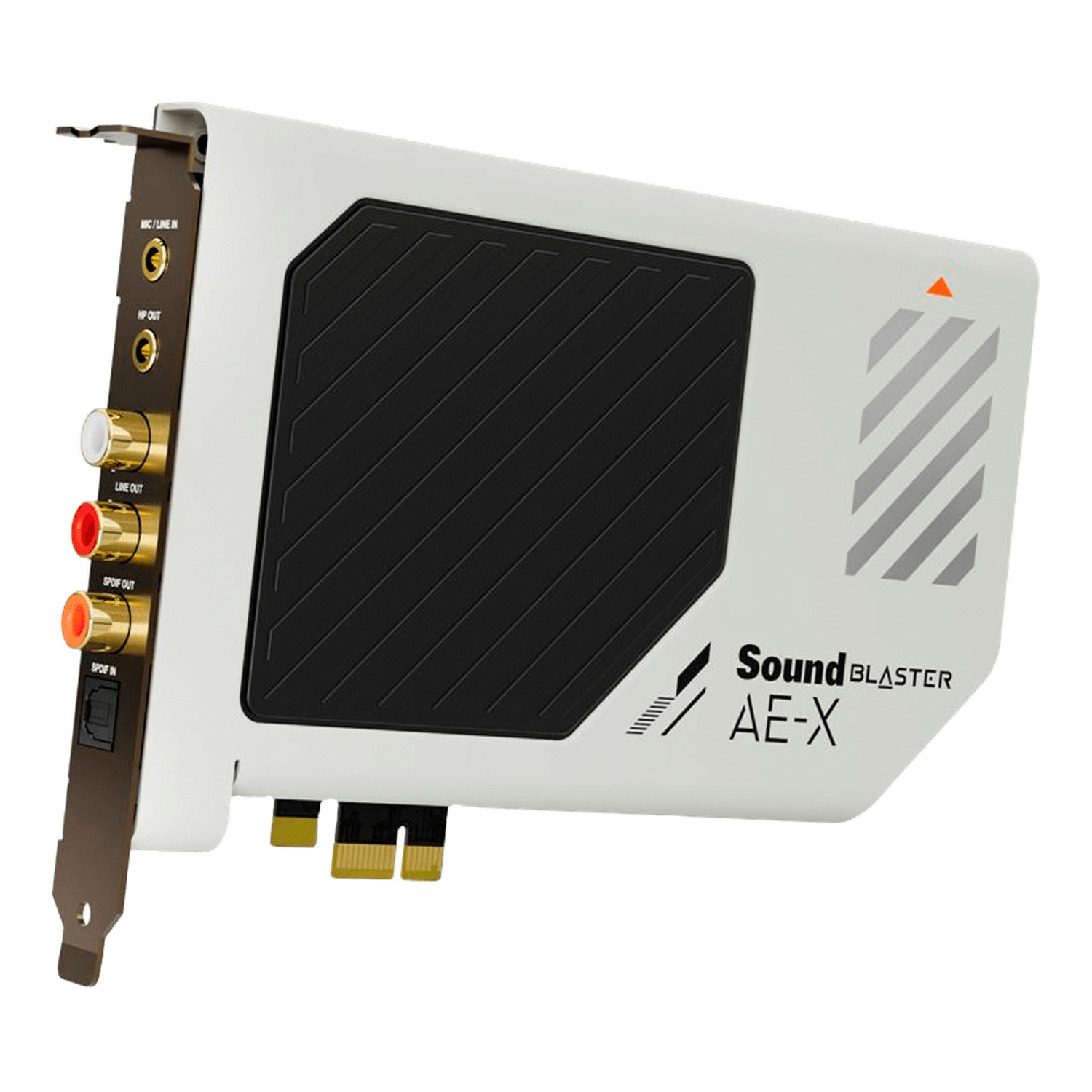

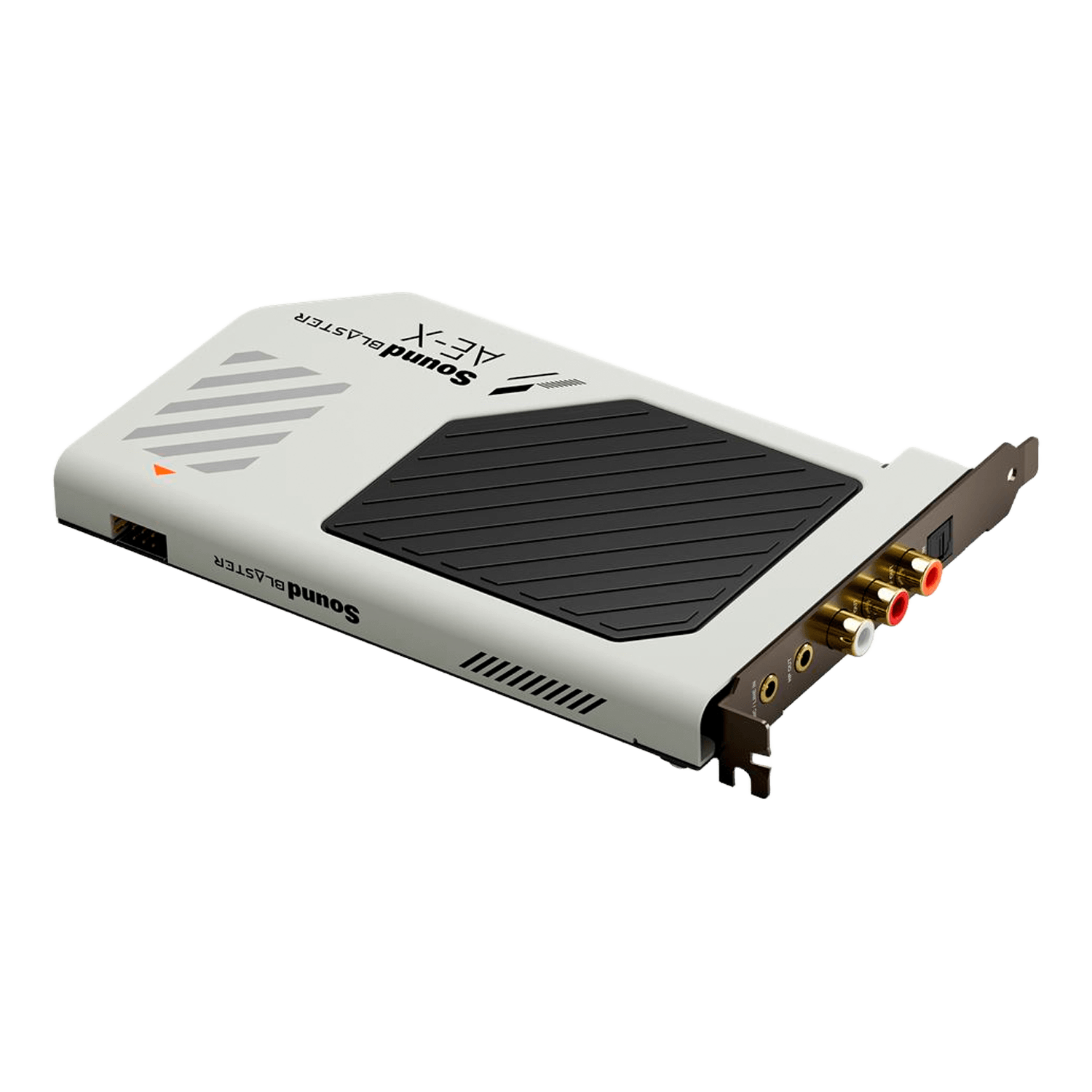

Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card
Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card
Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card
Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card
Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card

Sound Blaster AE-X, 7.1 Channels, 32-bit / 384 kHz, 130 dB DNR, PCIe Sound Card

  • SKU: 20201092
  • Manufacturer: CREATIVE
  • MPN: 70SB196000000
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$178.22
$5.75/mo* with bread pay
Quantity:
Driver WHQL for Windows Driver, Support ASIO 2.3, WASAPI, USB Audio Driver / Protocol (UPD)
Weight 263g / 9.28 oz
Dimensions 179 x 126 x 18 mm
Direct Mode Line Out (Stereo): PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz
Line Out (Stereo): PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz
Line Out (Stereo): PCM 32-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz
Coaxial SPDIF Out: PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Coaxial SPDIF Out: PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
DSD Playback Headphone/Line Out (Stereo): Native DSD: DSD64, DSD128, DSD256
Front panel Headphone-out: Native DSD: DSD64, DSD128
Playback Resolution PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz, PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz, PCM 32-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384kHz
Recording Resolution TOSLINK SPDIF-in: Stereo, 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
TOSLINK SPDIF-in: Stereo, 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Front panel Mic-in: Dual-mono, 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Front panel Mic-in: Dual-mono, 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Line-in (Stereo): Stereo, 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz
Line-in (Stereo): Stereo, 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Mic-in: Dual-mono, 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Mic-in: Dual-mono, 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Front panel Headphone out (Stereo) PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz, PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz, PCM 32-bit, 44.1, 48.0, 88.2, 96.0, 176.4, 192.0kHz
Platform PCI-e
Connectivity Options (Main) 1 x HD Audio Front Panel Connector, 1 x 1⁄8 Headphone port, 1 x RCA Line-out (Left) port, 1 x RCA Line-out (Right) port, 1 x Coaxial SPDIF-out port, 1 x 1⁄8 Mic in/Line-in port, 1 x TOSLINK SPDIF-in port
Headphone Amp Output Impedance: 1Ω, Supported Headphone Impedance: 8–600Ω, IEM: 0.5Vrms, Low: 1.5Vrms, Mid: 3Vrms, High: 6Vrms, Maximum output power: 350mW @ 32Ω (High), Maximum output voltage: 6Vrms (High)
Front Panel Headphone Amp Output Impedance: 10Ω, Supported Headphone Impedance: 32–300Ω, Maximum output power: 40mW @ 32Ω, Maximum output voltage: 1.9Vrms
Supported Operating Systems Windows® 10, Windows® 11
Included Accessories 1 x 3.5 mm CTIA TRRS to Dual TRS Headset Splitter Cable
Digital Filter 8 pre-programmed filters
DAC THD+N: 0.0001%, Dynamic Range: 130 dB
ASIO ASIO 2.3
ADC THD+N: 0.0006%, Dynamic Range: 114 dB
Windows
  • Intel® Core™ i3 or AMD® equivalent x86 processor
  • x86 compatible motherboard
  • Microsoft® Windows 10 64-bit / Windows 11 64-bit
  • 8GB RAM
  • Available PCIe slot
  • Internet connection for Software Download
Package Contents
  • 1 x Sound Blaster AE-X sound card
  • 1 x 3.5 mm CTIA TRRS to Dual TRS Headset Splitter Cable
  • 1 x Quick start guide & Compliance information & Warranty leaflet
Warranty 1-year Limited Hardware Warranty
