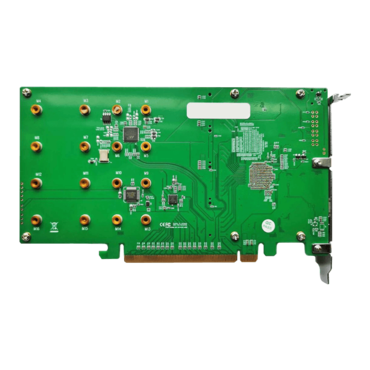

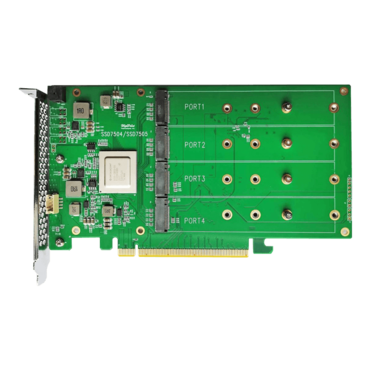

SSD7505, M.2 NVMe, 4-Port, PCIe 4.0 x16, RAID Controller
- SKU: 13584350
- Manufacturer: HIGHPOINT
- MPN: SSD7505
- Availability: TEMPORARILY OUT OF STOCK
Price
$754.49
- Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solution
- Truly Platform Independent
- RAID 0, 1, 1/0 and single-disk
- 4x M.2 NVMe PCIe 4.0 SSD’s
- PCIe Gen 3 Compatible
- Up to 32TB capacity per controller

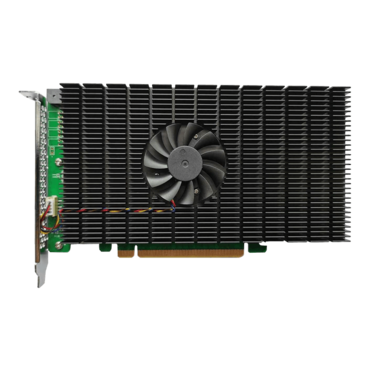

- Low-Noise Hyper-Cooling Solution
- Integrated SSD TBW and temperature monitoring capability
- Bootable RAID Support for Windows and Linux
| Model | SSD7505 |
| Bus Interface | PCI-Express 4.0 x16 |
| Number of Channel / Port | 4x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port) |
| Data Transfer Rates | 16GT / 16Gbps per lane |
| Number of Devices | 4x M.2 NVMe SSD |
| SSD Form Factor | 2242/2260/2280/22110 (supports single & double sided) |
| Form Factor | Full Height |
| Card Dimensions | 7.68"(W) x 4.41"(H) x 0.81"(D) |
| Card Weight | 1.32 lbs. (600g) |
