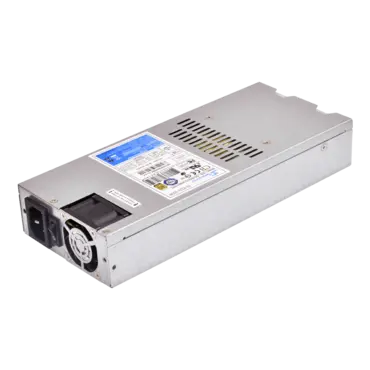

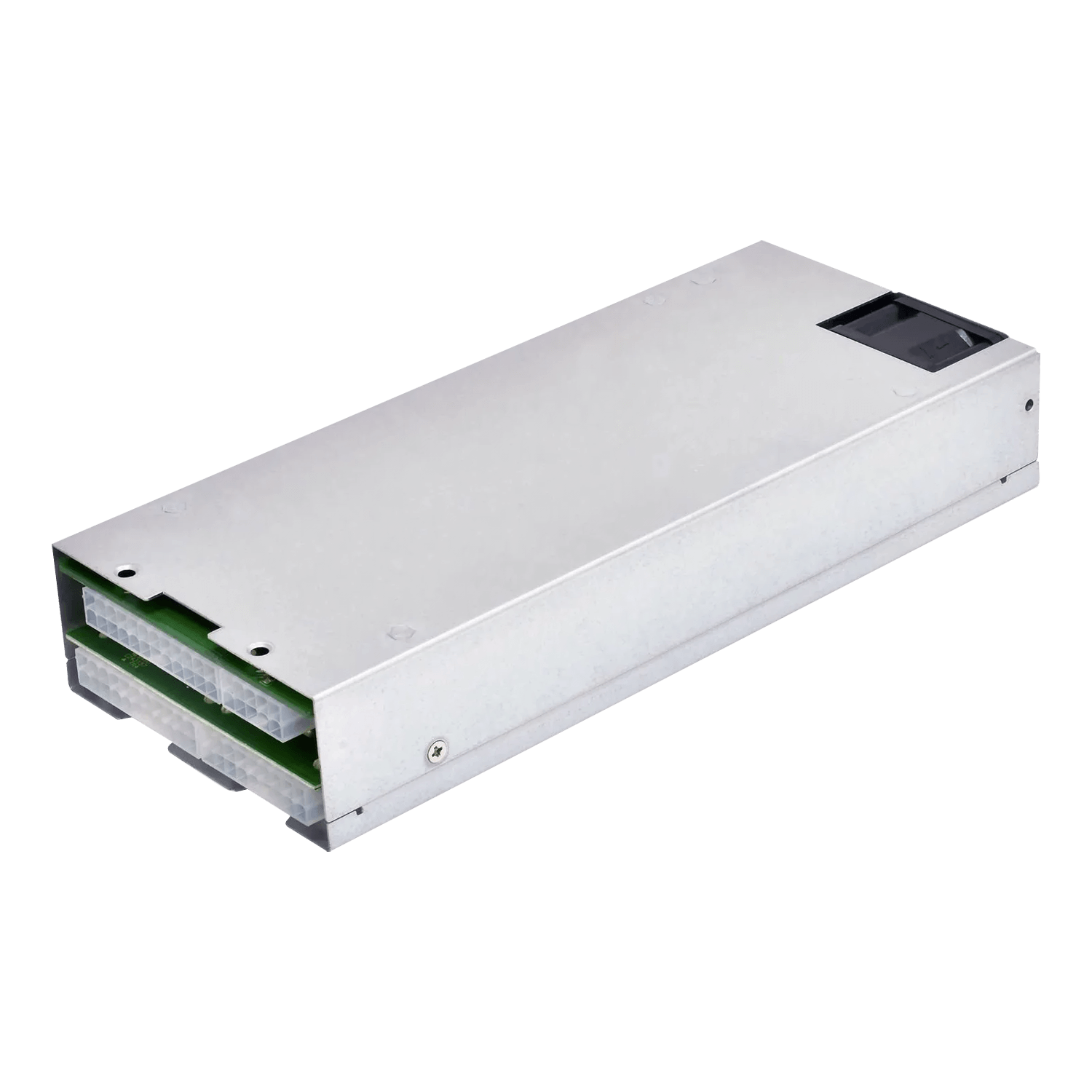

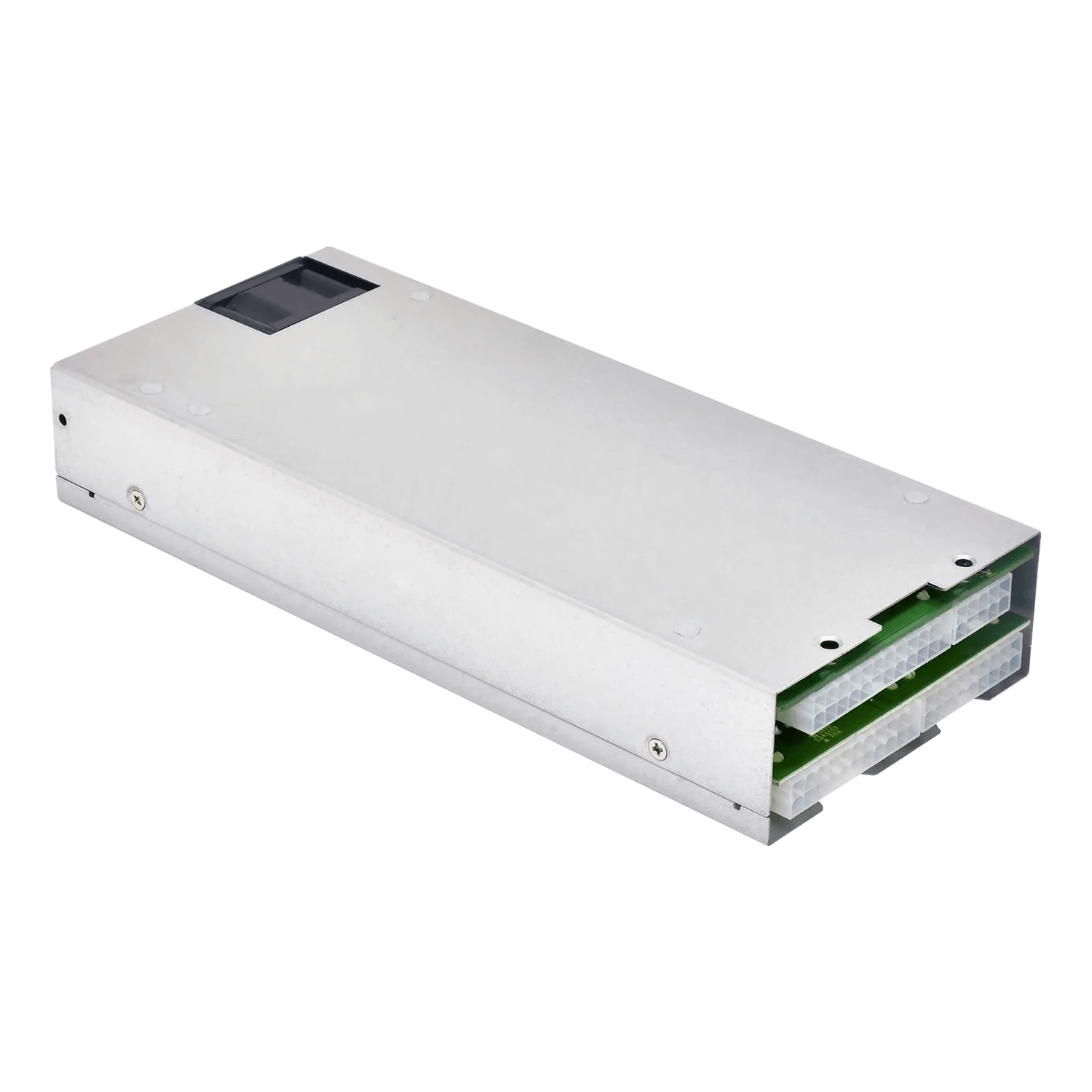

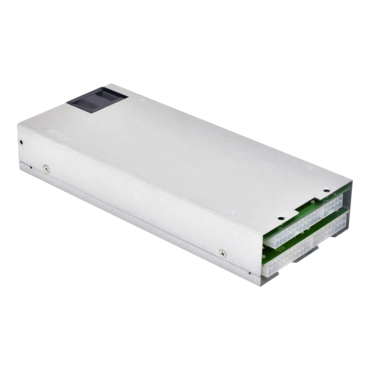

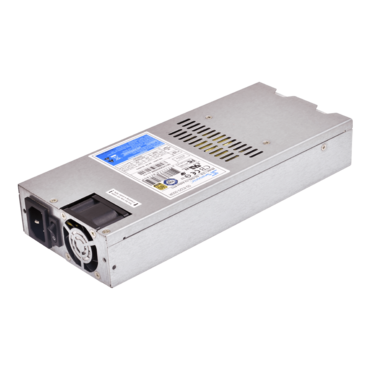

SS-500L1U, 80 PLUS Gold, 500W, Single, 1U Power Supply
- SKU: 18636320
- Manufacturer: SEASONIC
- MPN: SS-500L1U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$161.52
| ATX Compatibility | Intel EPS1U v2.1 compliant |
| Dimensions | 235 × 100 × 40 mm |
| Circuit design | DC to DC converter design |
| Fan | 40 mm double ball bearing fan |
| Fan Control | S3FC (including Fanless Mode) |
| Protections | SCP, OVP, OPP |
| Quality Control | Burn-in, high temperature cycled on/off |
| Safety and Environmental Compliance | CB, cUL, TUV, CCC, BSMI |
| Technical Specifications | |
|---|---|
| Input Frequency | 50 / 60 Hz |
| Efficiency | 80PLUS® Gold |
| Line Regulation | ‡ 1% (typical) |
| Load Regulation | ‡ 5 % (typical) |
| Cross Regulation | ‡ 5 % (typical) |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Active Power Factor Correction | 99 % (typical) |
| DC Output | ||||||
|---|---|---|---|---|---|---|
| +3.3V | +5V | +12 V Combined | -12 V | +5 Vsb | Total Continuous Power | Input Type |
| 20A | 20A | 40A | 0.3A | 2.5A | 500 W | 100–240 VAC |
| 100 W(max.) | 480 W | 3.6 W | 12.5 W | |||
