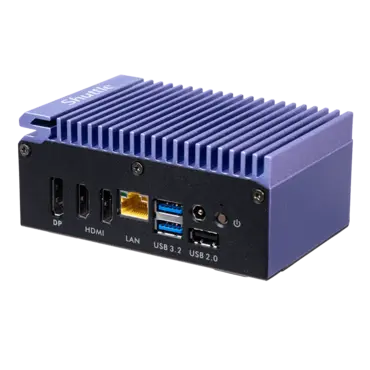

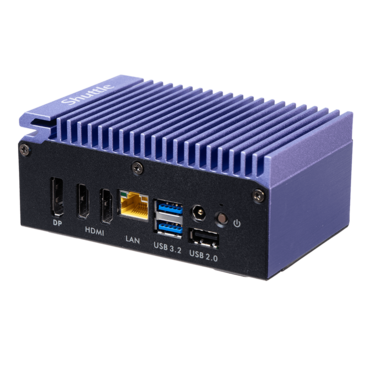

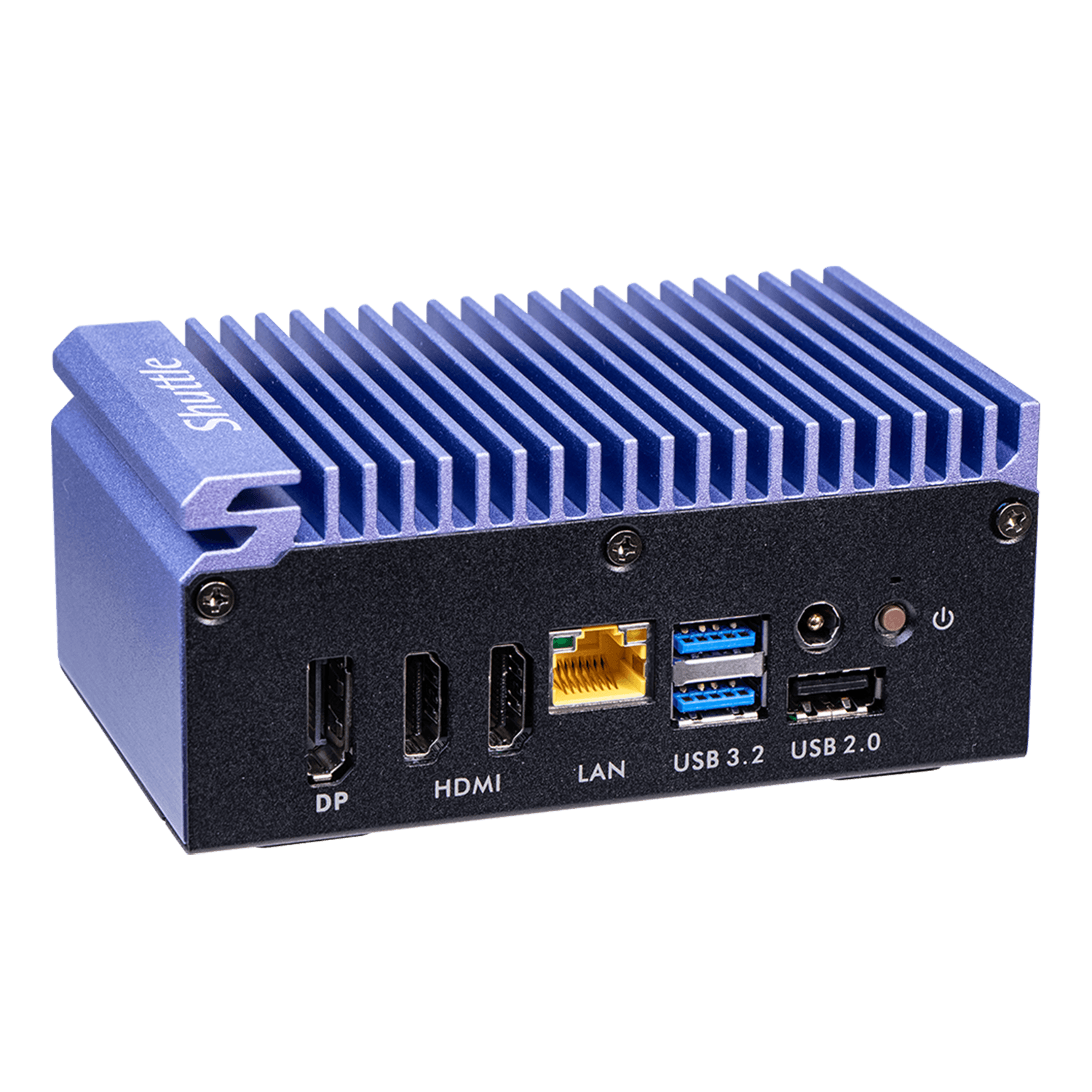

SPCEL12 Industrial Edge Computer, TAA Compliant, Intel Celeron® J6412, 2x DDR4 SO-DIMM, M.2, Triple display
- SKU: 19935792
- Manufacturer: SHUTTLE
- MPN: SPCEL12
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$425.99
| PROCESSOR | SPCEL12 Intel Celeron® J6412 2.60 GHz |
|---|---|
| MEMORY | 260 pin SO-DIMM, DDR4 3200MHz Support up to 32 GB |
| VIDEO OUTPUT | HDMI 2.0b(4096x2160@60Hz)*2 DP 1.4*1 |
| AUDIO | 2, Mic-in & Line-out |
| ETHERNET | Intel I226-v (PCIe) LAN controller Support Wake-On-LAN function |
| STORAGE INTERFACE | SSD M.2 M-key 2280/ 2242 With M.2 E-Key WLAN sku, only 2242 can support |

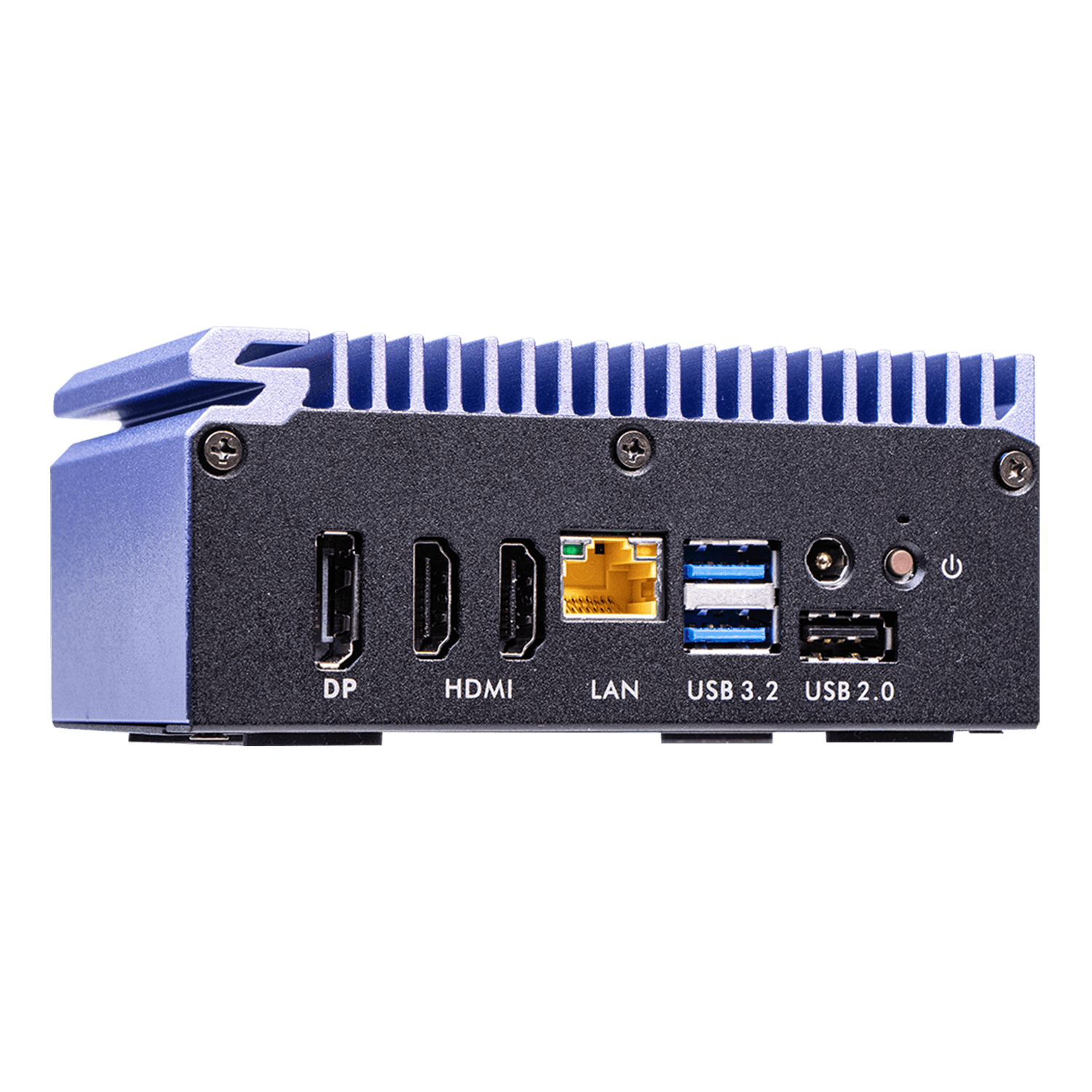

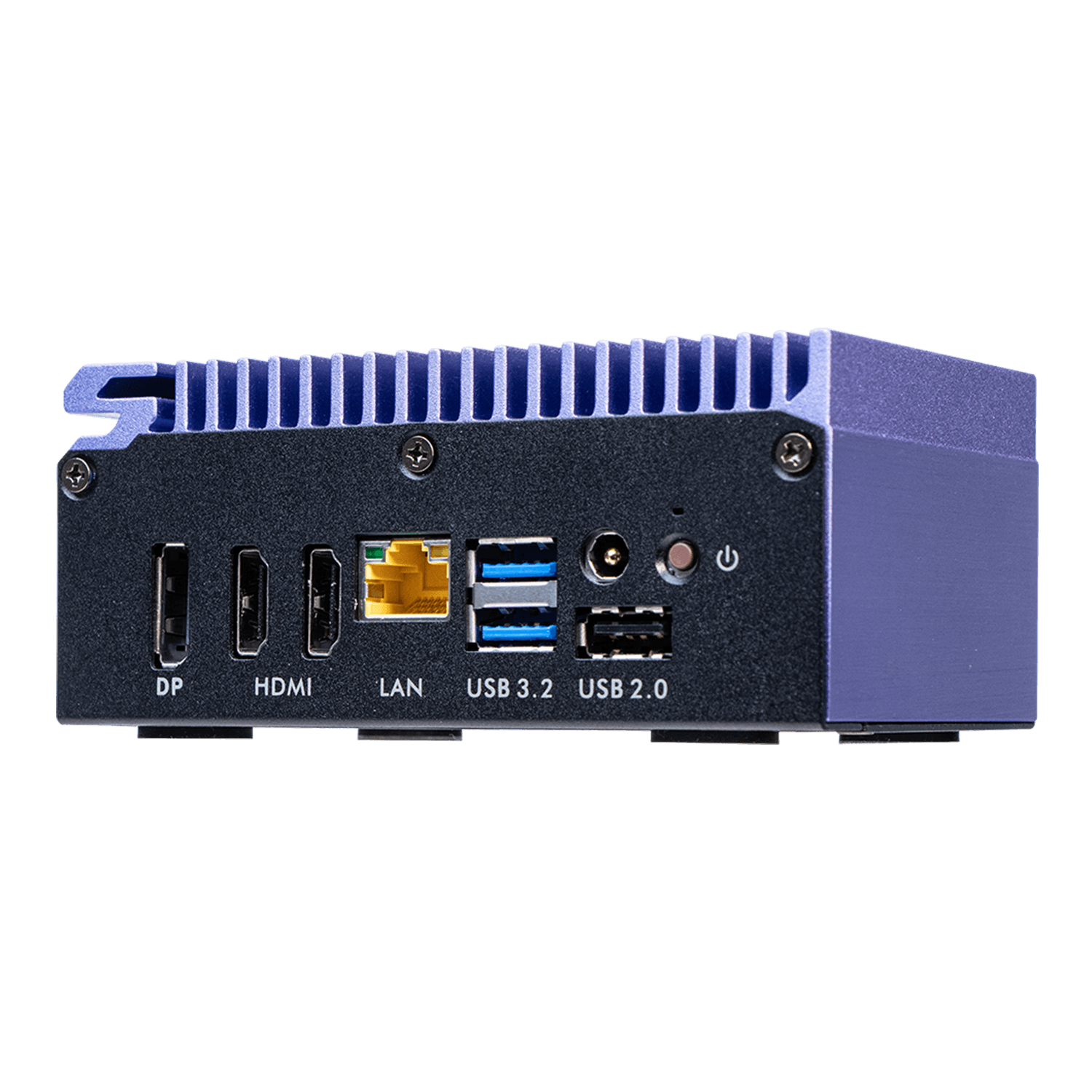

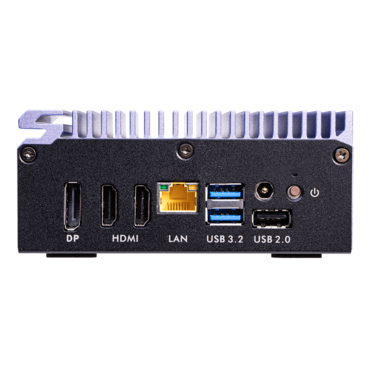

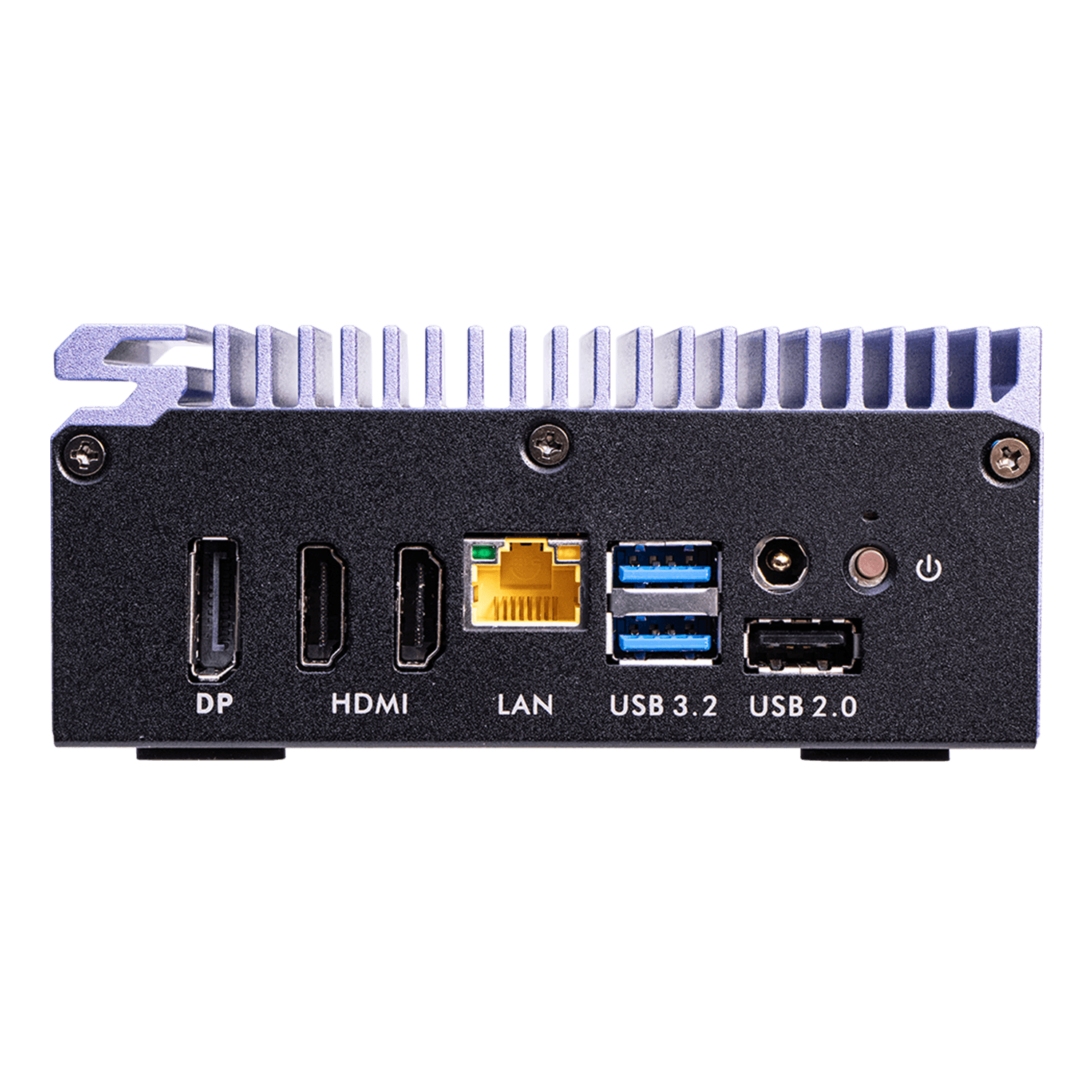

| FRONT PANEL | USB 3.2 Gen2(Type A)*2 USB 2.0 Type A *1 RJ-45(Intel 2.5G Lan)*1 |

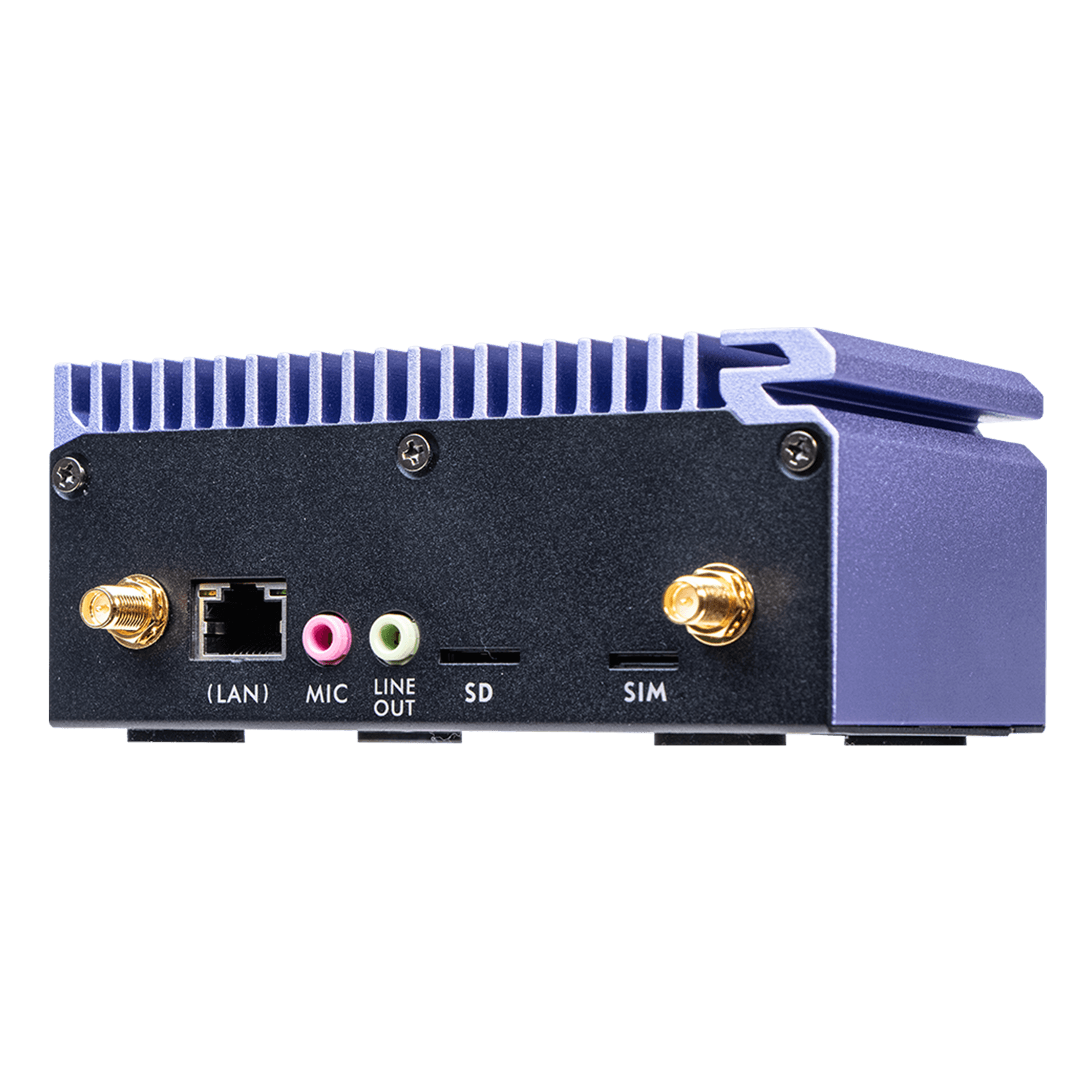

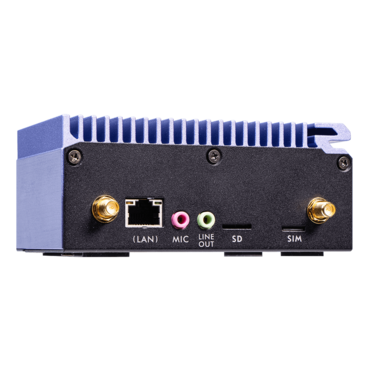

| BACK PANEL | RJ-45*1 Micro SD Card*1 SIM Card*1 |
| DIMENSIONS | 120(L) x 75(W) x 51(H) mm |
| POWER | 12~20V DC in 19V 65W external adapter |
| ACCESSORIES | VESA Mount 100 x 100 mm Ear Mount Din Rail Mount 50 x 50 mm Din Rail Clip |
| EXPANSION SLOT |
1x M.2 2242/2280 M Key slot support SATA Gen 1 1x SO-DOMM socket 1x M.2 2230 E Key 1x M.2 3042 B Key |
| OS SUPPORT | Windows 10/11 IoT Enterprise 64bit O.S Linux |
| NET WEIGHT | 0.7KG |
| OPERATING TEMPERATURE | 0?~40?(SPCEL12) -20?~60?(SPCEL13) |
| RELATIVE HUMIDITY | 10% - 90% RH (non-condensing) |
| EMC | CE, FCC, VCCI BSMI |
| SAFETY | CB, cTUVus, CEC, BSMI |
| WLAN |
1 x M.2 2230 E key ( Option ) Intel WiFi Module ( 802.11 a/b/g/n/ac ) + BT 5.0 Realtek RTL8821CE ( 802.11 a/b/g/n/ac ) + BT 5.0 External antenna ( Dipole ) |
