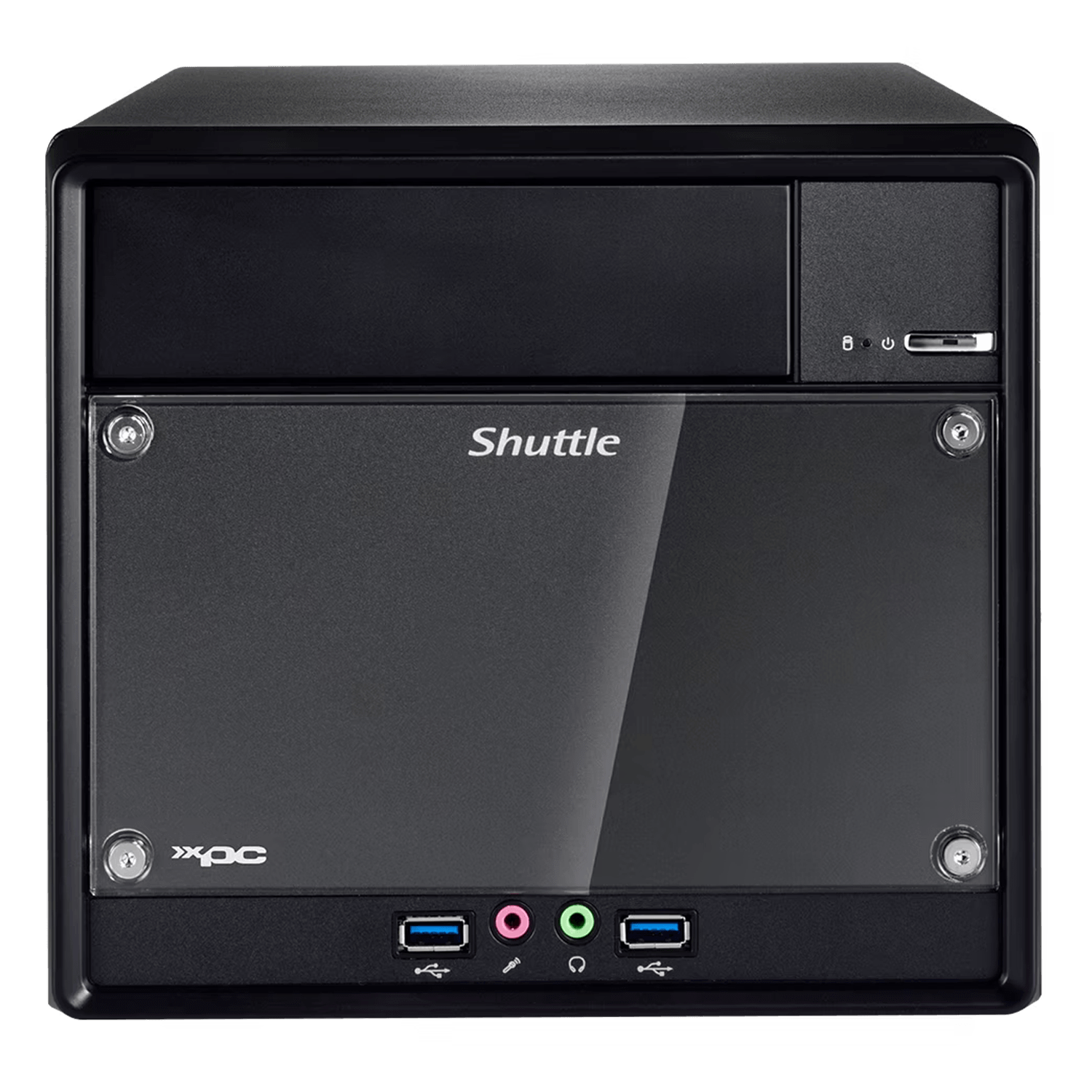

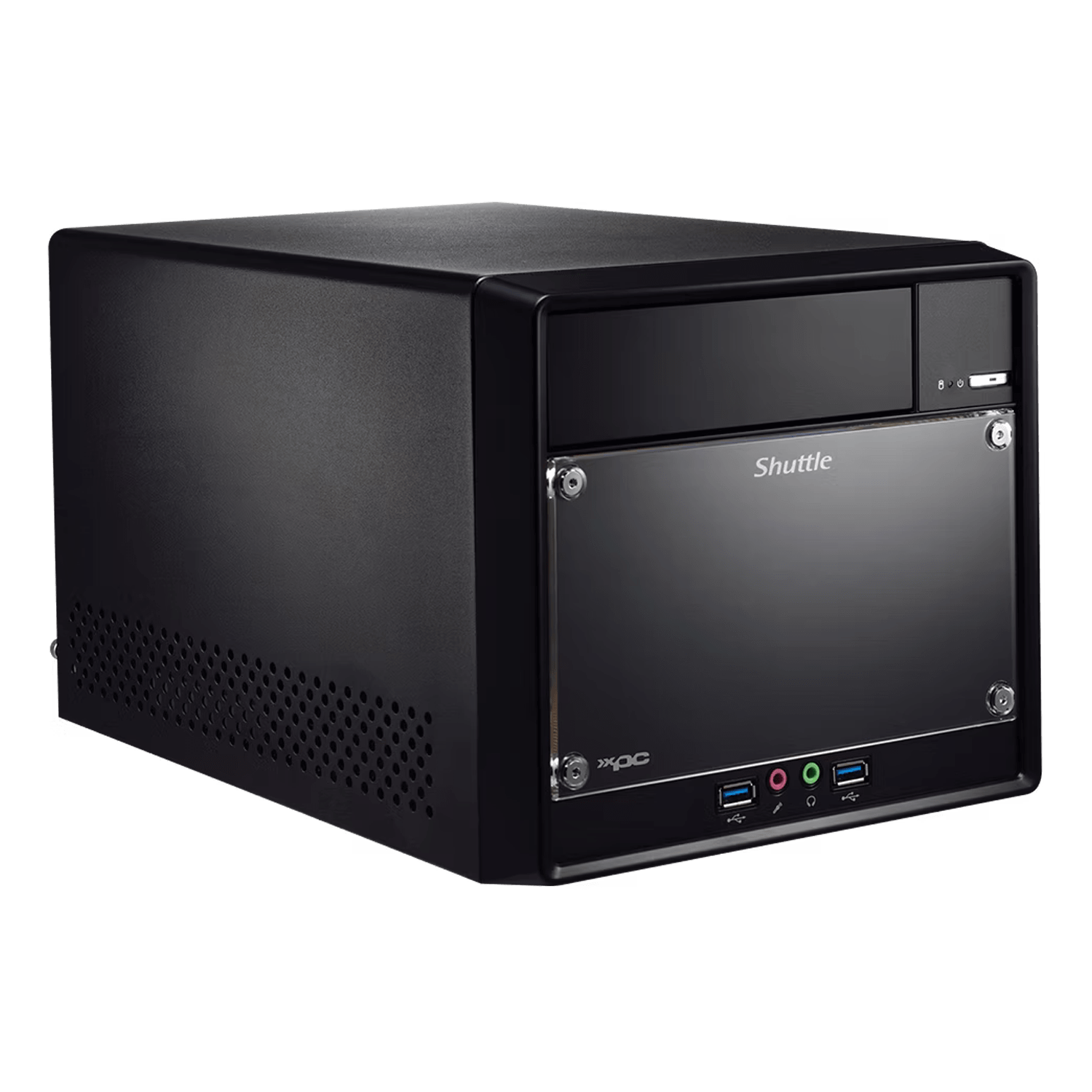

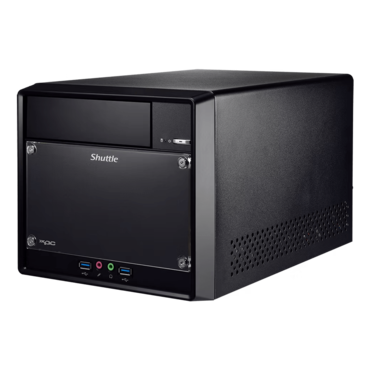

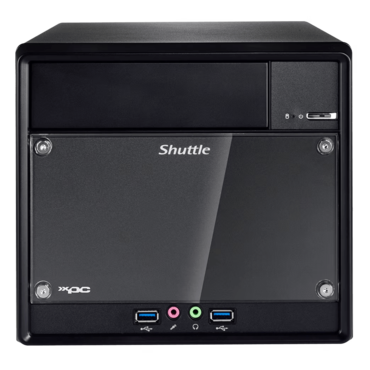

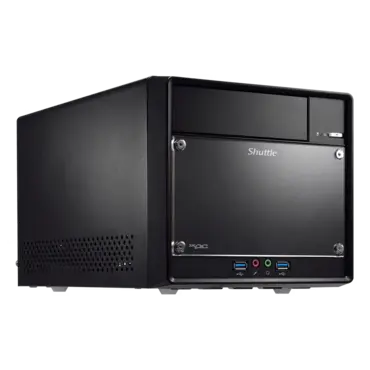

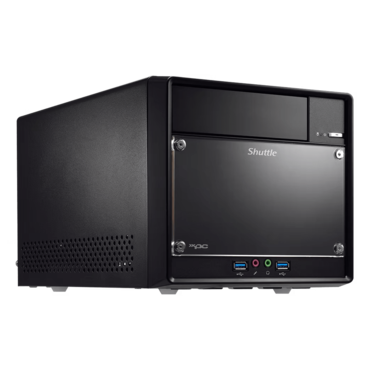

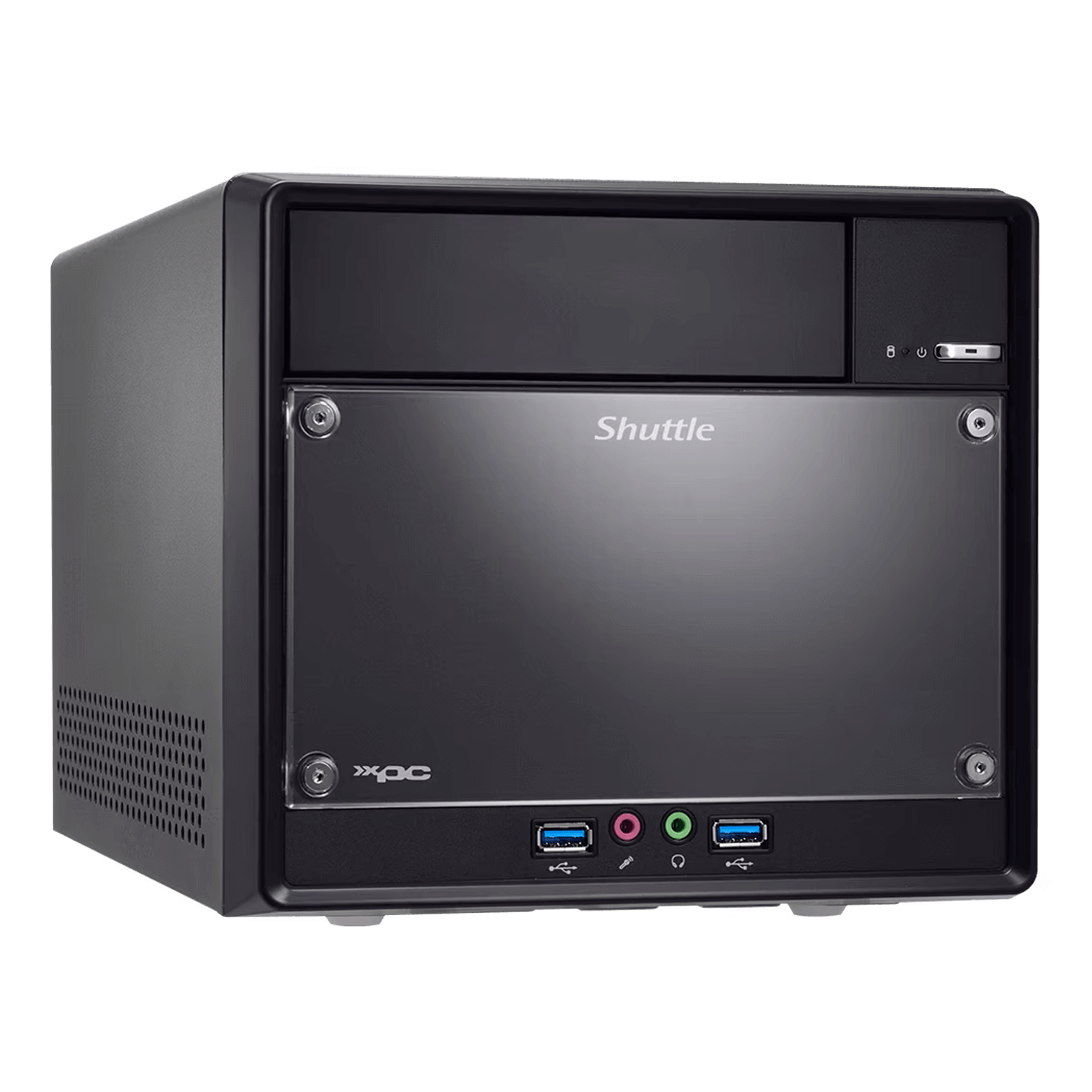

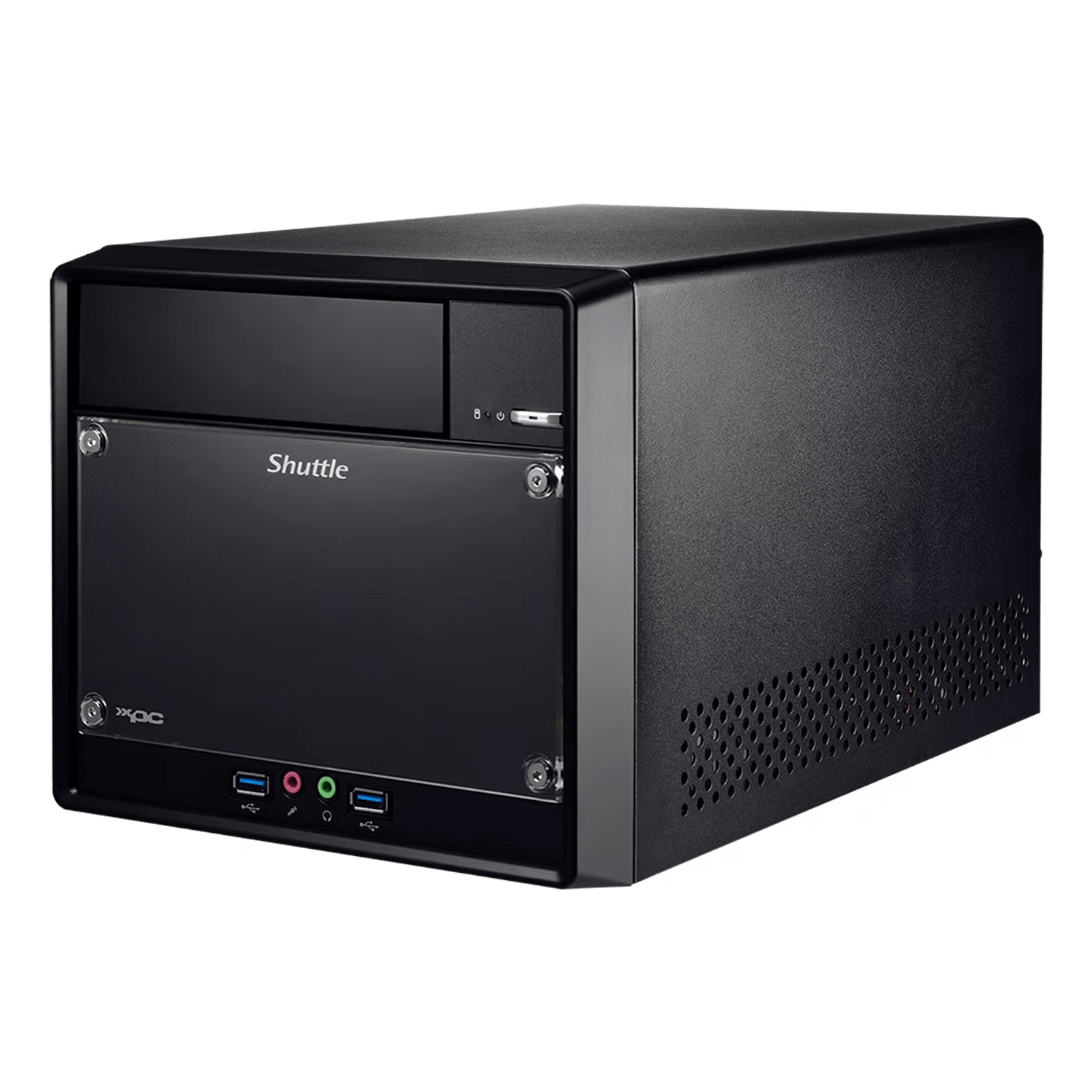

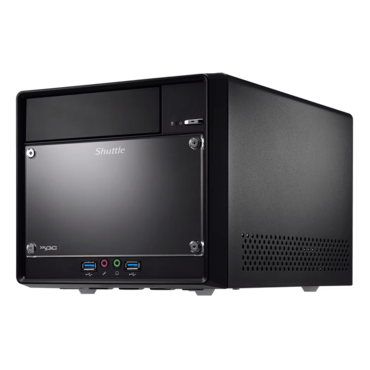

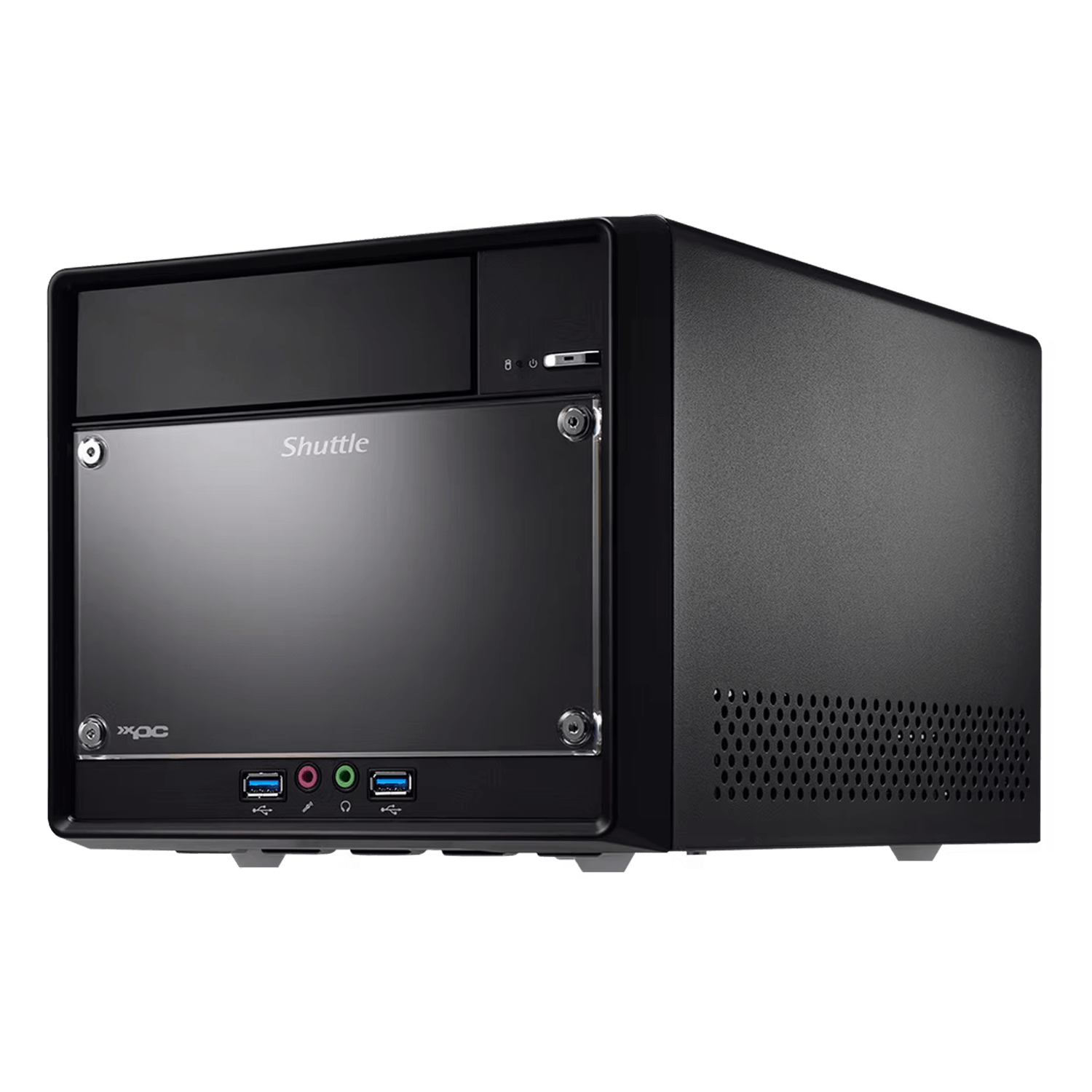

SH610R4, Intel® H610 Chipset, 2x DDR4 DIMM, 1x M.2 NVMe, 2x 3.5" HDD, 1x 5.25" ODD, 300W 80 PLUS Bronze PSU, XPC Cube PC Barebone
- SKU: 19390573
- Manufacturer: SHUTTLE
- MPN: SH610R4
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$544.99
SH610R4, Intel® H610 Chipset, 2x DDR4 DIMM, 1x M.2 NVMe, 2x 3.5" HDD, 1x 5.25" ODD, 300W 80 PLUS Bronze PSU, XPC Cube PC Barebone
SH610R4 compact desktop is a potent desktop PC designed around LGA1700 to support Intel® Core processors of the 13th/12th/14th Generation. Enhanced by Intel® Xe graphics and dual-channel DDR4-3200 memory, it excels in multitasking and 4K/60 content processing. Expandability is a standout feature, with a built-in PCI-E Gen5 x16 slot for graphics upgrades or video capture cards. It accommodates two 3.5-inch HDDs, an ODD bay, and an M.2 SSD. Connectivity is robust, featuring eight USB 3.2 and USB 2.0 ports, Gigabit LAN, HDMI 2.0b, dual DisplayPort, and VGA interfaces, making it versatile for visual computing, content creation, control rooms, and more.
SH610R4 compact desktop is a potent desktop PC designed around LGA1700 to support Intel® Core processors of the 13th/12th/14th Generation. Enhanced by Intel® Xe graphics and dual-channel DDR4-3200 memory, it excels in multitasking and 4K/60 content processing. Expandability is a standout feature, with a built-in PCI-E Gen5 x16 slot for graphics upgrades or video capture cards. It accommodates two 3.5-inch HDDs, an ODD bay, and an M.2 SSD. Connectivity is robust, featuring eight USB 3.2 and USB 2.0 ports, Gigabit LAN, HDMI 2.0b, dual DisplayPort, and VGA interfaces, making it versatile for visual computing, content creation, control rooms, and more.
- Processor: Support Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9, Pentium®, Celeron®125W LGA1700 CPU
- Memory: 2x 288 pin DDR4 2933/3200* MHz slots, 32GB per DIMM (Max 64GB)
- Storage: SATA 6.0Gb/s interface, (1) 5.25" ODD bay
- Chassis: Semi-rugged chassis made of aluminum, 13"(L) × 8.5"(W) × 7.8"(H)
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9, Pentium®, Celeron®125W LGA1700 CPU |
| CHIPSET | Intel H610 express chipset |
| MEMORY | (2)DDR4 3200 MHz support, dual channel up to 64GB (32GB*2) |
| VIDEO OUTPUT |
(1)HDMI + (2)DisplayPort +(1) VGA , support triple independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| AUDIO | Realtek ALC888S 5.1 Channel high definition audio |
| ETHERNET | Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface NVMe interface |
| ONBOARD CONNECTORS |
(2)4 Pin fan connector (3)SATA gen3.0 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X5 USB 2.0 header (1) RS232 header (1) Front AUDIO header (2) Front USB FFC header |

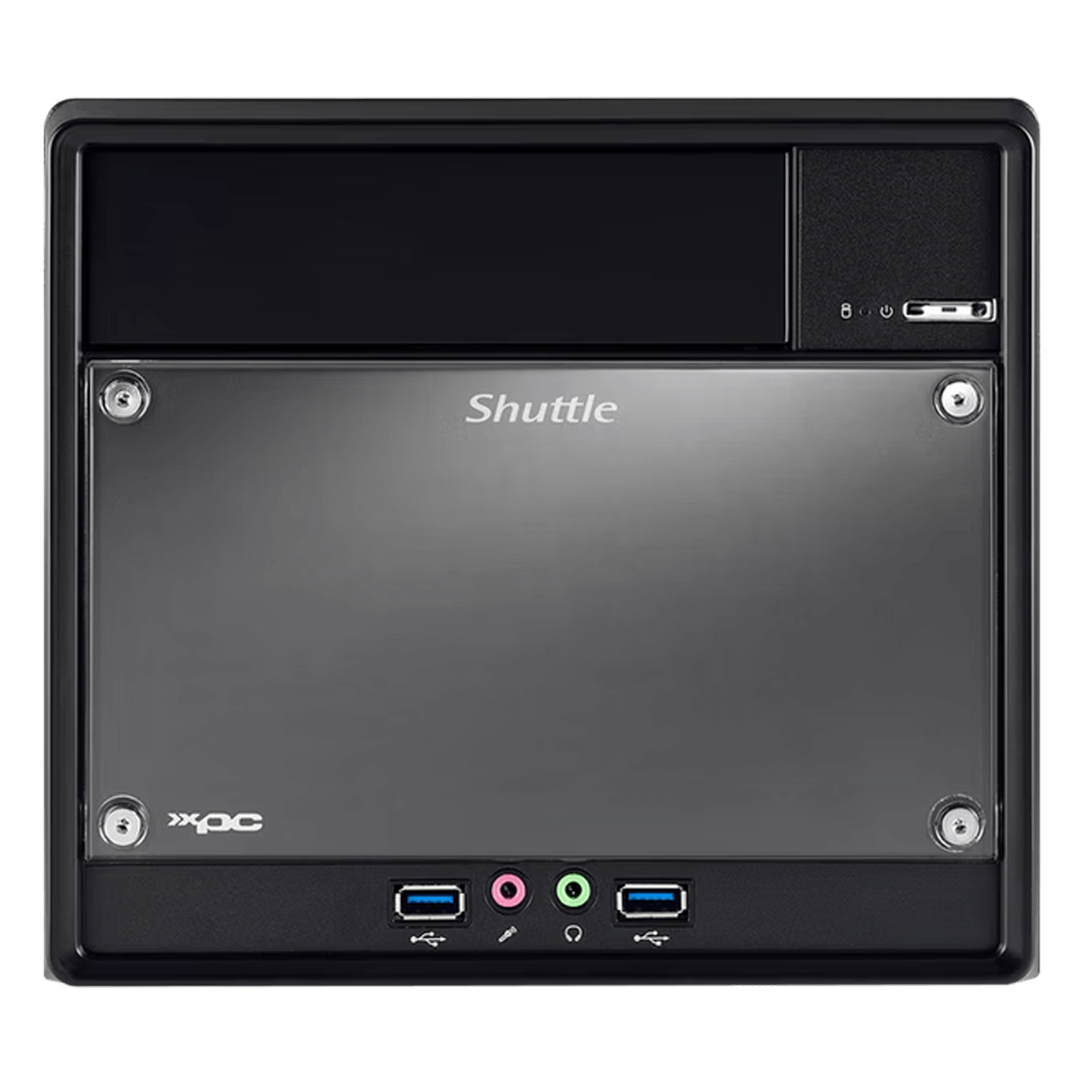

| FRONT PANEL |
(2) USB 3.2 Gen 1 port (1) Microphone-In (1) SPK-Out (1)Power button (1)Power LED (1)HDD LED |

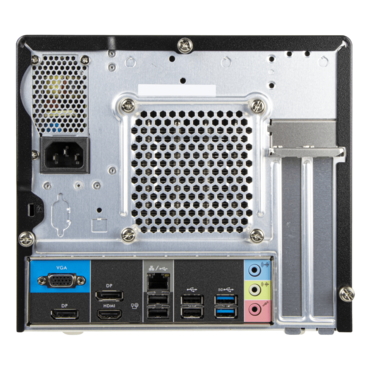

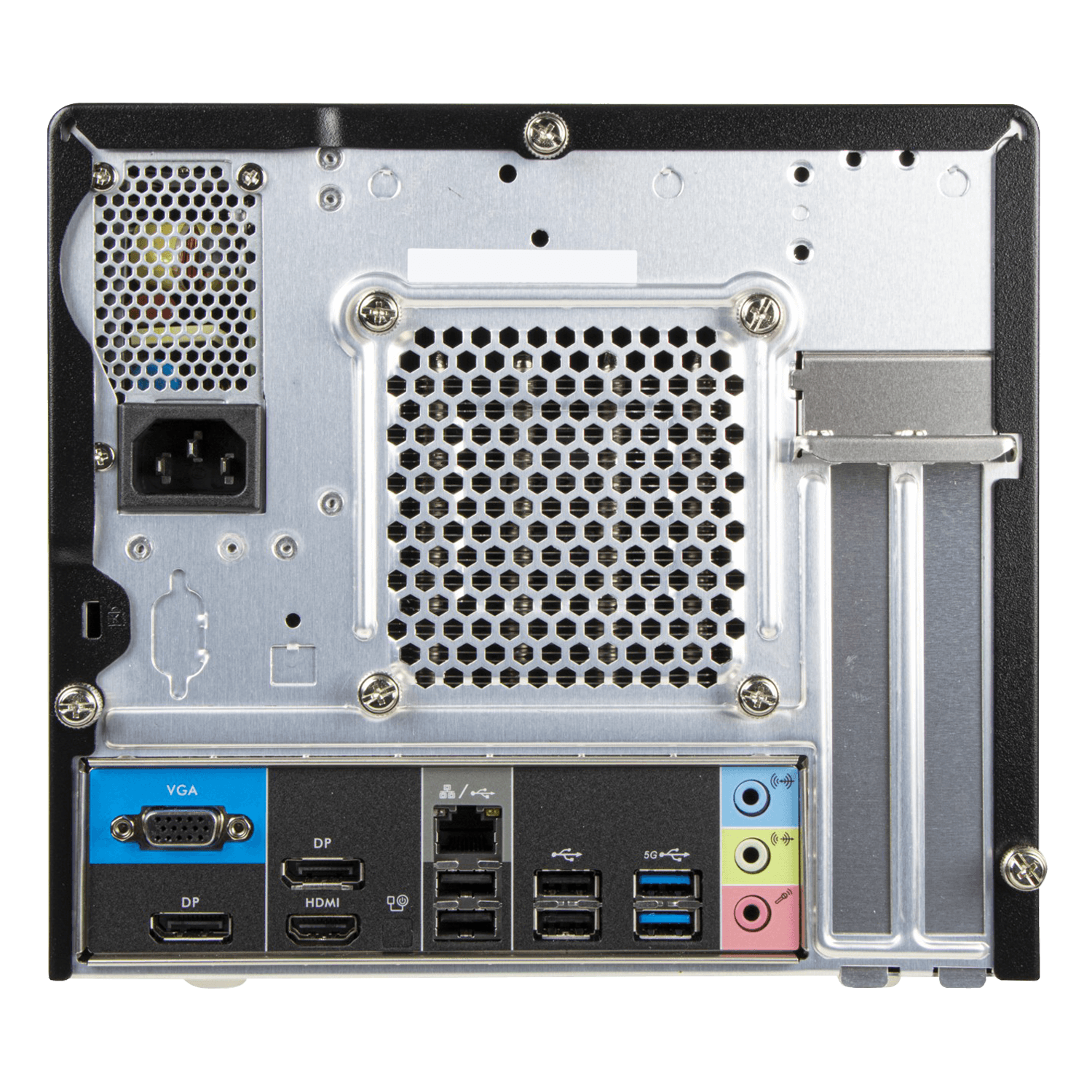

| BACK PANEL |
(4) USB 2.0 Port (2) USB 3.2 Gen 1 Port (1)LAN (1)HDMI port (2)Display port (1)VGA port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)External 4pin header (3)Antenna Hole |
| DRIVE BAYS | (1) 5.25" ODD bay (2) 3.5" HDD bay |
| DIMENSIONS | 329(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 300W power supply Input: 100-240V,6-3A AC Support 80 PLUS Bronze |
| ACCESSORIES |
XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| EXPANSION SLOT |
(1) PCI-E X16 Gen5.0 slot (1) PCI-E X1 Gen3 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket |
| OS SUPPORT | Windows 11 64bit OS Linux |
| NET WEIGHT | 3.7 KG |
| CERTIFICATION |
Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI ,UKCA |
| OPERATING TEMPERATURE | 0°C~40°C |
