SH570R6, Intel® H570 Chipset, 4x DDR4 DIMM, 1x M.2 NVMe, 2x 3.5" HDD, 80 PLUS Gold 300W PSU, XPC Cube PC Barebone
Quantity:
- SKU: 14778625
- Manufacturer: SHUTTLE
- MPN: SH570R6
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$525.29
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU |
| CHIPSET | Intel H570 express chipset |
| MEMORY | (4)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4) |
| VIDEO OUTPUT |
(1)HDMI + (2)DisplayPort support triple independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| AUDIO |
Realtek ALC662/ALC897 5.1 Channel high definition audio |
| ETHERNET |
Intel i210AT + i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS |
(2)4 Pin fan connector (4)SATA 6 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) VGA header (1) Front AUDIO header (2) Front USB FFC header |

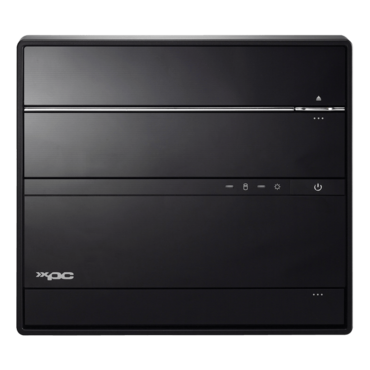

| FRONT PANEL |
(3) USB 3.2 Gen 1 Port (1) USB 3.2 Gen 1 type-C Port (1) Microphone-In (1) SPK-Out (1) Power LED (1) HDD LED (1) Power-On button (1) Power-On button |

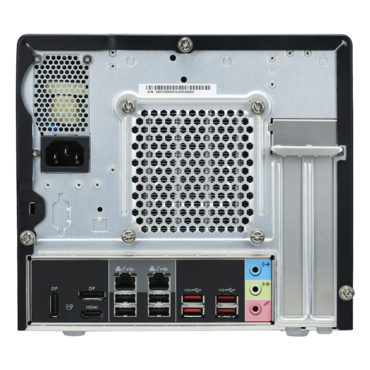

| BACK PANEL |
(4) USB 2.0 Port (4) USB 3.2 Gen 2 Port (2)LAN (1)HDMI port (2)Display port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)Clear CMOS button (3)Antenna Hole |
| DRIVE BAYS |
(1) 5.25" ODD bay (2) 3.5" HDD bay Support 2.5" HDD x2 or 4, if use accessory PHD3 x1 or 2 |
| DIMENSIONS | 332.1(L) x 215.2(W) x 190.1(H) mm |
| POWER |
80 Plus 300W power supply Input: 100-240V,6-3A AC Support 80 PLUS Bronze |
| ACCESSORIES |
XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| EXPANSION SLOT |
(1) PCI-E X16 Gen 4.0 slot (1) PCI-E X4 Gen 3.0 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket |
| OS SUPPORT |
Windows 10/11 64bit OS Linux |
| CERTIFICATION |
Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
| OPERATING TEMPERATURE | 0°C~40°C |
