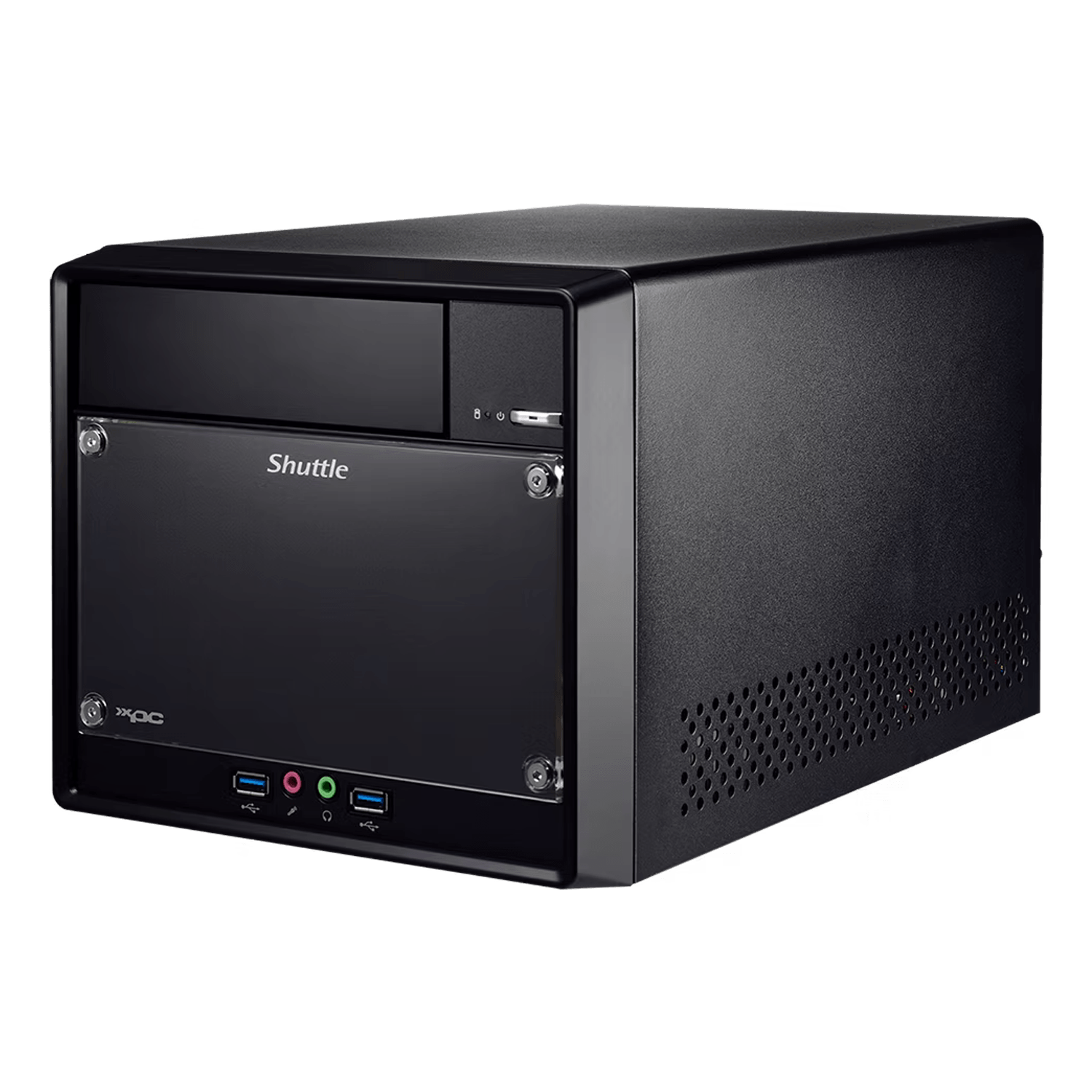

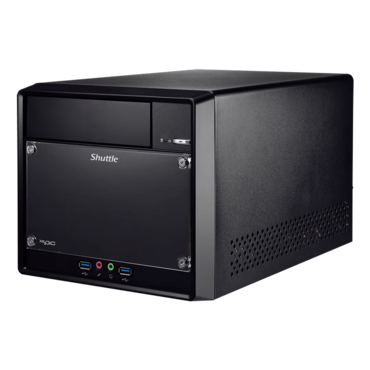

SH510R4, Intel® H510 Chipset, 2x DDR4 DIMM, 1x M.2 NVMe, 2x 3.5" HDD, 1x 5.25" ODD, 300W 80 PLUS Bronze PSU, XPC Cube PC Barebone
- SKU: 19920599
- Manufacturer: SHUTTLE
- MPN: SH510R4
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$534.99
SH510R4, Intel® H510 Chipset, 2x DDR4 DIMM, 1x M.2 NVMe, 2x 3.5" HDD, 1x 5.25" ODD, 300W 80 PLUS Bronze PSU, XPC Cube PC Barebone

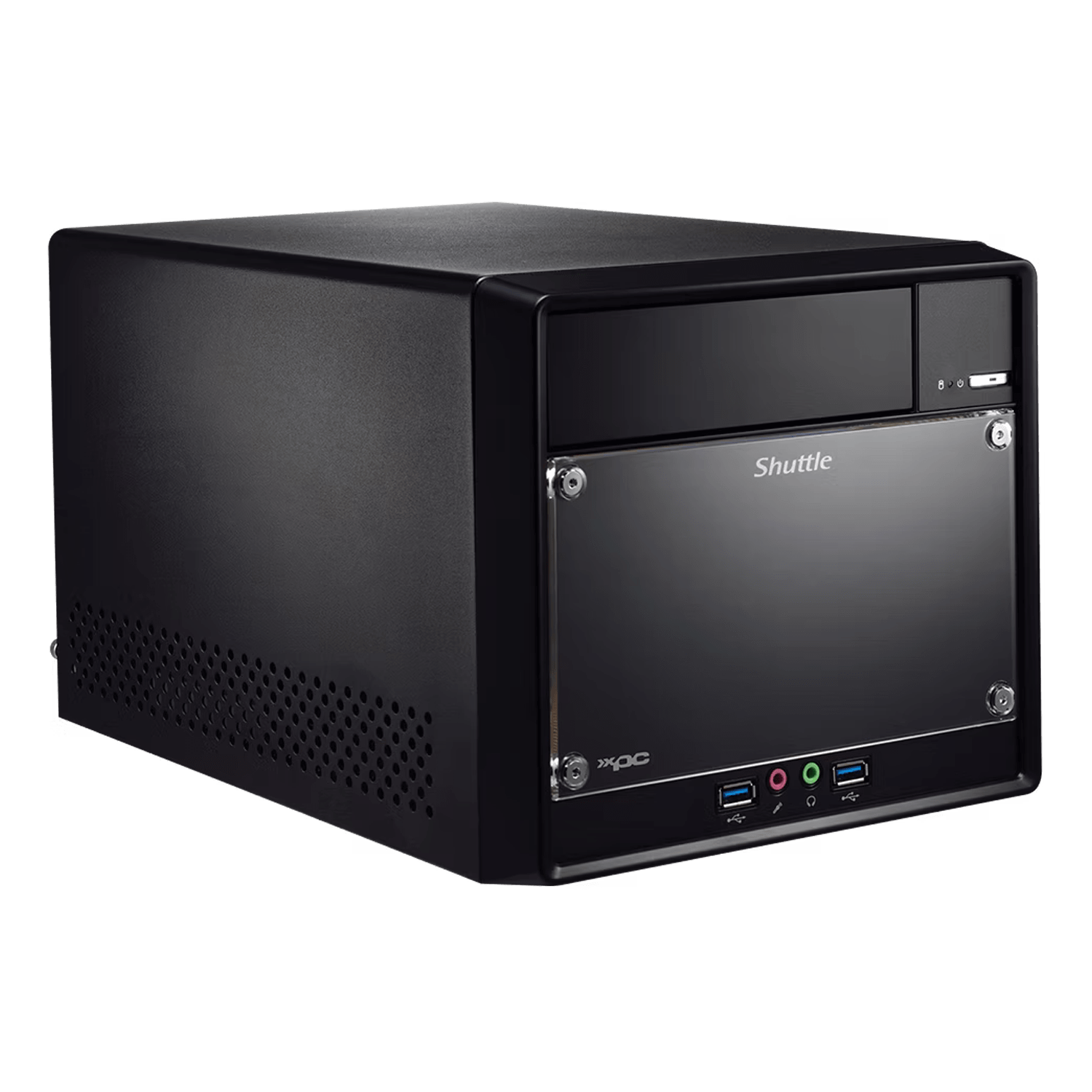

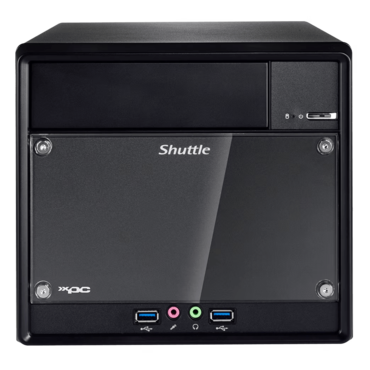

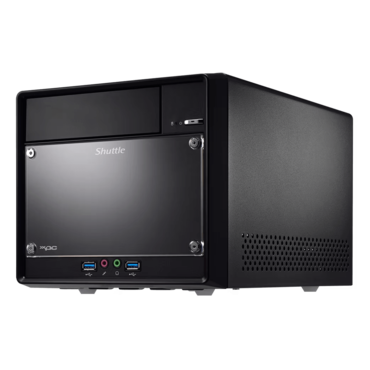

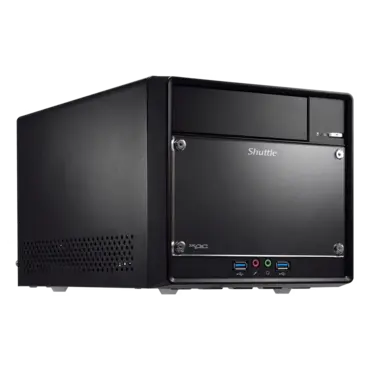

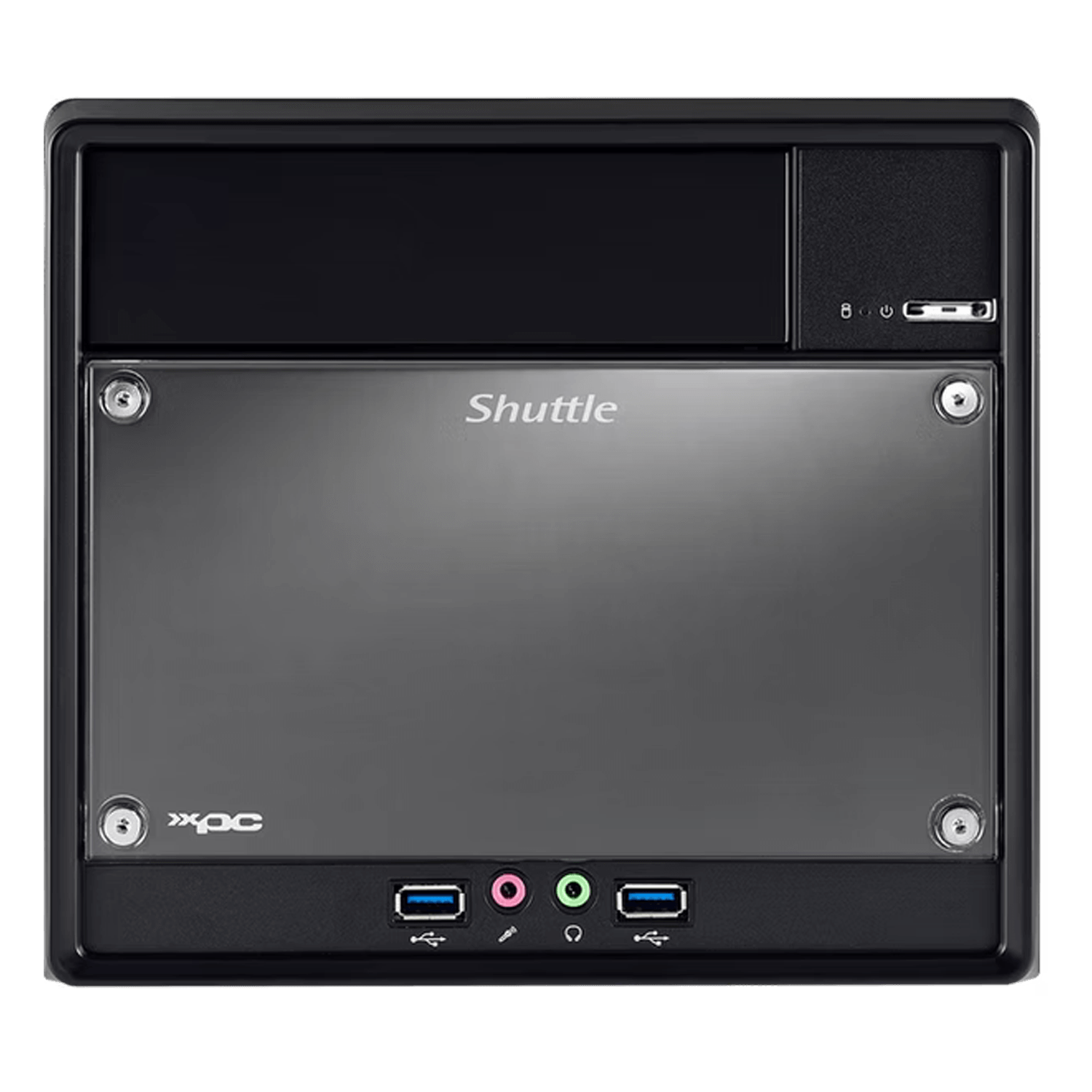

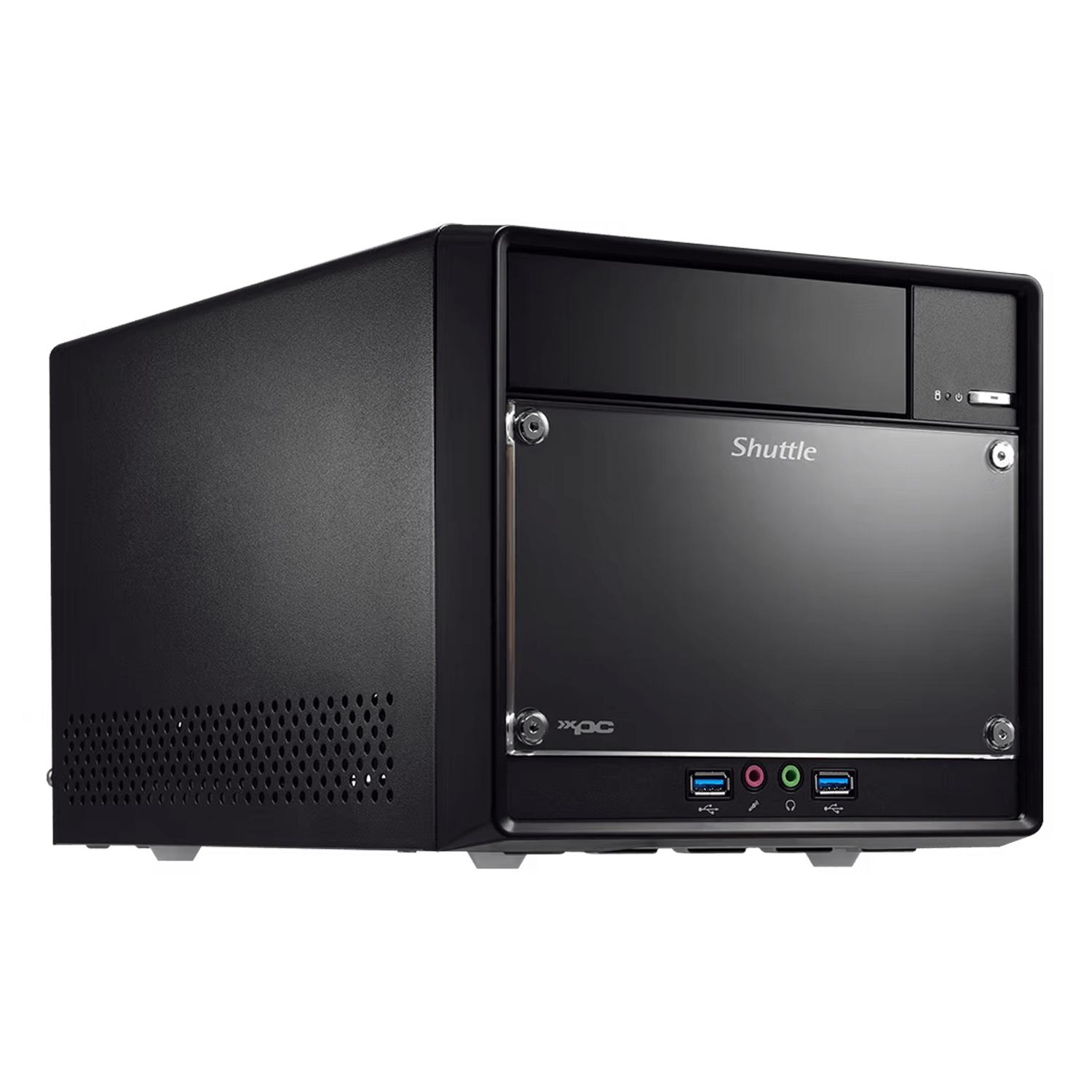

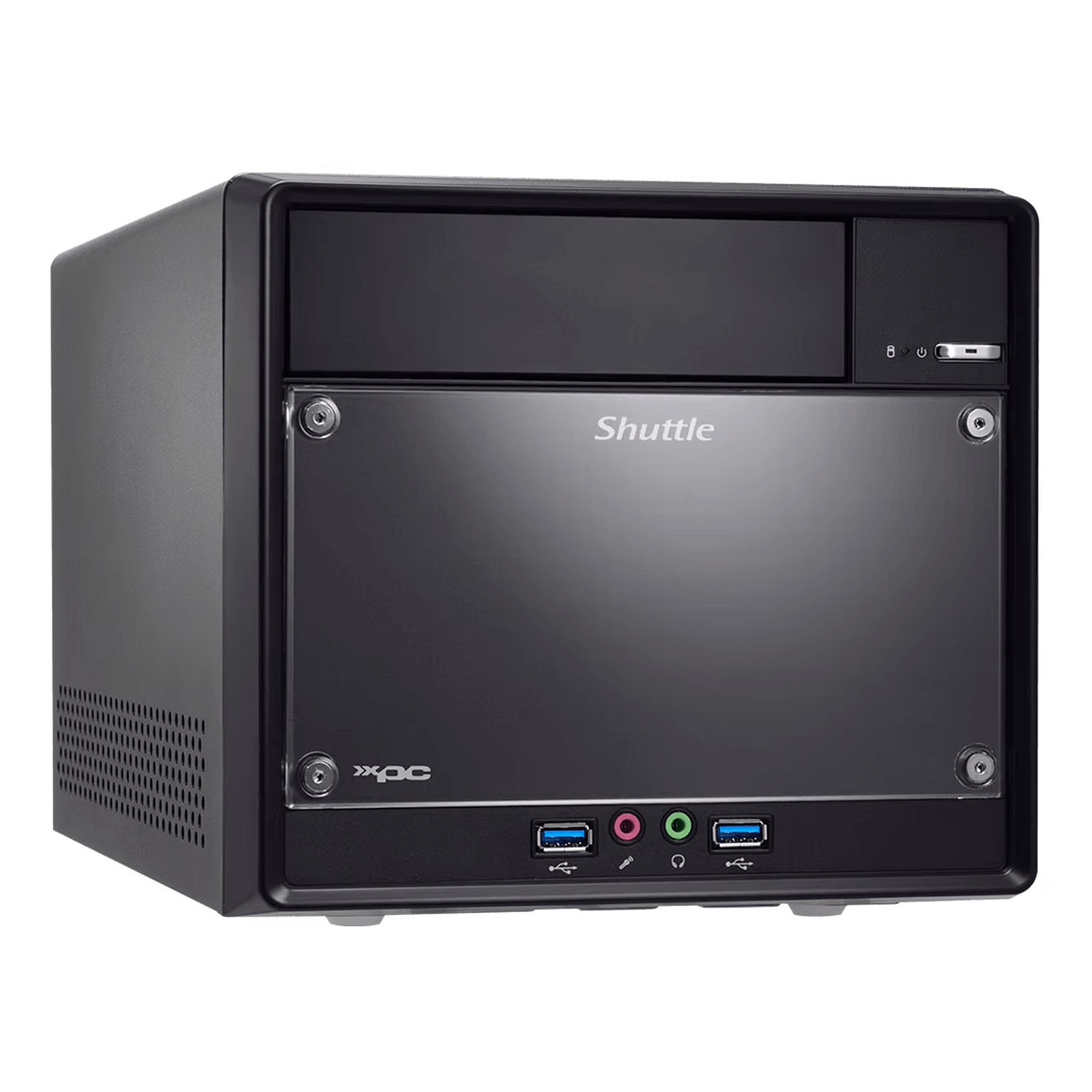

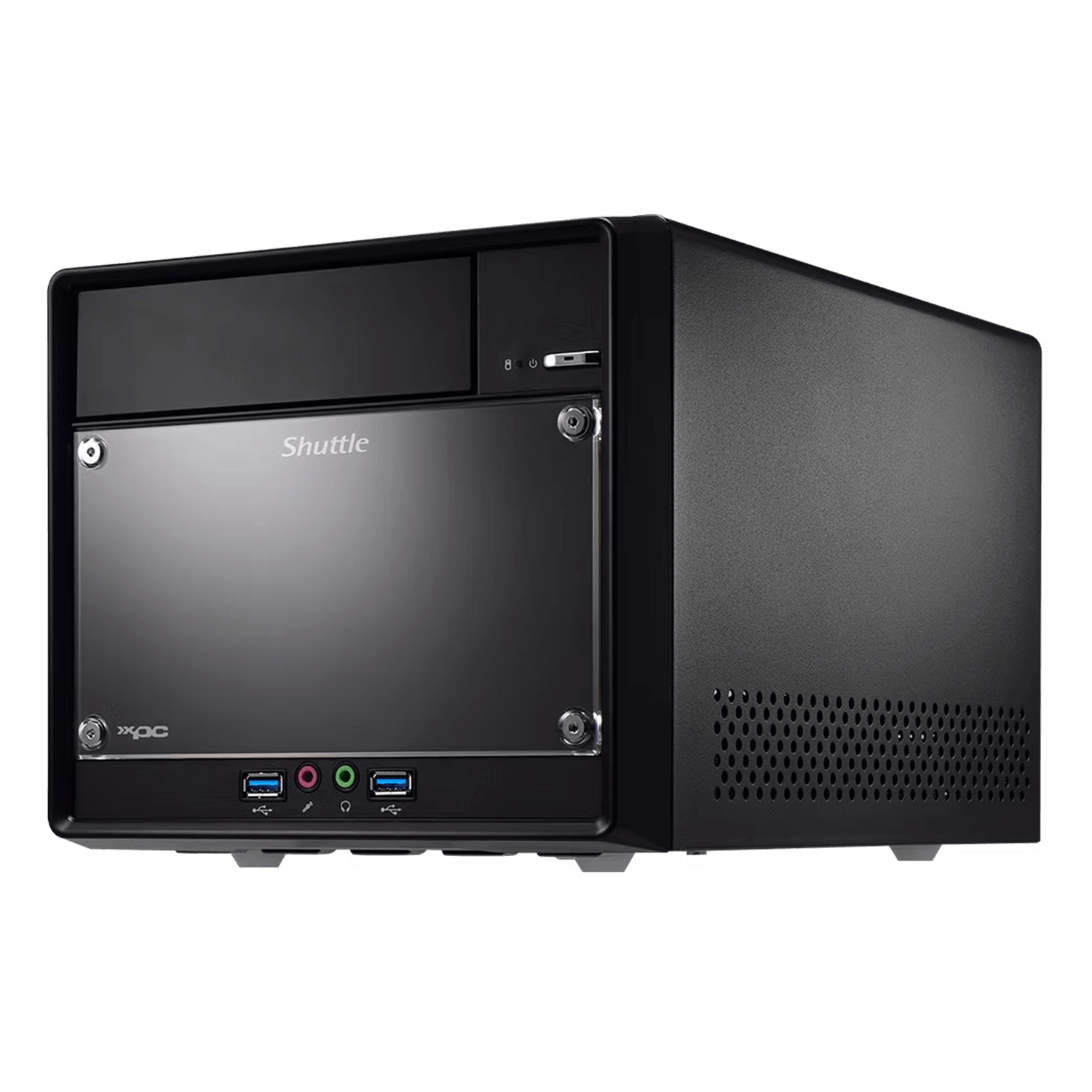

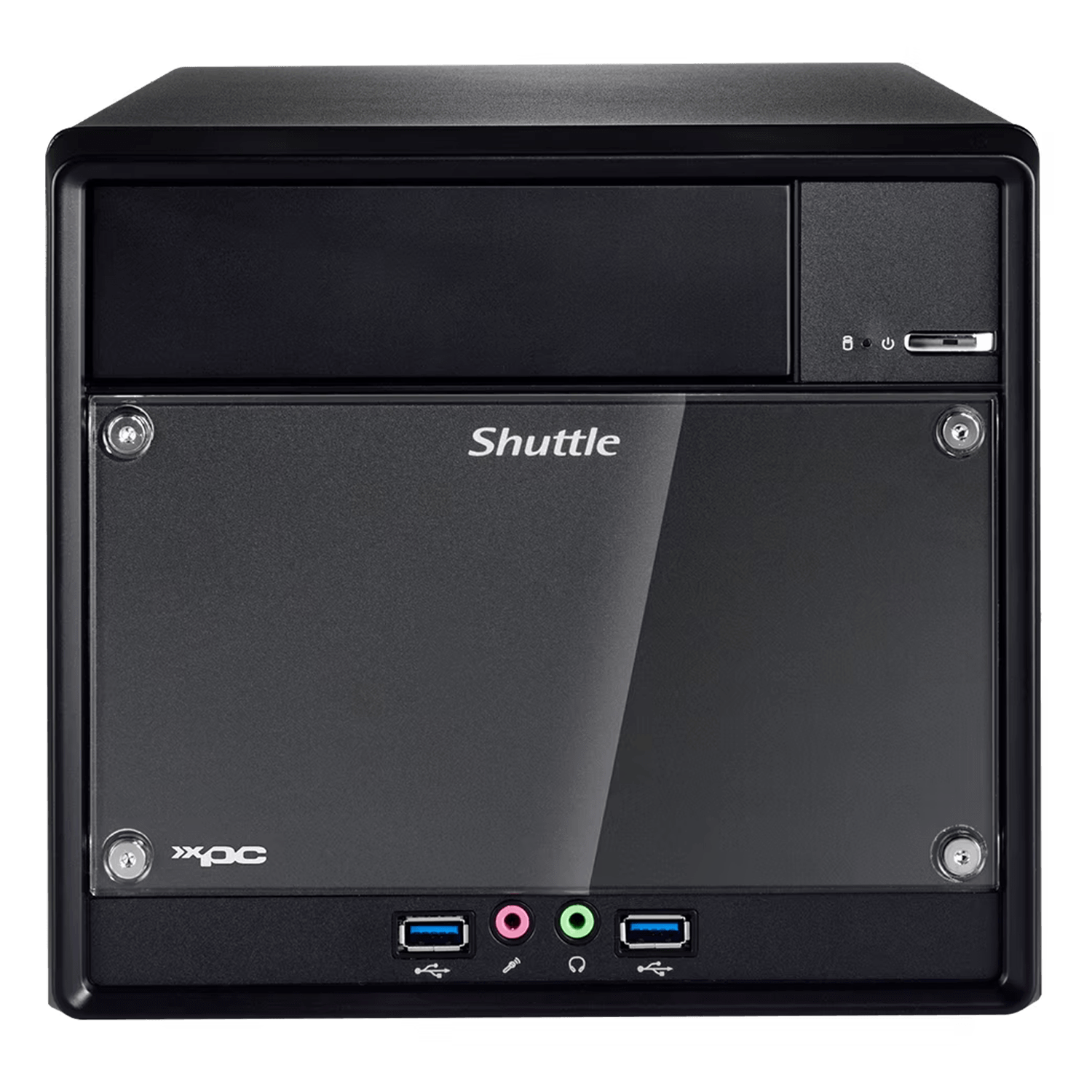

SH510R4 compact desktop supports Intel Core processors of the 10th and 11th generations for LGA1200 sockets. It handles up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, and high-performance M.2 SSDs. With up to four USB 3.2 devices, it's versatile; expandability includes a graphics card slot and a PCIe-X1 slot for other cards. Additional installations like WLAN and COM ports, are choices too. The SH510R4 boasts an 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling, promoting efficiency and long-term operation. The front panel can be customized for ultimate unique personalization.
SH510R4 compact desktop supports Intel Core processors of the 10th and 11th generations for LGA1200 sockets. It handles up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, and high-performance M.2 SSDs. With up to four USB 3.2 devices, it's versatile; expandability includes a graphics card slot and a PCIe-X1 slot for other cards. Additional installations like WLAN and COM ports, are choices too. The SH510R4 boasts an 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling, promoting efficiency and long-term operation. The front panel can be customized for ultimate unique personalization.
- Processor: Intel processors in the LGA1200 socket (Gen 10/11)
- Memory: 2x 288 pin DDR4 2933/3200* Mhz slots, 32GB per DIMM (Max 64GB)
- Storage: 2x M.2 slots (1× M.2-2280, 1× M.2-2230) 3× SATA and space for 2× 3.5" and 1× 5.25" drives
- Chassis: Semi-rugged chassis made of aluminum, 13"(L) × 8.5"(W) × 7.8"(H)
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Intel® 10th/11th generation Core™ i3/i5/i7/i9, Pentium®, Celeron®125W LGA1200 CPU |
| CHIPSET | Intel H510 express chipset |
| MEMORY | (2)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 64GB (32GB*2) |
| VIDEO OUTPUT |
(1)HDMI + (1)DisplayPort +(1) VGA , support dual independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| AUDIO | Realtek ALC662/ALC897/ALC888s 5.1 Channel high definition audio |
| ETHERNET | Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS |
(2)4 Pin fan connector (3)SATA gen3.0 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) Front AUDIO header (2) Front USB FFC header |

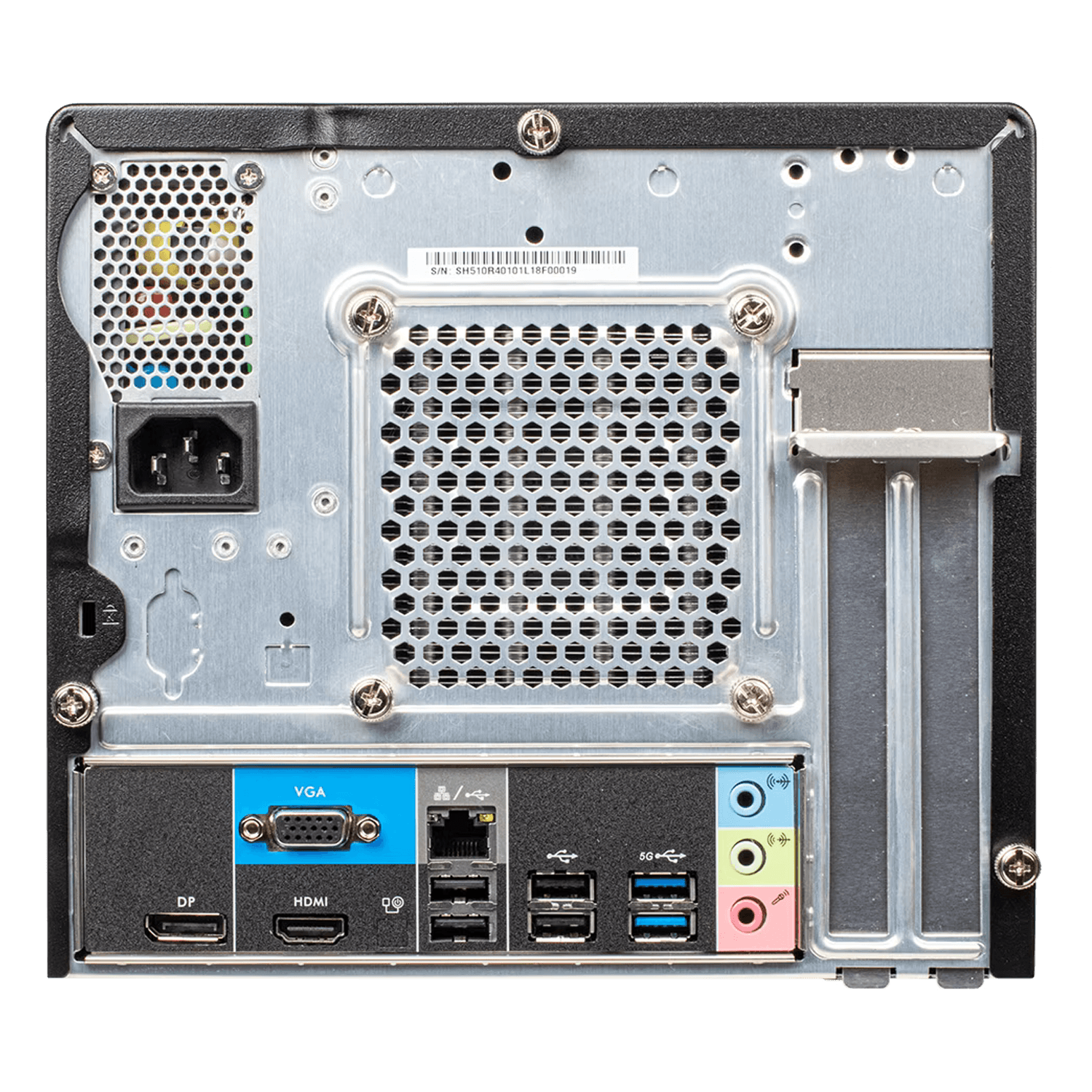

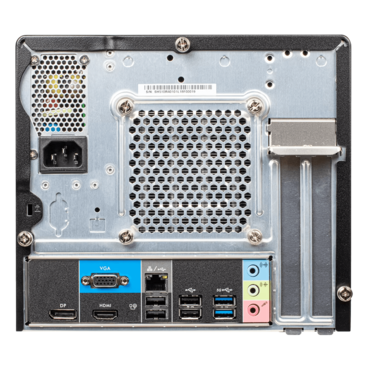

| BACK PANEL |
(4) USB 2.0 Port (2) USB 3.2 Gen 1 Port (1)LAN (1)HDMI port (1)Display port (1)VGA port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)Clear CMOS button (3)Antenna Hole |
| DRIVE BAYS | (1) 5.25" ODD bay (2) 3.5" HDD bay |
| DIMENSIONS | 329(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 300W power supply Input: 100-240V,6-3A AC Support 80 PLUS Bronze |
| ACCESSORIES |
XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| EXPANSION SLOT |
(1) PCI-E X16 Gen4.0 slot (with Intel 11th CPU) (1) PCI-E X1 Gen3 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket |
| OS SUPPORT | Windows 10/11 64bit OS Linux |
| CERTIFICATION | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
| OPERATING TEMPERATURE | 0°C~40°C |
