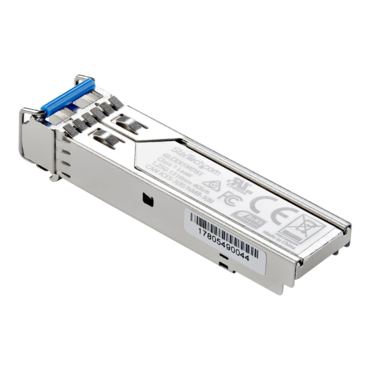

SFP1000EXST, 1000BASE-EX - 1GbE SFP, 1310nm Single mode, 40 km, LC, Transceiver Module
Quantity:
- SKU: 11430150
- Manufacturer: STARTECH.COM
- MPN: SFP1000EXST
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$66.72
| Warranty Information | |
| Warranty | Lifetime |
| Color | Silver |
| Material | Aluminum |
| Connector(s) | |
| 1 - Local Unit Connectors | Fiber Optic LC Duplex |
| Environmental | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5~95% RH |
| Hardware | |
| Compatible Brand | MSA Compliant |
| WDM | No |
| Industry Standards | IEEE 802.3z 1000BASE-EX |
| Packaging Information | |
| Package Length | 11,6 cm [4,6 in] |
| Package Width | 92,0 mm [3,6 in] |
| Package Height | 32,0 mm [1,3 in] |
| Shipping (Package) Weight | 47,0 g [1,7 oz] |
| Performance | |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 40 km (24.8 mi) |
| Type | Single Mode |
| Wavelength | 1310nm |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Power Consumption (In Watts) | < 1 W |
| Physical Characteristics | |
| Product Length | 59,0 mm [2,3 in] |
| Product Width | 16,0 mm [0,6 in] |
| Product Height | 1,3 cm [0,5 in] |
| Weight of Product | 18,0 g [0,6 oz] |
| What's in the Box | |
| 1 - Included in Package | SFP transceiver |
