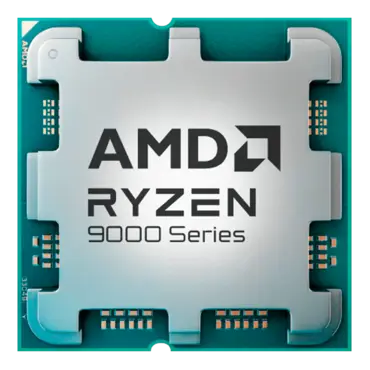

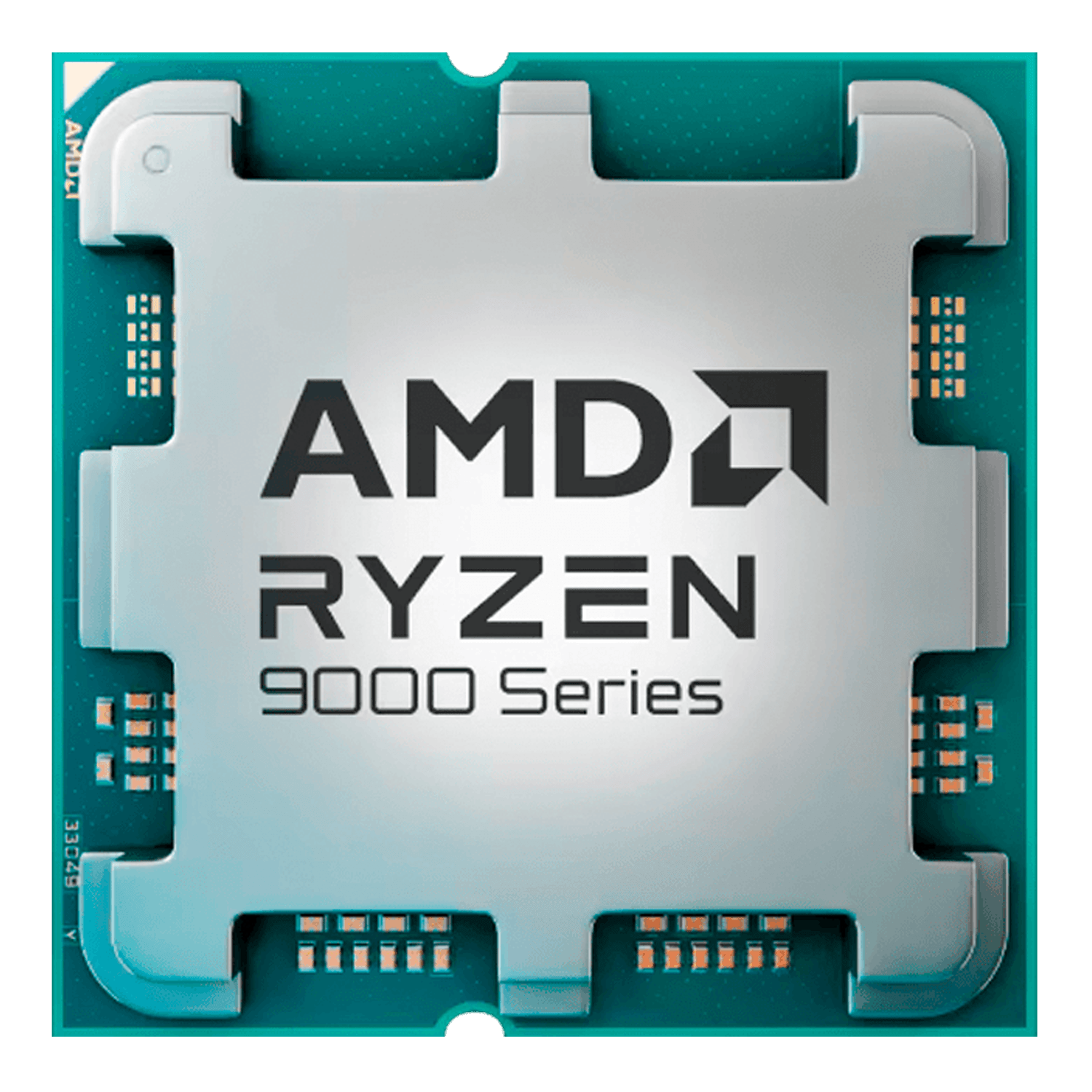

Ryzen™ 9 9950X3D2 16-Core 4.3 - 5.6GHz Turbo, AM5, 200W TDP, OEM Processor
- SKU: 20102867
- Manufacturer: AMD
- MPN: 100-000001978
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| General Specifications | |
| Name | AMD Ryzen™ 9 9950X3D2 Dual Edition |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops , Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 5.6 GHz |
| Base Clock | 4.3 GHz |
| L1 Cache | 1280 KB |
| L2 Cache | 16 MB |
| L3 Cache | 192 MB |
| Default TDP | 200W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 2.0 (480Mbps) | 1 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 , 24 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Product IDs | |
| Product ID Boxed | 100-100001978WOF |
| Product ID Tray | 100-000001978 |
| Security | |
| AMD Secure Processor | Yes |
| AMD Platform Secure Boot | Yes |
| Windows Secure Boot | Yes |
| UEFI Secure Boot | Yes |
| Windows Device Guard | Yes |
| Supervisor Mode Execution Prevention (SMEP) | Yes |
| Guest Mode Execution (GMET) Trap | Yes |
| Virtualization-Based Security (VBS) | Yes |
| Windows Secured-Core PC | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) | Yes |
| AMD AVIC (Interrupt Virtualization) | Yes |
| AMD-Vi (I/O MMU Virtualization) | Yes |
| Second Level Address Translation (SLAT) | Yes |
| Advanced Encryption Standard New Instructions (AES-NI) | Yes |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| AMD Shadow Stack | Yes |
