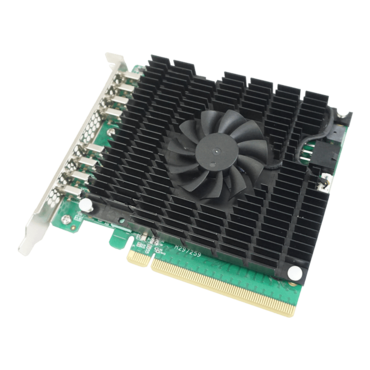

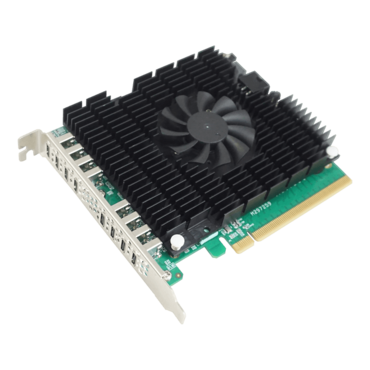

RocketU 1488C, 8 x USB Type-C Connector to PCI Express 3.0 x16 Add-On Card
Quantity:
- SKU: 14779970
- Manufacturer: HIGHPOINT
- MPN: RU1488C
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$328.42
- Available with 1x to 8x Dedicated USB Type-C 3.2 20Gb/s Ports
- Dedicated PCIe 3.0 x16 Host Interface
- True Alternative to Thunderbolt™3 Connectivity
- Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications
- Universal Type-C connectivity support any industry-standard USB device or peripheral
- Dedicated 20Gb/s transfer bandwidth per USB port
- Driverless Installation: Native xHCI Support
| Model | RocketU 1488C |
| Host Bus Interface | 16-lane, 8 GT/s PCI Express 3.0 Compliant |
| Interface Technology | Supports up to USB 3.2 20Gb/s link speed. Backwards compatible with USB 3.x / 2.0 |
| Supported Standard | xHCI (eXtensible Host Controller Interface); UASP (USB attached SCSI protocol) |
| Operating System Support (Mac compatibility) | Not supported |
| Operating System Support (Windows compatibility) | Windows 11,10,8.1, Windows Server 2022, 2016, 2012, 2008 (64-bit editions), Compatible with PCIe slots |
| Operating System Support (Linux compatibility) | Linux kernel 3.10.0 and later, Compatible with PCIe slots |
| Operating System Support (VMware ESXi compatibility) | Yes |
| Thunderbolt PCIe Expansion System Compatibility | N/A |
| Number of Channel / Port | 8 |
| Port Type | USB Vertical Type-C |
| Data Transfer Rates | 20Gb/s per port |
| Number of Devices | 8 x USB 3.x / 2.0 / 1.x compatible devices |
| USB port Amperage | 1.5A output per port |
| Bus Powered Peripherals | Up to 7.5W per port for device operation or charging |
| External Power Support | Yes (Use 6pin PCIe Power Connector) |
| USB Port Sharing | Dedicated (Not Shared): Each USB Port has a dedicated controller |
| Form Factor | Full Height |
| Cooling system | Full-Length Anodized Aluminum heat sink with fan |
| Dimensions | 5.09" W x 4.36" H x0.79" D |
| Weight | 0.73 lbs. |
| Warranty | 2 Years |
| Compliance Certification | CE, FCC, RoHS, REACH, WEEE |
| Storage Features | |
| Bootable Drive support | Yes (Linux) |
| Drive hotplug support | Yes |
| Operating Environment | |
| Work Temp | 5°C ~ 45°C |
| Storage Temp | 40°C ~ 65°C |
| Operating Voltage | PCI-e: 12V, 3.3V |
| Power | Typical: 25.98W (card only) |
| MTBF (Mean Time Before Failure) | 920,585 Hours |
| Kit Contents | |
| Model | RocketU 1488C |
| Controller card | 1x Controller card |
| Quick Installation Guide | 1x Quick Installation Guide |
| Low Profile Bracket | N/A |
