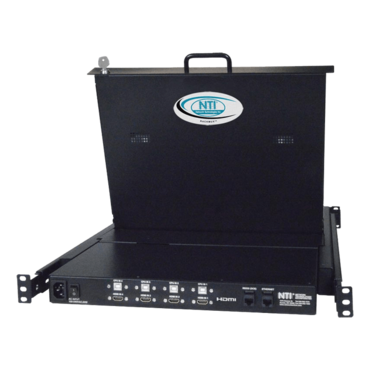

Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

SKU: 12803298
Manufacturer: NTI
MPN: rackmux-d17hr-n-susbhd4
Availability: TEMPORARILY OUT OF STOCK

Price

$3,040.60

$98.10/mo* with

Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

Available with forward-folding 17.1 inch Active Matrix LCD DVI flat panel monitor

Video Resolution: 1920x1200

Integrated HDMI multiviewer and USB KVM switch

Power	110 or 220 VAC at 50 or 60 Hz via IEC connector
Dimensions	WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters) Handle adds an additional 1.5" to the depth when monitor is in closed position. Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep. Drawer locks into place when open to prevent it from sliding in and out of the rack. Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals	CE, RoHS TAA compliant
Environmental	Operating temperature: 32 to 104°F (0 to 40°C). Storage temperature: -4 to 140°F (-20 to 60°C). Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty	Two years
Package Includes	KVM Drawer IEC Power Cord, country-specific DB9 female to RJ45 female adapter 5-ft CAT5 patch cable CD with manual and drawer installation manual Single-person installation mounting kit
