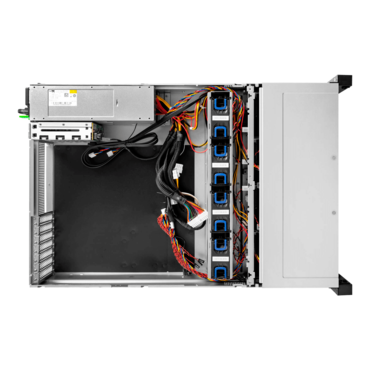

RS216-07-CR800.OL.D, 8x 3.5"/2.5" External Bays, 2x 2.5" Rear External Bays, 800W CRPS PSU, EEB, Black/Grey, 2U Chassis - TAA Compliant
Quantity:
- SKU: 18607272
- Manufacturer: InWin
- MPN: RS216-07-CR800.OL.D
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,371.14
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay |

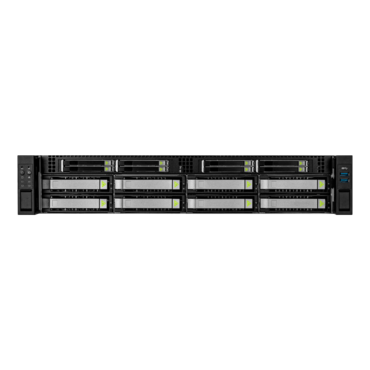

• Top layer: maximum supports external 2.5" hot-swap trays (15mm) x 4 or 2.5" hot-swap trays (7mm) x 8 • Bottom layer: external 3.5"/2.5" hot-swap trays x 8 • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
| Power Supply |
Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4/LED, system LED, HDD LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW/ID LED, USB 3.0 x 2 |
| Backplane- Top Layer Type 1 |
• Host: OCuLink (SFF-8611) x 3, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 2 (2.5" 15mm) • Backplane kits pre-installed x 2pcs with 2-drive capacity of each |
| Backplane- Top Layer Type 2 |
• Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 4 (2.5" 7mm) • Backplane kits pre-installed x 2pcs with 4-drive capacity of each |
| Backplane- Bottom Layer |
• Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm) • Backplanes pre-installed x 2pcs |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |

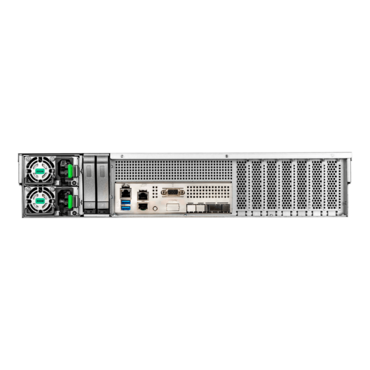

| Expansion Slot | Low-Profile PCIe slots x 7 |
| Material |
• Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) |
660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 905 x 610 x 228mm |
| Weight (Chassis Only) |
• Net weight:16.14kg • Gross weight:19.60kg |
| Cubic Feet | 4.44 |
| Container Information |
Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40' HQ: 378pcs |
|
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications. * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications. |
|
