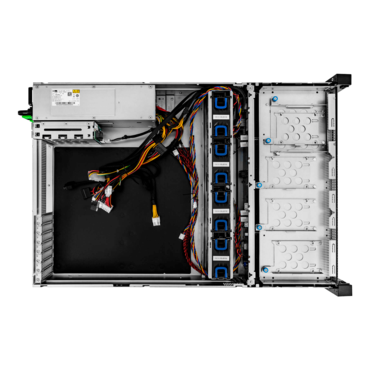

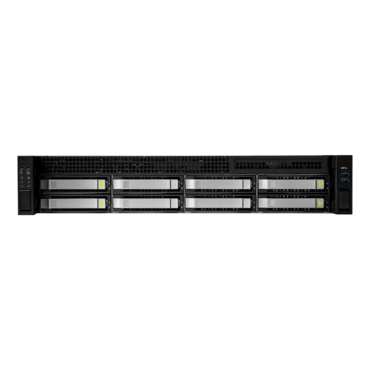

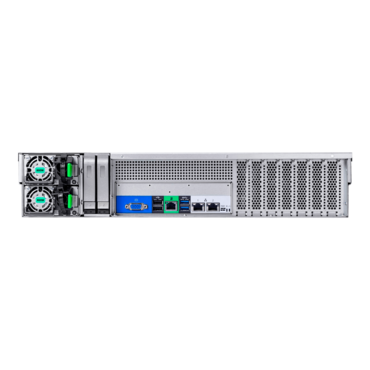

RS208-07-CR800.OL.R, 1x Slim ODD, 8x 3.5"/2.5" External Bays, 3x 2.5" Internal Bays, 2x 2.5" Rear External Bays, No PSU, EEB, Black/Grey, 2U Chassis - TAA Compliant
Quantity:
- SKU: 18604512
- Manufacturer: InWin
- MPN: RS208-07-CR800.OL.R
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,202.70
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay |
• External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) • Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
| Power Supply |
Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W /800W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB3.0 x 2 |
| Backplane Type-1 |
• Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 |
| Backplane Type-2 |
• Host: Mini-SAS HD (SFF-8643) x 2 • HDD: SAS/SATA x 8 |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material |
• Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) |
660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 905 x 610 x 228mm |
| Weight (Chassis Only) |
• Net weight: 13.26kg • Gross weight: 16.56kg |
| Cubic Feet | 4.44 |
| Container Information |
Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40'HQ: 378pcs |
|
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications. * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications. |
|
