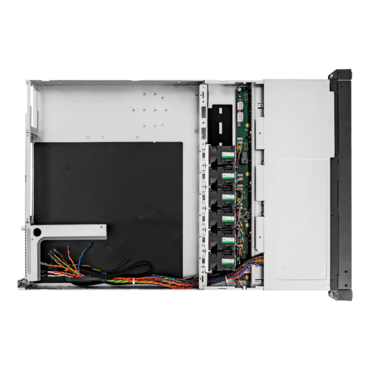

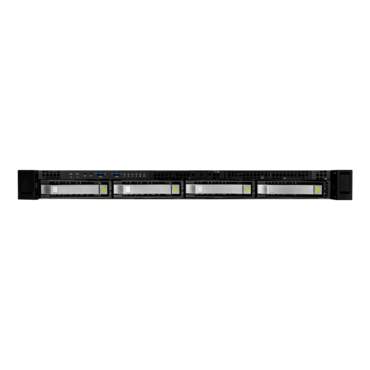

RS104-07-R750.OL.R, 1x Slim ODD, 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 750W PSU, EEB, Black/Grey, 1U Chassis - TAA Compliant
Quantity:
- SKU: 18602872
- Manufacturer: InWin
- MPN: RS104-07-R750.OL.R
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,033.75
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay |
• External: supports slim ODD x 1, 2.5"/3.5" hot-swap trays x 4 • Internal: 2.5" x 2 or x 3 (via slim ODD conversion tray) |
| Power Supply |
Supports: • 750W 1U 1+1 redundant PSU, 80 Plus Platinum |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane Type-1 |
• Host: Mini-SAS HD (SFF-8643) x 1, Slimline (SFF-8654) x 4 • HDD: NVMe/SAS/SATA x 4 |
| Backplane Type-2 |
• Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: NVMe/SAS/SATA x 4 |
| Backplane Type-3 |
• Host: Mini-SAS HD (SFF-8643) x 1 • HDD: SAS/SATA x 4 |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material |
• Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) |
676 x 438 x 43.5mm (26.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 820 x 590 x 175mm |
| Weight (Chassis Only) |
• Net weight: 7.74kg • Gross weight: 10.53kg |
| Cubic Feet | 2.99 |
| Container Information |
Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40' HQ: 552pcs |
|
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications. * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications. |
|
