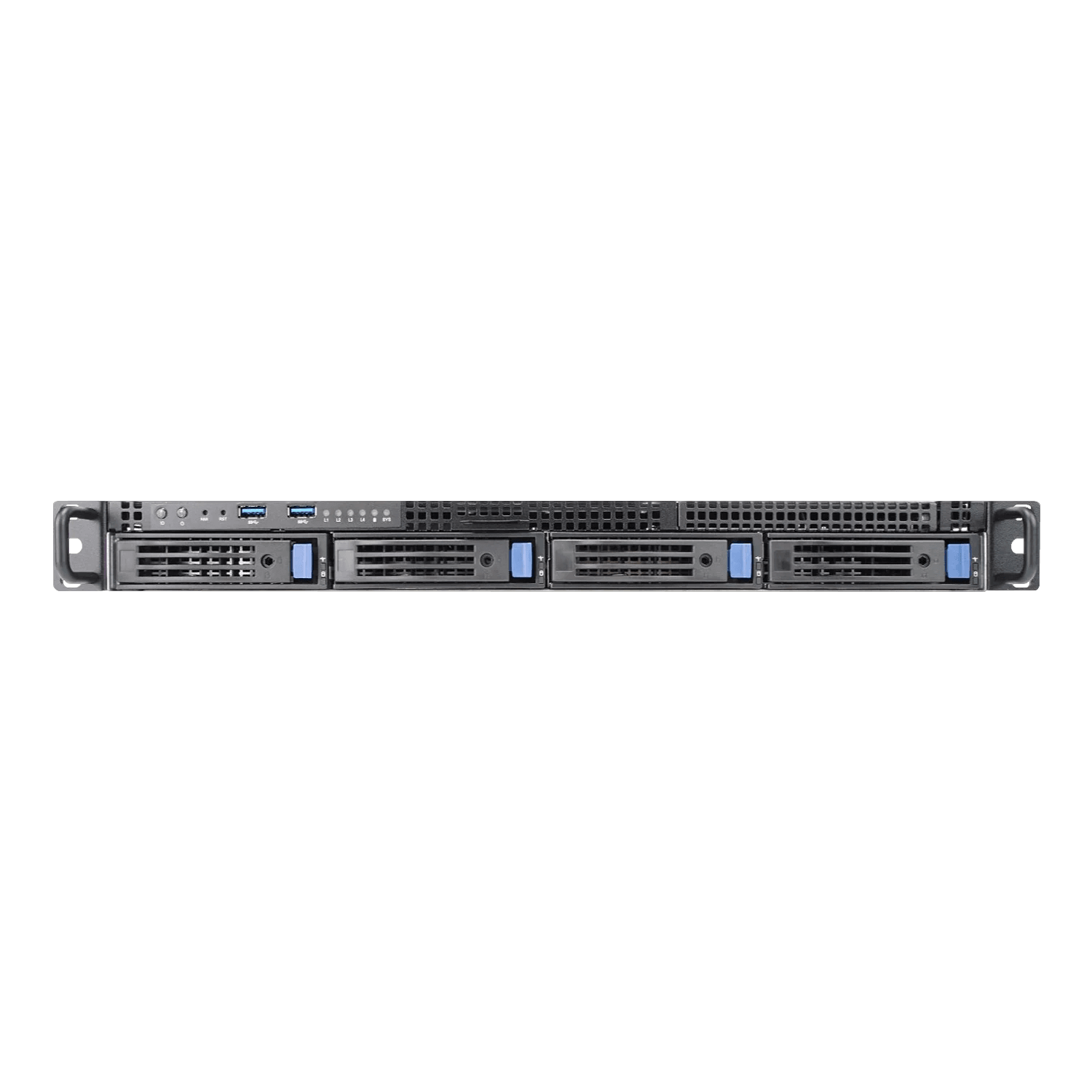

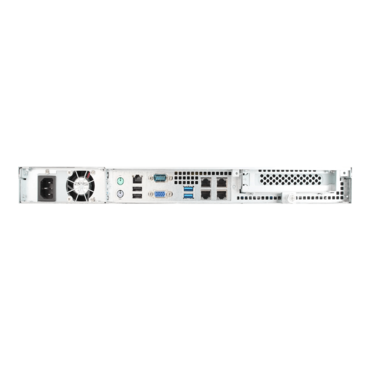

RS104-02SN-S500.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 500W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
Quantity:
- SKU: 18515990
- Manufacturer: InWin
- MPN: RS104-02SN-S500.H(D)
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$451.65
- 1U Rackmount Supports ATX Motherboards
- 4 x 3.5"/2.5" Hotswap Bays, 2 x 2.5" Internal
- 6 x 40x28mm 14500 RPM Cooling Fans
- Full Height PCIe slot via Riser Card and Bracket
- Includes 500W 80 Plus Gold Power Supply
| Motherboard Support | ATX, 12" x 10" |
| Drive Support |
4 x 3.5"/2.5" Hotswap Drive Bays 1 x Slim ODD 2 x 2.5" Internal Fixed Drive Bays |
| Backplane |
Type: Passive Host Interface: SAS/SATA Connector: Mini-SAS HD (1 x SFF-8643) |
| Cooling | 6 x 40x28mm 14500RPM PWM Case Fans |
| Expansion | 1 x PCIe slot (via Riser Card and Bracket) |
| Front Panel |
1 x Power Button 1 x Reset Button 1 x ID Switch 1 x NMI 2 x USB 3.0 5 x Status LED (Power, HDD, LAN, System Status) |
| Power Supply | 500W 80 Plus Gold Power Supply |
| Case Dimensions |
537.55 x 430 x 43.3mm 21.16" x 16.93" x 1.70" (in inches) |
| Mounting |
1U Rackmount Optional 28" toolless & Ball bearing Slide Rails |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
