Home › Components › Core Components › Server Chassis › 1U Rack Server Chassis

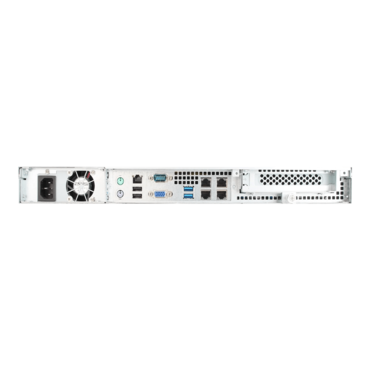

RS104-02SN-S315.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
RS104-02SN-S315.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
RS104-02SN-S315.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
RS104-02SN-S315.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant

RS104-02SN-S315.H(D), 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant

  • SKU: 18526703
  • Manufacturer: InWin
  • MPN: RS104-02SN-S315.H(D)
  • Availability: TEMPORARILY OUT OF STOCK
Price
$377.63
Quantity:
IW-RS104-02SN
1U Short Depth Storage Server
  • Supports 6Gb/s SATA or 12Gb/s Mini-SAS HD backplane
  • External 2.5"/3.5" x 4 hot-swap HDD trays with lock supported
  • Internal 2.5" HDD x 2 or x 3 (via slim ODD conversion tray)
  • Supports flex, single or 1+1 redundant power supply
  • Easy-swap 40 x 28mm PWM fans with anti-vibration mechanism
  • Built-in info-tag for systems easy management
  • Customizes the I/O Shield back plate for specific motherboards with SGCC material
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 10")
Drive Bay External:
Support slim ODD x 1 Supports 2.5"/3.5" hot-swap trays x 4
Internal: 2.5" x 2 or x 3 (via slim ODD conversion tray)
Power Supply Supports:
Flex ATX PSU, 80 Plus Gold 400W 1U single PSU,
80 Plus Gold 500W 1U 1+1 redundant PSU,
80 Plus Gold 300W
Indicator Power Status, HDD, LANs, System Fail Activity LEDs
Front Control Panel Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2
Backplane Type-1 Host: 6Gb/s SATA x 4 HDD: SAS/SATA x 4
Backplane Type-2 Host: 12Gb/s Mini-SAS HD (SFF-8643) x 1 HDD: SAS/SATA x 4
Cooling Fan 40 x 28 mm PWM easy-swap fans x 6, 14500RPM (pre-installed x 4)
Expansion Slot Full-height PCIe slot x 1 (via riser card and bracket)
Material Material: SGCC
Thickness: 1.0mm
Rail Kit Supports 28" tool-less and ball-bearing slide rails 12Gb/s
12Gb/s Backplane Specifications Backplane-2 Mini-SAS HD Backplane
Backplane Type  Passive
Host Interface Mini-SAS HD (SFF-8643) x 1
HDD Interface SAS/SATA x 4
Item Dimension (L"xW"xH") 27 x 23 x 6
Weight 27 lbs
Warranty Information 2 years
