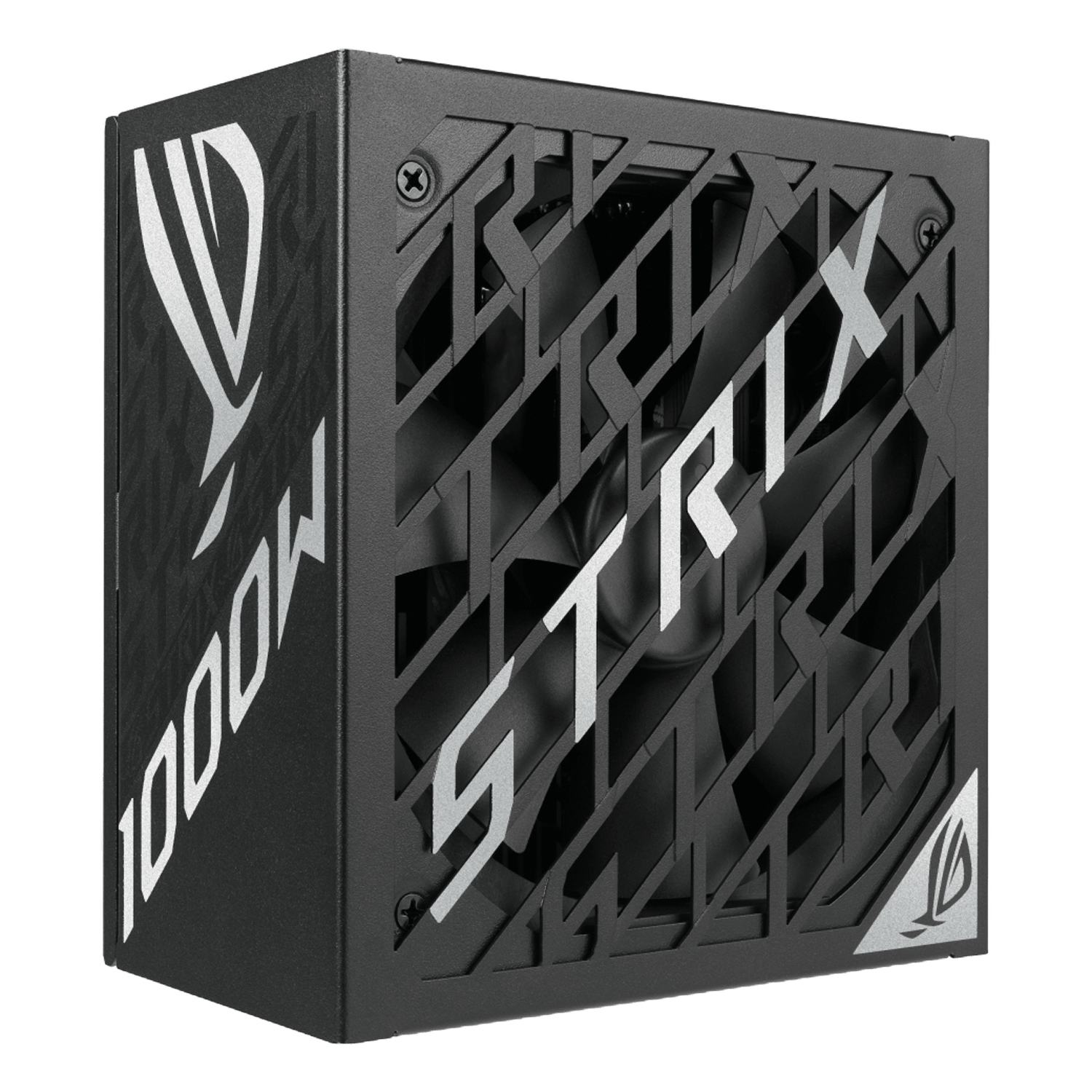

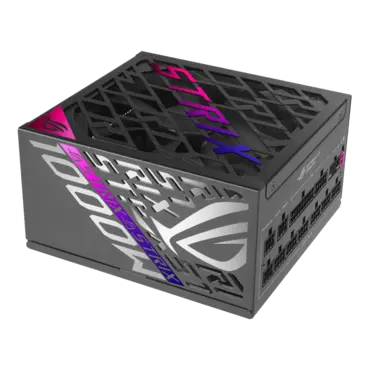

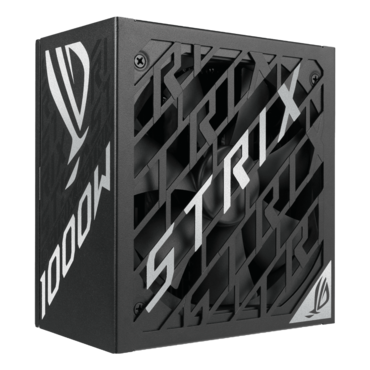

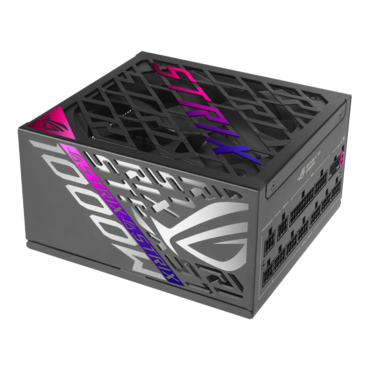

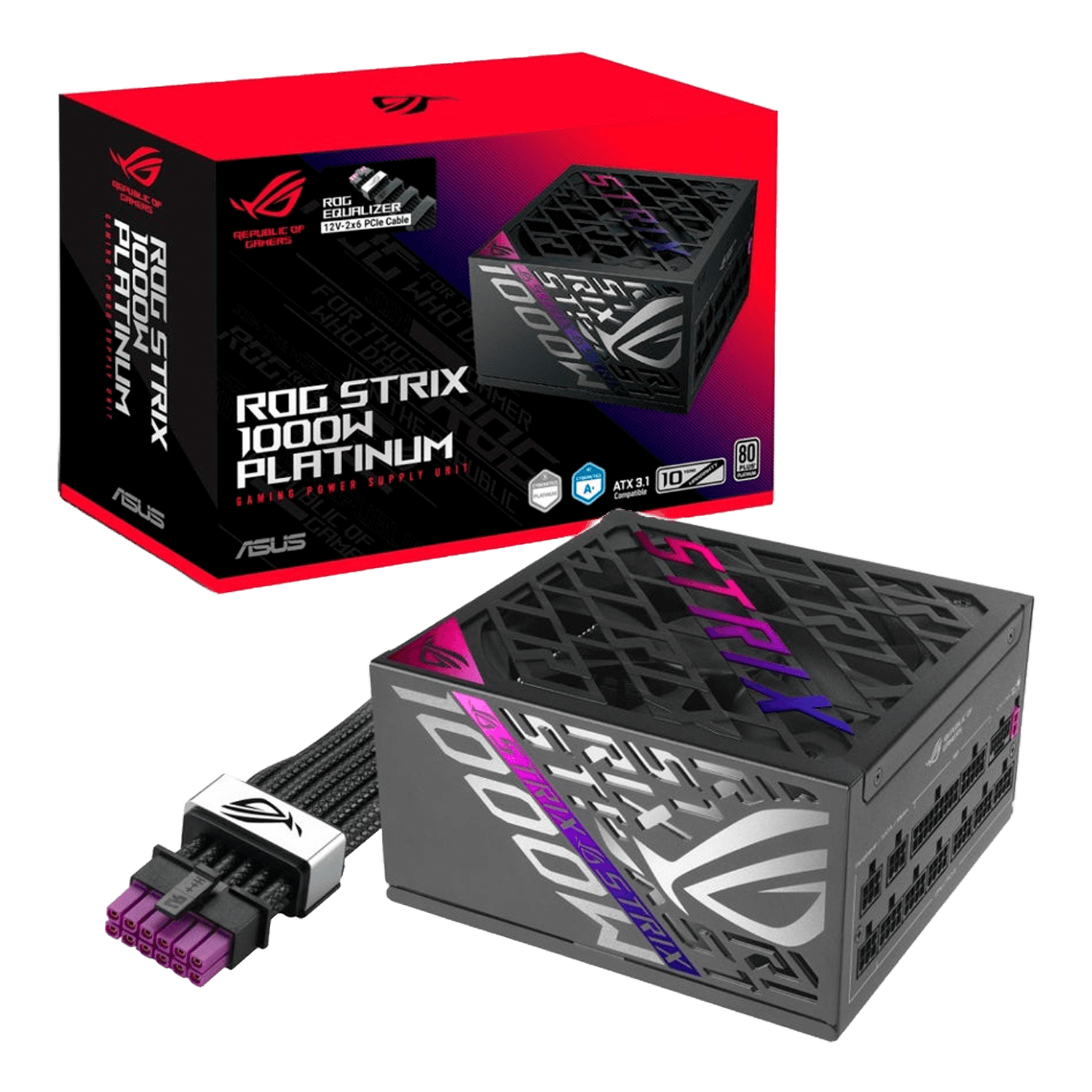

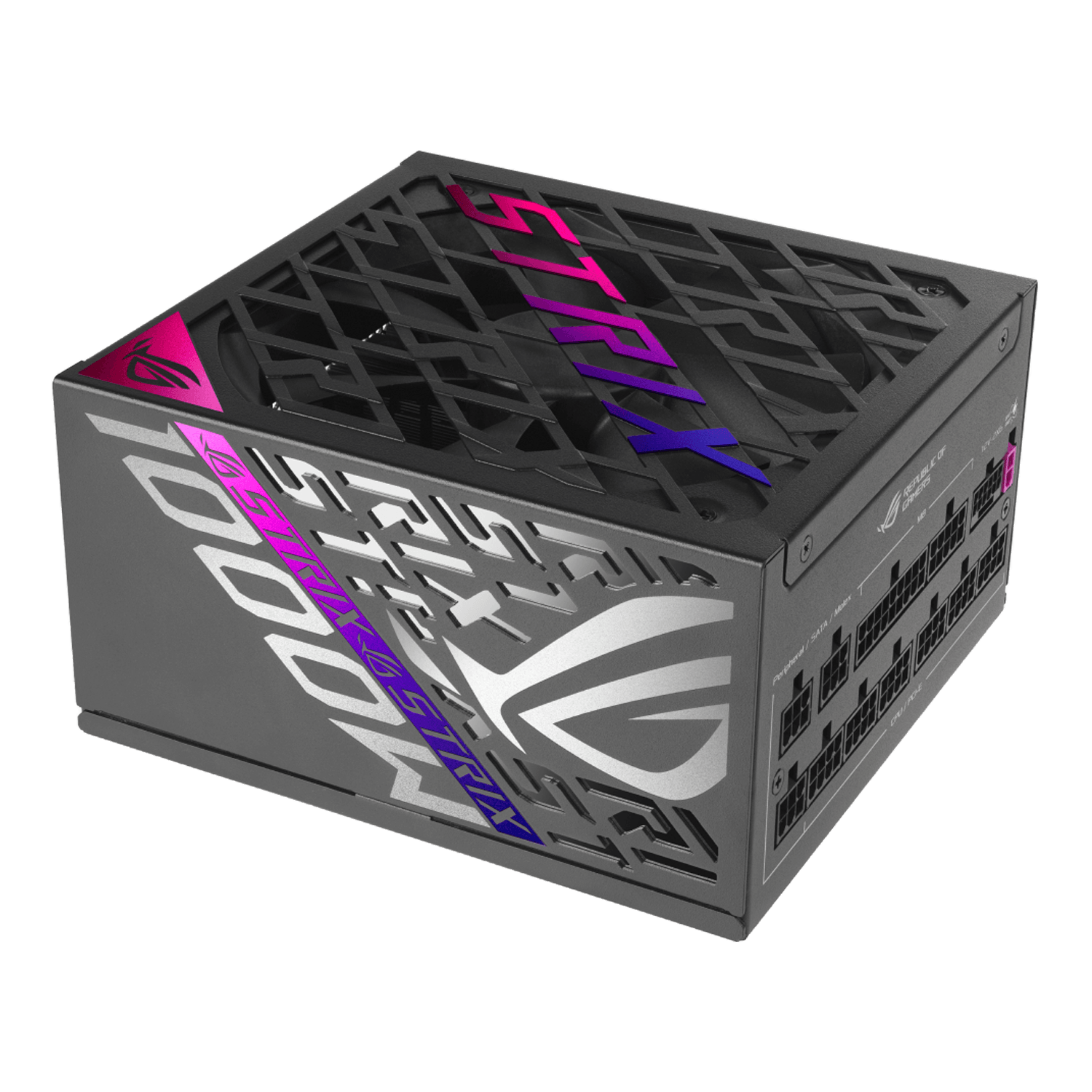

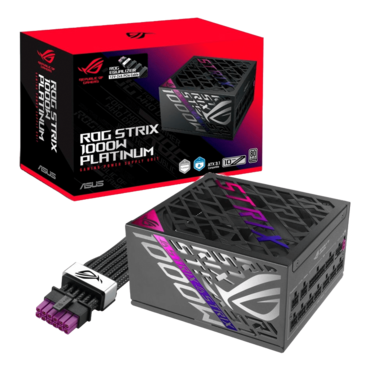

ROG-STRIX-1000P-GAMING-E, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
- SKU: 20265374
- Manufacturer: ASUS
- MPN: ROG-STRIX-1000P-GAMING-E
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- GaN MOSFET: Increases efficiency by up to 30%, with a more organized internal layout for cooler operation.
- Patented GPU-First ROG Intelligent Voltage Stabilizer: Enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
- ROG Equalizer 12V-2x6 PCIe power cable included: Redefines power protection by reducing heat stress and?keep?cable and connector temperatures well to protect the graphics card.?
- 80 PLUS and Cybenetics Platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
- Lambda A+ noise certification: Certified low noise levels, below 20dB.
- ATX 3.1 compatible: ROG Strix Platinum is compliant with the ATX 3.1 standard to provide enhanced voltage and current regulation.

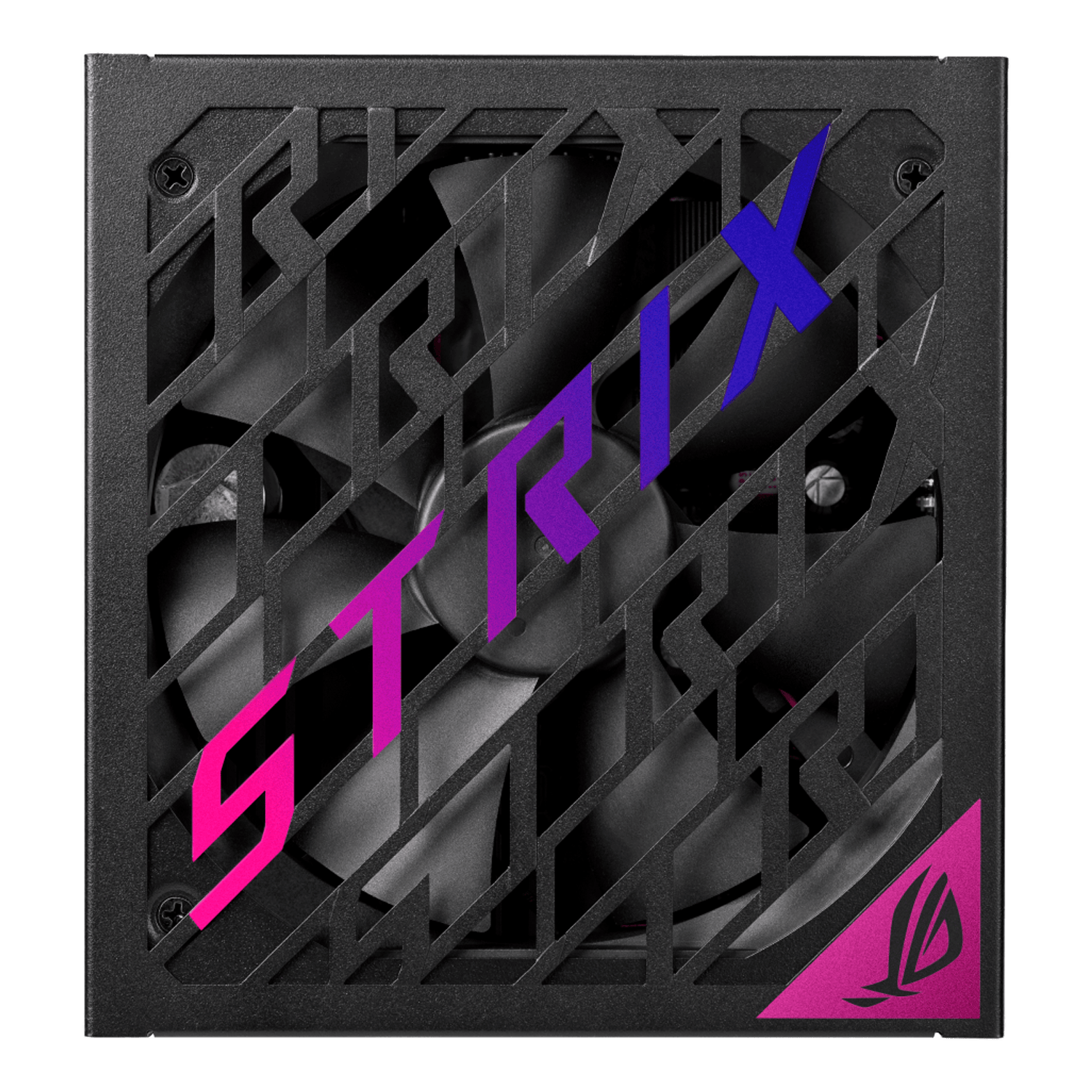

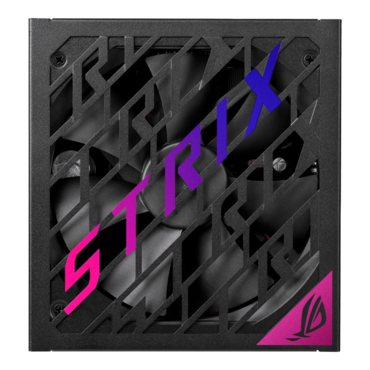

- 0dB technology: Lets you enjoy light gaming in near silence.
- 10-year warranty Long-term peace of mind included.
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| 80 PLUS Efficiency | 80Plus Platinum |
| Cybenetics Efficiency | Platinum (230V) ; Platinum (115V) |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83.3A 0.3A 3A |
| Combined Load | 130W 130W 1000W 3.6W 15W |
| Total Output | 1000W |

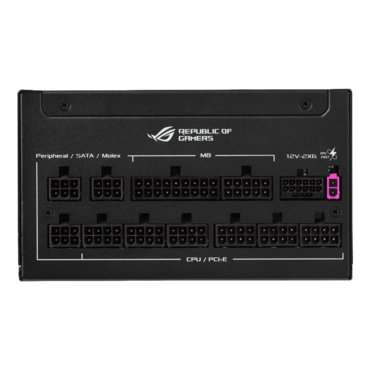

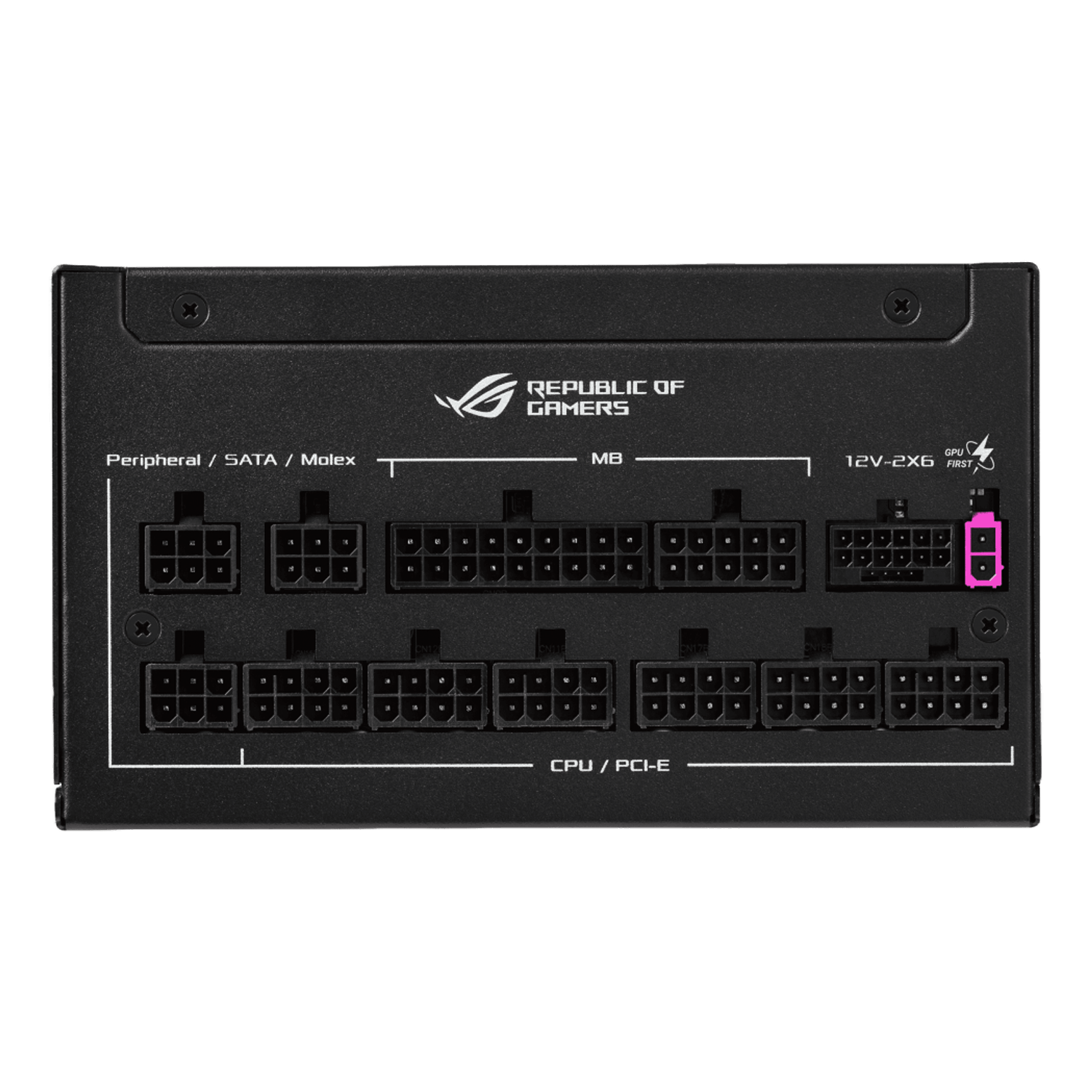

| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x1 (12V-2x6) PCI-E 6+2-pin x 4 SATA x 6 Peripheral x 3 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) PCI-E (8-pin-to-6+2-pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Dimensions | 160 x 150 x 86 mm |
| Weight | 1.81 kg (single PSU) |
| Cybenetics Noise Level Certification | A+ |
| AURA SYNC | No |
| MTBF | >120,000 hrs @ 25°C |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
| Warranty | 10-year |
