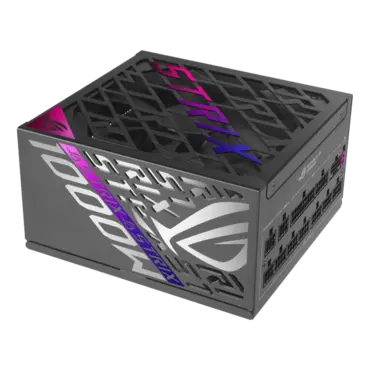

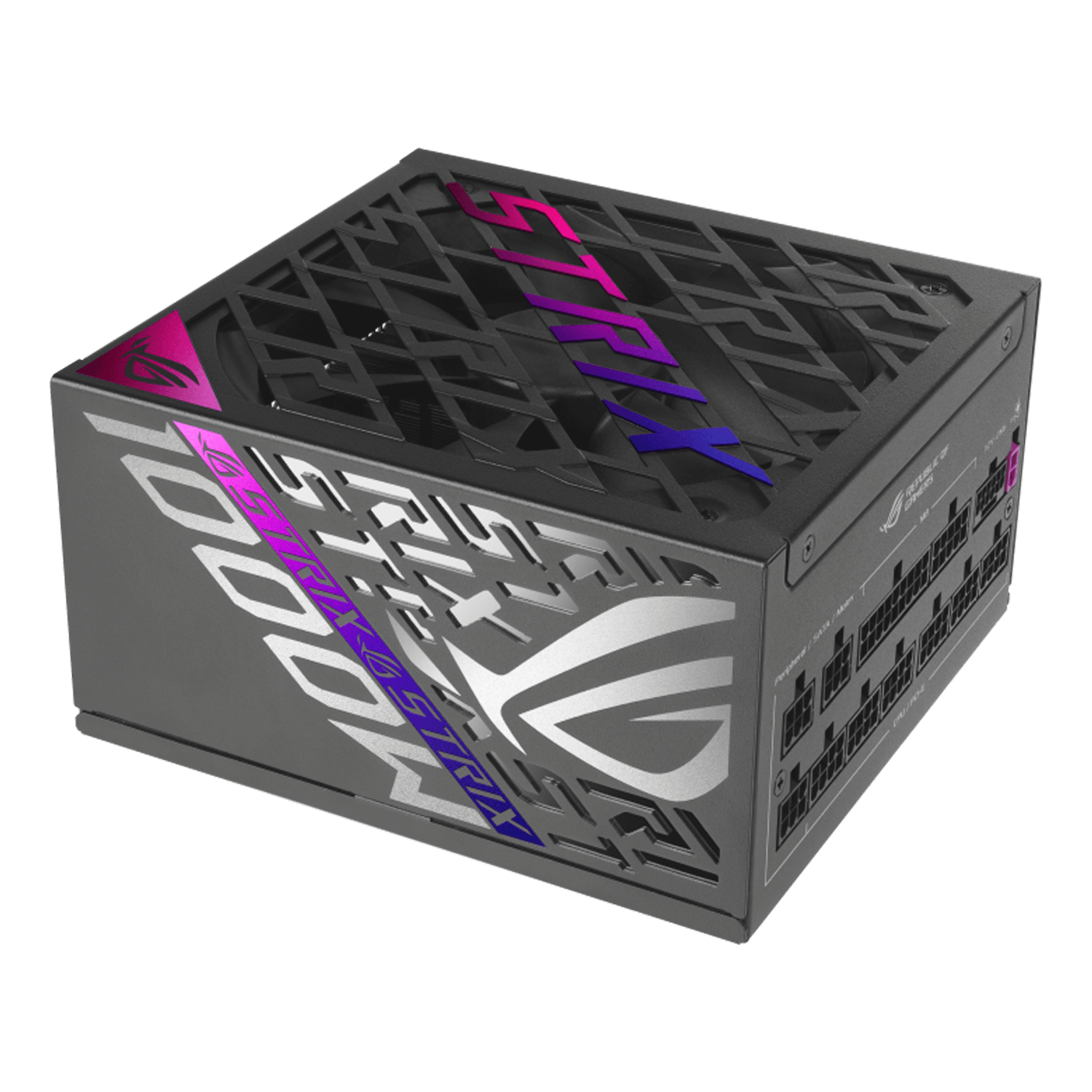

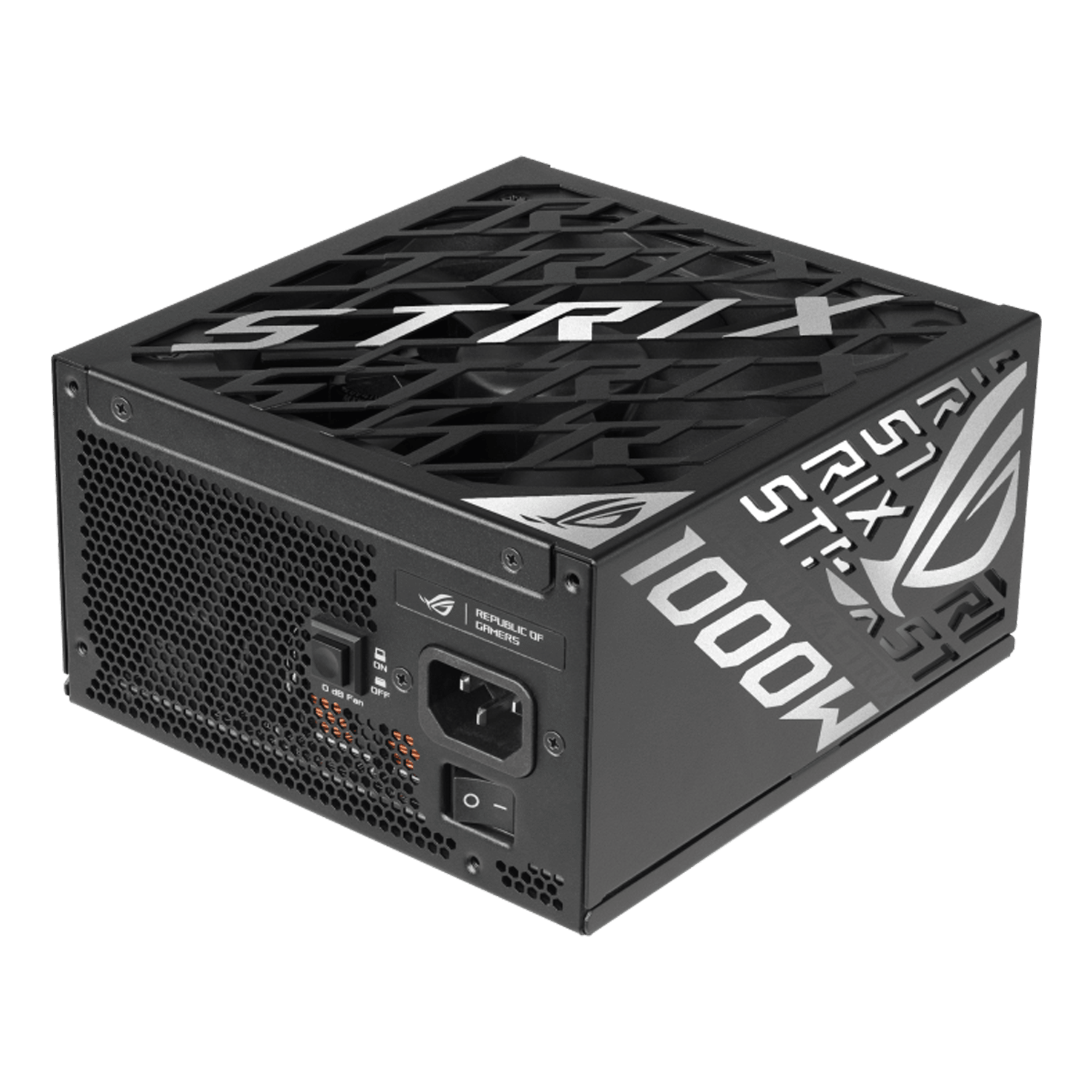

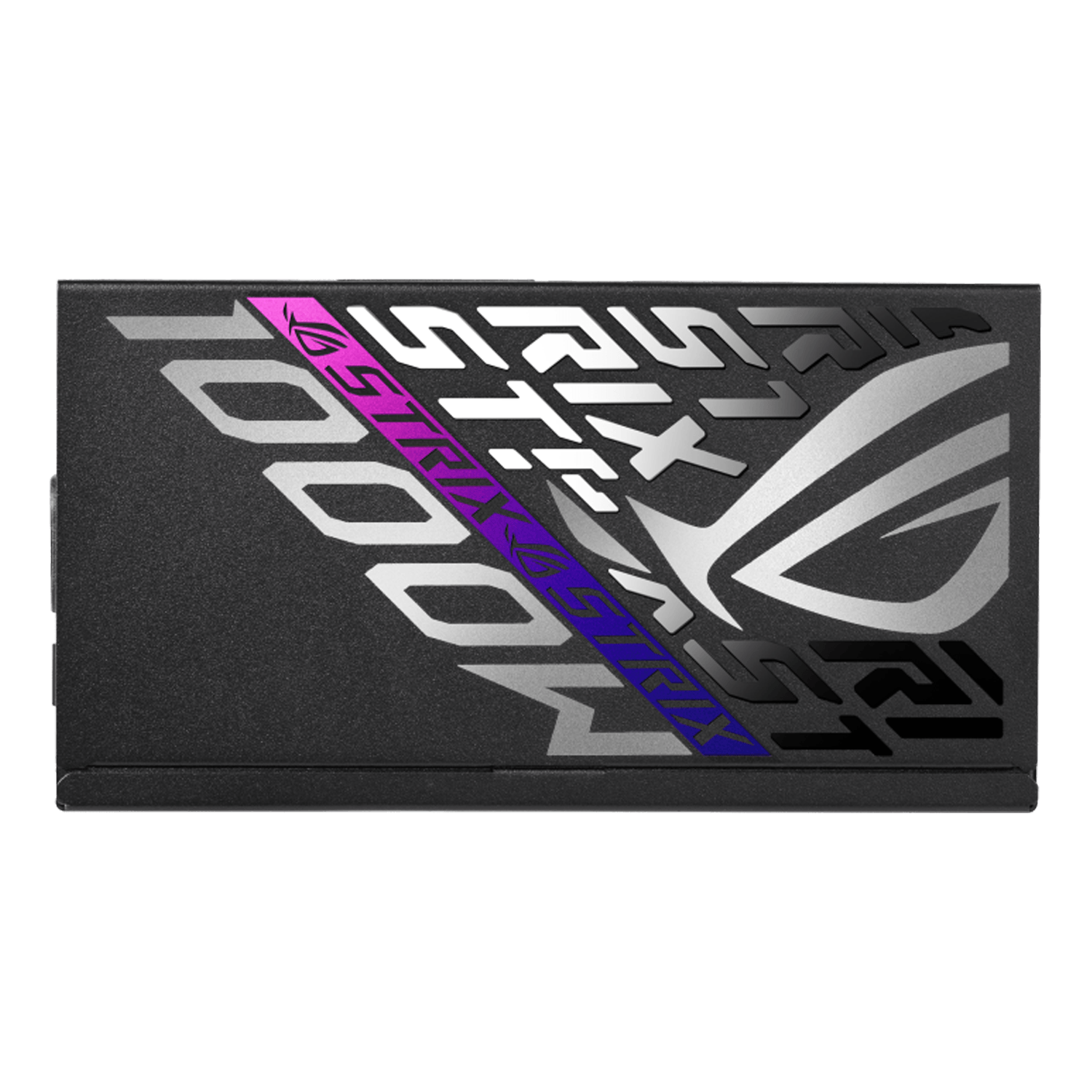

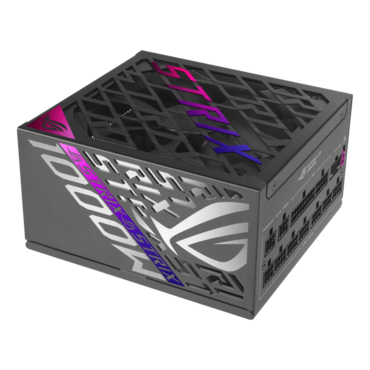

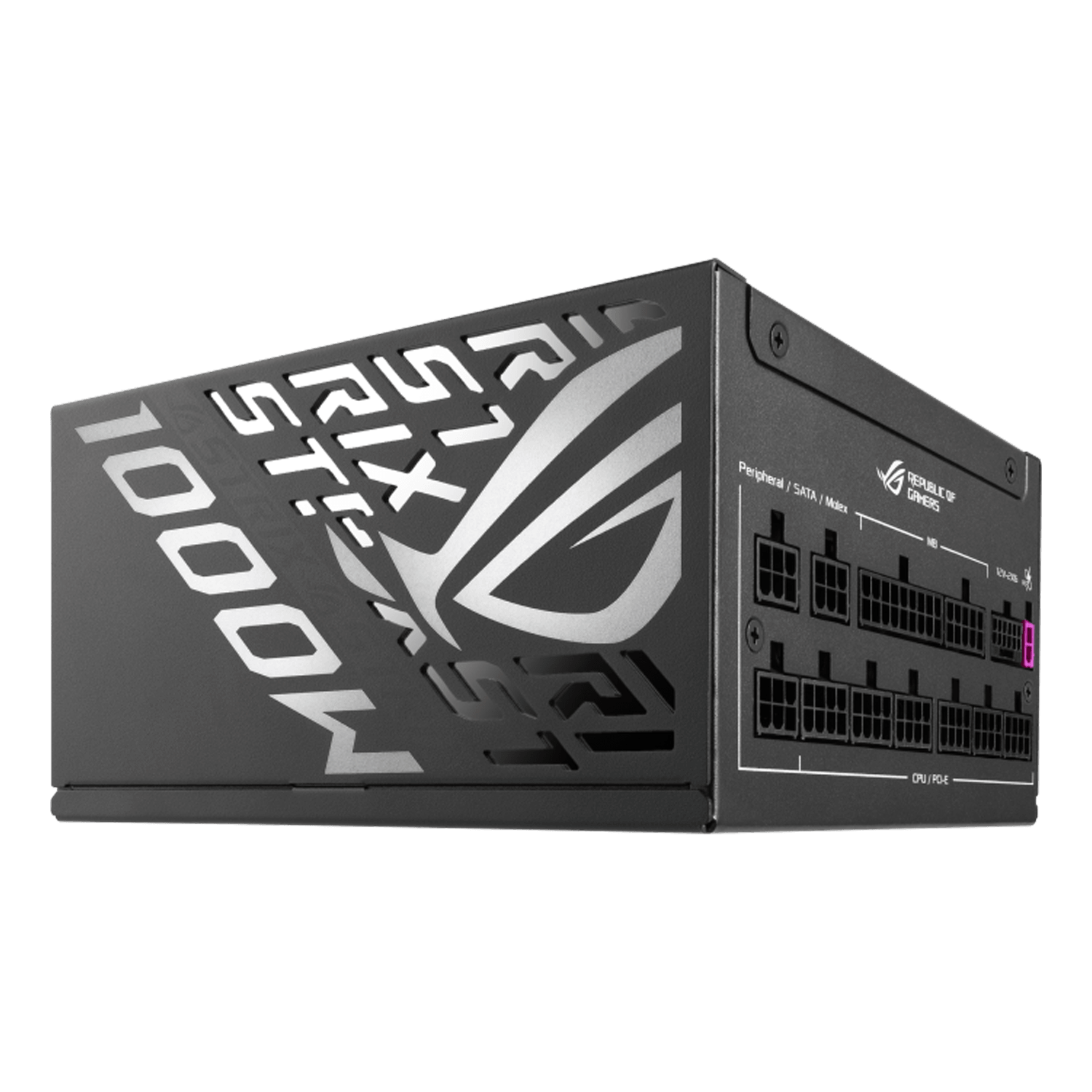

ROG-STRIX-1000P-GAMING, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 18978727
- Manufacturer: ASUS
- MPN: ROG-STRIX-1000P-GAMING
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$237.56
ROG-STRIX-1000P-GAMING, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
Superior Stability. Next-Level Efficiency
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.0 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A, 25A, 83.3A, 0.3A, 3A |
| Combined Load | 130W, 130W, 1000W, 3.6W, 15W |
| Total Output | 1000W |

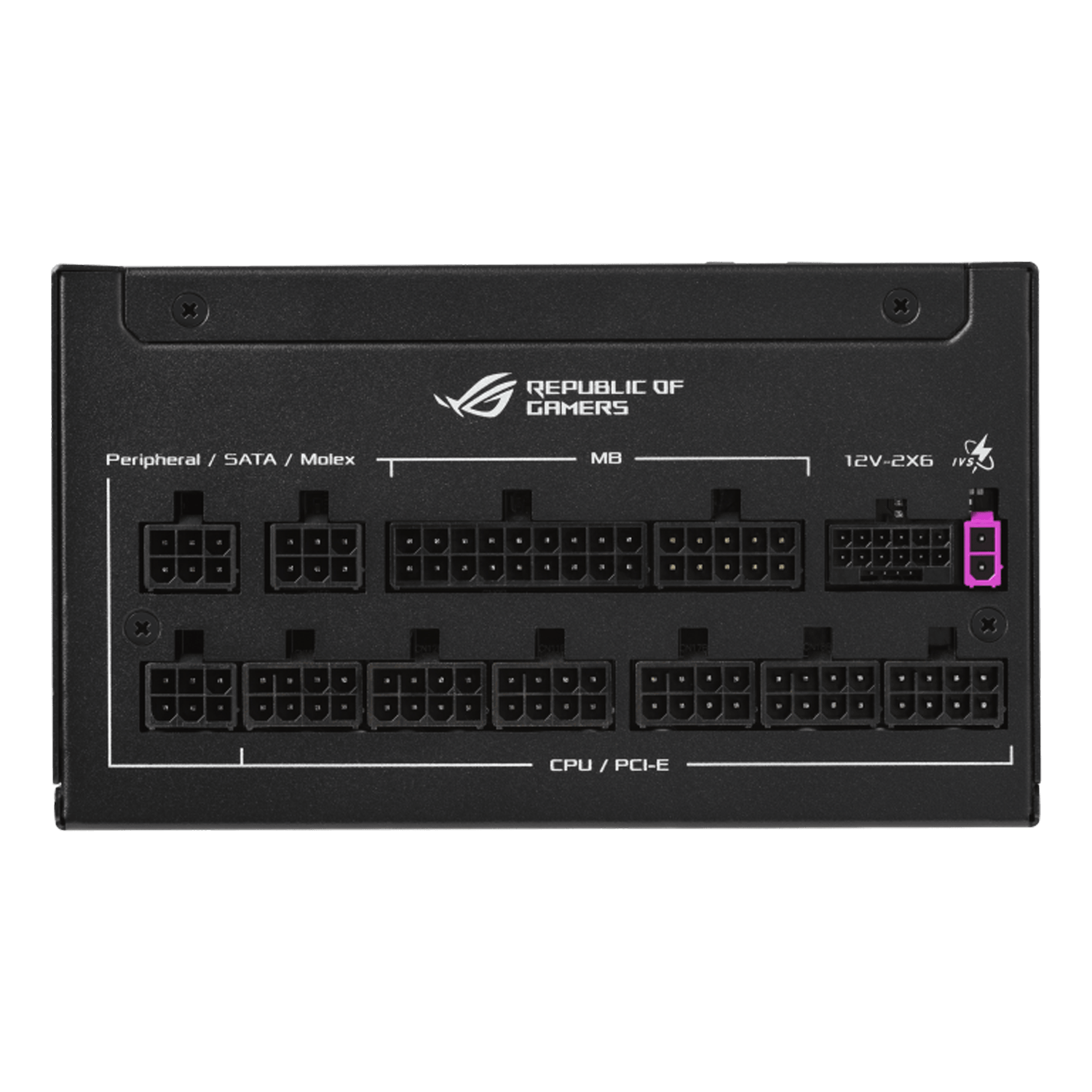

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |

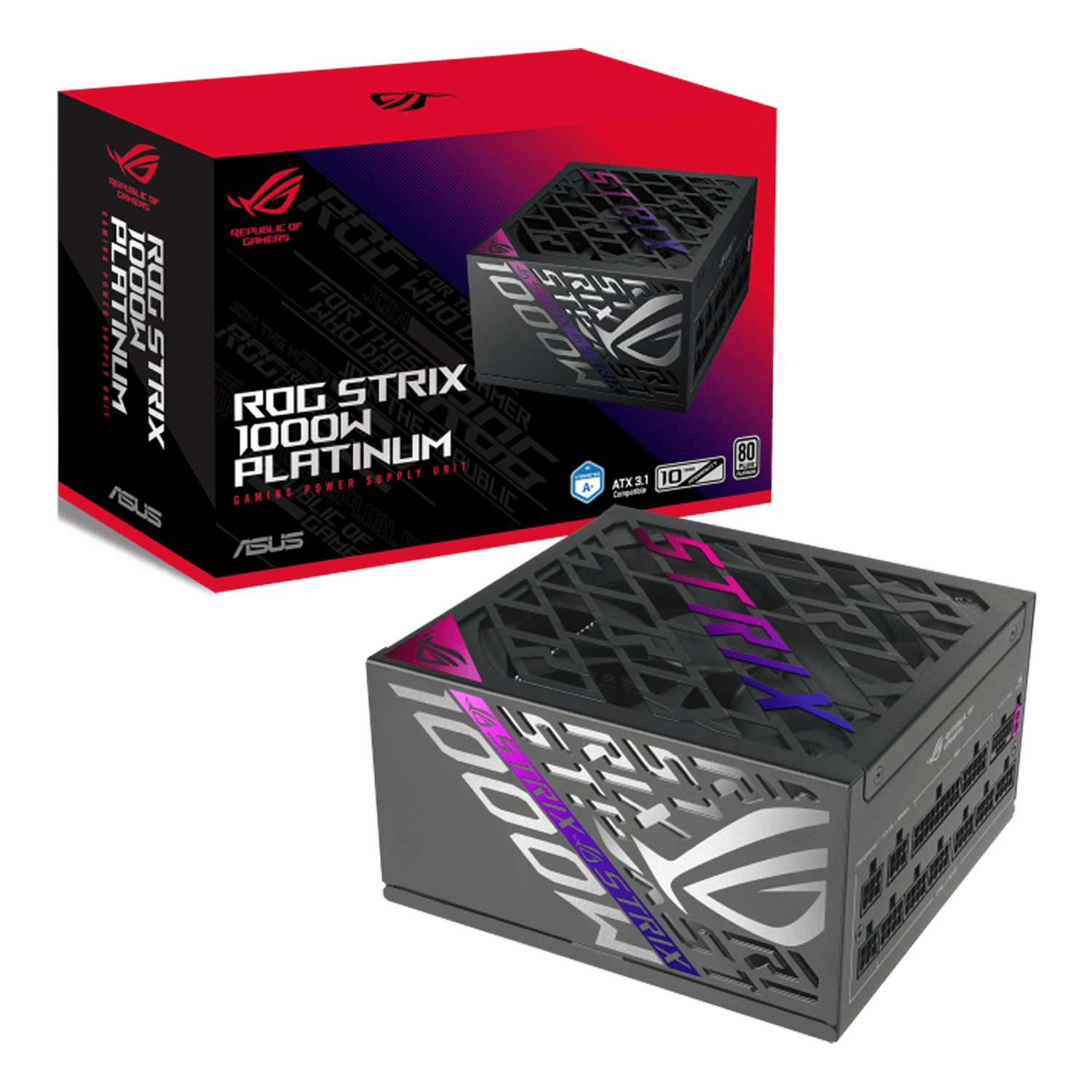

| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 1.81 kg (single PSU) |
| Cybenetics Noise Level Certification | A+ |
| 0dB Technology | Supported – Fan shuts off entirely under low load |

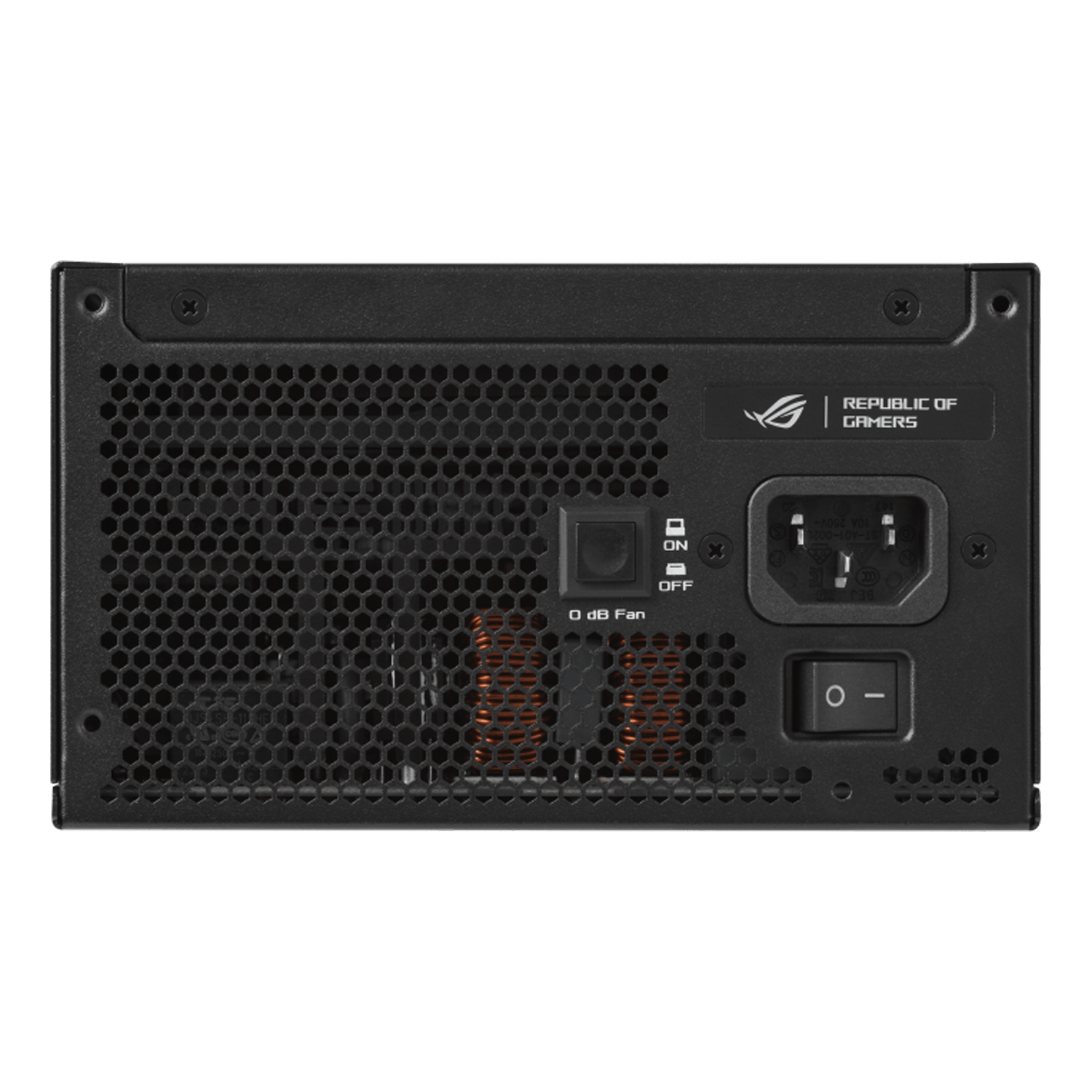

| 0dB Fan Button | Yes – ON: fan spins only at high load OFF: fan spins continuously |
