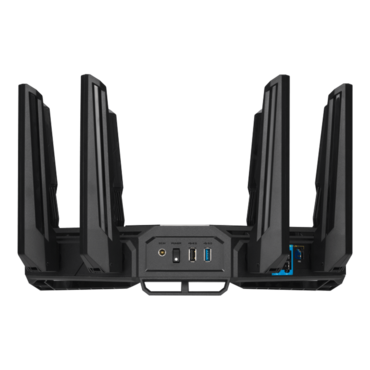

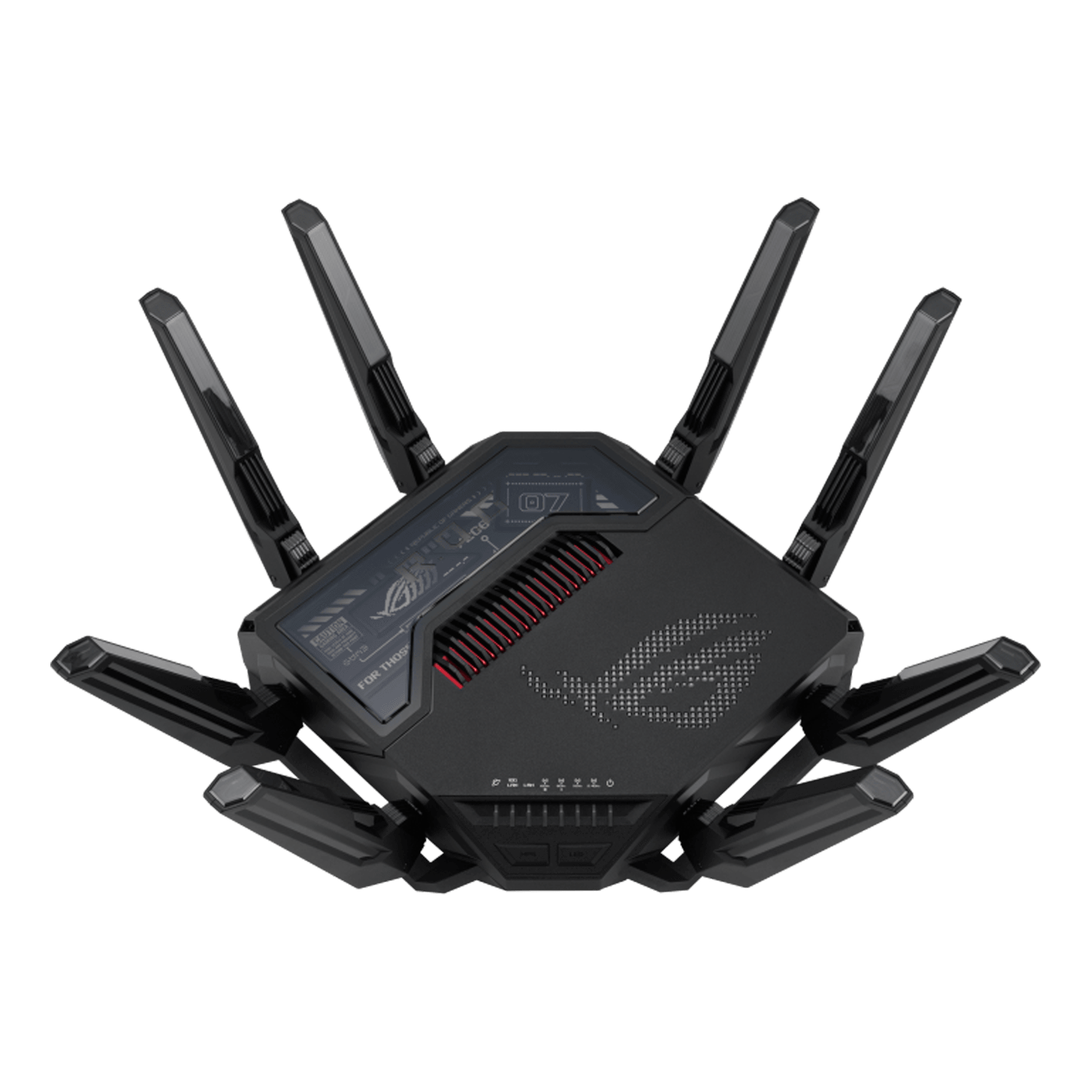

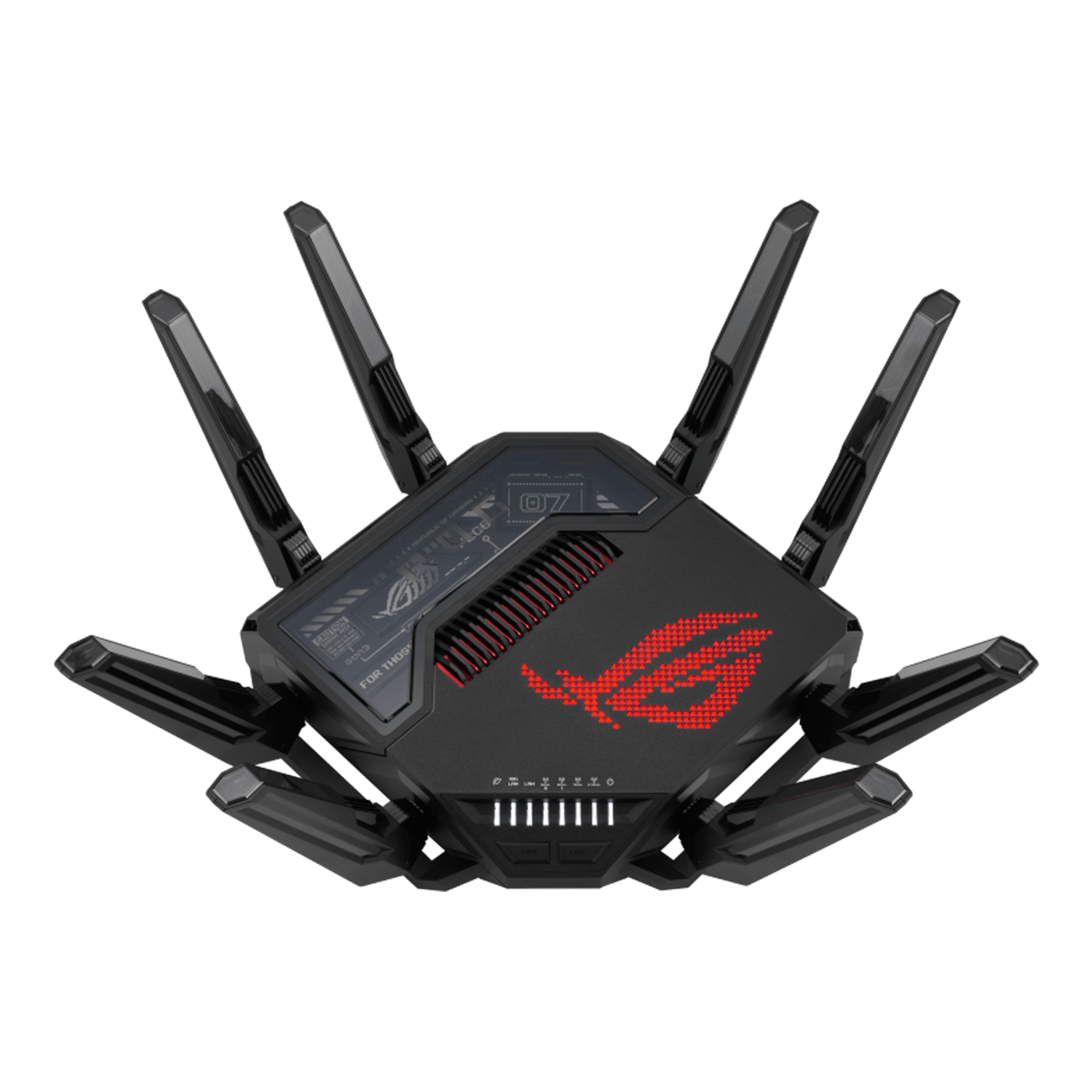

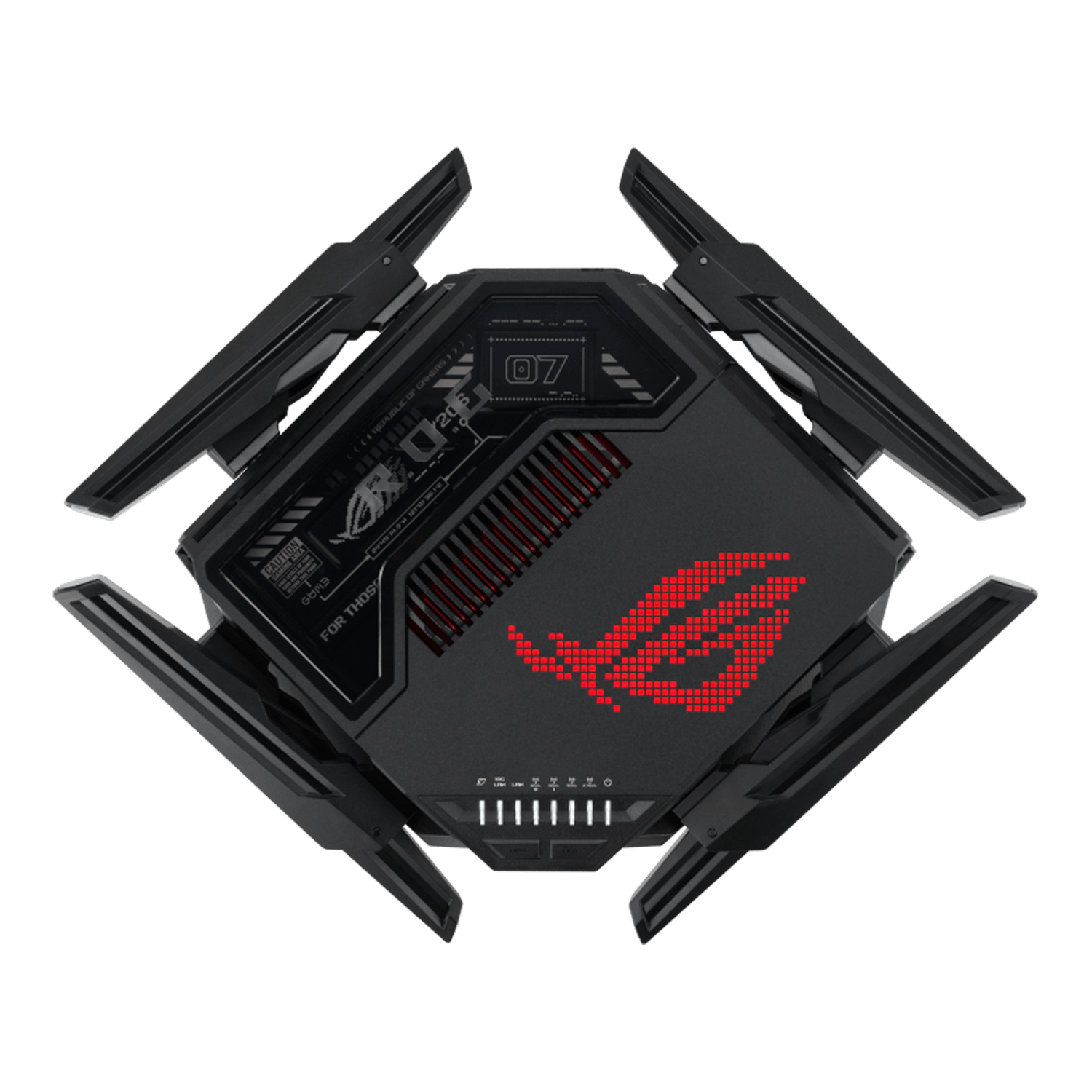

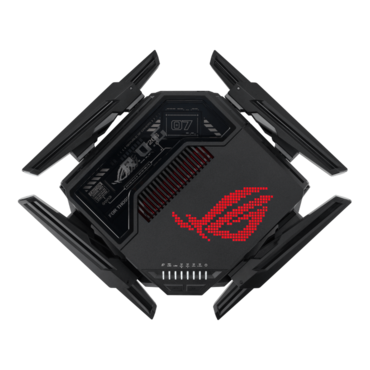

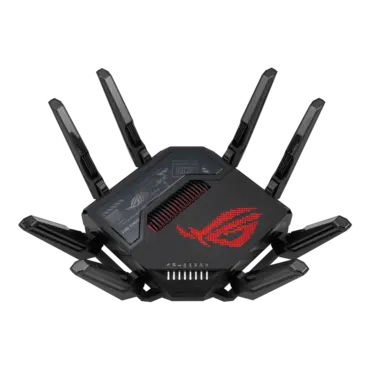

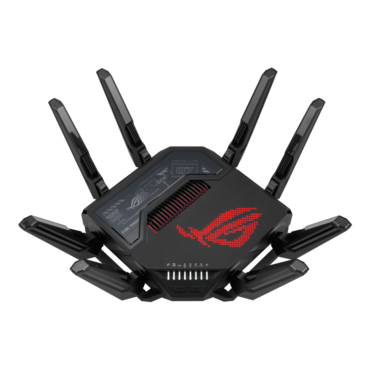

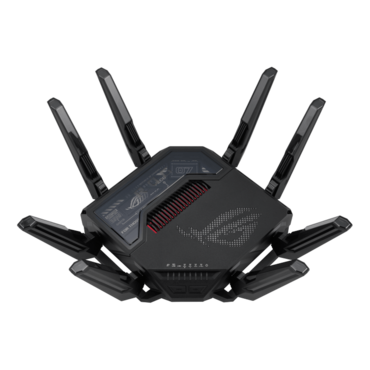

ROG Rapture GT-BE98 Pro, IEEE 802.11be, Quad-Band 2.4GHz / 5GHz / 6GHz-1 / 6GHz-2, 1376 / 5764 / 11529 / 11529 Mbps, 3xRJ45, 1 x USB 3.2/1 x USB 2.0, Wireless Router
- SKU: 17268742
- Manufacturer: ASUS
- MPN: GT-BE98 PRO
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$633.47
- Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 30 Gbps
- Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength
- Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games
- Subscription-free network security?with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
- Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
- AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
| Model | ROG Rapture GT-BE98 Pro |
| Model Name | GT-BE98 PRO |
| Network Standard |
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
|
| Product Segment | BE30000 ultimate BE performance : 1376+5764+11529+11529 Mbps |
| WiFi Data Rate |
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
6G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
|
| Antenna | External antenna x 8 |
| Transmit / Receive |
2.4GHz 4x4
5GHz 4x4
6GHz-1 4x4
6GHz-2 4x4
|
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 2 GB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz / 6 GHz |
| Operating Mode | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| I/O Ports |

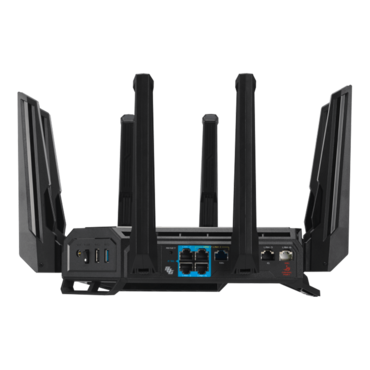

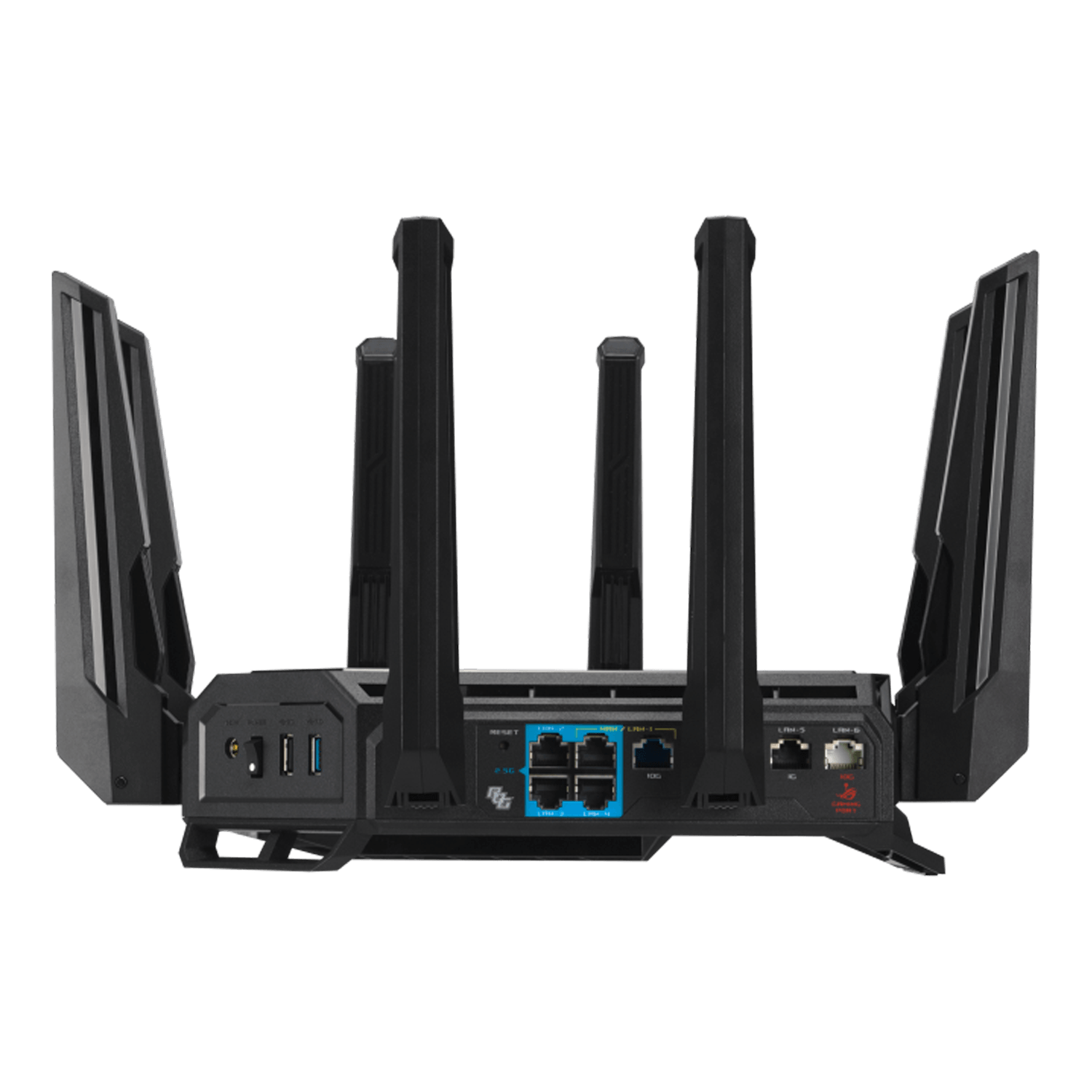

1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0 |
| Buttons | WPS Button, Reset Button, Power Switch, LED control Button |
| LED Indicator |
WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz-2 x1 6GHz-1 x 1 5GHz x 1 2.4GHz x1 Power x1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19.5 V with max. 3.33 A current |
| Package Content |
GT-BE98 Pro quad-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 2000 g |
| Product Dimensions | 350.41 x 350.41 x 220.6 mm |
| AiMesh |
AiMesh
• Primary AiMesh Router
• AiMesh Node
|
| Game |
Game Boost / Acceleration
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming Port
|
| Parental Control |
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
|
| Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
|
| Security |
WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
| AiProtection |
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
|
| VPN |
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
|
| Traffic Control |
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
|
| WAN |
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
| LAN |
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
|
| Wireless |
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
| USB application |
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
| User Interface | Operating system : ASUSWRT |
| Administration |
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
|
