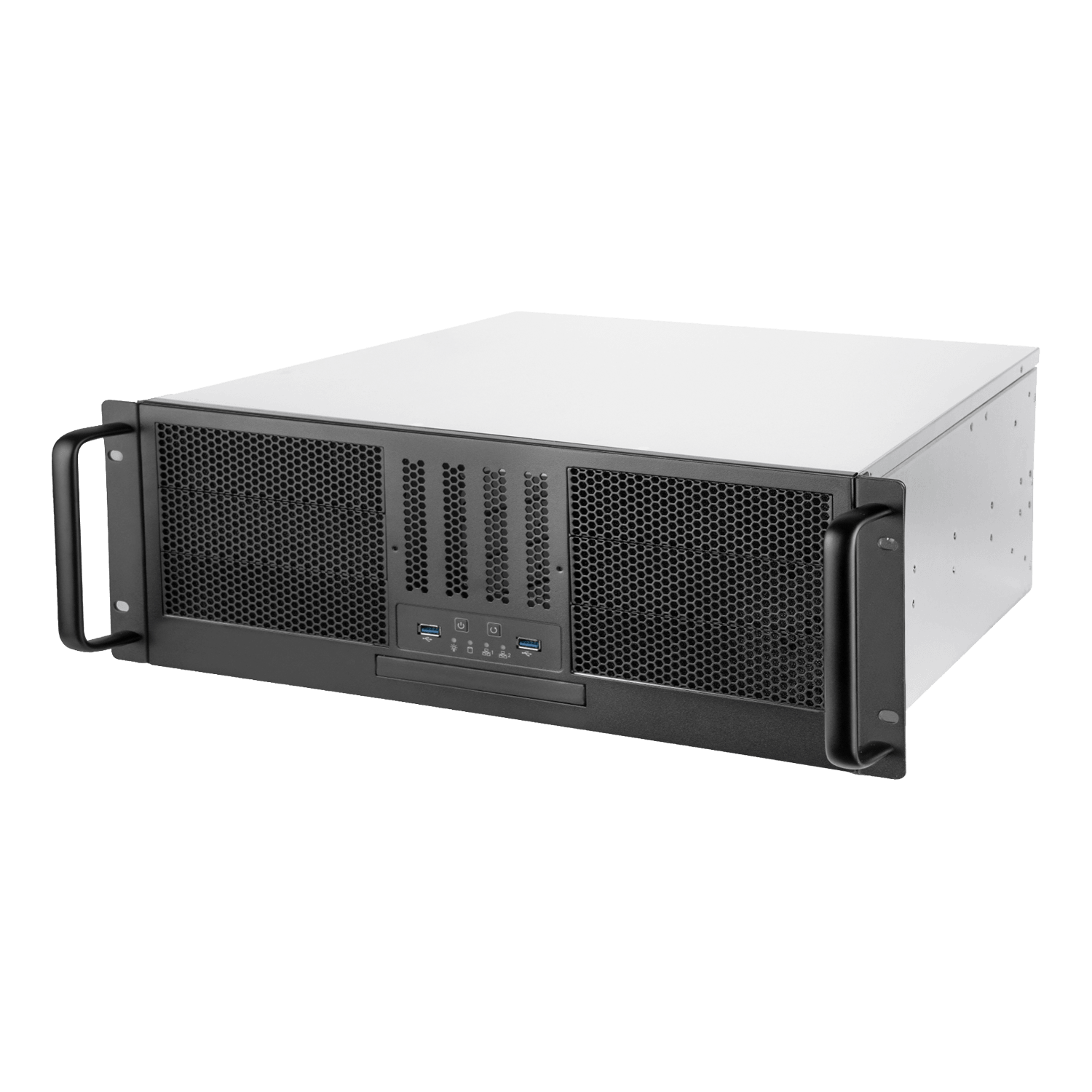

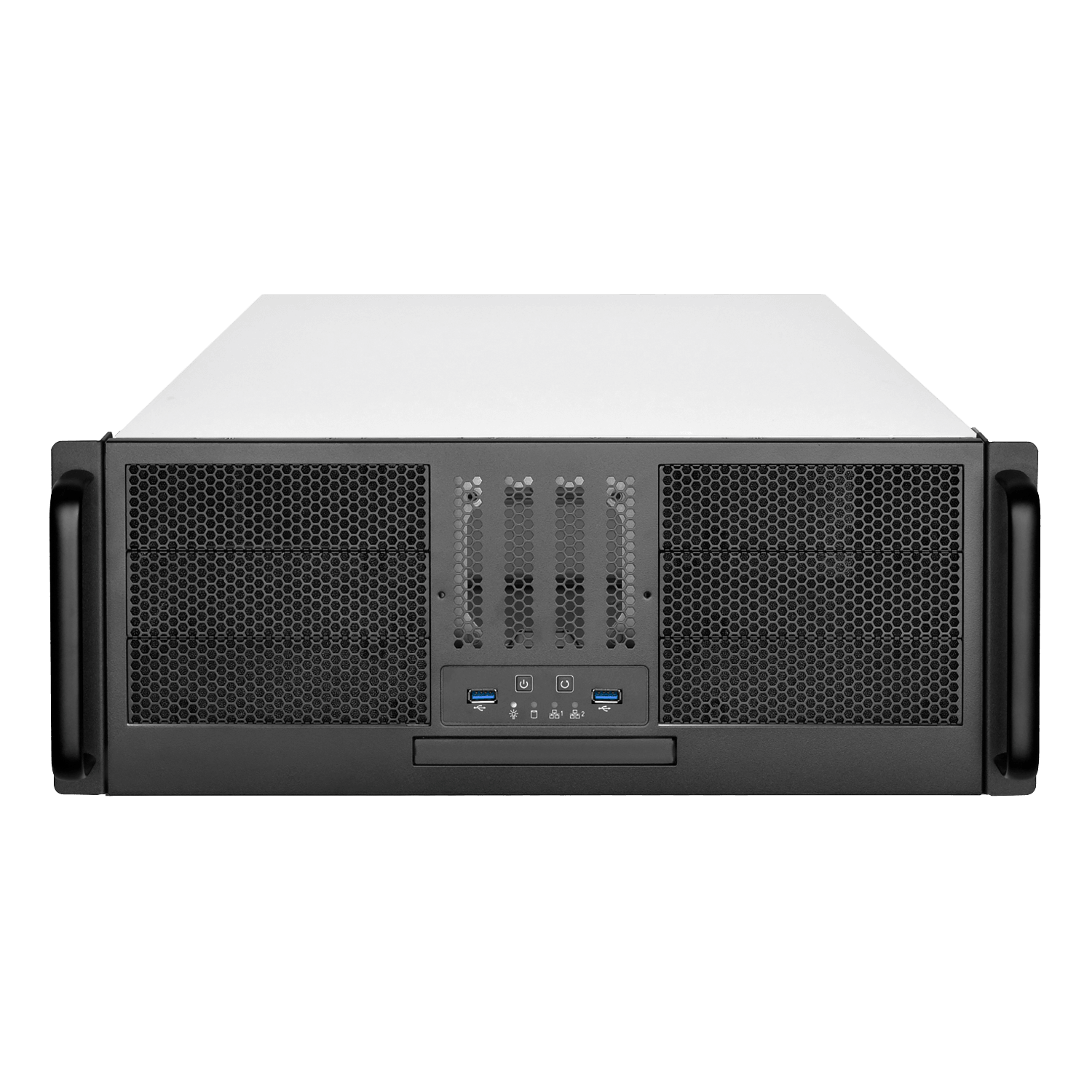

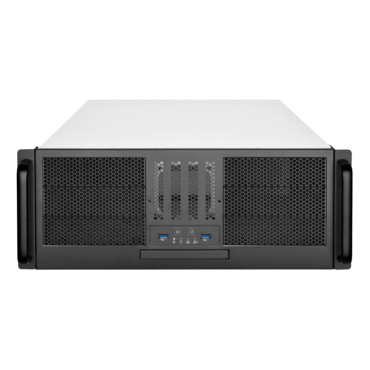

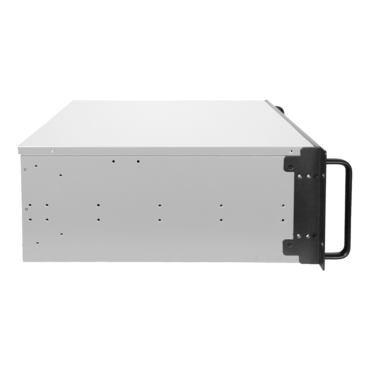

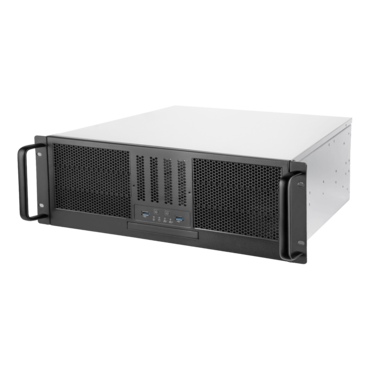

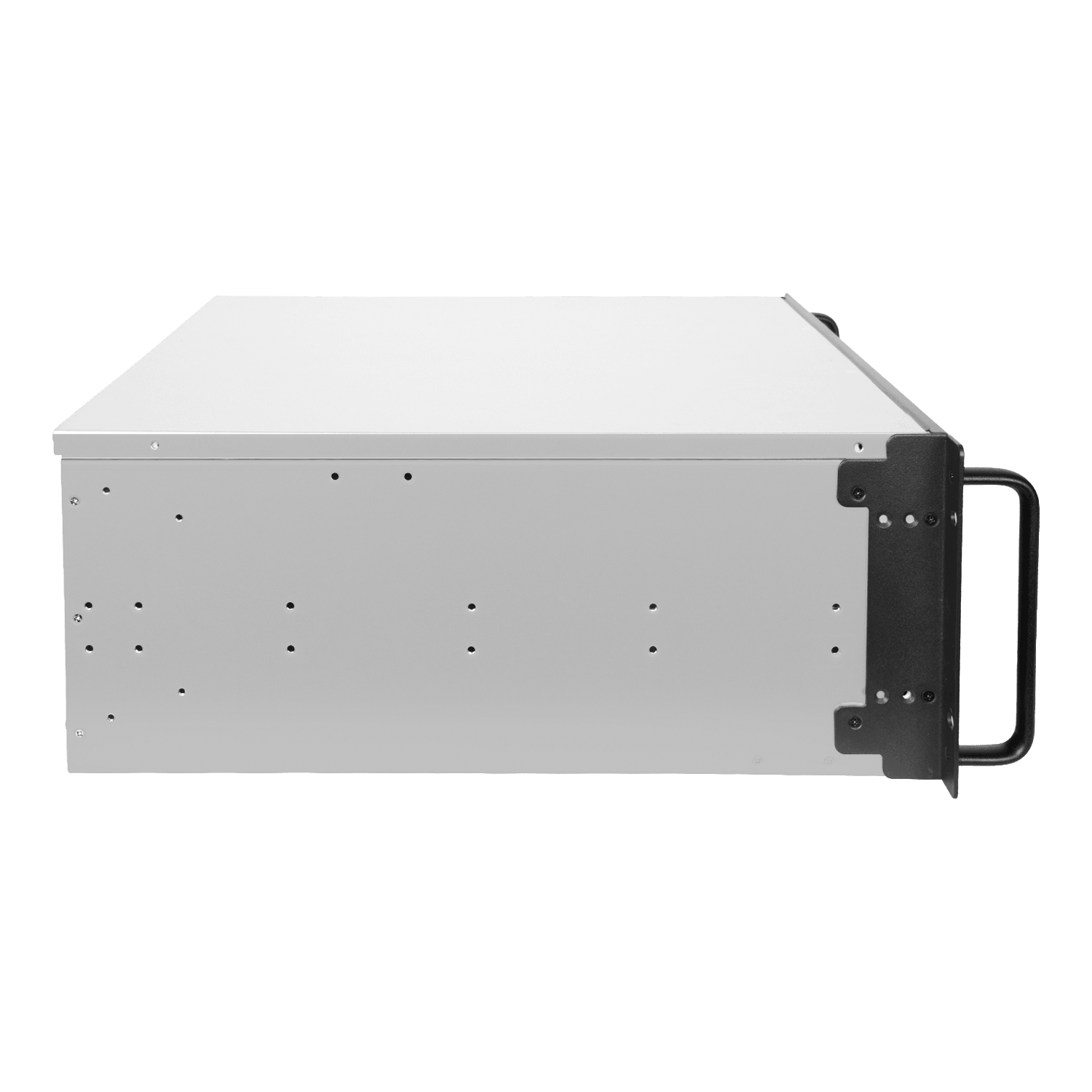

RM41-506 4U Rackmount Chassis, 6x 5.25", 4x 3.5", 3x 2.5" Black
- SKU: 15582637
- Manufacturer: SILVERSTONE
- MPN: RM41-506
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Supports up to SSI-CEB motherboard
- Supports Standard profile PCI / PCIe x 7 slots
- Six 5.25" drive bays for flexible 5.25" device installation
- 5Gbps Super Speed USB 3.1 Gen 1 interface, backward compatible with USB 2.0 / 1.1
- Mounting holes ready for quick rail slide installation (rail slide sold separately)
| Model No. | SST-RM41-506 |
| Chassis form factor | 4U |
| Motherboard | CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Material | SGCC |
| Main metal thickness | 1.2mm |

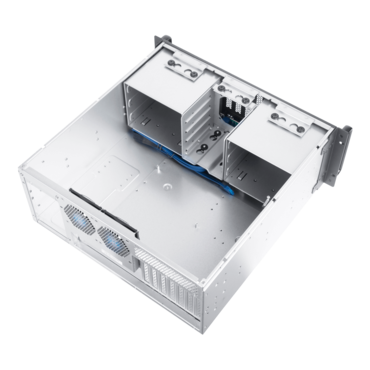

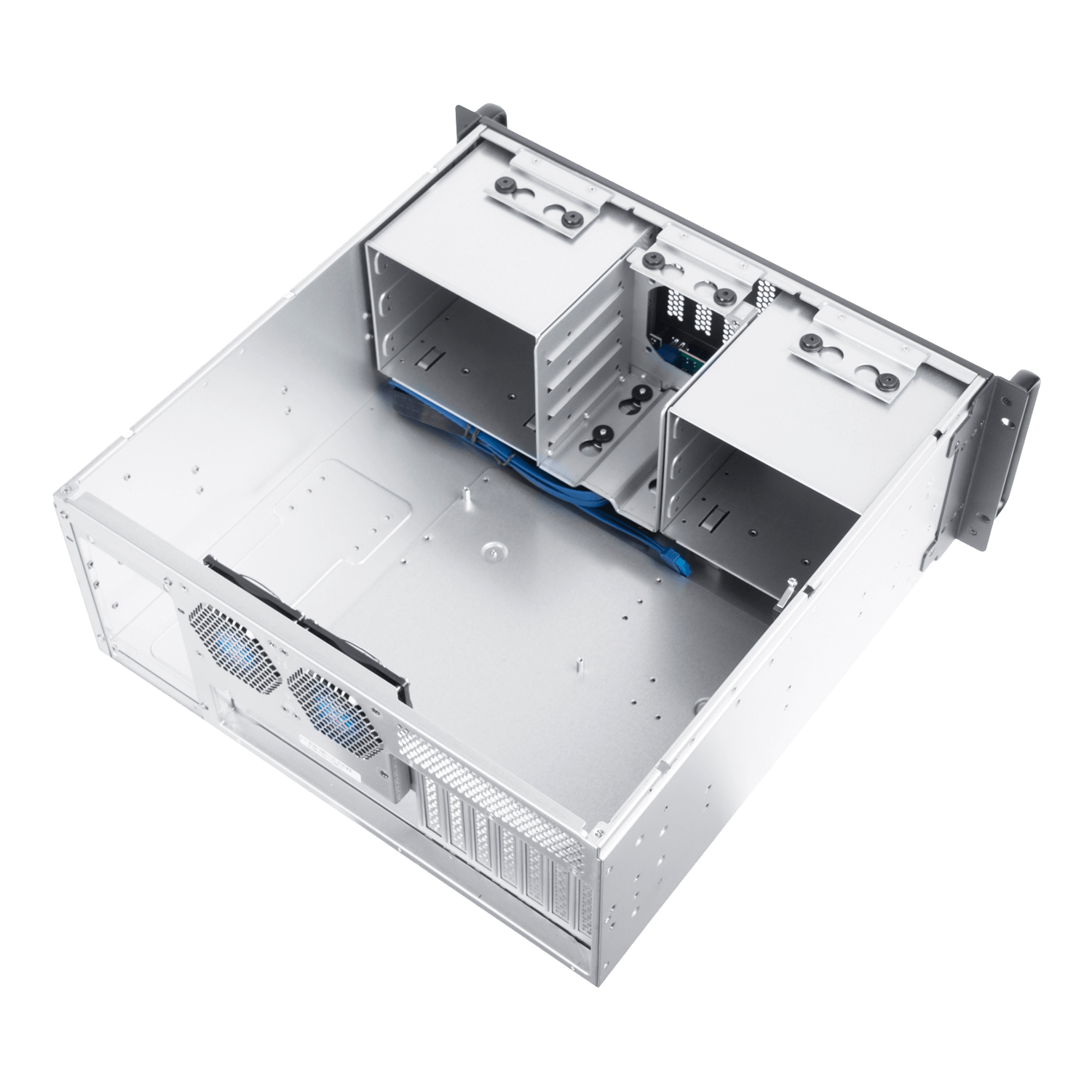

| Drive Support |
External: >5.25" drive bay x 6 Internal: > 4 x 3.5" 2 x 2.5” (up to 15mm) 1 x 2.5” (up to 15mm) or slim optical (12.7mm) |
| Cooling system |

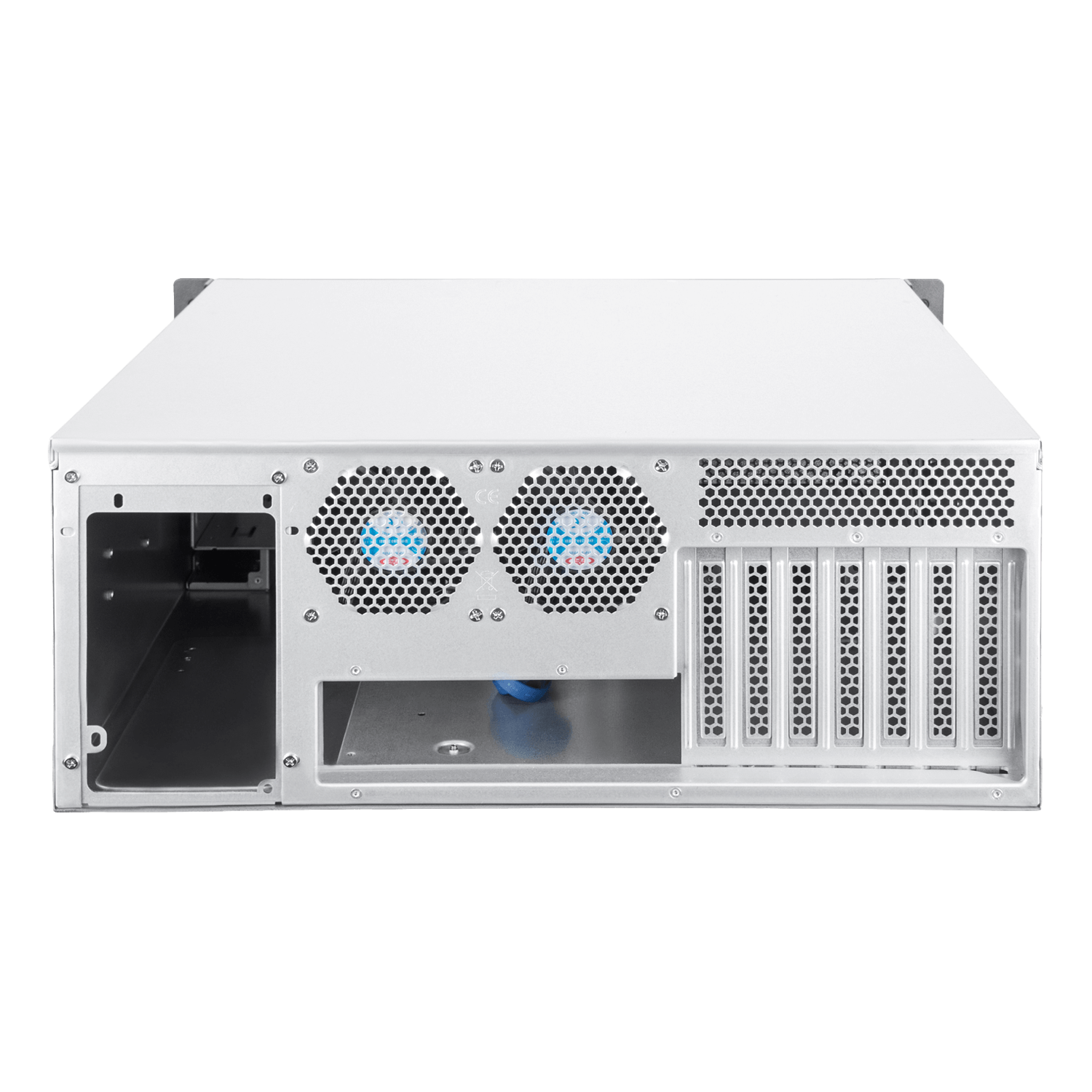

Front: >80 x 25mm fan x 1(fan not included) Rear: >80 x 25mm fan x 2 |
| Limitation of CPU cooler | Height w/ expansion card retainer: 130mm Height w/o expansion card retainer: 148mm |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Limitation of expansion card | Length w/ 5.25” drive cage: 278mm Length w/o 5.25” drive cage: 426mm |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) 2U Redundant (RM41-506 V2.0 or after) |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Front buttons | Power On / Off, system reset |
| LED Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
| Net Weight | 9.7 kg |
