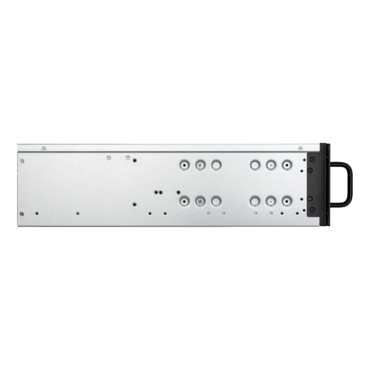

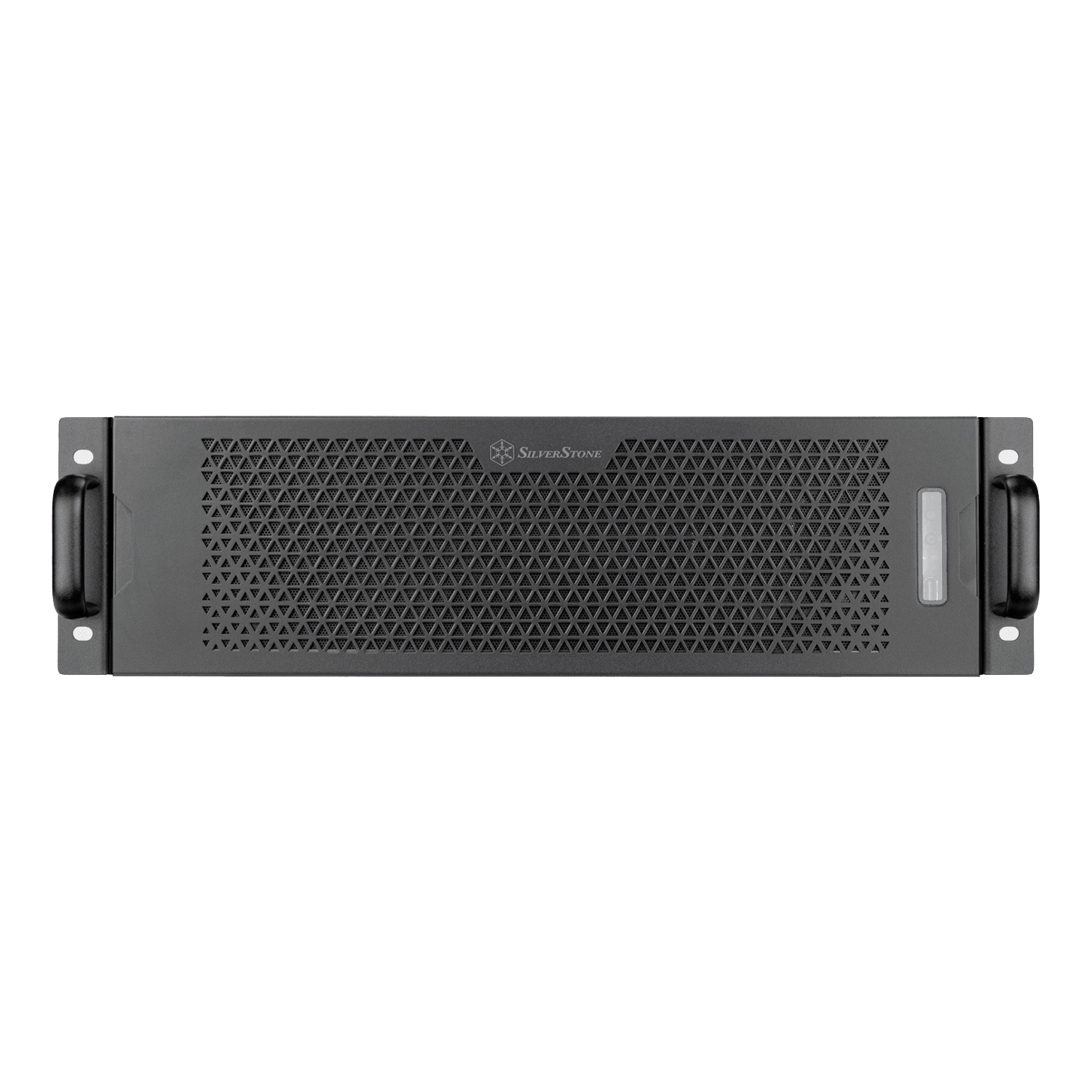

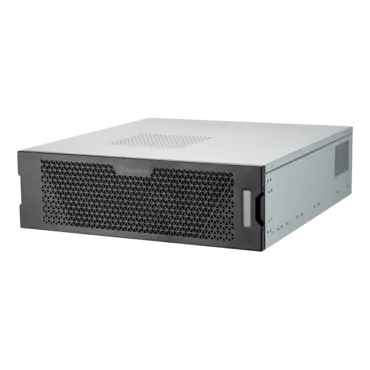

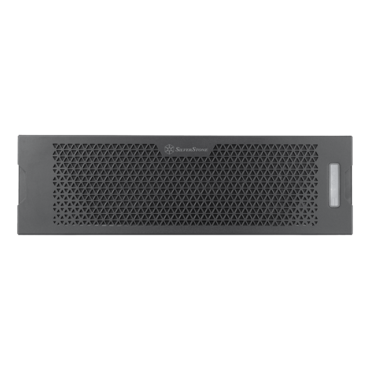

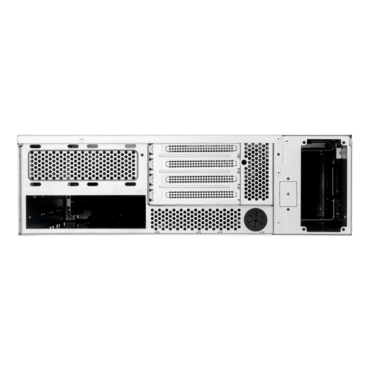

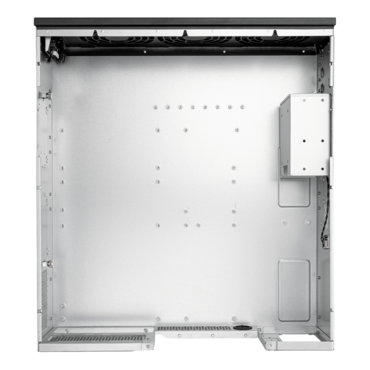

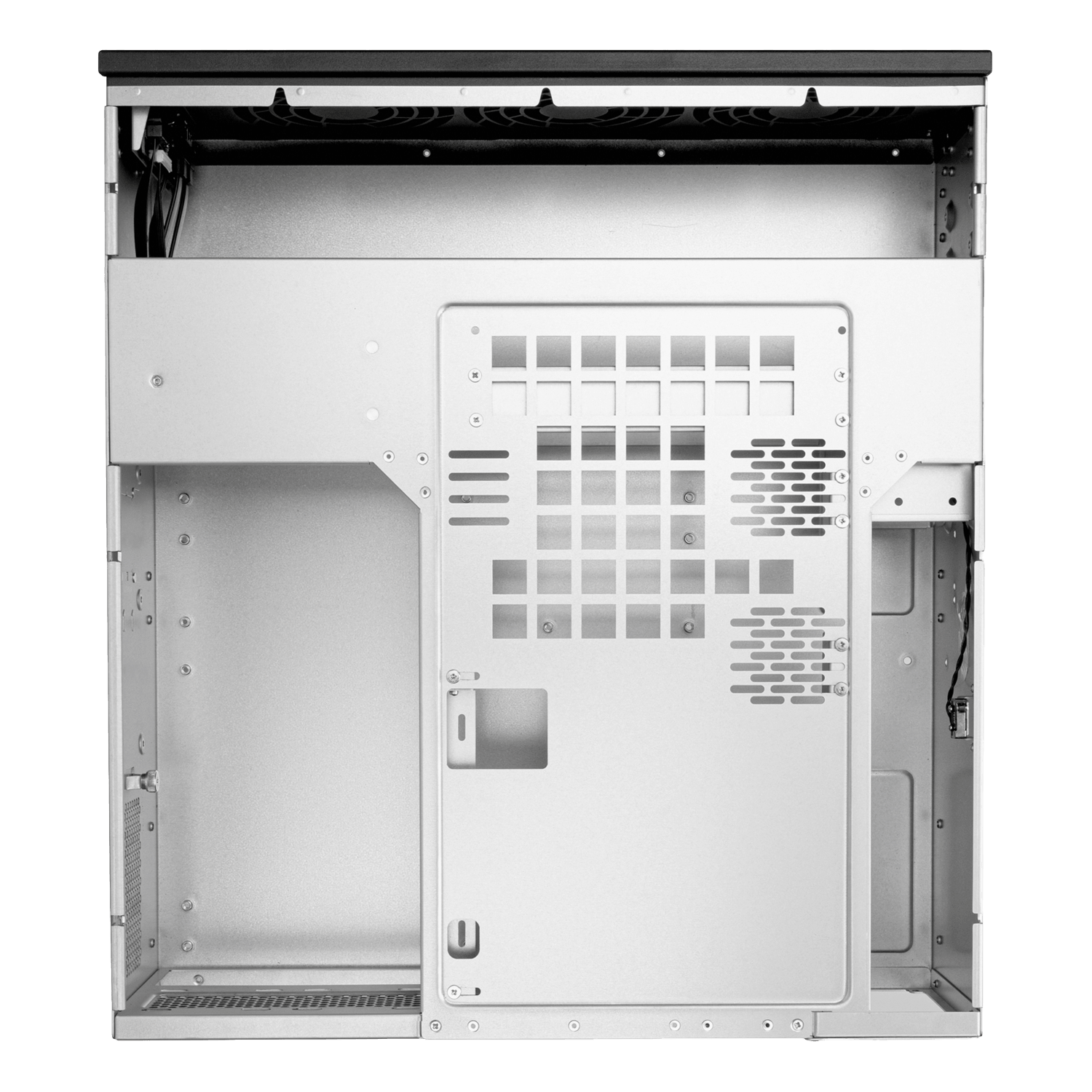

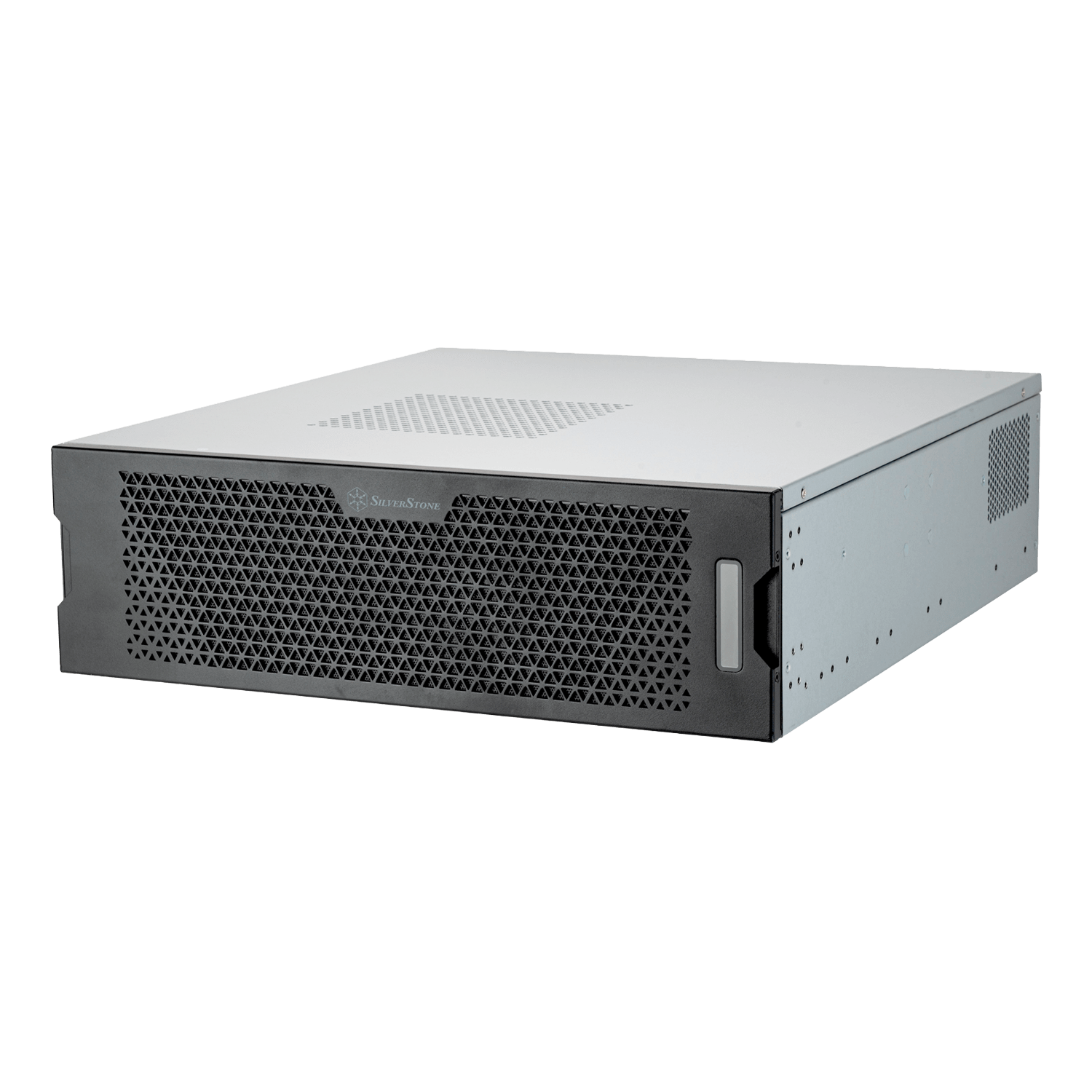

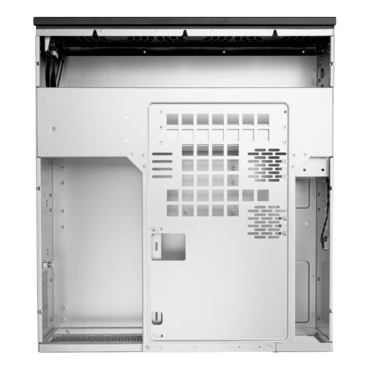

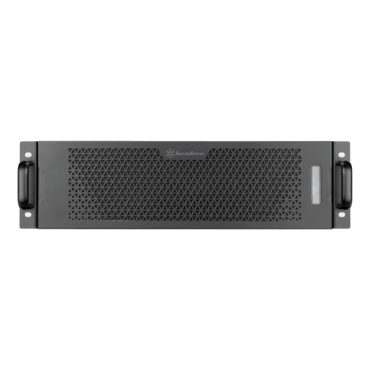

RM32, 2x 3.5"/2.5", 2x 2.5" Internal Bays, No PSU, E-ATX, Black, 3U Chassis
- SKU: 19878110
- Manufacturer: SILVERSTONE
- MPN: RM32
- Availability: TEMPORARILY OUT OF STOCK
Price
$539.36
- Compatible with motherboards up to SSI-EEB
- Supports SFX-L or 2U CRPS redundant power supplies
- Supports 4 full-height PCIe expansion slots and a high-end graphics card up to 177mm wide
- Supports 360mm liquid cooling radiators up to 6x120mm push and pull fans
- Supports CPU air coolers up to 110mm in height
| Model No. | SST-RM32 |
| Chassis Form Factor | 3U |
| Material | Steel |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive bay |
Internal 3.5"x2 or 2.5"x2, 2.5"x3 |
| Cooling system |
Front 120mm x 3 Rear Rear I/O: 60mm x 2 |
| Radiator support |
Front 120mm / 240mm / 360mm (Fans + radiators up to 80mm thickness) |
| Limitation of CPU cooler | 110mm 86mm (If the CPU Cooler area is located below the riser cable) |
| Expansion slot | 4 |
| Limitation of expansion card |
Length 360mm Width 177mm (with SFX-L PSU) 162mm (with SilverStone 2U CRPS redundant PSU) |
| Power supply | SFX/SFX-L / SilverStone 2U CRPS Redundant |
| Limitation of PSU | 250mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
| Front I/O port | USB Type-C x 1 USB 3.0 x 2 |
| LED Indicators | Power status x 1: Blue HDD activity x 1: White LAN activity x 2: Green |
| Dimension | 438mm (W) x 132mm (H) x 488mm (D) |
| Remark | Side switch for chassis intrusion security |
