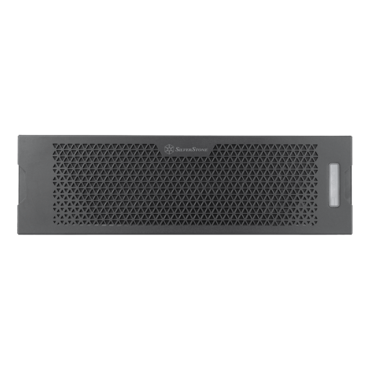

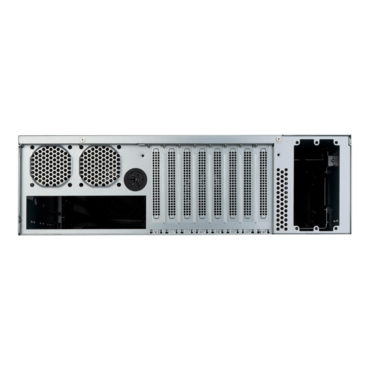

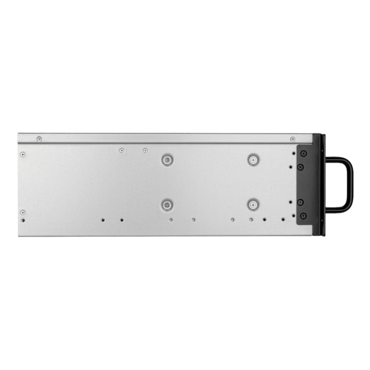

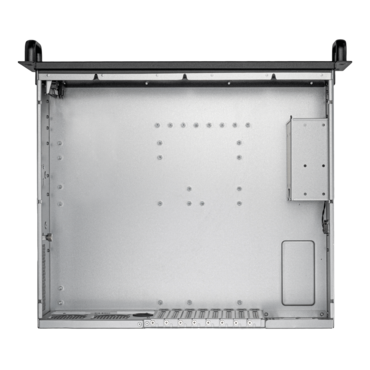

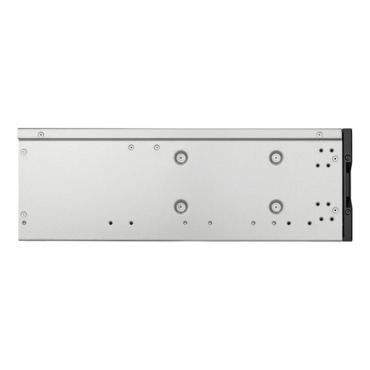

RM31-MINI, 2x 3.5"/2.5", 1x 2.5" Internal Bays, No PSU, E-ATX, Black, 3U Chassis
- SKU: 19834678
- Manufacturer: SILVERSTONE
- MPN: RM31-MINI
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$323.14
- Compatible with motherboards up to SSI-CEB
- Supports SFX-L power supplies
- Provides 8 full-height PCI expansion slots
- Supports 360mm liquid cooling radiators
- Supports CPU air coolers up to 110mm in height
- Includes one USB Type-C port
| Model No. | SST-RM31-MINI |
| Chassis Form Factor | 3U |
| Material | Steel |
| Motherboard | SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive bay | Internal 3.5"X2 or 2.5"X2, 2.5"X1 |
| Cooling system |

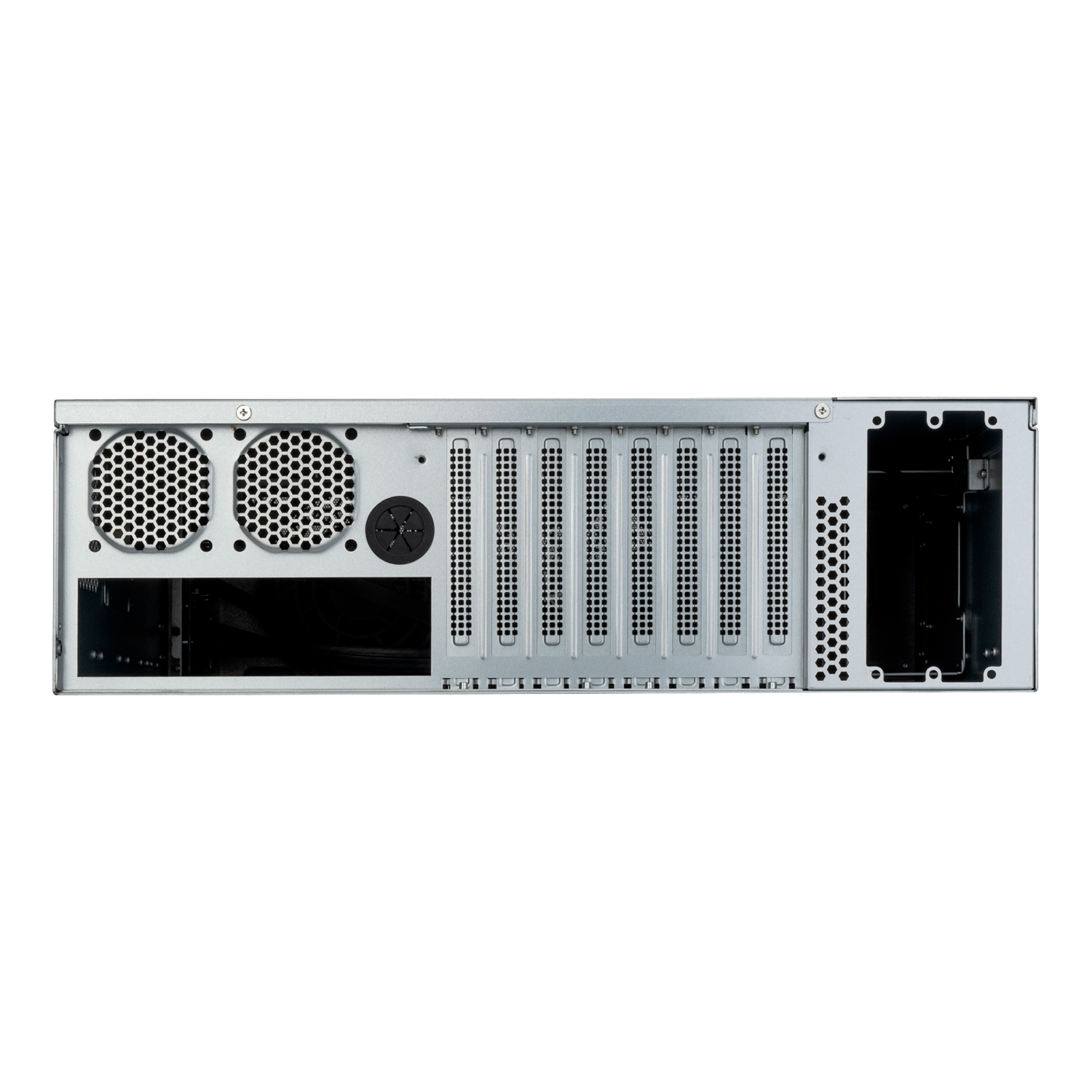

Front 120mm x 3 Rear Rear I/O: 60mm x 2 |
| Radiator support | Front 120mm / 240mm / 360mm |
| Limitation of CPU cooler | 110mm |
| Expansion slot | 8 |
| Limitation of expansion card |
Length 361mm (without installing front fans, radiators) Width 115mm |
| Power supply | SFX/SFX-L |
| Limitation of PSU | 130mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
| Front I/O port | USB Type-C x 1 USB 3.0 x 2 |
| LED Indicators | Power status x 1: Blue HDD activity x 1: White LAN activity x 2: Green |
| Dimension |
438mm (W) x 132mm (H) x 391mm (D), 22.61 liters 17.24" (W) × 5.20" (H) × 15.39" (D) |
| Remark | Side switch for chassis intrusion security |
