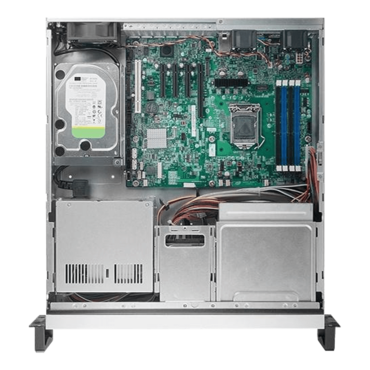

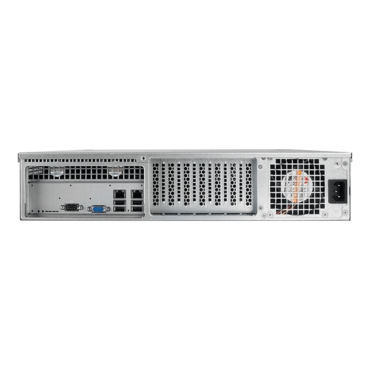

RM24100 (RM24100-0130C0), 2x 3.5" & 2x 5.25" External Bays, 2x 2.5" Internal Bays, 500W Flex ATX PSU, ATX, 2U Chassis
- SKU: 17551638
- Manufacturer: CHENBRO
- MPN: RM24100-0130C0
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| Model Name | RM24100 CRPS/Flex |
|---|---|
| M/B Form Factor | ATX (12" x 9.6") |
| Dimension (D x W x H) |
457.0 x 430.0 x 88.1(mm);18.00" x 16.93" x 3.47" Length: 457mm/18"(without bezel) and 476.5mm/18.7"(with bezel) |
| Drive Bay | External: 2 x 5.25", 2 x 3.5" |
| Internal: | 2 x 2.5" |
| Storage Backplane | N/A |
| PSU Form Factor |
Flex ATX single or 1+1 CRPS redundant Option: - Flex ATX, 500W (80+, Gold) - 2U Redundant CRPS 1+1, 550W (80+, Platinum) |
| Indicators | 1 x Power Status , 2 x LAN Activity , 1 x HDD Status |
| Front Control | 1 x Power On/Off, 1 x System Reset , 2 x USB 3.0 |
| Cooling Fans |
1 x 80mm (T=32mm) , PWM , 5000 RPM, non hot swap, front 2 x 40mm (T=28mm) , PWM , 14500 RPM, non hot swap, rear (Option) |
| Expansion Slot Opening | 7 x Low Profile |
| Slide Rail |
- 20", P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less - 26", P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less |
| Net Weight | 6.9 KG |
| Gross Weight | 9.4 KG |
