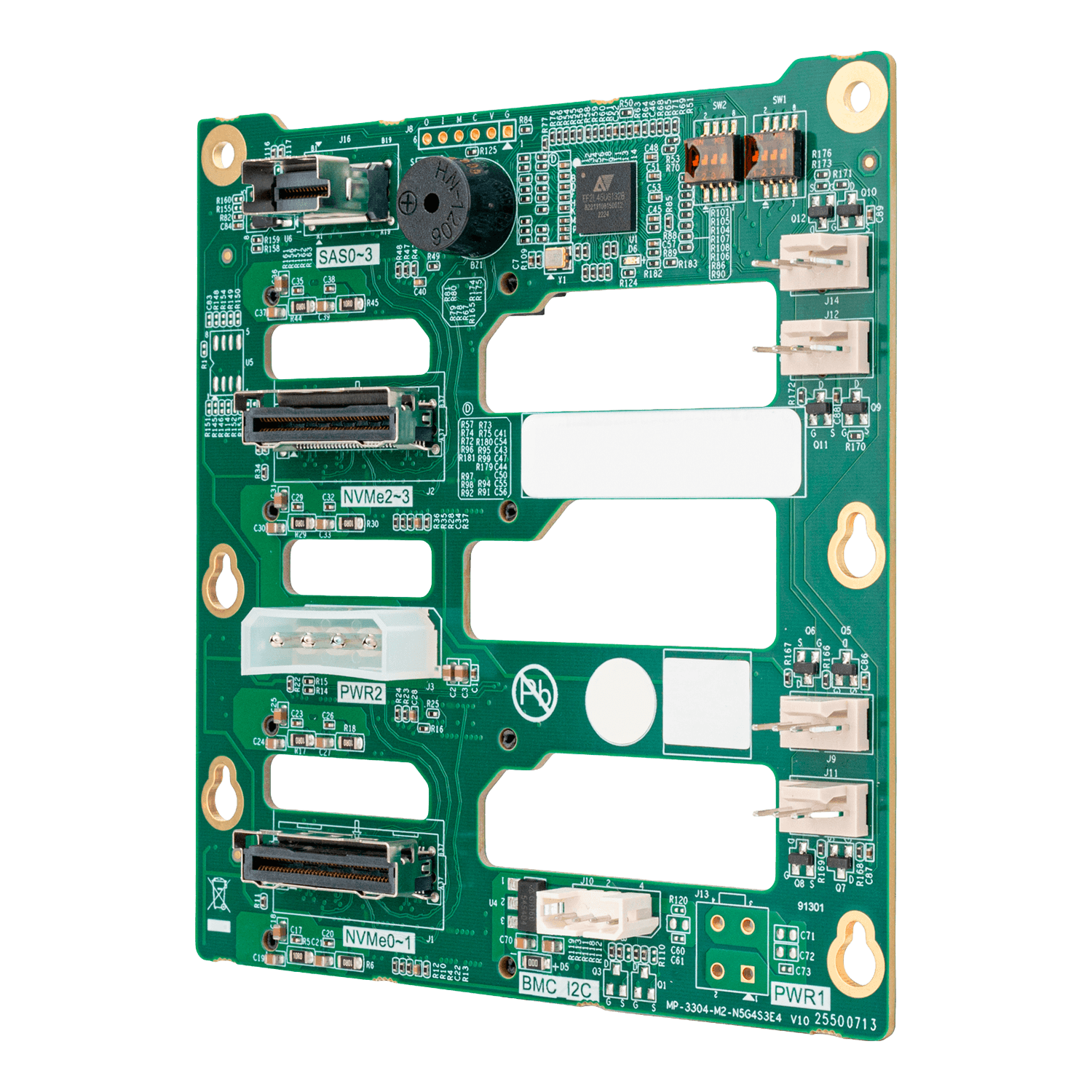

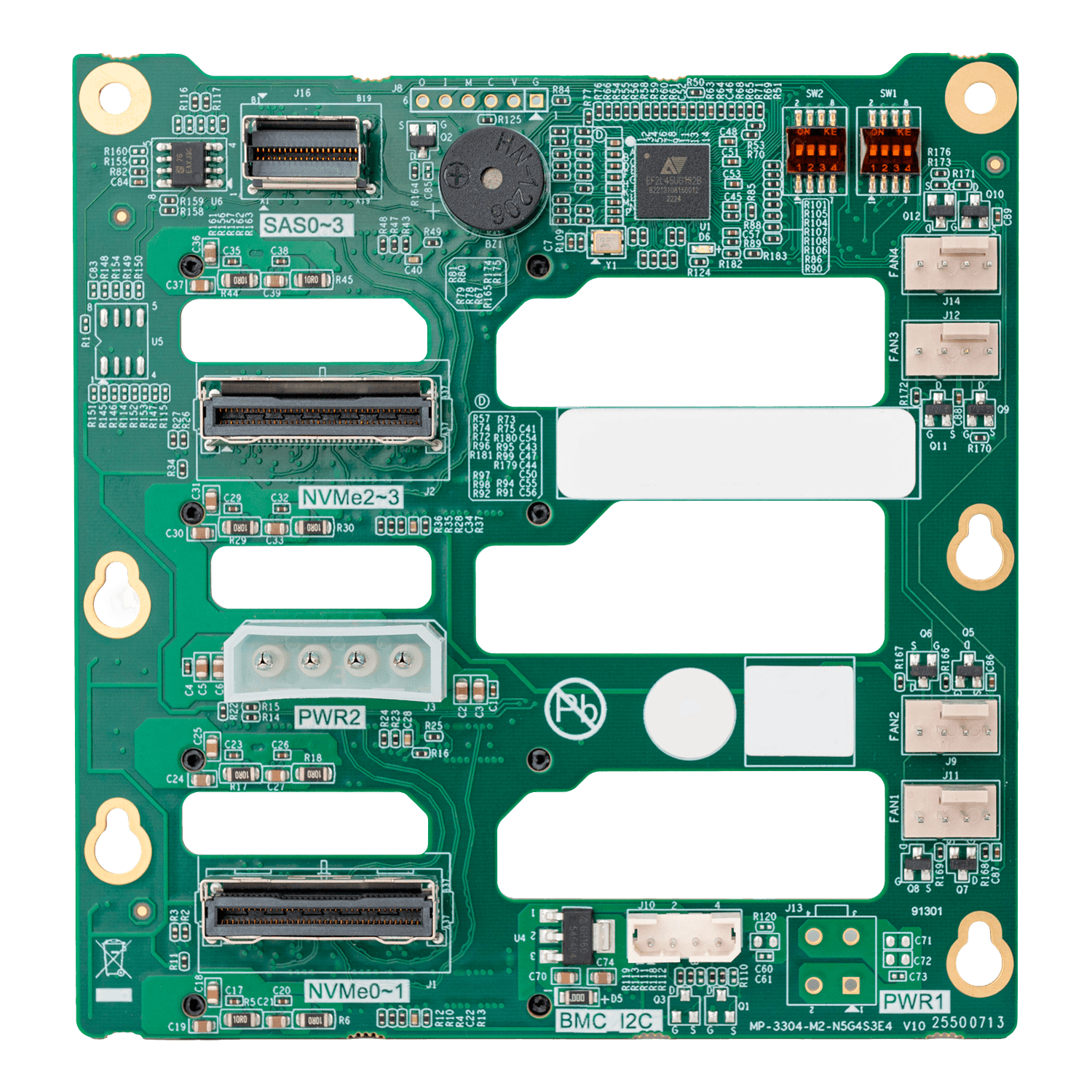

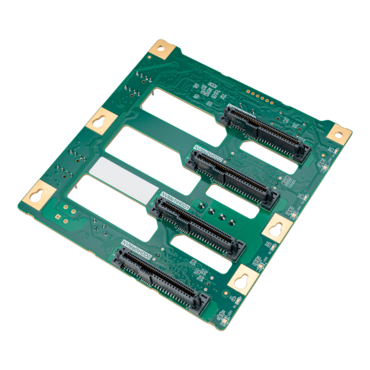

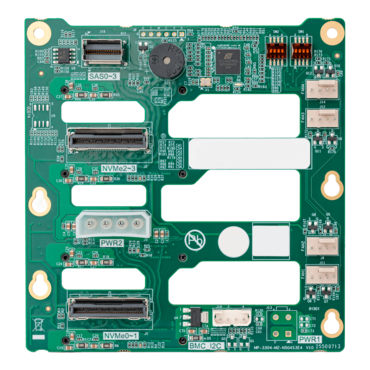

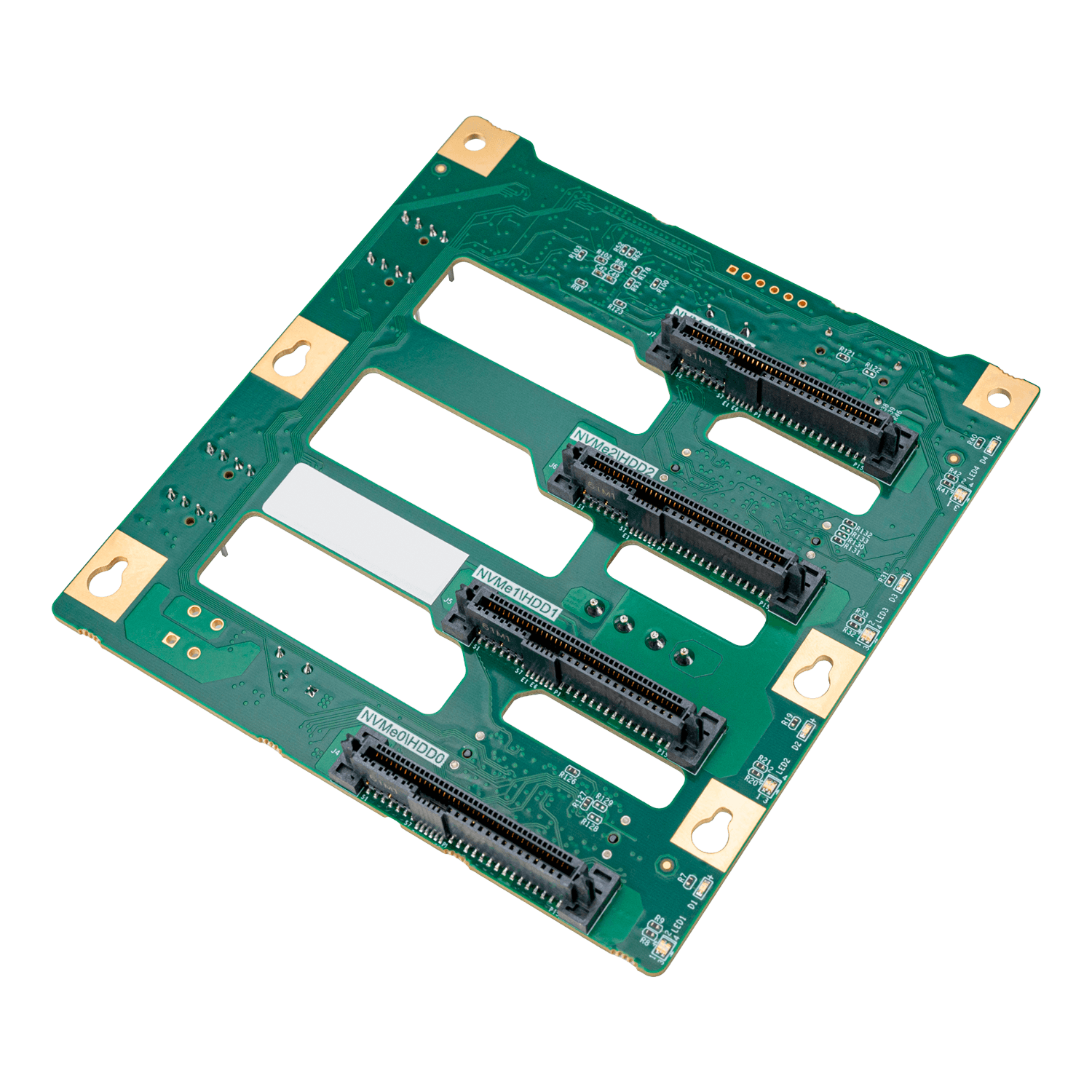

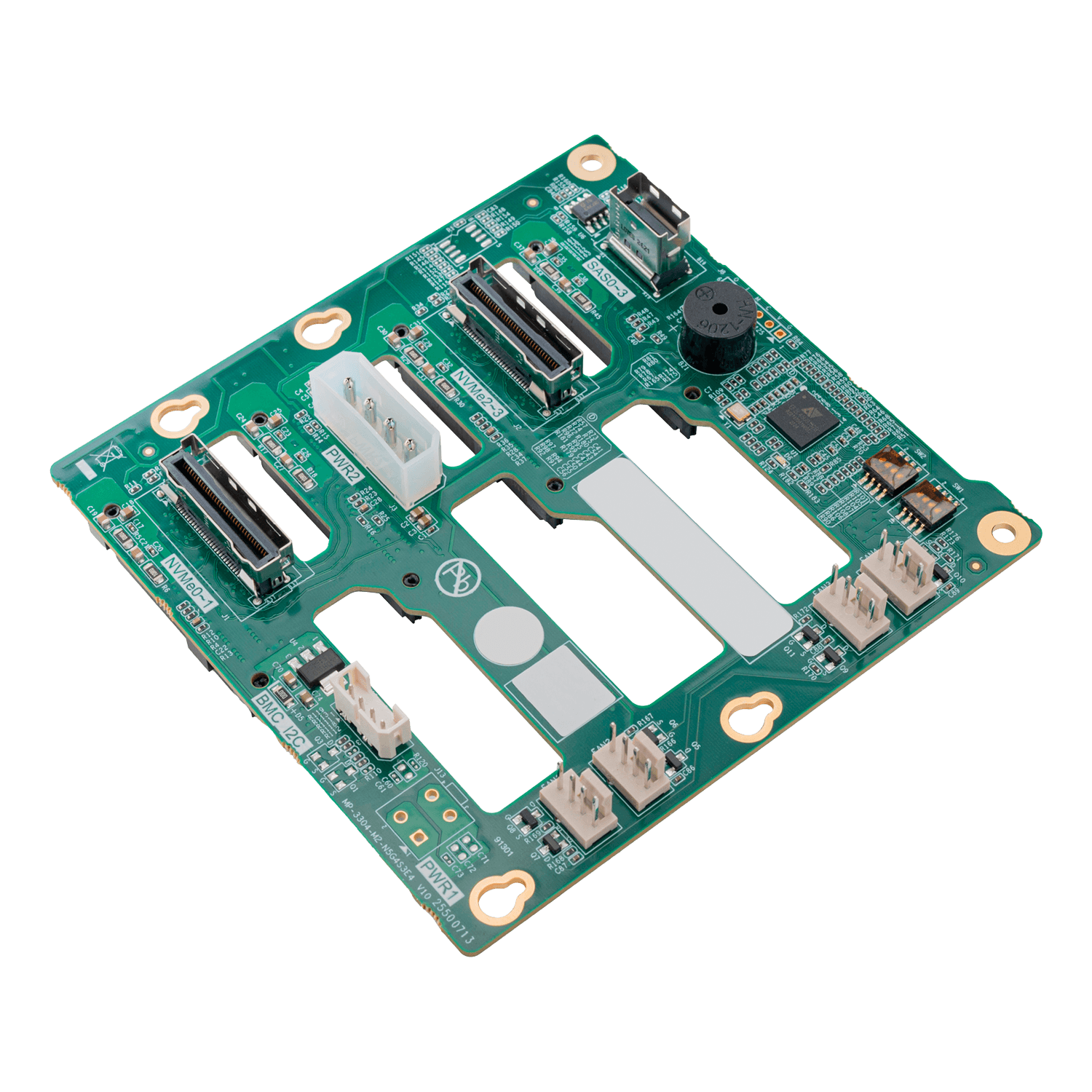

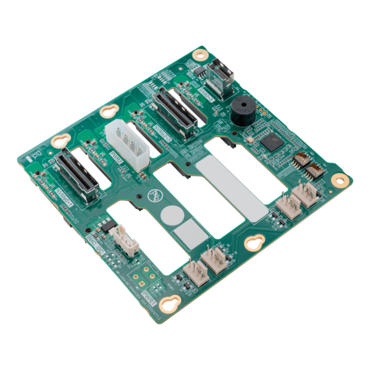

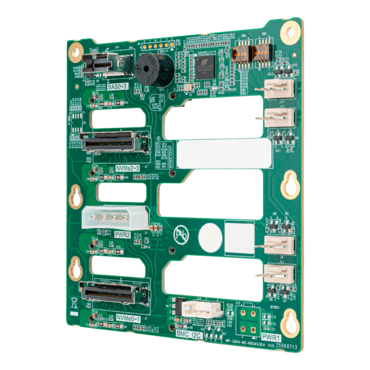

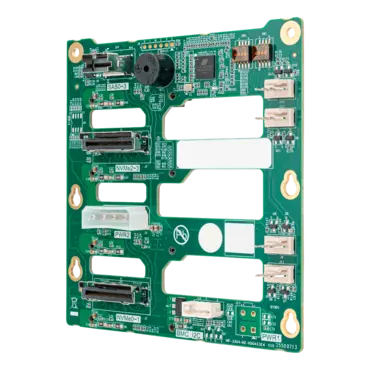

RAC380-BP-304H, 4-Bay NVMe U.2 or SAS/SATA SSD/HDD Backplane for WS380-E Workstation
- SKU: 20482676
- Manufacturer: SILVERSTONE
- MPN: RAC380-BP-304H
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Designed for the SilverStone WS380-E workstation chassis
- Dual MCIO 8i (SFF-TA-1016) interfaces support up to four PCIe Gen4 NVMe U.2 (SFF-8639) SSDs with transfer speeds of up to 32Gbps per channel and 64Gbps in total
- SlimSAS 4i (SFF-8654) interface supports up to four SAS/SATA drives with transfer speeds of up to 12Gbps per channel and SGPIO functionality
- Supports PCIe NVMe U.2 or SAS/SATA SSD/HDD (non tri-mode) for flexible storage configurations
* The motherboard or add-in card must support PCIe bifurcation to split PCIe x16/x8 slots into 4×4 or 4×2.
| Model No. | SST-RAC380-BP-304H |
| HDD backplane |
power connector
|
| Drive Support |
2.5"/3.5" PCIe NVMe U.2 (SFF-8639) SSD x 4 OR 2.5"/3.5" SAS/SATA SSD/HDD x 4 |
| LED Indicators | HDD Access LED x 4: Blinking green HDD Status LED x 4: Blinking blue/Red |
| Support list | WS380-E |
| Dimension | 106mm (W) x 110mm (H) x 25mm (D) |
| Net Weight | 57g |
| Extra | * Please ensure that the HBA/RAID card and cable used are compliant with the SFF-9402 pinout specification. |
